Module with Filter and Brush for PRO
Module w. Filter and Brush, Opening A, RAL7035, for PRO
Varenummer:
PRO-MOD06A.GR
EAN Nr.:
4049759219307
Produktinformationen für Module w. Filter and Brush, Opening A, RAL7035, for PRO

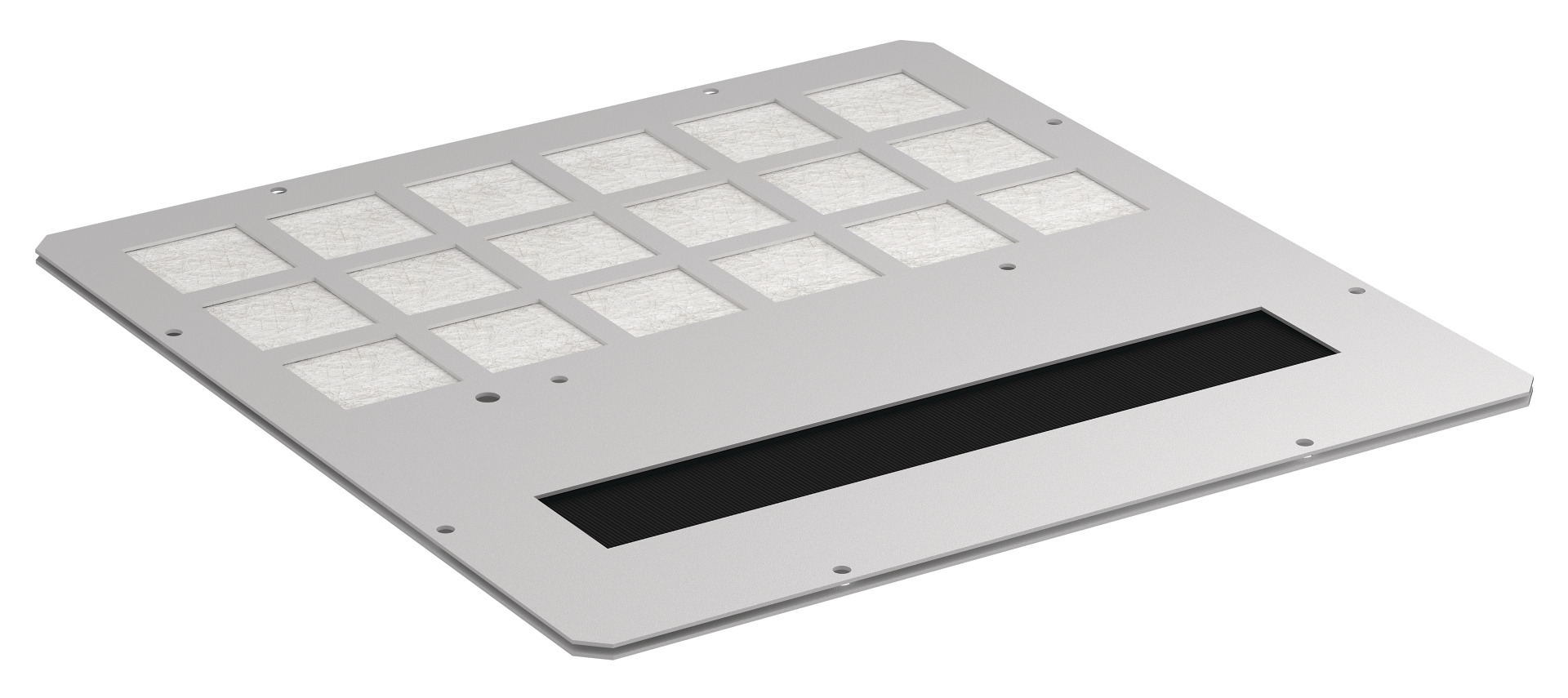

Module insert for cabinet bottom in cabinet series PRO
Cable entry via brush, air inlet via filter mat

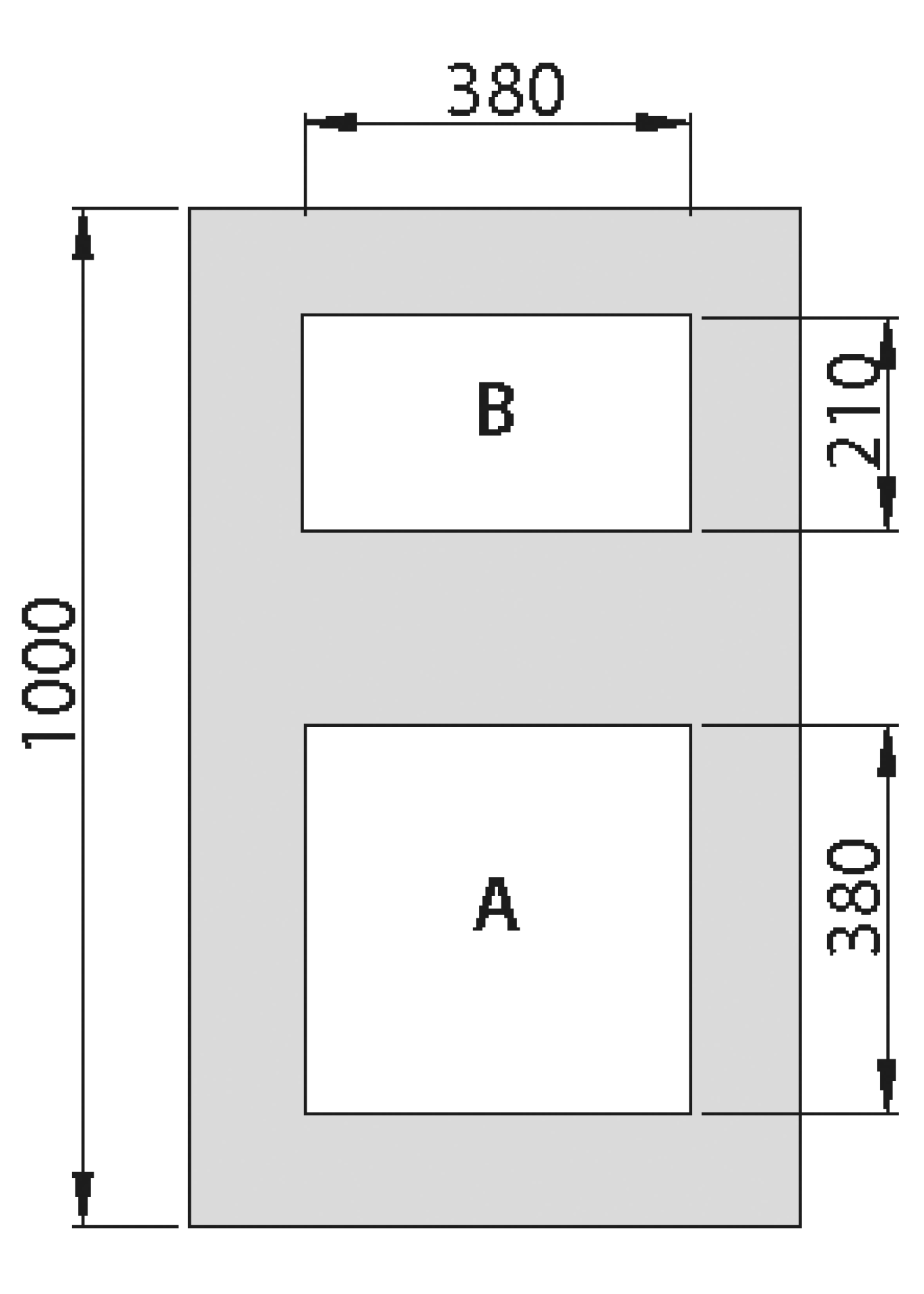

Suitable for opening 380 x 380 mm (A-type, see sketch)
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Delivery incl. mounting material
Cable entry via brush, air inlet via filter mat
Suitable for opening 380 x 380 mm (A-type, see sketch)
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Delivery incl. mounting material
Technische Eigenschaften
| Cabinet Series: | PRO |
|---|---|
| For Opening: | Type A (380 x 380 mm) |
| Material: | Metal |
| Model: | Floor plate |
| Variant: | With filter and brush entry |
Varianten
| Art. Nr. | Bezeichnung | Depth | Colour | Width | RAL-number | |
|---|---|---|---|---|---|---|
| PRO-MOD06A.GR | Module w. Filter and Brush, Opening A, RAL7035, for PRO | 380 mm | grey | 380 mm | 7035 | |
| PRO-MOD06A.TS | Module w. Filter and Brush, Opening A, RAL9005, for PRO | 380 mm | black | 380 mm | 9005 |
