MTP®-F/LC 12-fiber patch cable OS2
MTP®/APC(F)-LC Trunk cable OS2 12 fibers Typ B LSZH yellow 5m
Varenummer:
MTPF12LCOS2-5
EAN Nr.:
4049759216061
Produktinformation til MTP®/APC(F)-LC Trunk cable OS2 12 fibers Typ B LSZH yellow 5m
Application: Suitable for transmission links up to 100 Gigabit

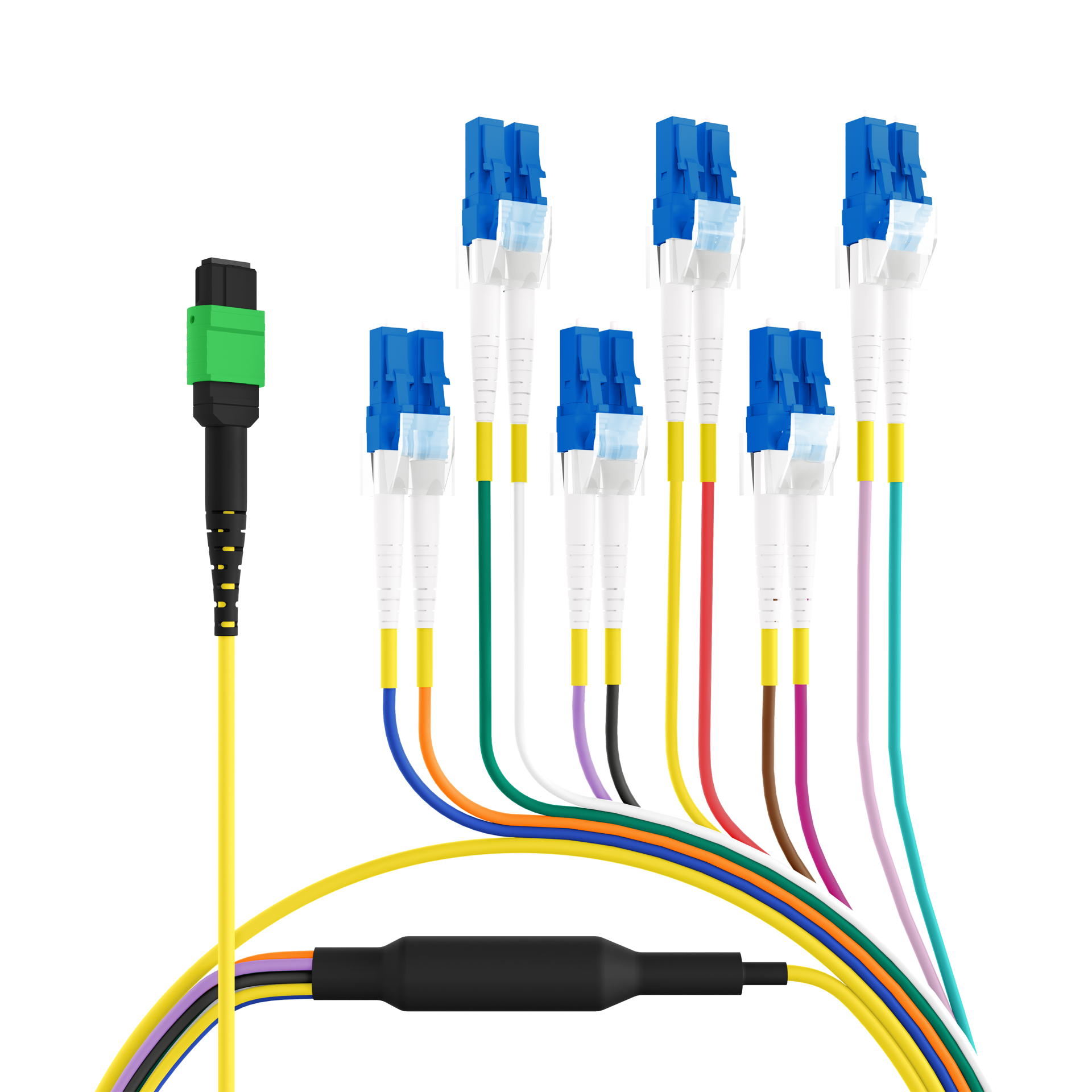

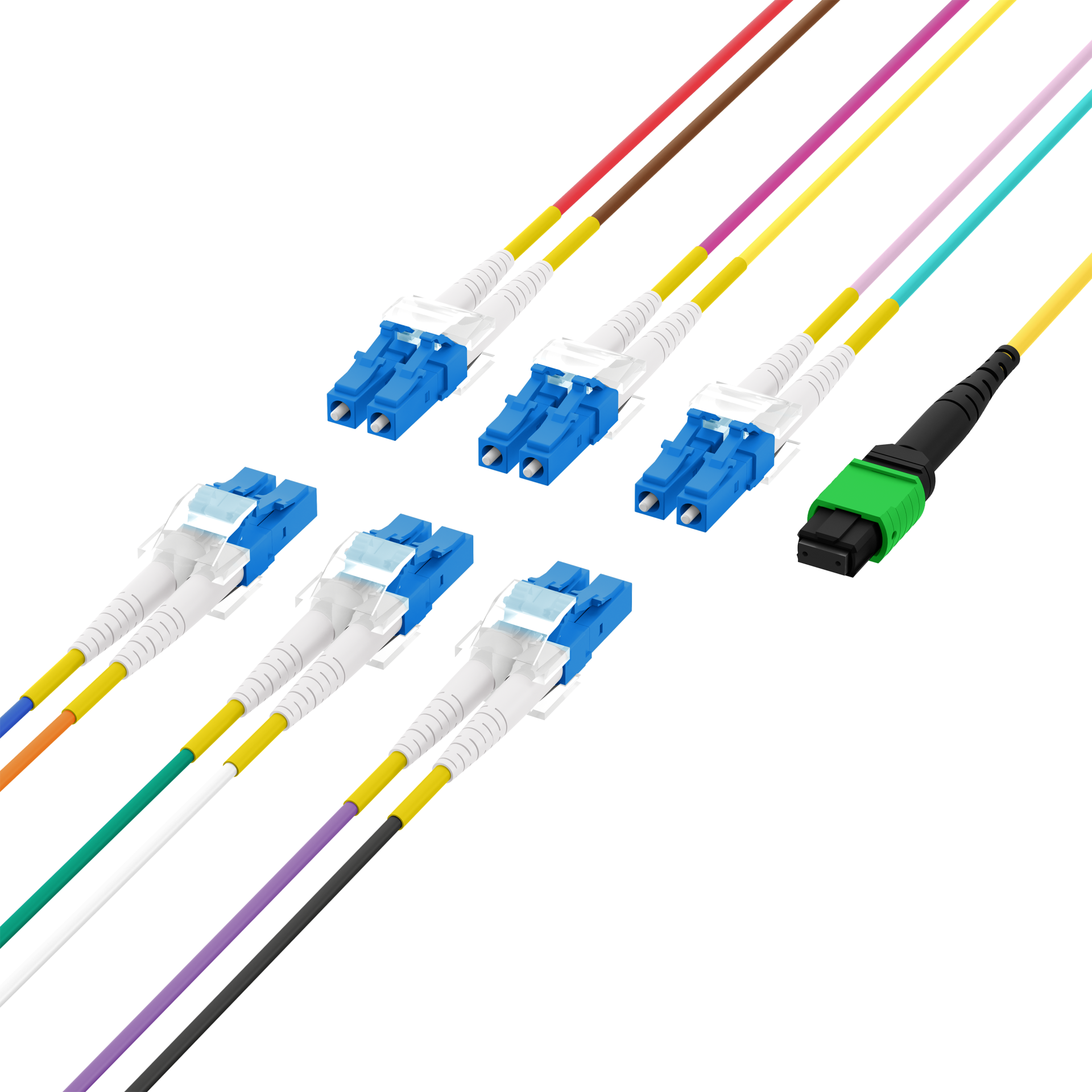

Construction: 1 multi-connector MTP® on one side,
6 LC-Duplex connector on the other side
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 12 fibers
Furcation length: 50cm
Cable diameter multi-connector: 3mm
Cable diameter single-connector: 2mm
Colour: OM5, OM4, OM3 and OS2 acc. to colour code DIN VDE 0888
MTP Singlemode connectors are in APC version
Construction: 1 multi-connector MTP® on one side,
6 LC-Duplex connector on the other side
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 12 fibers
Furcation length: 50cm
Cable diameter multi-connector: 3mm
Cable diameter single-connector: 2mm
Colour: OM5, OM4, OM3 and OS2 acc. to colour code DIN VDE 0888
MTP Singlemode connectors are in APC version
Tekniske egenskaber
| Betriebstemperatur: | -20 – 70 °C |
|---|---|
| Faserart: | G657A1 9/125 |
| Gekreuzt: | Nein |
| Halogenfrei nach EN 50267-2-3: | Ja |
| Kabeldurchmesser: | 3,0 mm |
| Kategorie: | OS2 |
| Lagertemperatur: | -20 – 70 °C |
| Mantel-Farbe: | gelb |
| Mit Nagetierschutz: | Nein |
| Polarität: | 1:1 |
| Steckverbinder Anschluss 1: | MTP-F |
| Steckverbinder Anschluss 2: | LC-Duplex |
Varianten
| Art. Nr. | Bezeichnung | Faser-Anzahl | Anzahl der Steckverbinder Anschluss 1 | Anzahl der Steckverbinder Anschluss 2 | Länge | |
|---|---|---|---|---|---|---|
| MTPF12LCOS2-1 | MTP®/APC(F)-LC Trunk cable OS2 12 fibers Typ B LSZH yellow 1m | 12 | 1 x MTP® female | 12 x LC | 1,0 m | |
| MTPF12LCOS2-2 | MTP®/APC(F)-LC Trunk cable OS2 12 fibers Typ B LSZH yellow 2m | 12 | 1 x MTP® female | 12 x LC | 2,0 m | |
| MTPF12LCOS2-3 | MTP®/APC(F)-LC Trunk cable OS2 12 fibers Typ B LSZH yellow 3m | 12 | 1 x MTP® female | 12 x LC | 3,0 m | |
| MTPF12LCOS2-5 | MTP®/APC(F)-LC Trunk cable OS2 12 fibers Typ B LSZH yellow 5m | 12 | 1 x MTP® female | 12 x LC | 5.0 m | |
| MTPF12LCOS2-10 | MTP®/APC(F)-LC Trunk cable OS2 12 fibers Typ B LSZH yellow 10m | 12 | 1 x MTP® female | 12 x LC | 10,0 m | |
| MTPF12LCOS2-15 | MTP®-F/LC 12-fiber patch cable OS2 | 12 | 1 x MTP® female | 12 x LC | 15,0 m |
