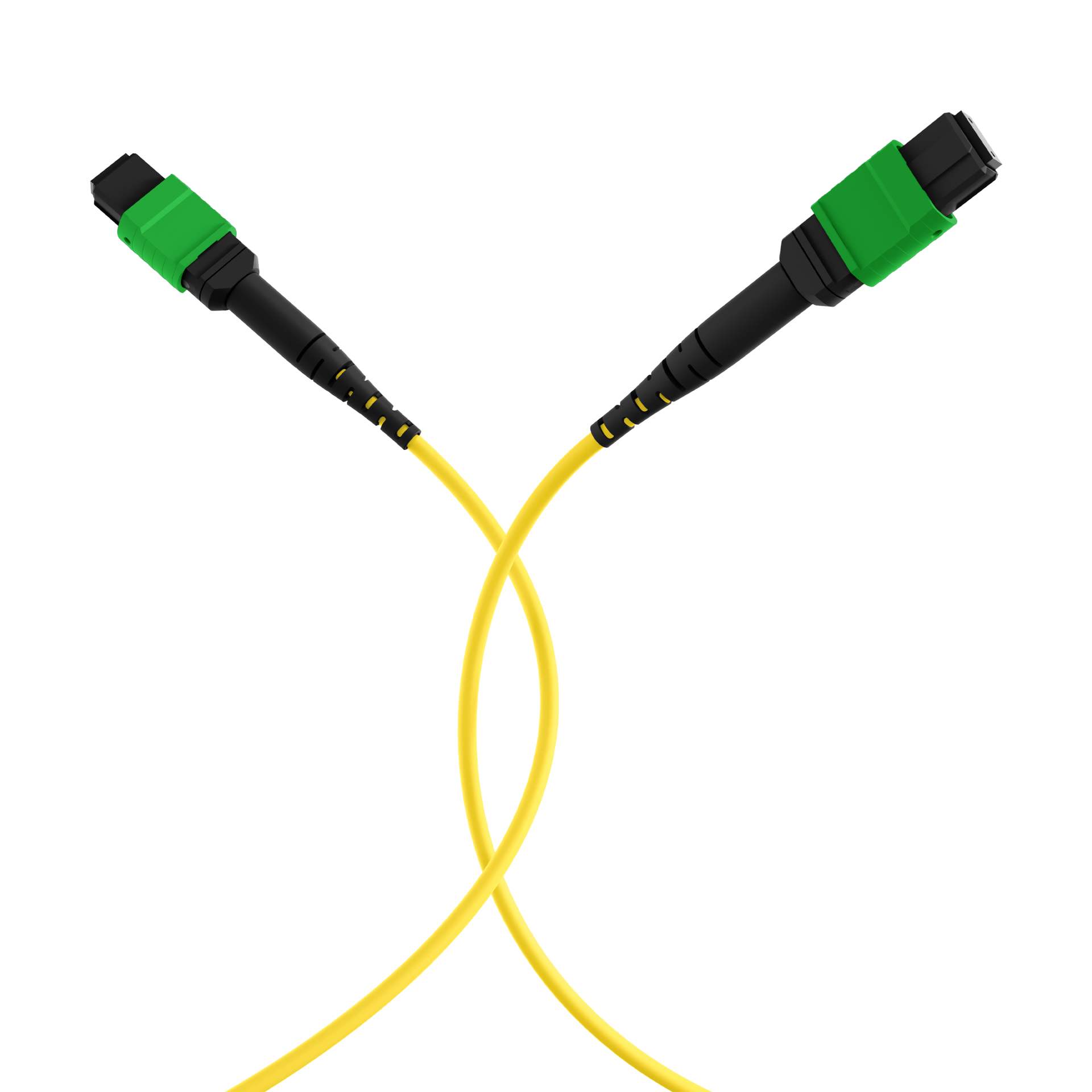

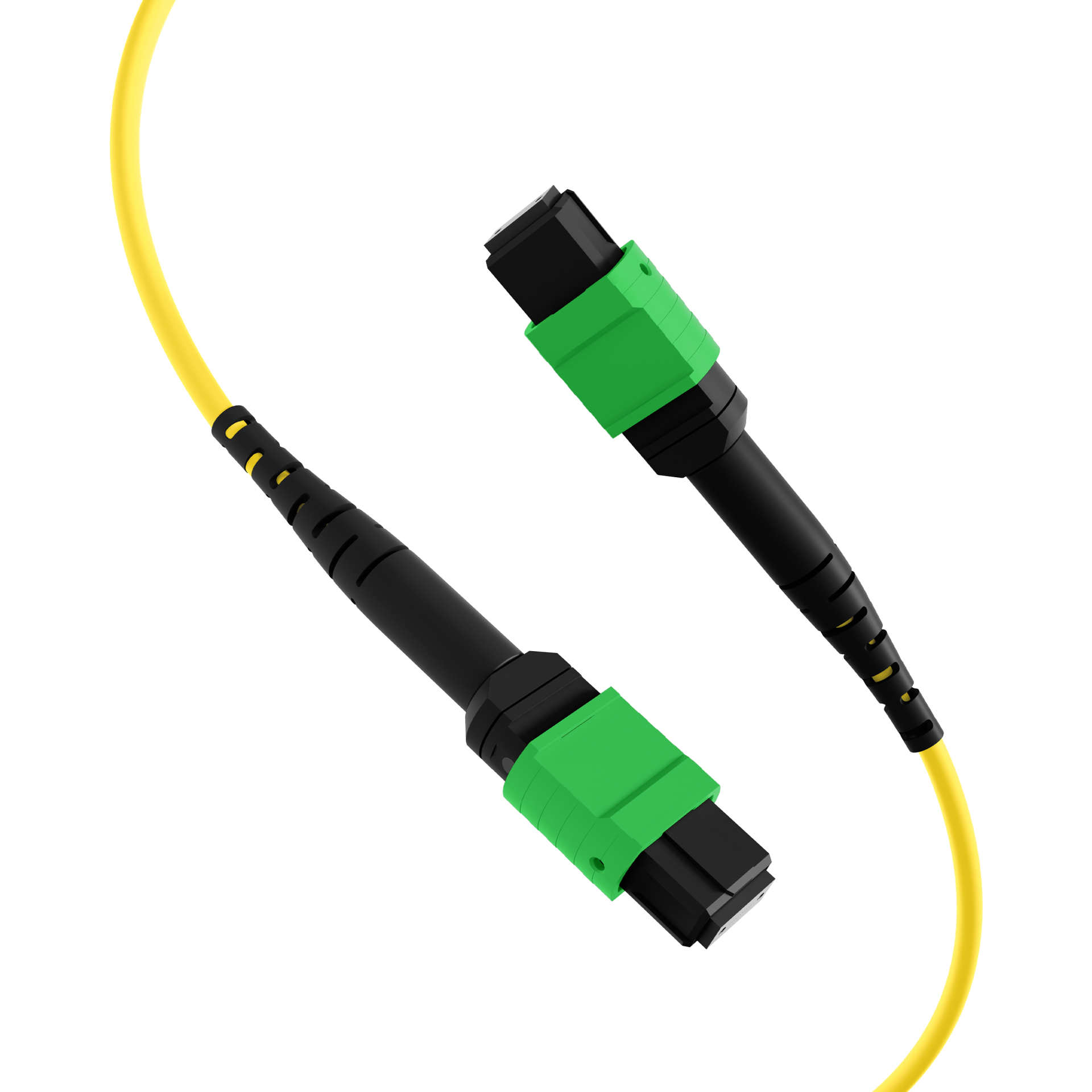

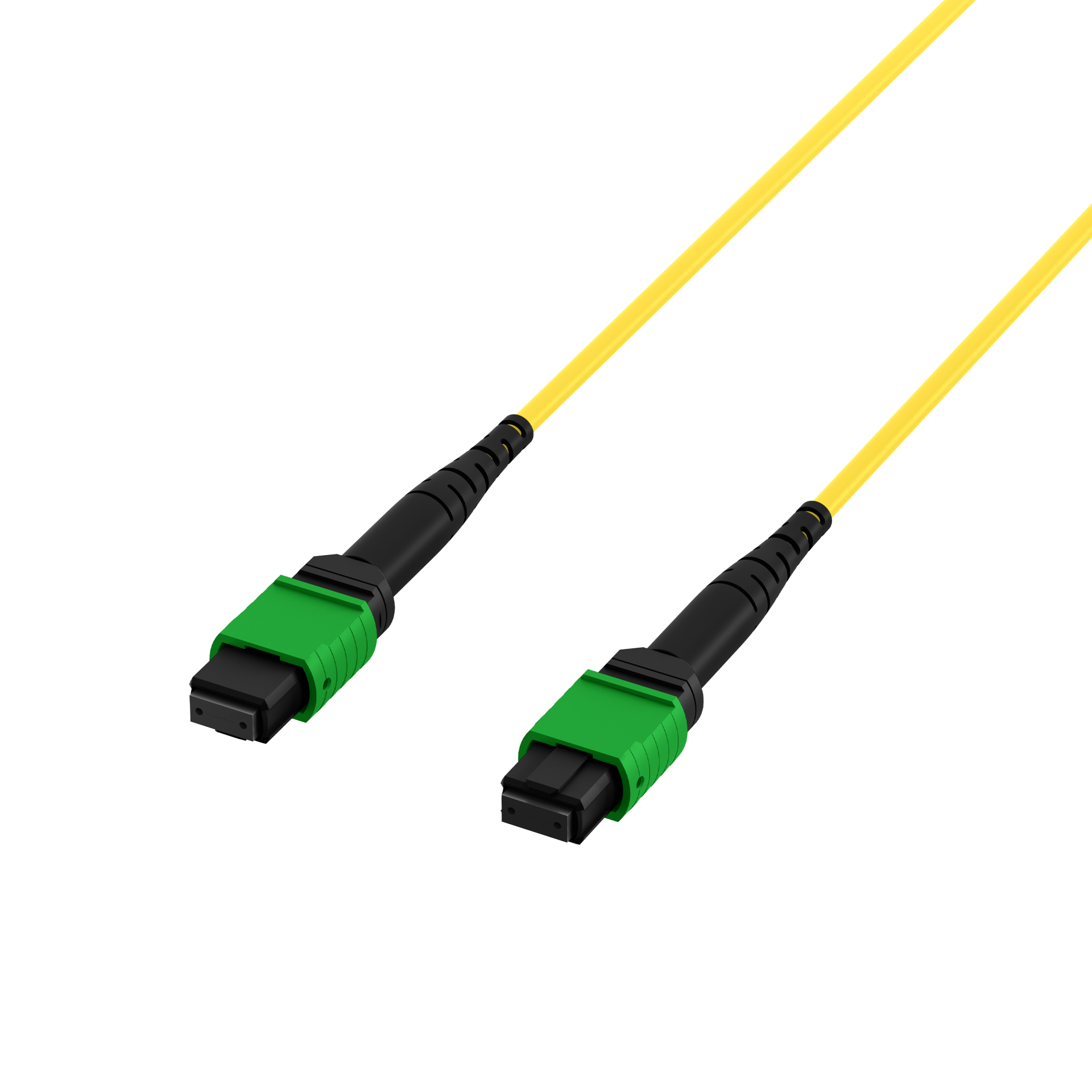

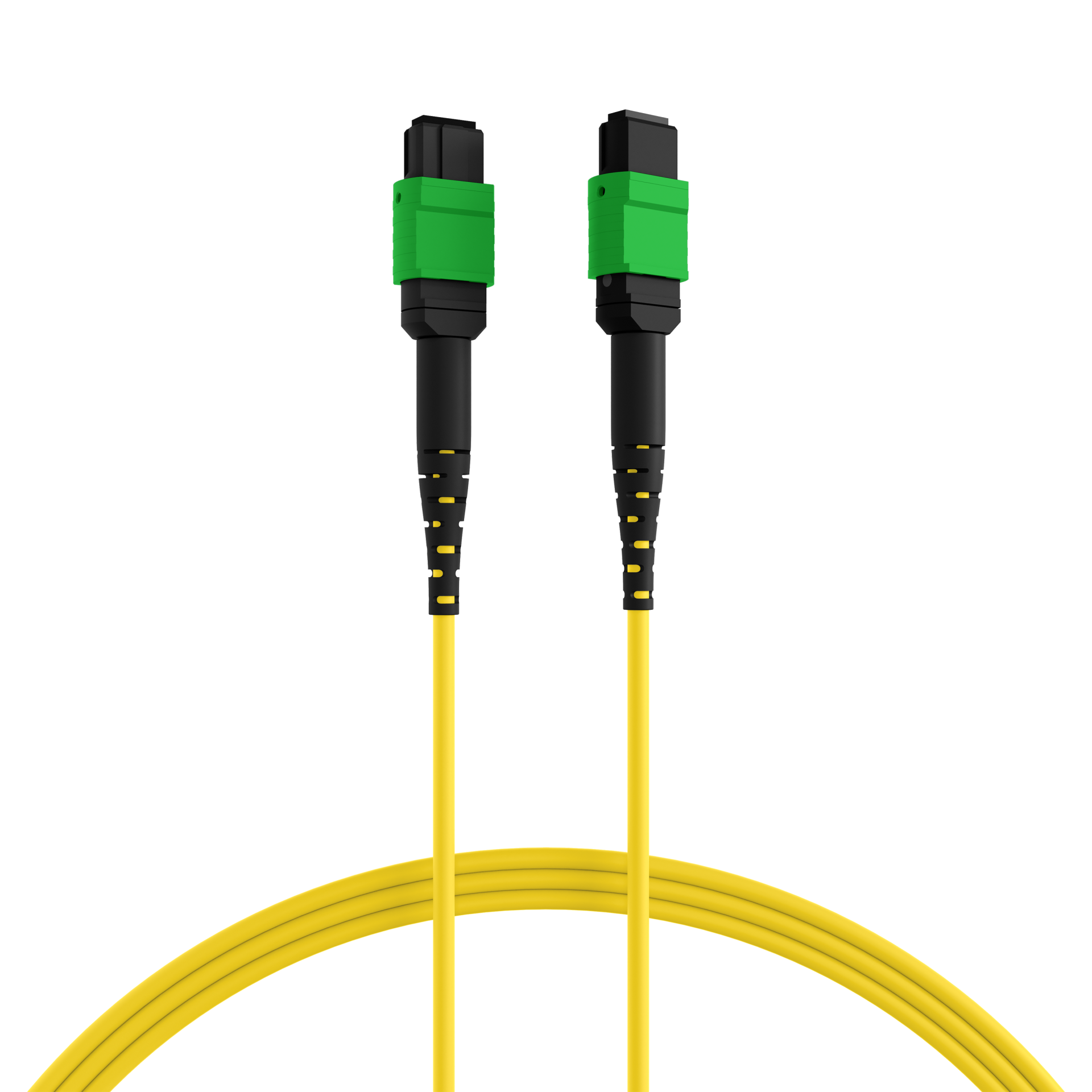

MTP®-F/MTP®-F 12-fiber patch cable OS2, Code B
MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 1m
Varenummer:
MTPF12MTPFOS2-1
EAN Nr.:
4049759216115
Produktinformation til MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 1m
Application: Server to Server- / Switch to Switch connection,
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m

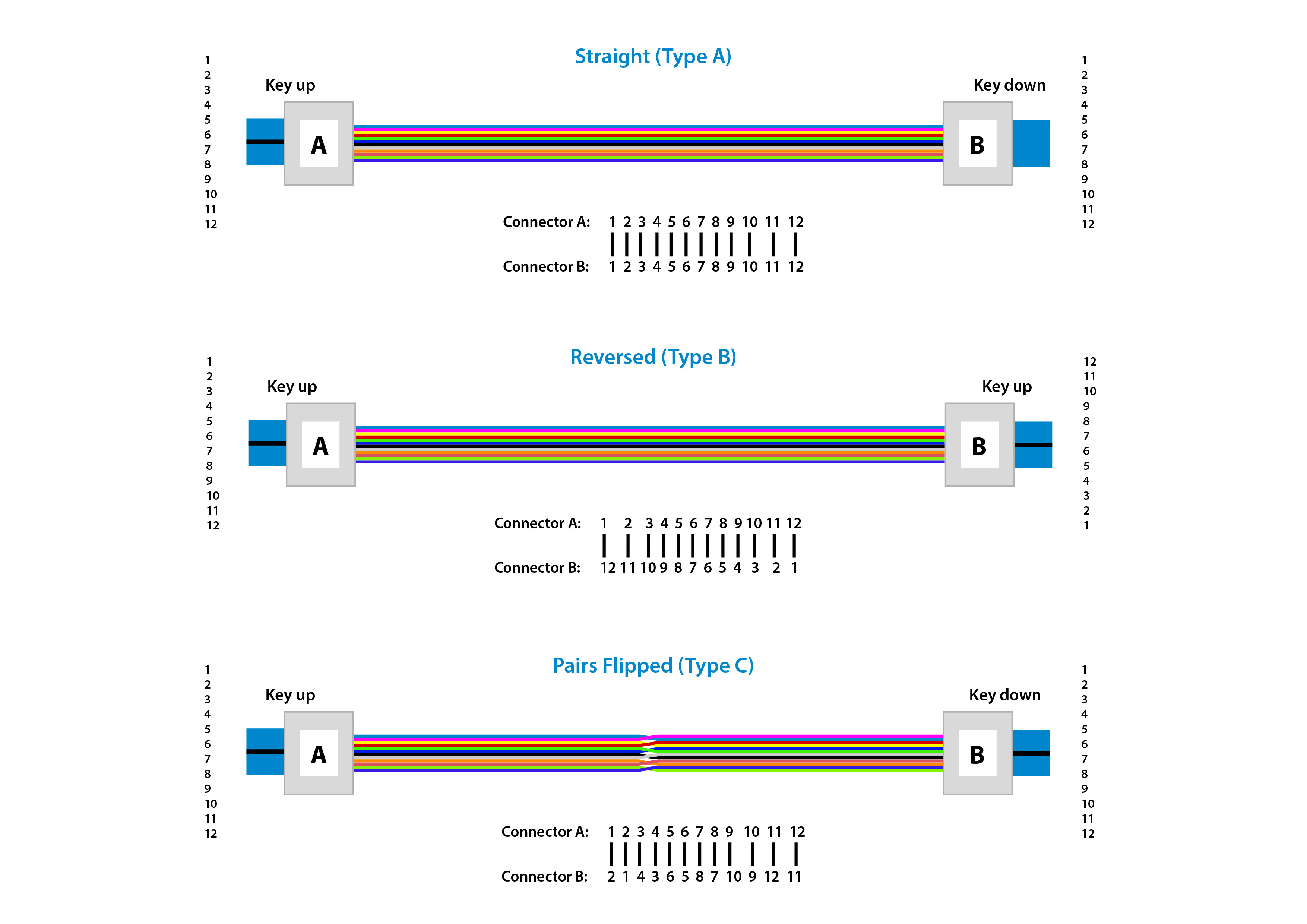

Note: In each MTP® transmission link, a type B (crossed) patch cable is required
MTP Singlemode connectors are in APC version
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m
Note: In each MTP® transmission link, a type B (crossed) patch cable is required
MTP Singlemode connectors are in APC version
Tekniske egenskaber
| Betriebstemperatur: | 0 – 50 °C |
|---|---|
| Faserart: | G657A1 9/125 |
| Halogenfrei nach EN 50267-2-3: | Ja |
| Kabeldurchmesser: | 3,0 mm |
| Kategorie: | OS2 |
| Lagertemperatur: | -20 – 70 °C |
| Mantel-Farbe: | gelb |
| Mantel-Material: | LSZH |
| Mit Nagetierschutz: | Nein |
| Polarität: | Typ B gekreuzt |

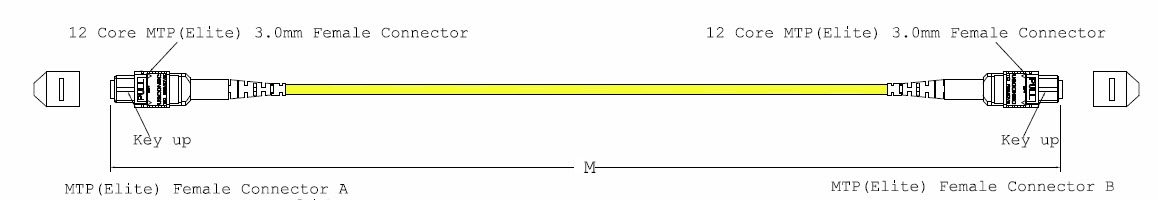

| Steckverbinder Anschluss 1: | MTP-F |
| Steckverbinder Anschluss 2: | MTP-F |
Varianten
| Art. Nr. | Bezeichnung | Faser-Anzahl | Anzahl der Steckverbinder Anschluss 1 | Anzahl der Steckverbinder Anschluss 2 | Länge | |
|---|---|---|---|---|---|---|
| MTPF12MTPFOS2-1 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 1m | 12 | 1 x MTP® female | 1 x MTP® female | 1,0 m | |
| MTPF12MTPFOS2-2 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 2m | 12 | 1 x MTP® female | 1 x MTP® female | 2,0 m | |
| MTPF12MTPFOS2-3 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 3m | 12 | 1 x MTP® female | 1 x MTP® female | 3,0 m | |
| MTPF12MTPFOS2-5 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 5m | 12 | 1 x MTP® female | 1 x MTP® female | 5,0 m | |
| MTPF12MTPFOS2-7,5 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 7,5m | 12 | 1 x MTP® female | 1 x MTP® female | 7,5 m | |
| MTPF12MTPFOS2-10 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 10m | 12 | 1 x MTP® female | 1 x MTP® female | 10,0 m | |
| MTPF12MTPFOS2-15 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 15m | 12 | 1 x MTP® female | 1 x MTP® female | 15,0 m | |
| MTPF12MTPFOS2-25 | MTP®-F/MTP®-F 12-fiber patch cable OS2, Code B | 12 | 1 x MTP® female | 1 x MTP® female | 25,0 m | |
| MTPF12MTPFOS2-30 | MTP®-F/MTP®-F 12-fiber patch cable OS2, Code B | 12 | 1 x MTP® female | 1 x MTP® female | 30,0 m |
