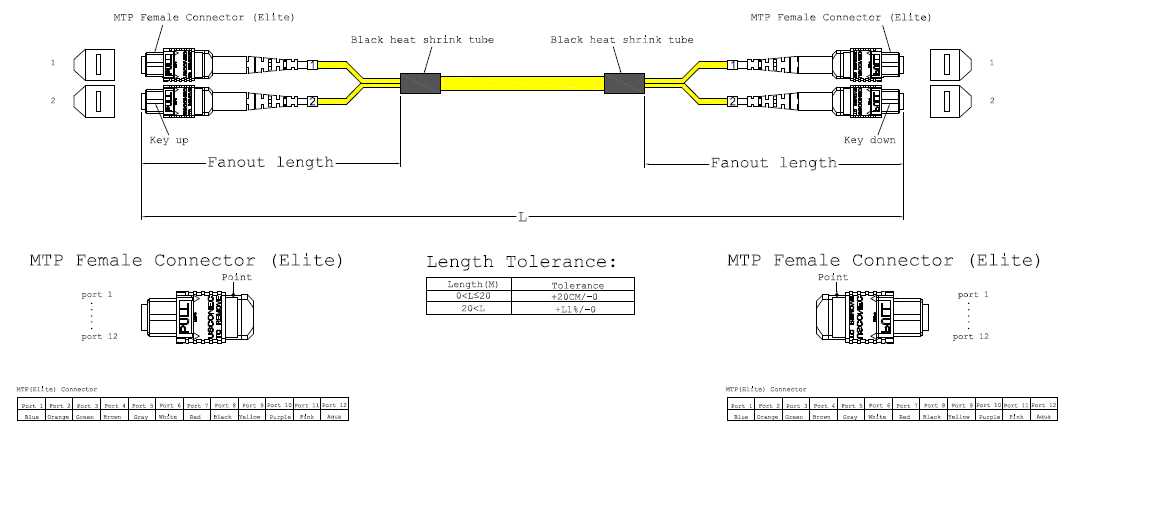

MTP®-F/MTP®-F 24-fiber matrix Patch cable OS2, Code A

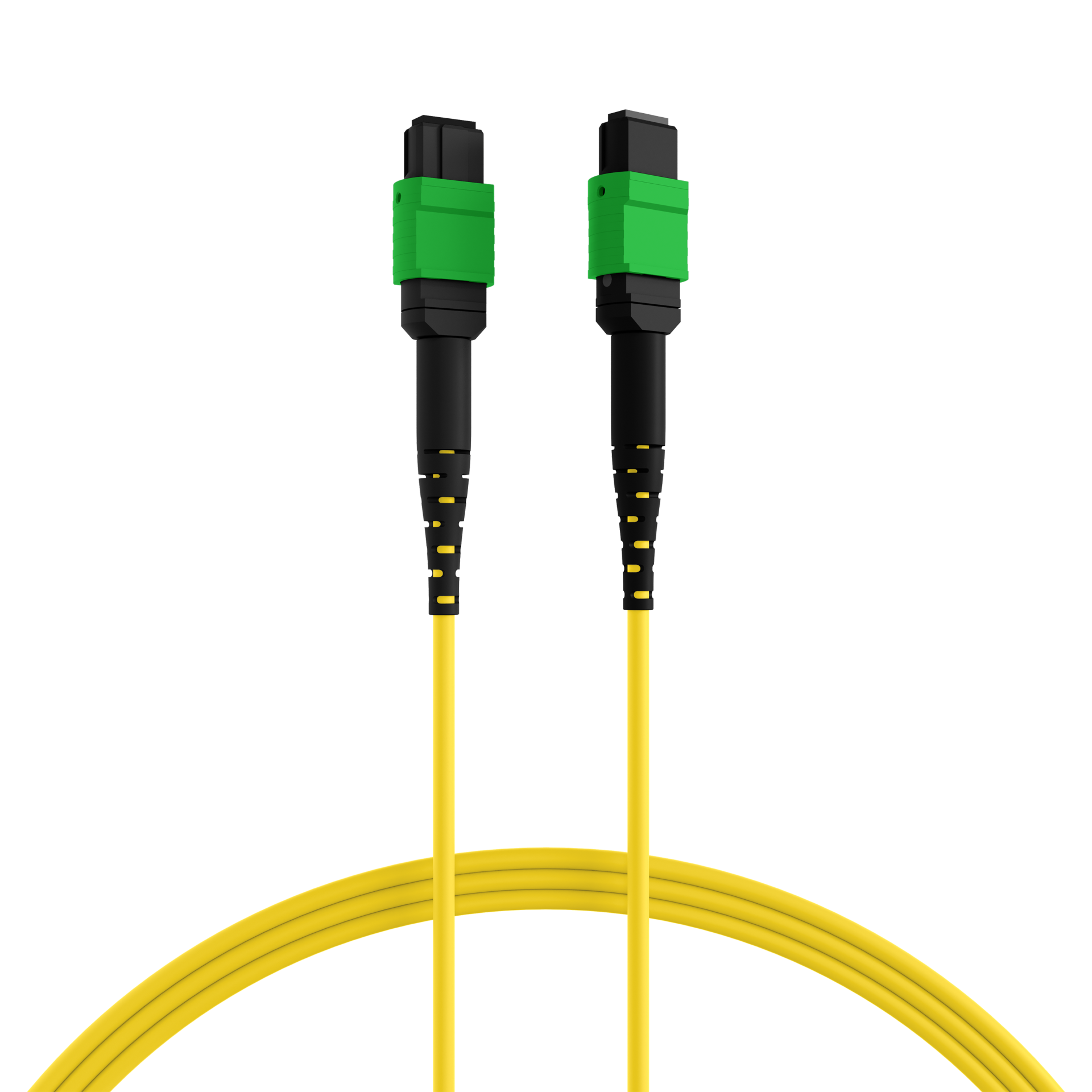

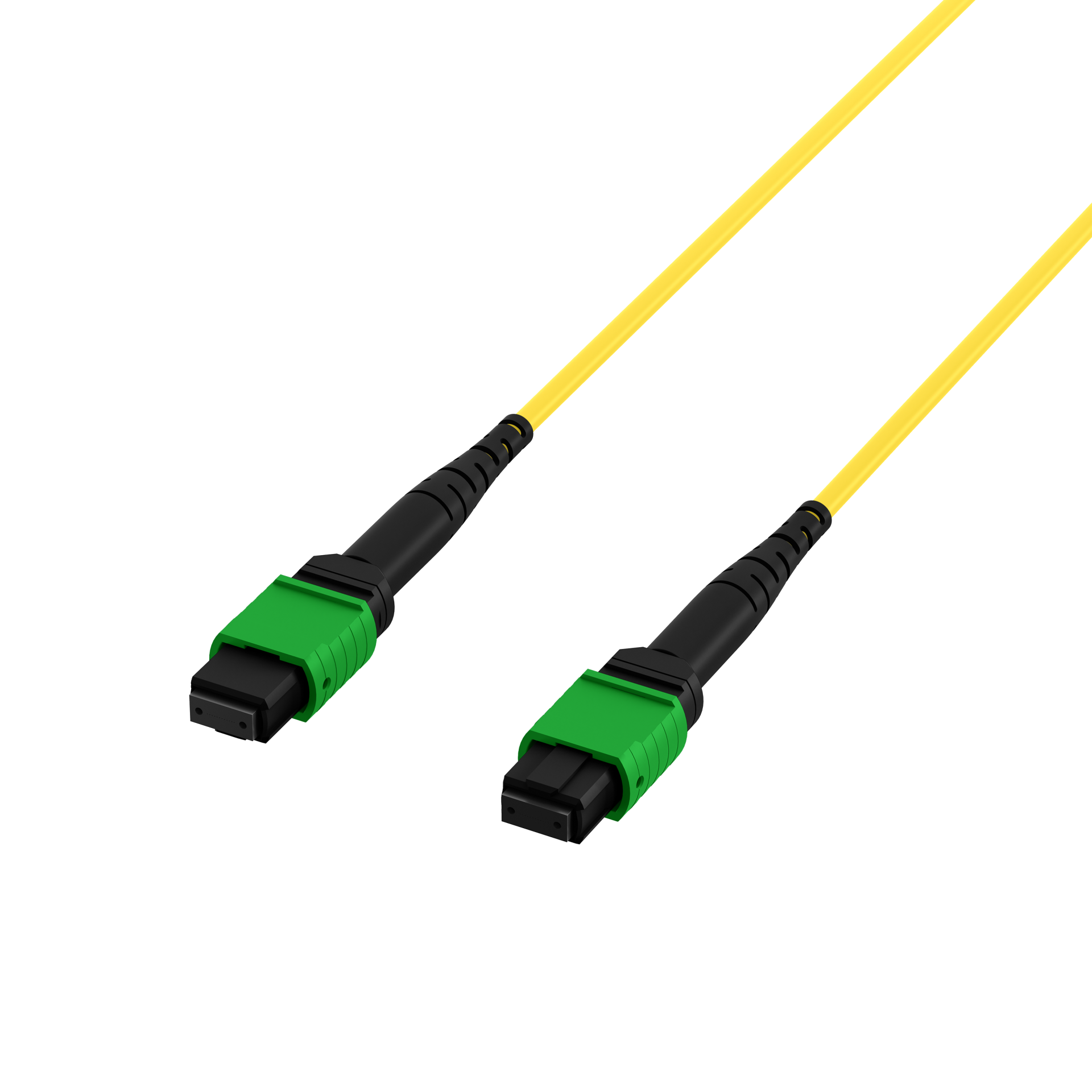

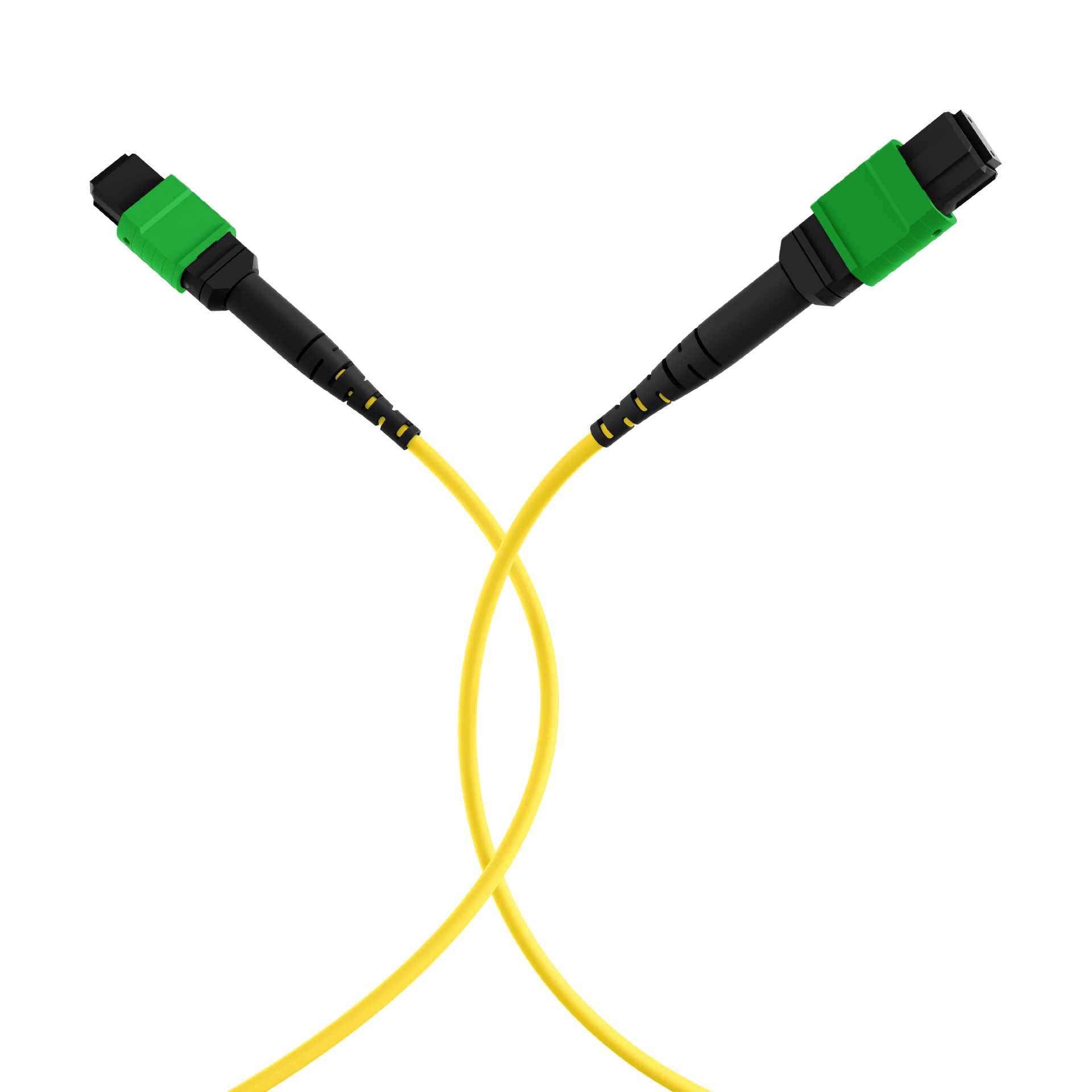

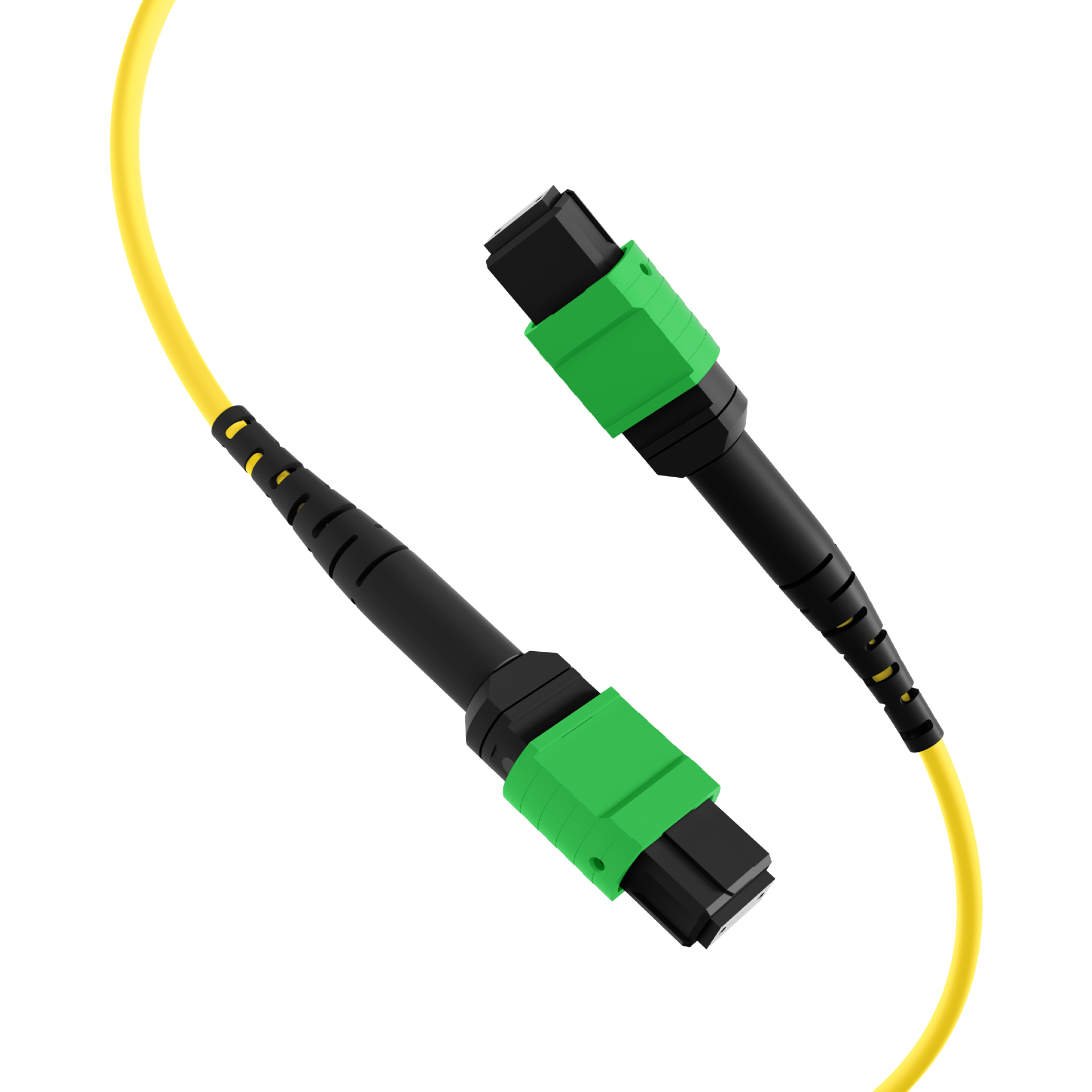

MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 24 fibers Typ A LSZH yellow 5m
Varenummer: MTPF24MTPFOS2-5-A
EAN Nr.: 4049759237219

Produktinformation til MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 24 fibers Typ A LSZH yellow 5m

Application: Server to Server- / Switch to Switch connection,
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow

Available lengths: 1m up to 100m

Note: In each MTP® transmission link, a type B (crossed) patch cable is required

MTP Singlemode connectors are in APC version

Tekniske egenskaber

Cable Diameter: 9.0 mm
Category: OS2
Coding: Type A straight
Colour outer sheath: yellow
Connector connection 1: MTP-F
Connector connection 2: MTP-F
Fibre type: G657A1 9/125
Halogen free (according to EN 50267-2-3): True
Jacket Material: LSZH
Operating Temperature: 0 – 50 °C
Storage Temperature: -20 – 70 °C
With rodent protection: False

Varianten

Art. Nr. Bezeichnung Number of fibres Length Number of connectors connection 2 Number of connectors connection 1
MTPF24MTPFOS2-5-A MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 24 fibers Typ A LSZH yellow 5m 24 5.0 m 2 x MTP® female 2 x MTP® female
MTPF24MTPFOS2-10-A MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 24 fibers Typ A LSZH yellow 10m 24 10.0 m 2 x MTP® female 2 x MTP® female
MTPF24MTPFOS2-15-A MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 24 fibers Typ A LSZH yellow 15m 24 15.0 m 2 x MTP® female 2 x MTP® female
MTPF24MTPFOS2-20-A MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 24 fibers Typ A LSZH yellow 20m 24 20.0 m 2 x MTP® female 2 x MTP® female
MTPF24MTPFOS2-25-A MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 24 fibers Typ A LSZH yellow 25m 24 25.0 m 2 x MTP® female 2 x MTP® female
MTPF24MTPFOS2-30-A MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 24 fibers Typ A LSZH yellow 30m 24 30.0 m 2 x MTP® female 2 x MTP® female
