Fanout Cable MTP®-Male/LC 12-fiber OS2

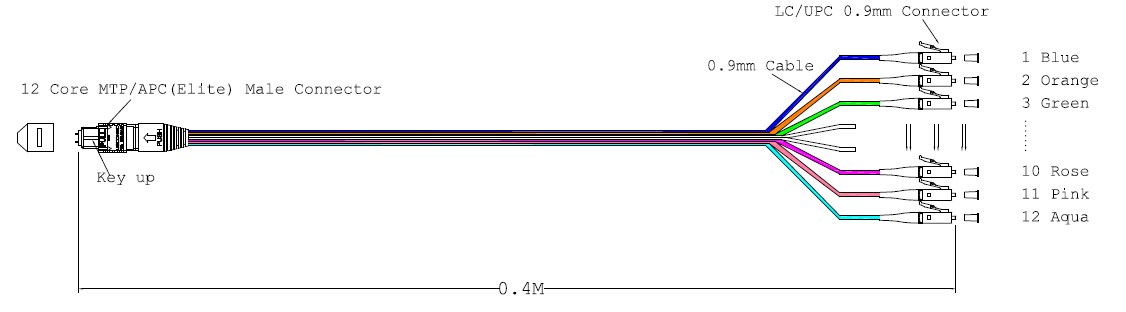

MTP®/APC(M)-LC Fanout cable OS2 12 fibers Typ B LSZH yellow 0,4m
Varenummer: MTPM12LCOS2-0,4
EAN Nr.: 4049759241230

Produktinformationen für MTP®/APC(M)-LC Fanout cable OS2 12 fibers Typ B LSZH yellow 0,4m

Application: Suitable for transmission links up to 100 Gigabit
Construction: 1 multi-connector MTP® on one side,
12 Single connector on the other side (e.g. LC)
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 12 fibers
Cable diameter single-connector: 900µm
Colour: OM4, OM3 and OS2 acc. to colour code DIN VDE 0888

MTP Singlemode connectors are in APC version

Technische Eigenschaften

Category: OS2
Connector connection 1: MTP-M
Connector connection 2: SC
Crossed: False
Fibre type: OS2 9/125
Flame-retardant: According to EN 50265-2-1
Halogen free (according to EN 50267-2-3): True
With rodent protection: False

Varianten

Art. Nr. Bezeichnung Number of connectors connection 1 Number of connectors connection 2 Number of fibres Length
MTPM12LCOS2-0,4 MTP®/APC(M)-LC Fanout cable OS2 12 fibers Typ B LSZH yellow 0,4m 1 x MTP® male 12 x LC 12 0.4 m
MTPM12LCOS2-1 MTP®/APC(M)-LC Fanout cable OS2 12 fibers Typ B LSZH yellow 1m 1 x MTP® male 12 x LC 12 1.0 m
