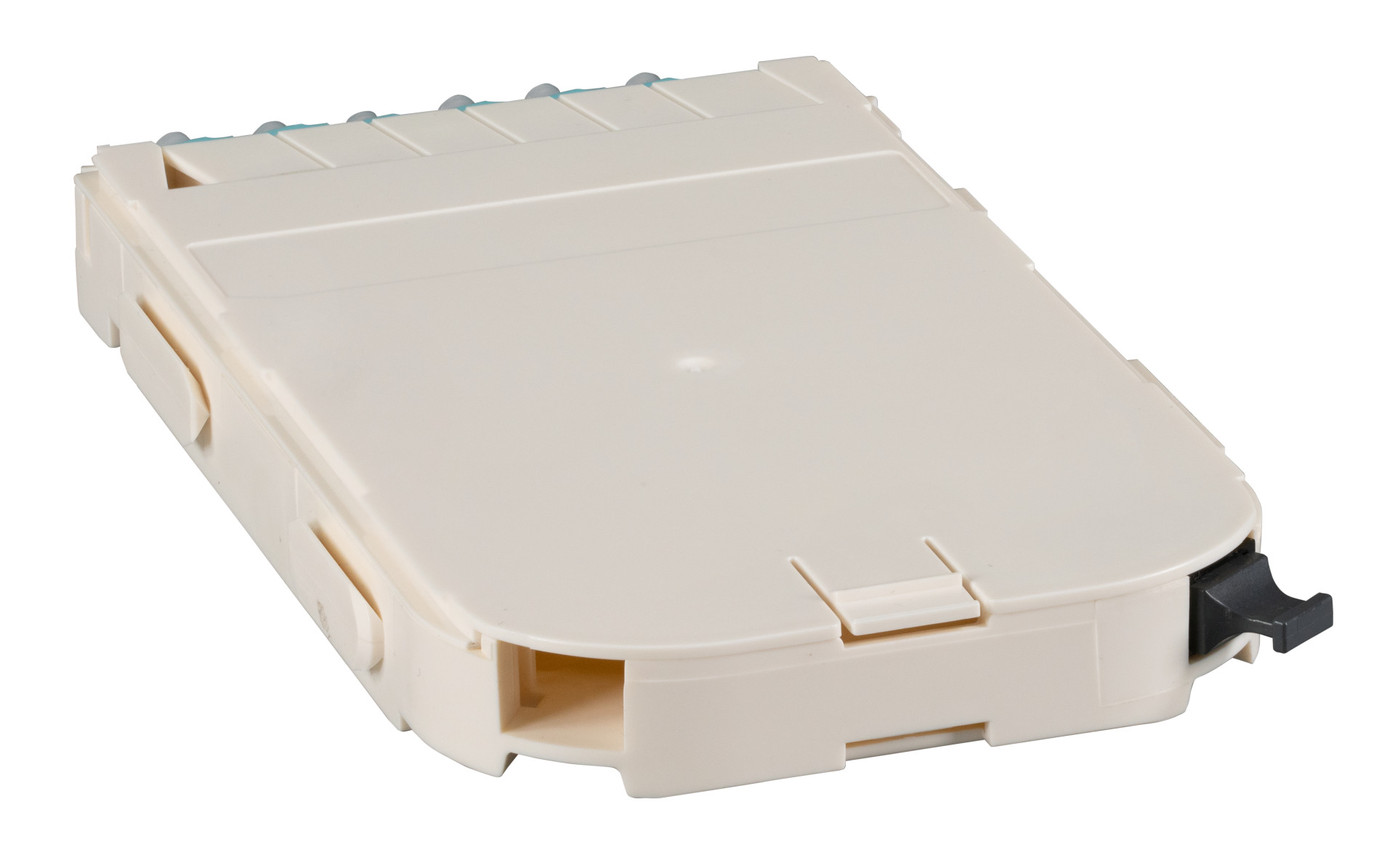

FTTH Cassette LC for FTTH-BGT
FTTH Module for FTTH-BGT, 12 Port LC with OM4 ceramic adapter
Varenummer:
FTTH-MODUL-LCOM4
EAN Nr.:
4049759214647
Produktinformation til FTTH Module for FTTH-BGT, 12 Port LC with OM4 ceramic adapter
Suitable for 1U and 3U subrack FTTH-BGT-xHE

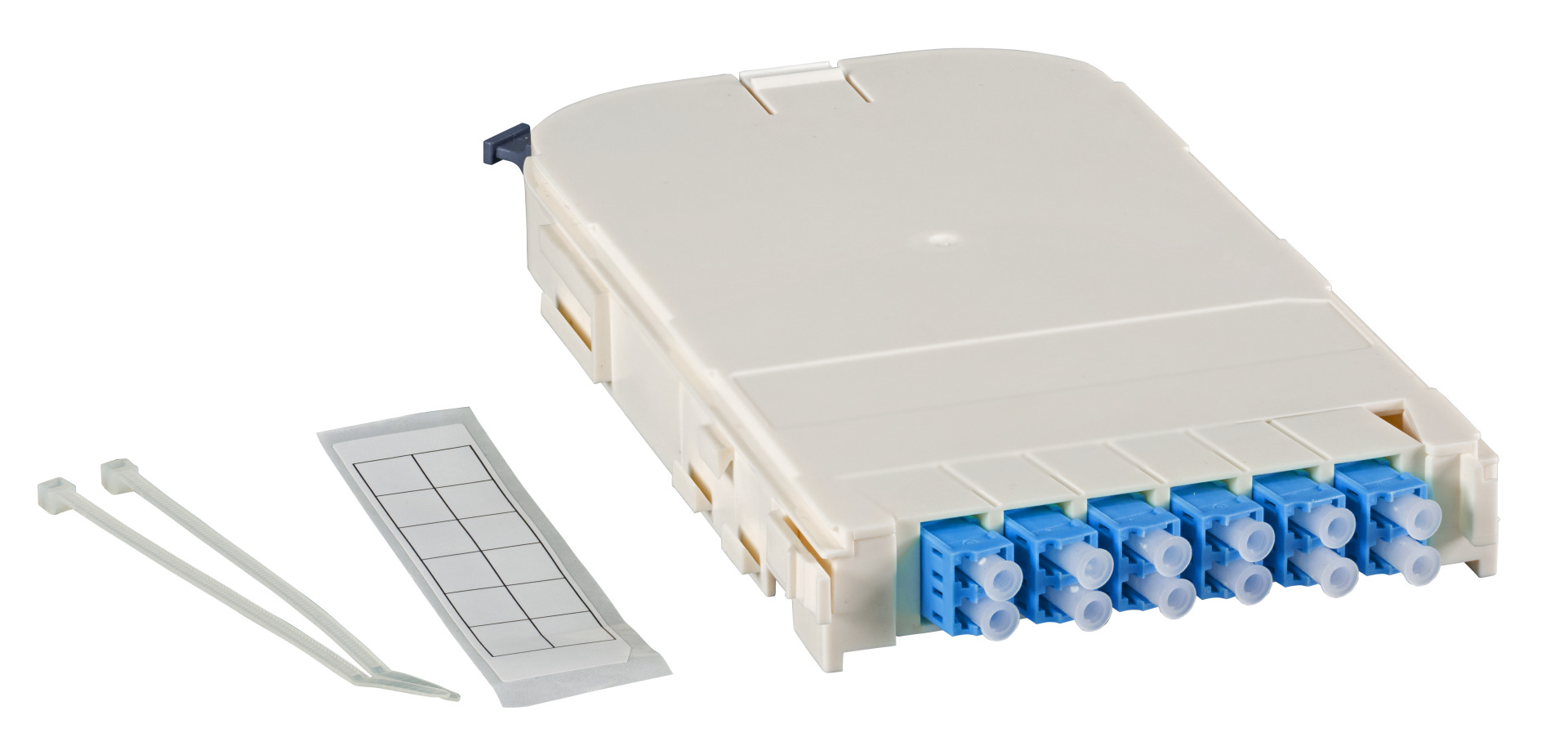

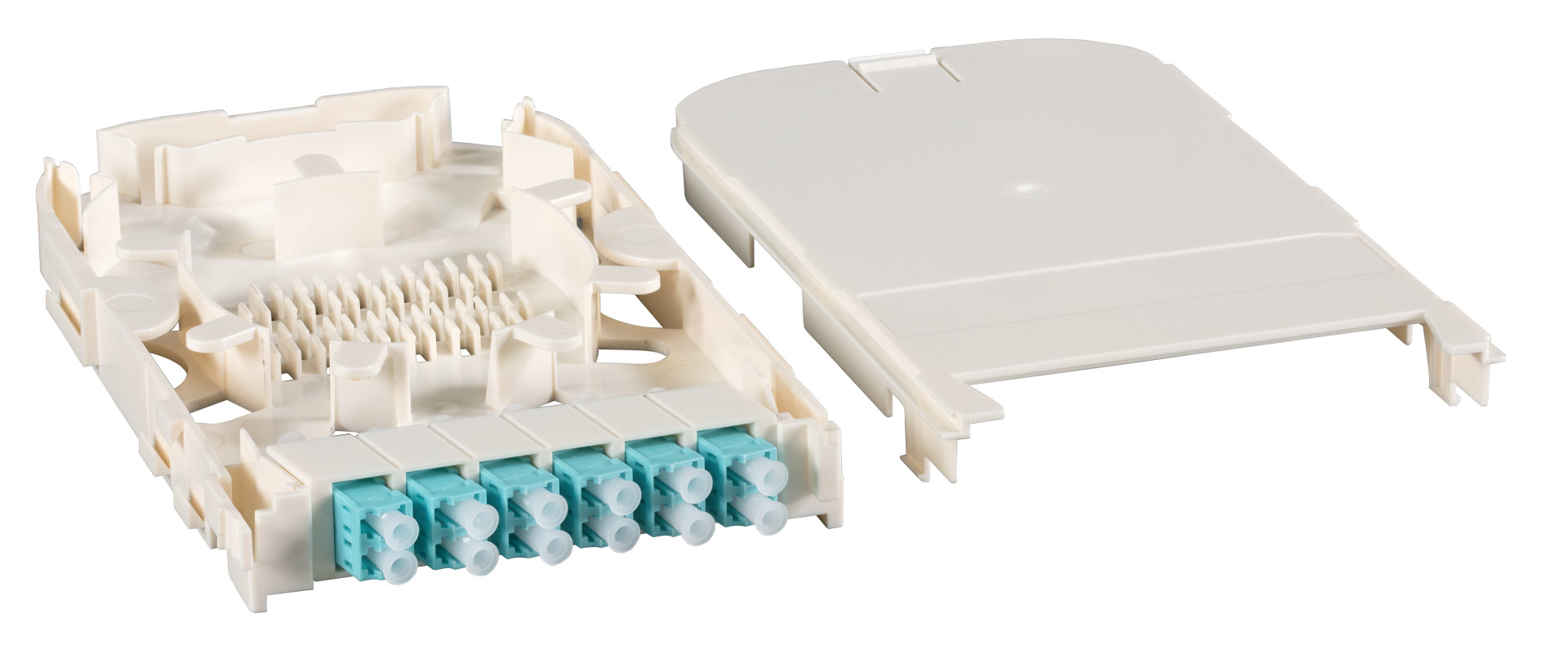

Pre-equipped with 6 LC-Duplex adapter in single mode, multimode OM4 or multimode OM3 with ceramic ferrule
Inclined outlet left/right for the 1HE version, top/bottom outlet for the 3HE version
Cable entry via MTP®/MPO adapter

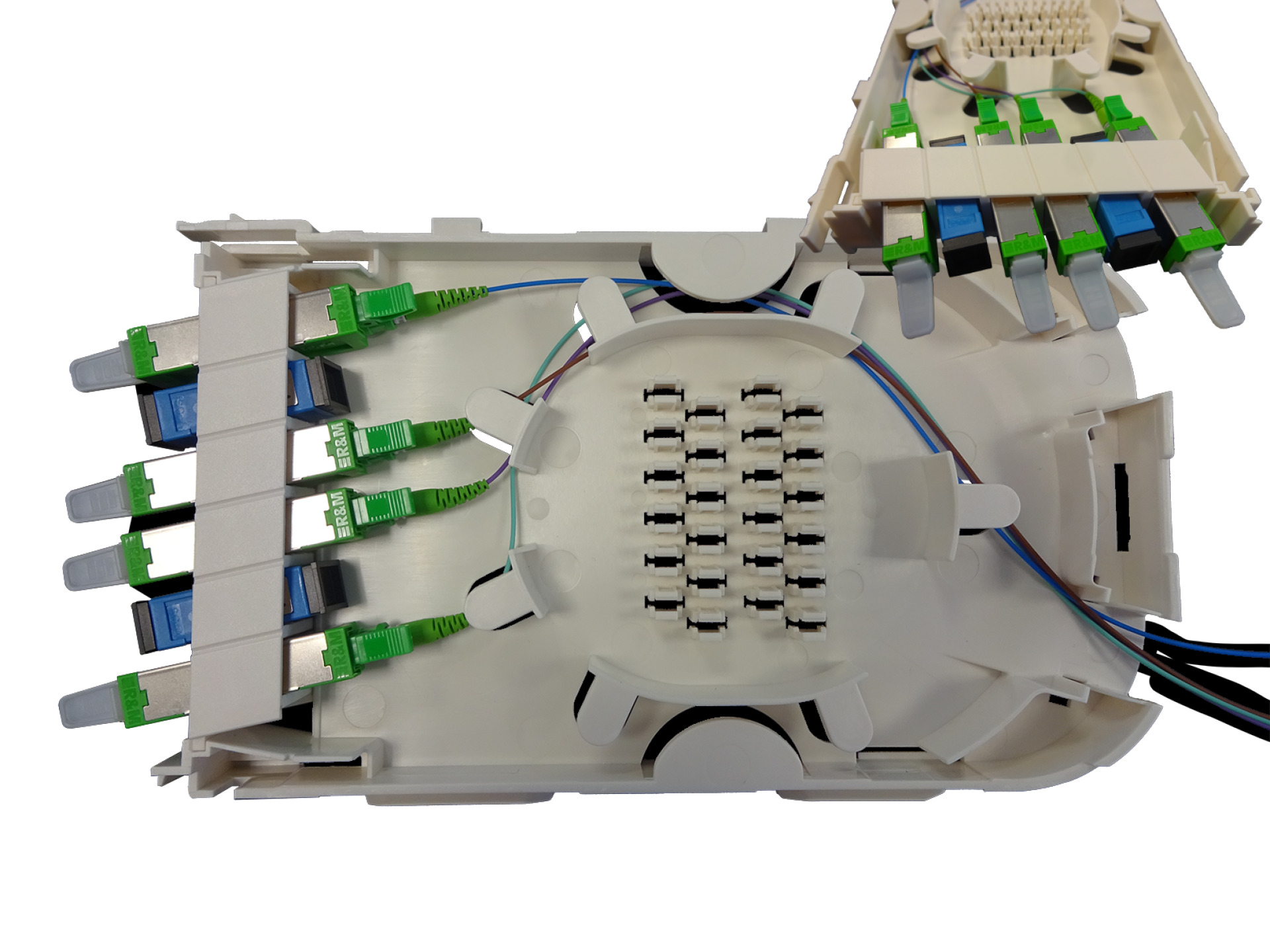

Splice cassette (Shrink -and Crimpprotection) holder included in cassette for MTP®/ MPO free installation
Delivery without Pigtail and MTP®/MPO adapter
On request, the modules can also be equipped with E2000 adapters and pigtails.
Pre-equipped with 6 LC-Duplex adapter in single mode, multimode OM4 or multimode OM3 with ceramic ferrule
Inclined outlet left/right for the 1HE version, top/bottom outlet for the 3HE version
Cable entry via MTP®/MPO adapter
Splice cassette (Shrink -and Crimpprotection) holder included in cassette for MTP®/ MPO free installation
Delivery without Pigtail and MTP®/MPO adapter
On request, the modules can also be equipped with E2000 adapters and pigtails.
Tekniske egenskaber
| Anzahl der Höheneinheiten (HE): | 0,5 HE |
|---|---|
| Mit Pigtail: | Nein |
Varianten
| Art. Nr. | Bezeichnung | Farbe Kupplung | APC Ausführung | Module | Adapter | Quantity adapter | |
|---|---|---|---|---|---|---|---|
| FTTH-MODUL-LCAPC | FTTH Module for FTTH-BGT, 12 Port LC/APC with OS2 ceramic adapter | grün | Ja | Singlemode | LC duplex | 6 | |
| FTTH-MODUL-LCOS2 | FTTH Module for FTTH-BGT, 12 Port LC with OS2 ceramic adapter | blau | Nein | Singlemode | LC duplex | 6 | |
| FTTH-MODUL-LCOM4 | FTTH Module for FTTH-BGT, 12 Port LC with OM4 ceramic adapter | erika-violett | Nein | Multimode OM4 | LC duplex | 6 | |
| FTTH-MODUL-LCOM3 | FTTH Module for FTTH-BGT, 12 Port LC with OM3 ceramic adapter | aqua | Nein | Multimode OM3 | LC duplex | 6 |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
