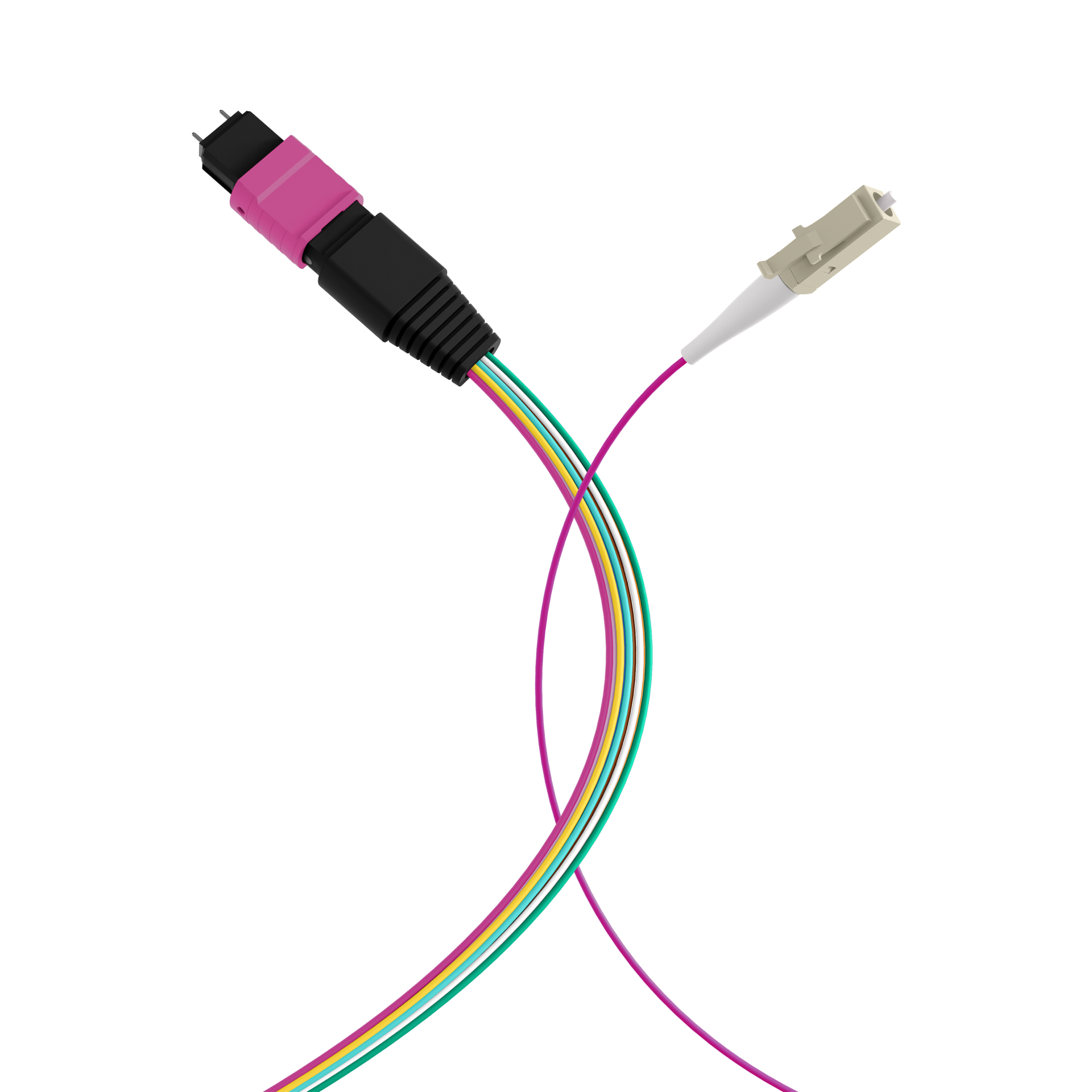

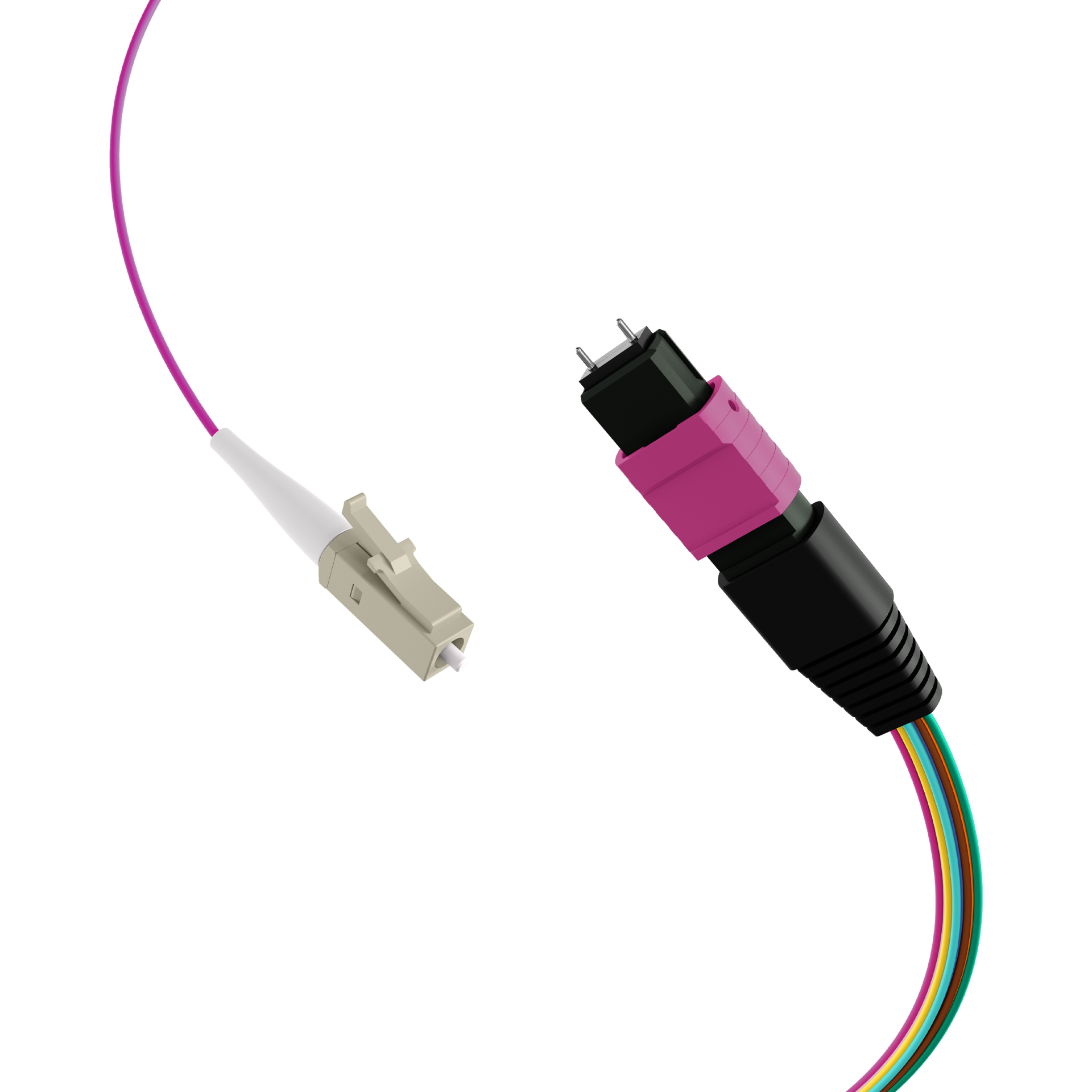

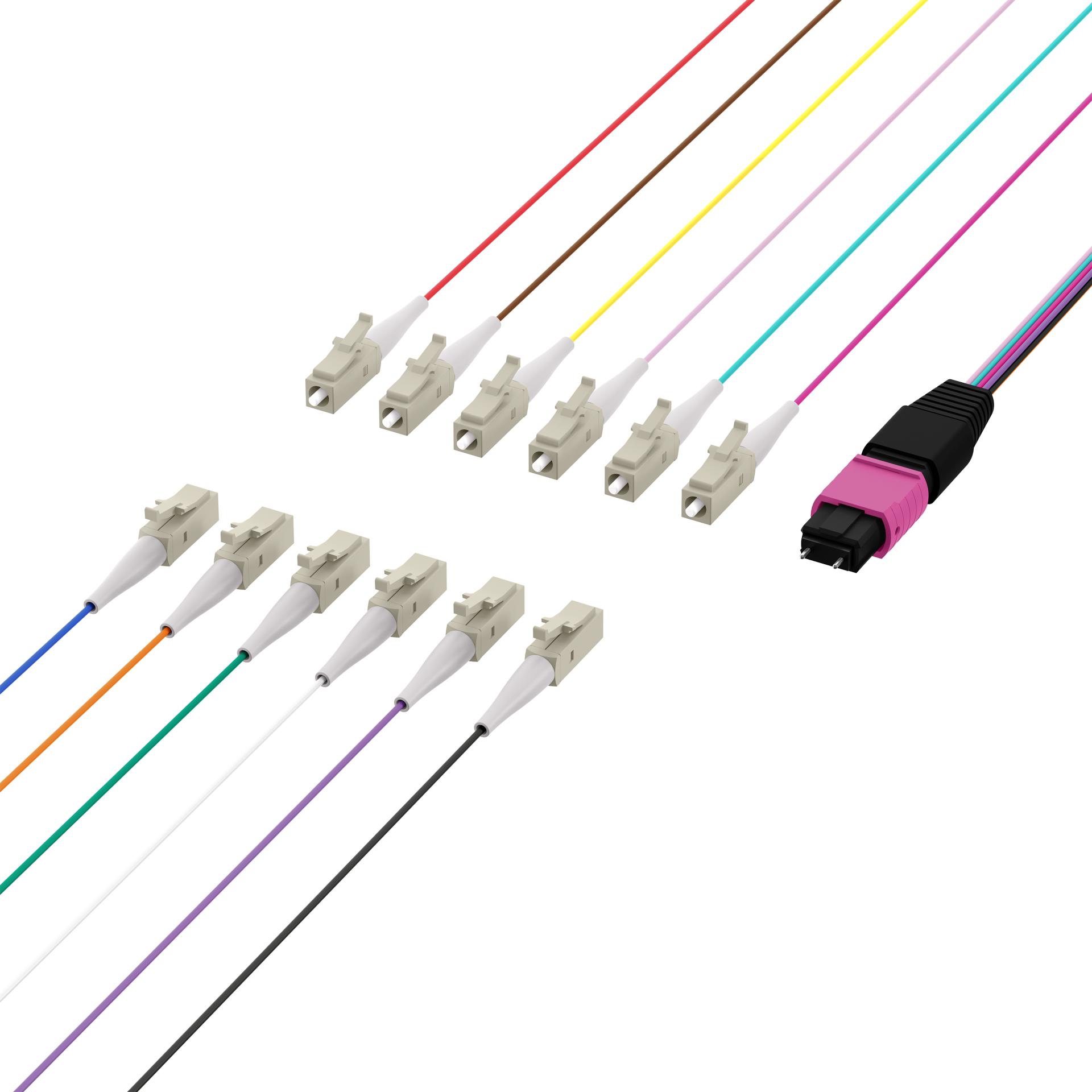

Fanout Cable MTP®-Male/LC 12-fiber OM4
MTP®(M)-LC Fanout cable OM4 12 fibers Typ B LSZH erica-violet 0,4m
Varenummer:
MTPM12LCOM4-0,4
EAN Nr.:
4049759250430
Produktinformationen für MTP®(M)-LC Fanout cable OM4 12 fibers Typ B LSZH erica-violet 0,4m
Application: Suitable for transmission links up to 100 Gigabit

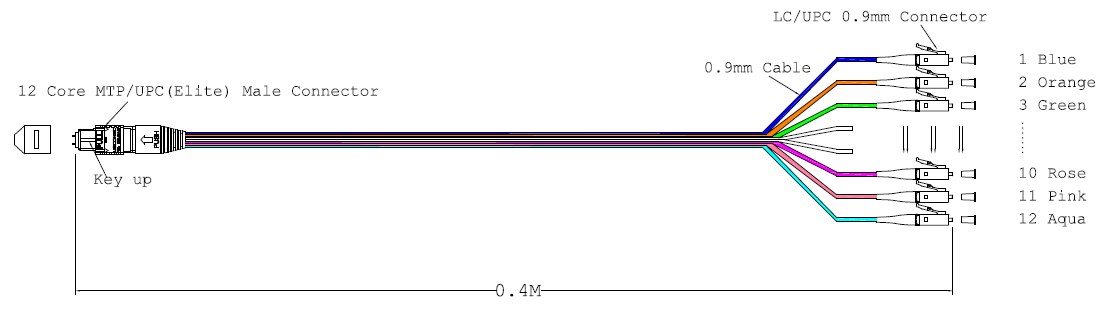

Construction: 1 multi-connector MTP® on one side,
12 Single connector on the other side (e.g. LC)
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 12 fibers
Cable diameter single-connector: 900µm
Colour: OM4, OM3 and OS2 acc. to colour code DIN VDE 0888
Construction: 1 multi-connector MTP® on one side,
12 Single connector on the other side (e.g. LC)
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 12 fibers
Cable diameter single-connector: 900µm
Colour: OM4, OM3 and OS2 acc. to colour code DIN VDE 0888
Technische Eigenschaften
Category: | OM4 |
---|---|
Connector connection 1: | MTP-M |
Connector connection 2: | SC |
Crossed: | False |
Fibre type: | OM4 50/125 |
Flame-retardant: | According to EN 50265-2-1 |
Halogen free (according to EN 50267-2-3): | True |
With rodent protection: | False |
Varianten
Art. Nr. | Bezeichnung | Number of connectors connection 1 | Number of connectors connection 2 | Length | Number of fibres | |
---|---|---|---|---|---|---|
MTPM12LCOM4-0,4 | MTP®(M)-LC Fanout cable OM4 12 fibers Typ B LSZH erica-violet 0,4m | 1 x MTP® male | 12 x LC | 0.4 m | 12 | |
MTPM12LCOM4-1 | MTP®(M)-LC Fanout cable OM4 12 fibers Typ B LSZH erica-violet 1m | 1 x MTP® male | 12 x LC | 1.0 m | 12 |
