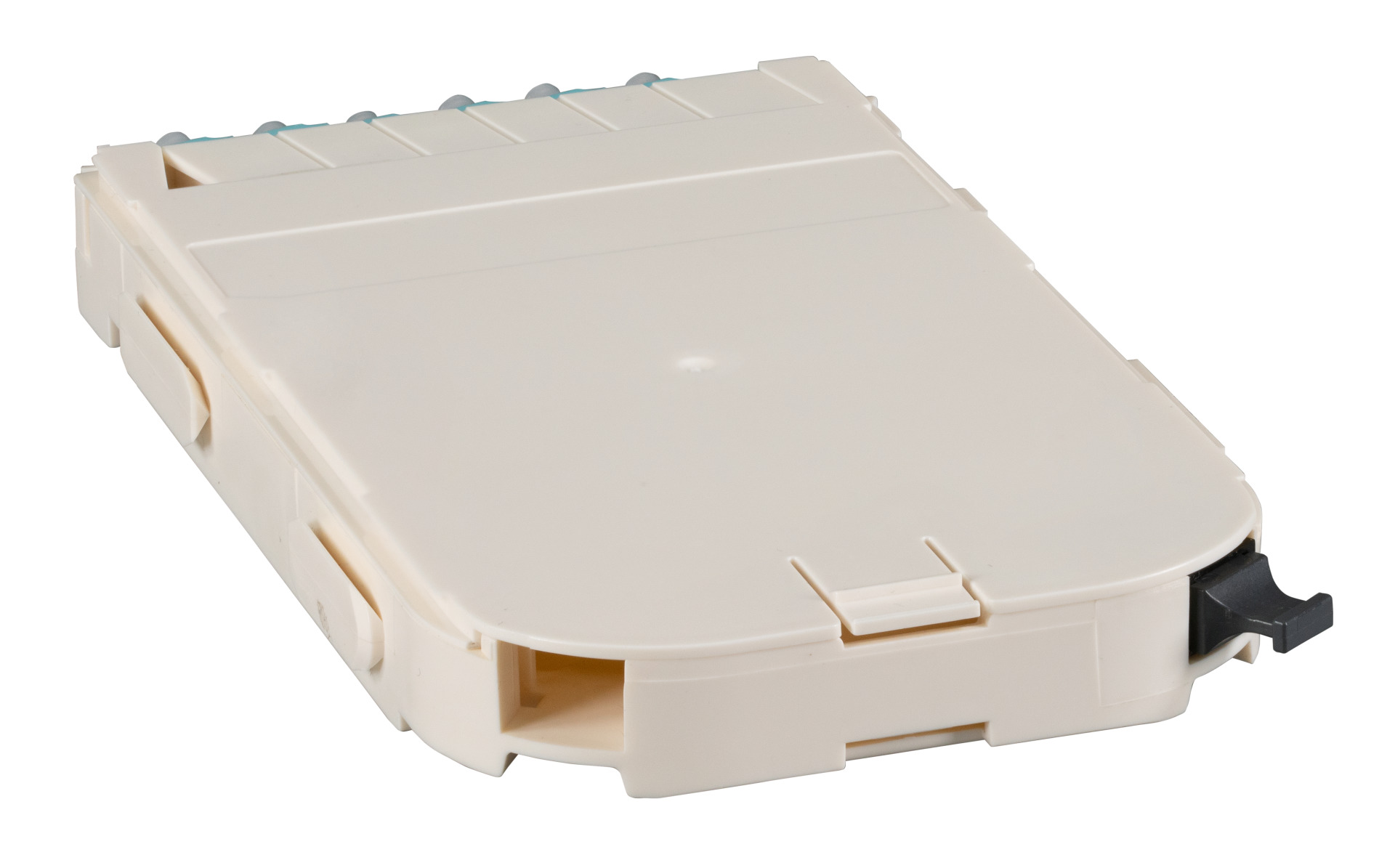

FTTH Cassette LC for FTTH-BGT

FTTH Module for FTTH-BGT, 12 Port LC/APC with OS2 ceramic adapter
Varenummer: FTTH-MODUL-LCAPC
EAN nr.: 4049759214623

Produktinformation für FTTH Module for FTTH-BGT, 12 Port LC/APC with OS2 ceramic adapter

Suitable for 1U and 3U subrack FTTH-BGT-xHE

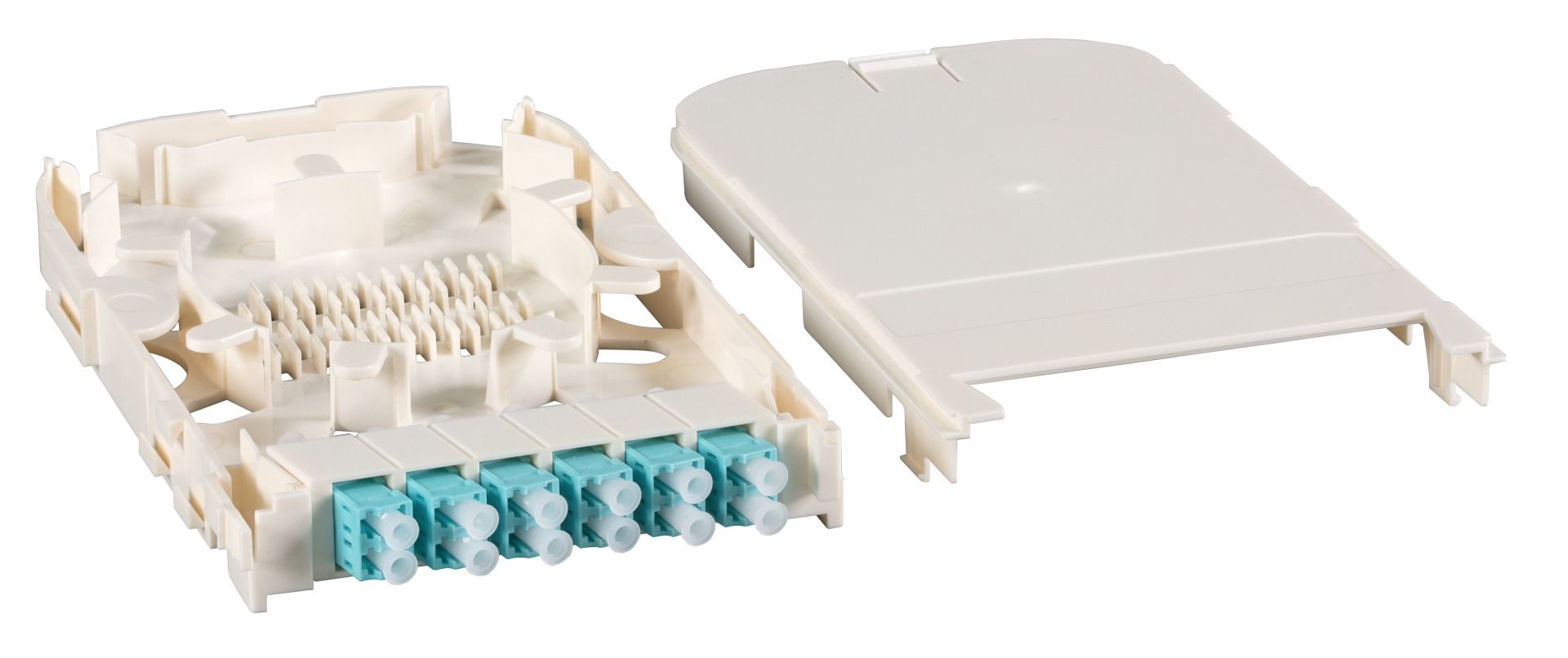

Pre-equipped with 6 LC-Duplex adapter in single mode, multimode OM4 or multimode OM3 with ceramic ferrule
Inclined outlet left/right for the 1HE version, top/bottom outlet for the 3HE version
Cable entry via MTP®/MPO adapter

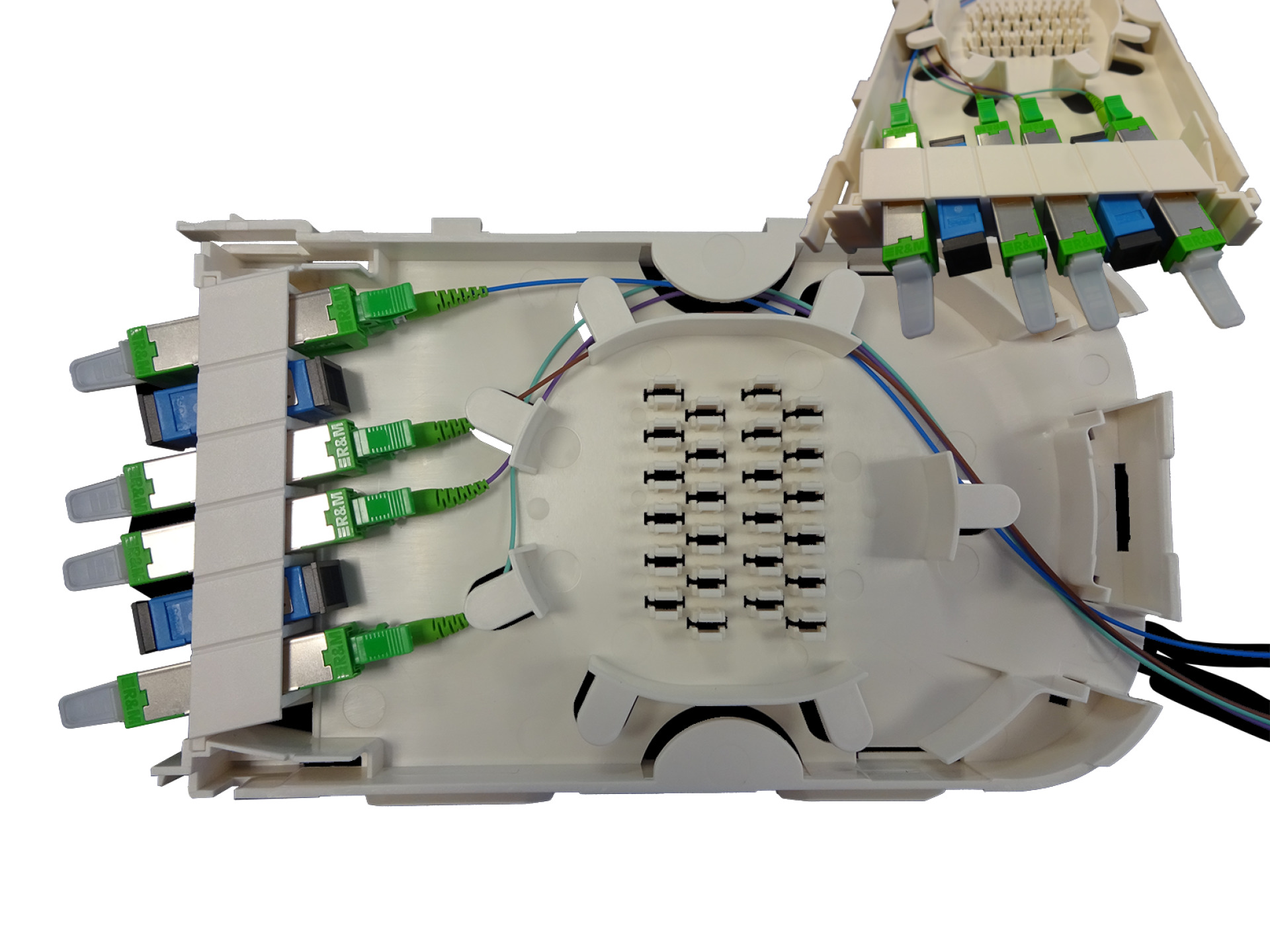

Splice cassette (Shrink -and Crimpprotection) holder included in cassette for MTP®/ MPO free installation

Delivery without Pigtail and MTP®/MPO adapter

On request, the modules can also be equipped with E2000 adapters and pigtails.

Tekniske egenskaber

Number of height units: 0.5 U
With Pigtail: False

Varianter

Art. Nej. Betegnelse APC-version Modules Colour of adapter Adapter Quantity adapter
FTTH-MODUL-LCAPC FTTH Module for FTTH-BGT, 12 Port LC/APC with OS2 ceramic adapter True Singlemode green LC duplex 6
FTTH-MODUL-LCOS2 FTTH Module for FTTH-BGT, 12 Port LC with OS2 ceramic adapter False Singlemode blue LC duplex 6

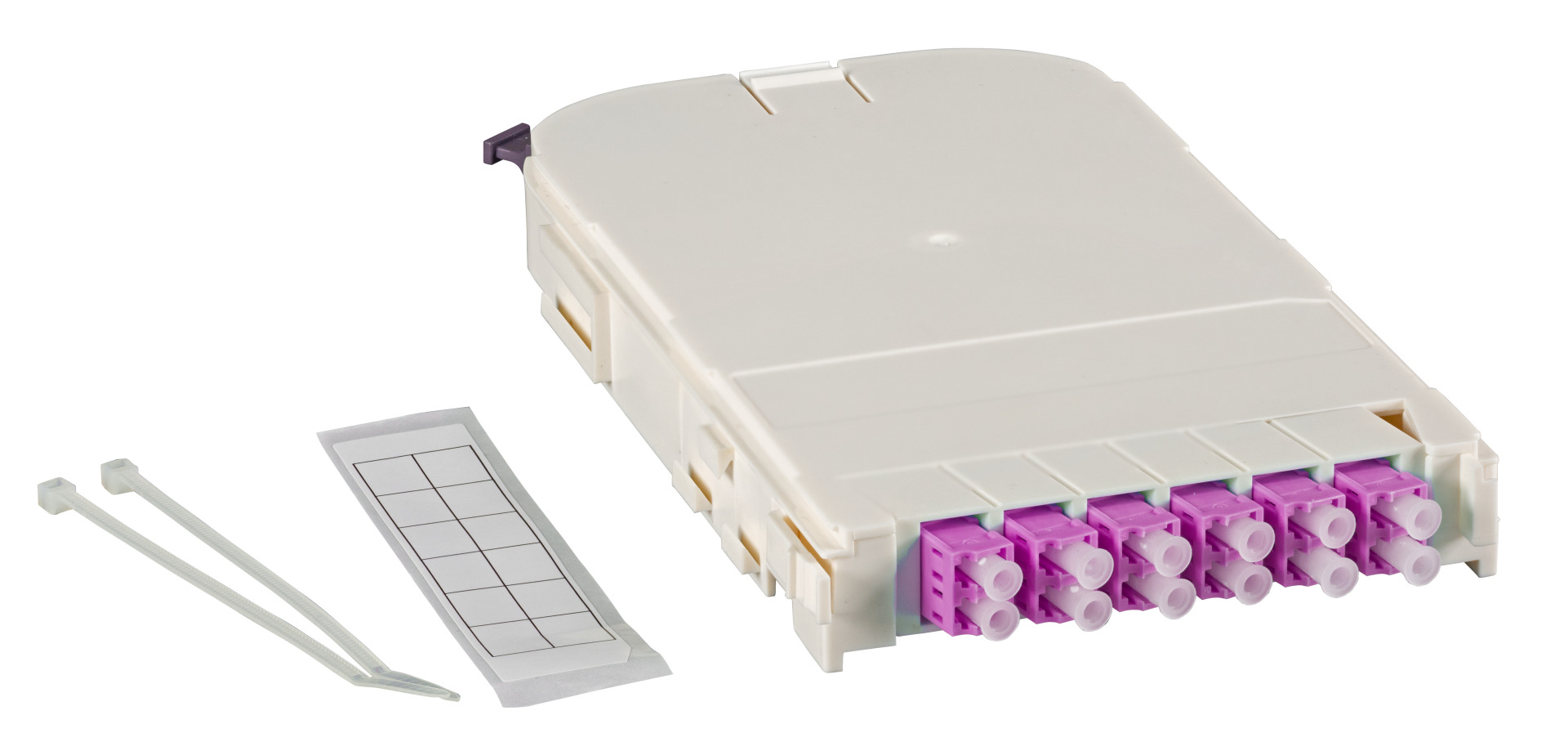

FTTH-MODUL-LCOM4 FTTH Module for FTTH-BGT, 12 Port LC with OM4 ceramic adapter False Multimode OM4 erica-violet LC duplex 6
FTTH-MODUL-LCOM3 FTTH Module for FTTH-BGT, 12 Port LC with OM3 ceramic adapter False Multimode OM3 aqua LC duplex 6

main product

FTTH 19" 1U Subrack for 8x Module FTTH-MODUL-X incl. cable management

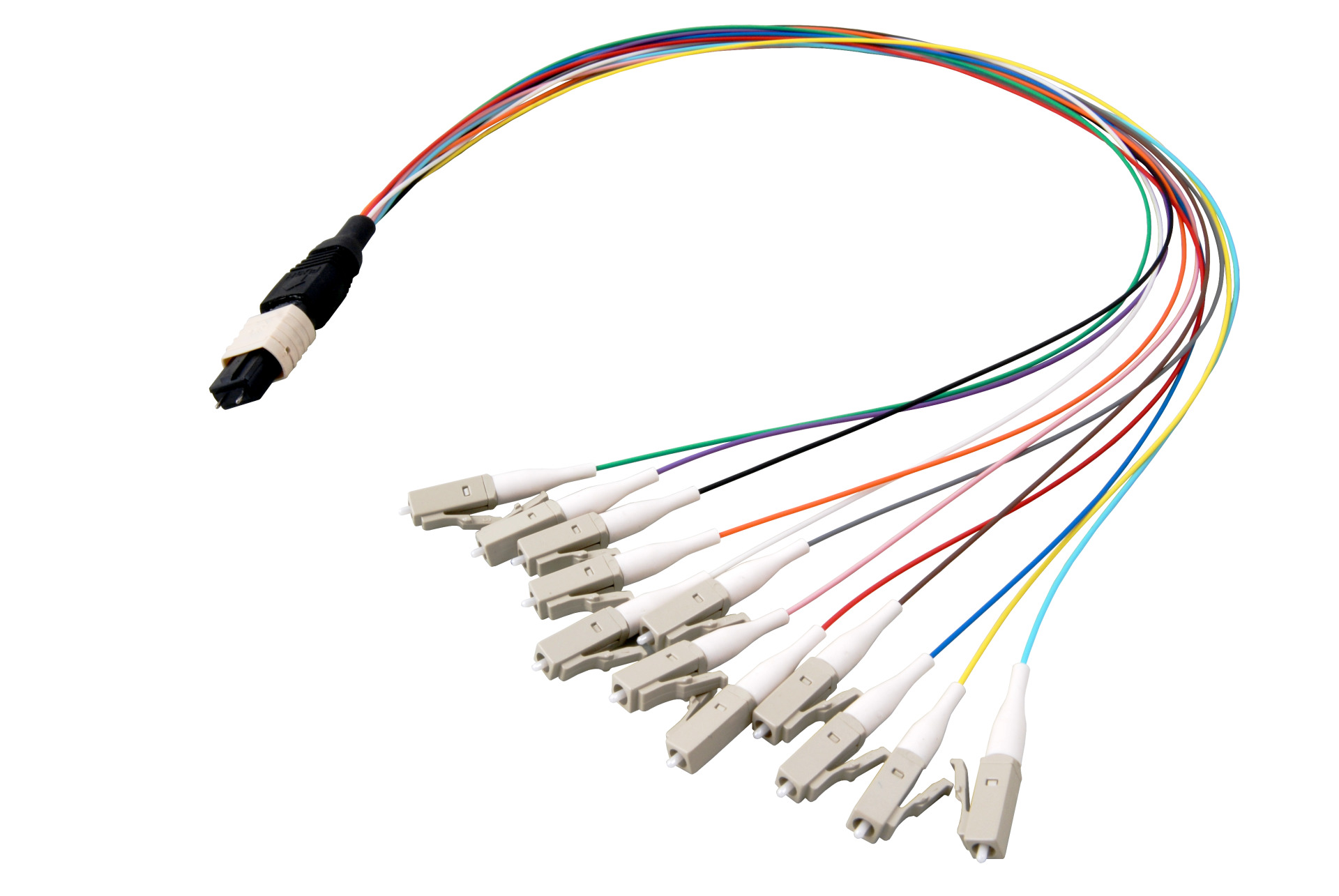

MTP®(M)-LC Fanout cable OM3 12 fibers Typ B LSZH aqua 0,4m
