MTP®-F/LC 8-fiber patch cable OM4

Priser kun synlige for indloggede brugere

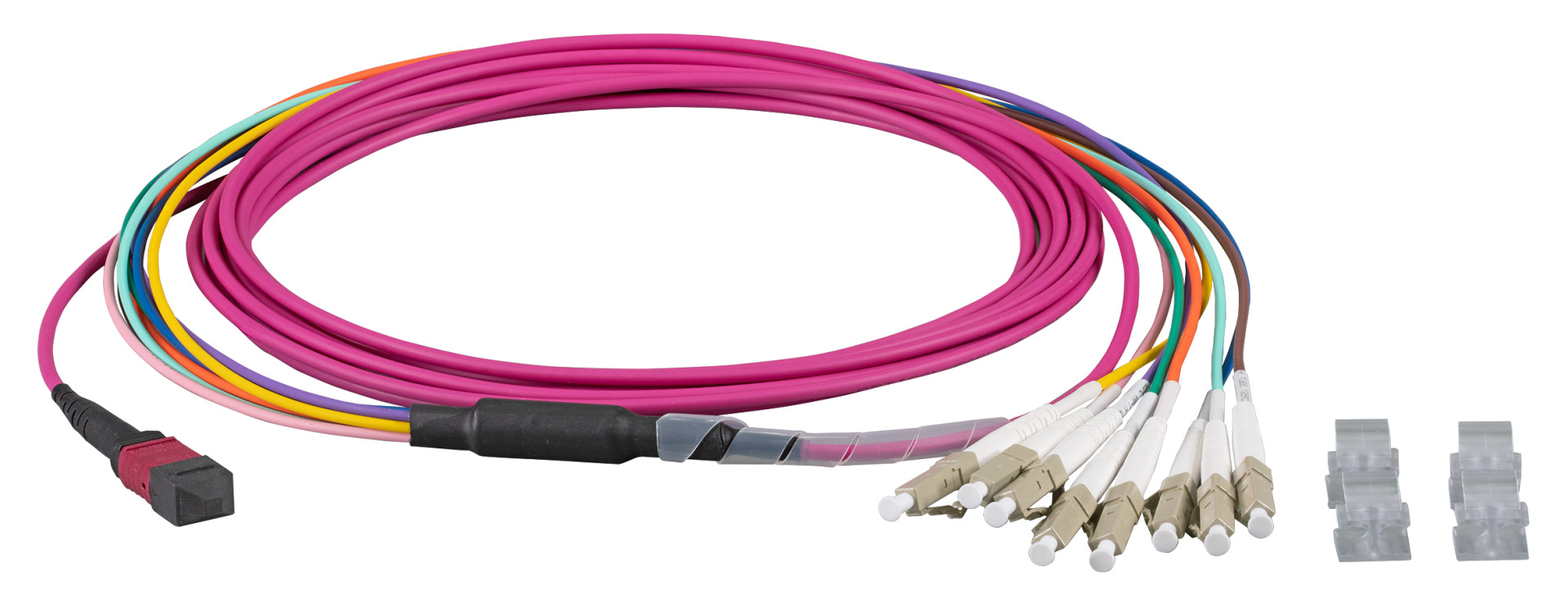

MTP®-F/LC 8-fiber patch cable OM4, LSZH erica-violet, 1m
Varenummer: MTPF08LCOM4-1
EAN nr.: 4049759215873
Stück

Produktinformation für MTP®-F/LC 8-fiber patch cable OM4, LSZH erica-violet, 1m

Application: Suitable for transmission links up to 100 Gigabit

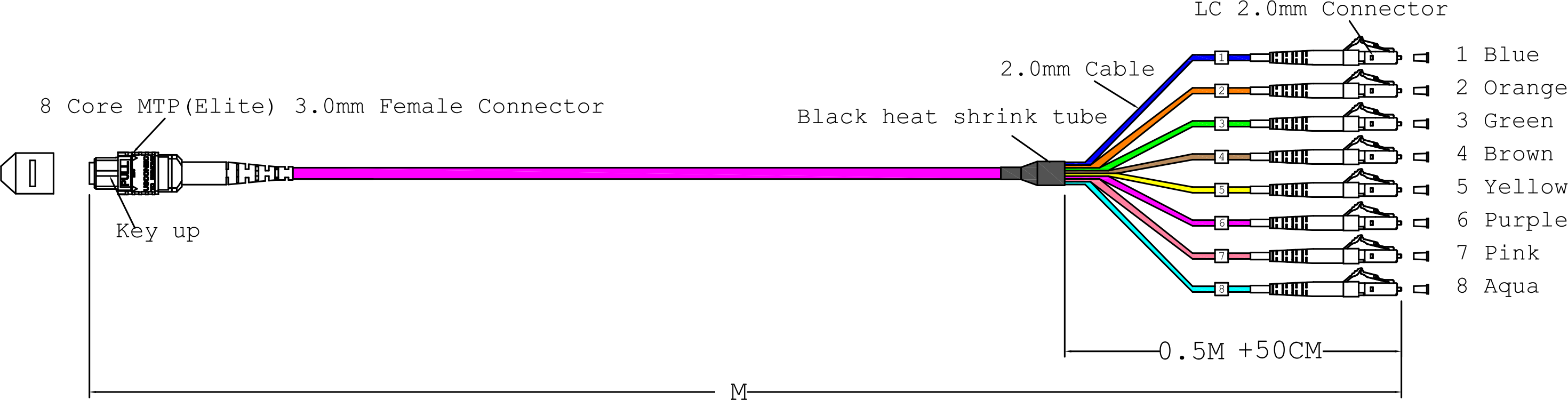

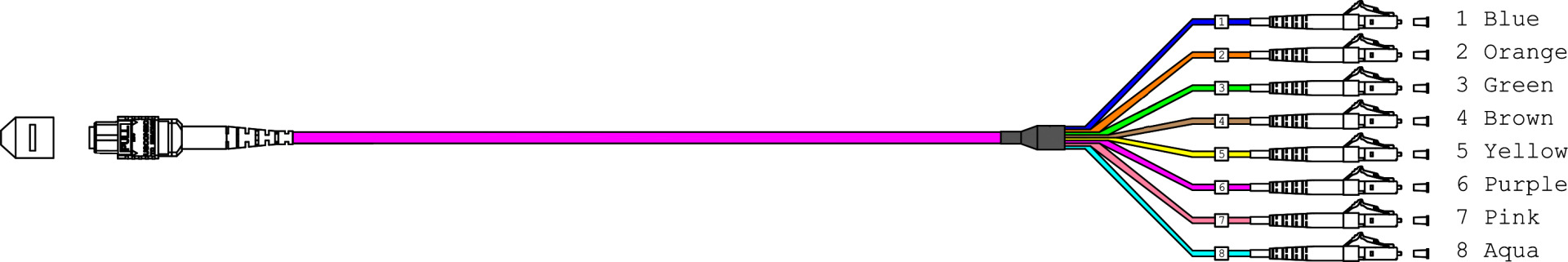

Construction: 1 multi-connector MTP® on one side,
4 LC-Duplex connector on the other side
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 8 fibers
Assignment MTP 1-4 + 9-12
Furcation length: 50cm
Cable diameter multi-connector: 3mm
Cable diameter single-connector: 2mm
Colour: OM4 and OS2 acc. to colour code DIN VDE 0888

Tekniske egenskaber

Cable Diameter: 3.0 mm
Category: OM4
Coding: 1:1
Colour outer sheath: erica violet
Connector connection 1: MTP-F
Connector connection 2: LC-Duplex
Crossed: False
Fiber type: OM4 50/125
Halogen free (according to EN 50267-2-3): True
Operating Temperature: -20 – 70 °C
Storage Temperature: -20 – 70 °C
With rodent protection: False

Varianter

Art. Nej. Betegnelse Number of connectors connection 1 Number of connectors connection 2 Number of fibres Length
MTPF08LCOM4-1 MTP®-F/LC 8-fiber patch cable OM4, LSZH erica-violet, 1m 1 x MTP® female 8 x LC 8 1.0 m Vælg varianter
MTPF08LCOM4-2 MTP®-F/LC 8-fiber patch cable OM4, LSZH erica-violet, 2m 1 x MTP® female 8 x LC 8 2.0 m Vælg varianter
MTPF08LCOM4-3 MTP®-F/LC 8-fiber patch cable OM4, LSZH erica-violet, 3m 1 x MTP® female 8 x LC 8 3.0 m Vælg varianter
MTPF08LCOM4-5 MTP®-F/LC 8-fiber patch cable OM4, LSZH erica-violet, 5m 1 x MTP® female 8 x LC 8 5.0 m Vælg varianter
MTPF08LCOM4-10 MTP®-F/LC 8-fiber patch cable OM4, LSZH erica-violet, 10m 1 x MTP® female 8 x LC 8 10.0 m Vælg varianter
MTPF08LCOM4-15 MTP®-F/LC 8-fiber patch cable OM4, LSZH erica-violet, 15m 1 x MTP® female 8 x LC 8 15.0 m Vælg varianter
MTPF08LCOM4-20 MTP®-F/LC 8-fiber patch cable OM4, LSZH erica-violet, 20m 1 x MTP® female 8 x LC 8 20.0 m Vælg varianter
MTPF08LCOM4-30 MTP®-F/LC 8-fiber patch cable OM4, LSZH erica-violet, 30m 1 x MTP® female 8 x LC 8 30.0 m Vælg varianter
