MTP®-F/LC 8-fiber patch cable OM4
MTP®(F)-LC Trunk cable OM4 8 fibers Typ B LSZH erica-violet 20m
Varenummer:
MTPF08LCOM4-20
EAN-nr.:
4049759266486
Produktinformation til MTP®(F)-LC Trunk cable OM4 8 fibers Typ B LSZH erica-violet 20m
Application: Suitable for transmission links up to 100 Gigabit

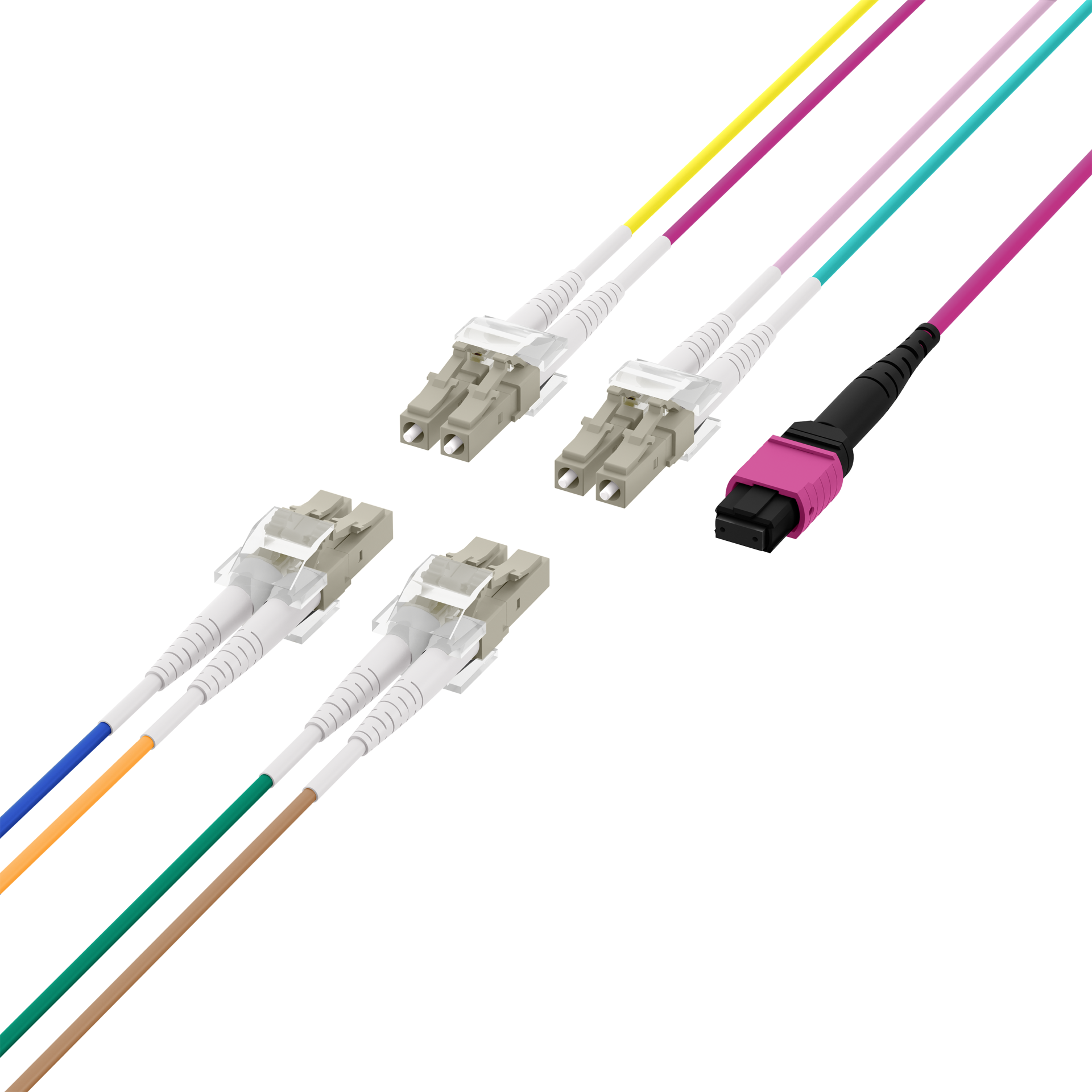

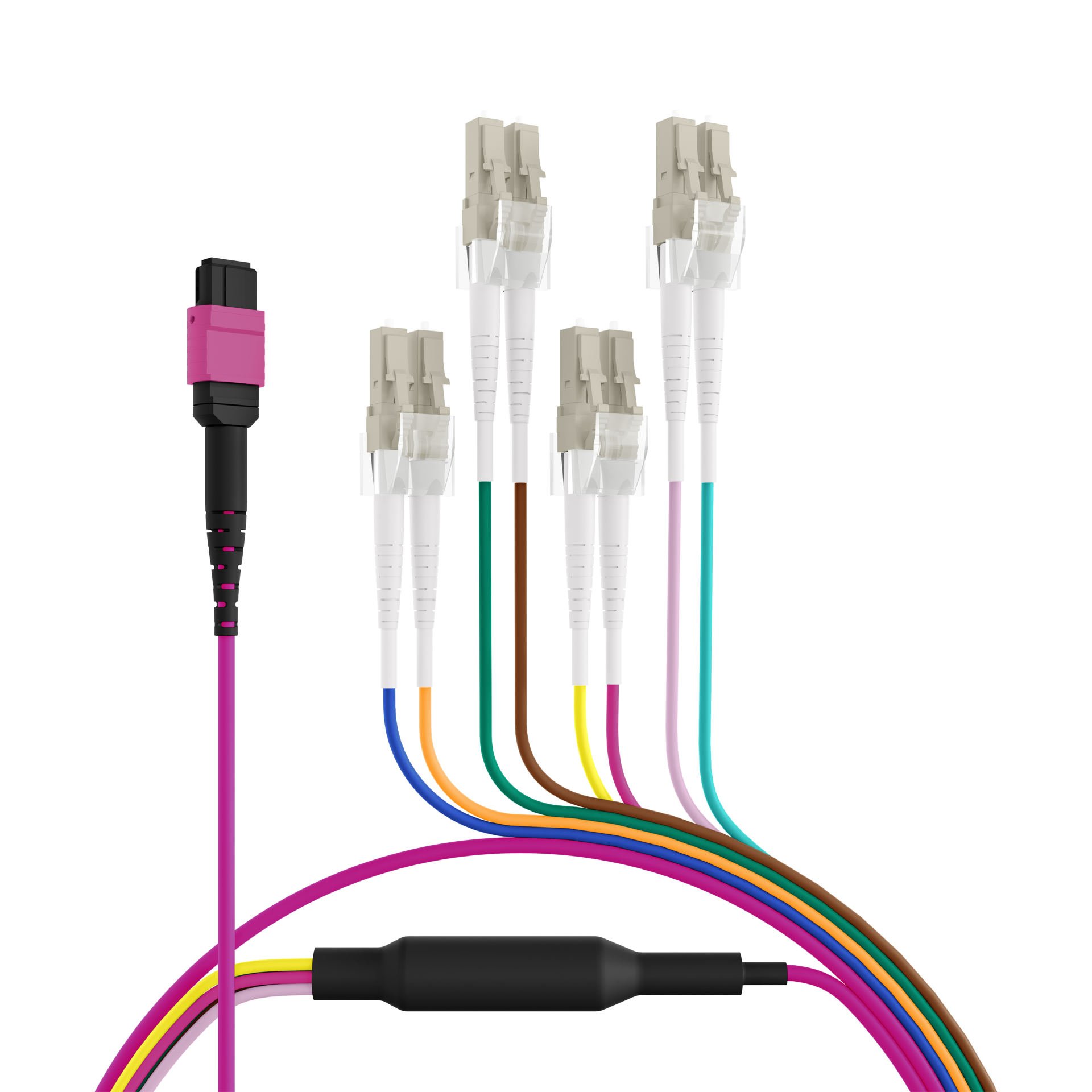

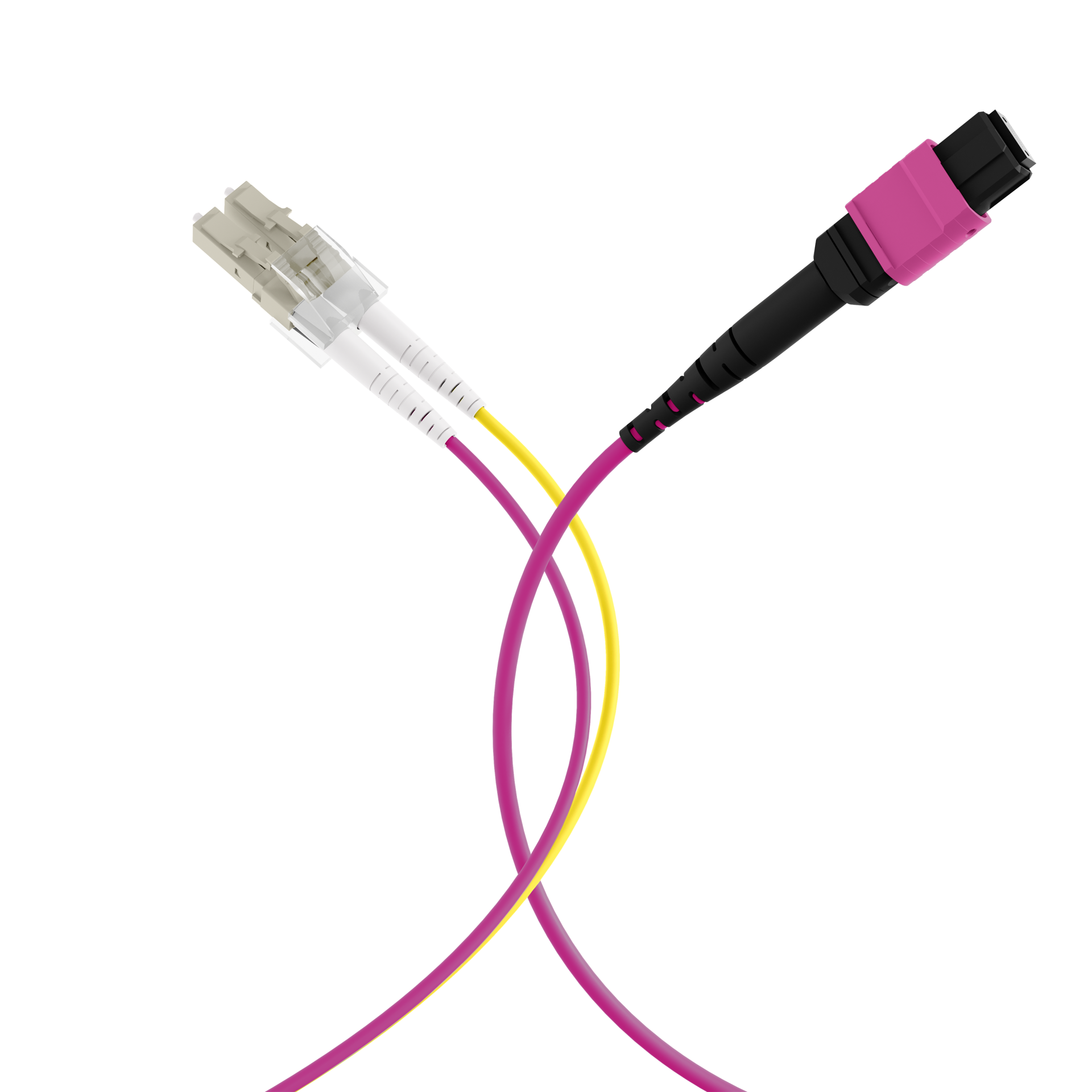

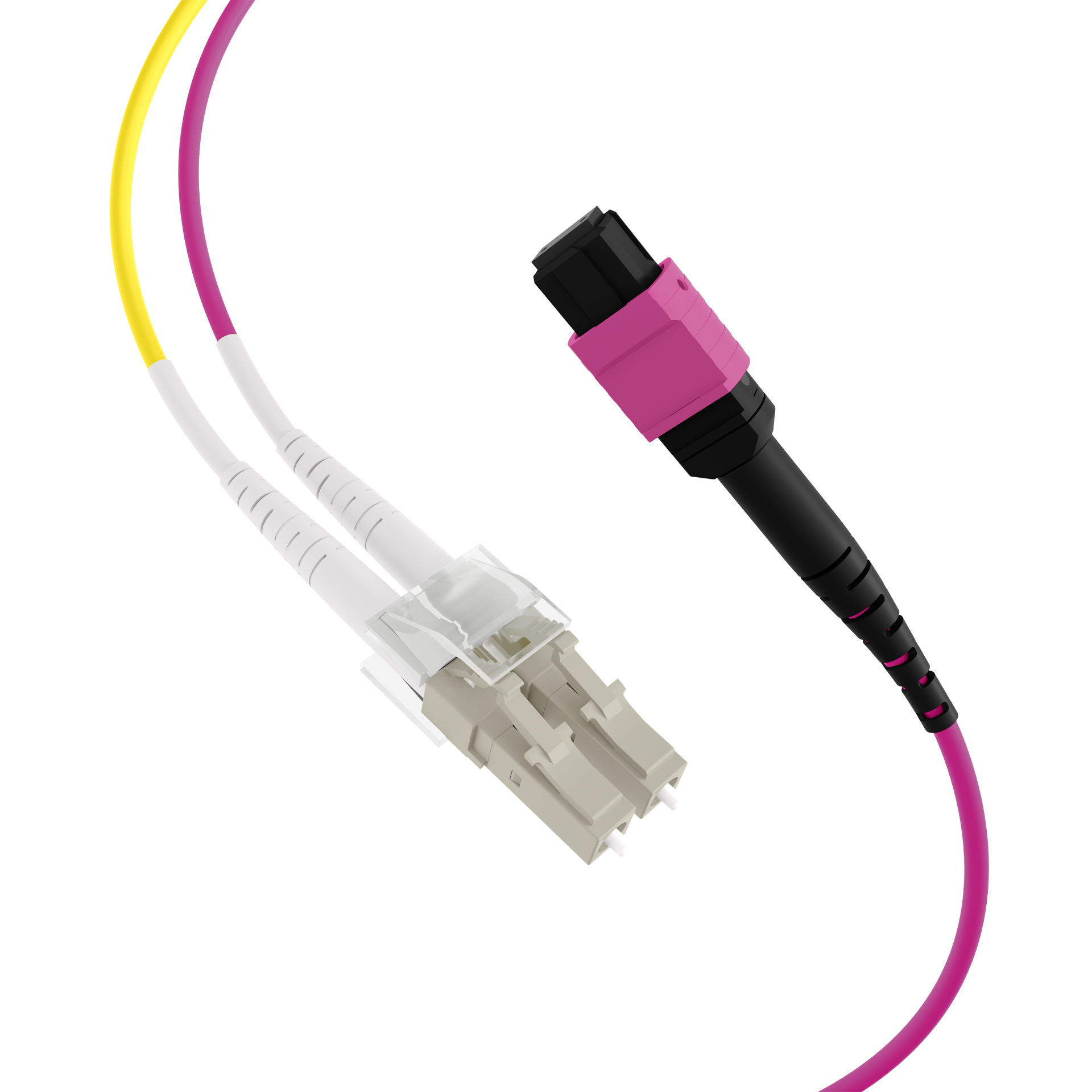

Construction: 1 multi-connector MTP® on one side,
4 LC-Duplex connector on the other side
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 8 fibers
Assignment MTP 1-4 + 9-12
Furcation length: 50cm
Cable diameter multi-connector: 3mm
Cable diameter single-connector: 2mm
Colour: OM4 and OS2 acc. to colour code DIN VDE 0888
Construction: 1 multi-connector MTP® on one side,
4 LC-Duplex connector on the other side
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 8 fibers
Assignment MTP 1-4 + 9-12
Furcation length: 50cm
Cable diameter multi-connector: 3mm
Cable diameter single-connector: 2mm
Colour: OM4 and OS2 acc. to colour code DIN VDE 0888
Tekniske egenskaber
| Cable diameter: | 3.0 mm |
|---|---|
| Category: | OM4 |
| Coding: | Crossed |
| Colour outer sheath: | erica-violet |
| Connector connection 1: | MTP-F |
| Connector connection 2: | LC |
| Crossed: | False |
| Fibre type: | OM4 50/125 |
| Flame retardant: | Yes |
| Guide pins side A: | False |
| Guide pins side B: | False |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket material: | LSZH |
| Operating temperature: | -20 – 70 °C |
| Storage Temperature: | -20 – 70 °C |
| Wave length: | 850/1300 nm |
| With rodent protection: | False |
Variants
| ON | Label | Number of fibres | Number of connectors connection 1 | Number of connectors connection 2 | Halogen free (according to EN 60754-1/2) | Length | |
|---|---|---|---|---|---|---|---|
| MTPF08LCOM4-1 | MTP®(F)-LC Trunk cable OM4 8 fibers Typ B LSZH erica-violet 1m | 8 | 1 x MTP® female | 8 x LC | True | 1.0 m | |
| MTPF08LCOM4-2 | MTP®(F)-LC Trunk cable OM4 8 fibers Typ B LSZH erica-violet 2m | 8 | 1 x MTP® female | 8 x LC | True | 2.0 m | |
| MTPF08LCOM4-3 | MTP®(F)-LC Trunk cable OM4 8 fibers Typ B LSZH erica-violet 3m | 8 | 1 x MTP® female | 8 x LC | True | 3.0 m | |
| MTPF08LCOM4-5 | MTP®(F)-LC Trunk cable OM4 8 fibers Typ B LSZH erica-violet 5m | 8 | 1 x MTP® female | 8 x LC | True | 5.0 m | |
| MTPF08LCOM4-10 | MTP®(F)-LC Trunk cable OM4 8 fibers Typ B LSZH erica-violet 10m | 8 | 1 x MTP® female | 8 x LC | True | 10.0 m | |
| MTPF08LCOM4-15 | MTP®(F)-LC Trunk cable OM4 8 fibers Typ B LSZH erica-violet 15m | 8 | 1 x MTP® female | 8 x LC | True | 15.0 m | |
| MTPF08LCOM4-20 | MTP®(F)-LC Trunk cable OM4 8 fibers Typ B LSZH erica-violet 20m | 8 | 1 x MTP® female | 8 x LC | True | 20.0 m | |
| MTPF08LCOM4-30 | MTP®(F)-LC Trunk cable OM4 8 fibers Typ B LSZH erica-violet 30m | 8 | 1 x MTP® female | 8 x LC | True | 30.0 m |
