MTP®-F/LC 12-fiber patch cable OM3

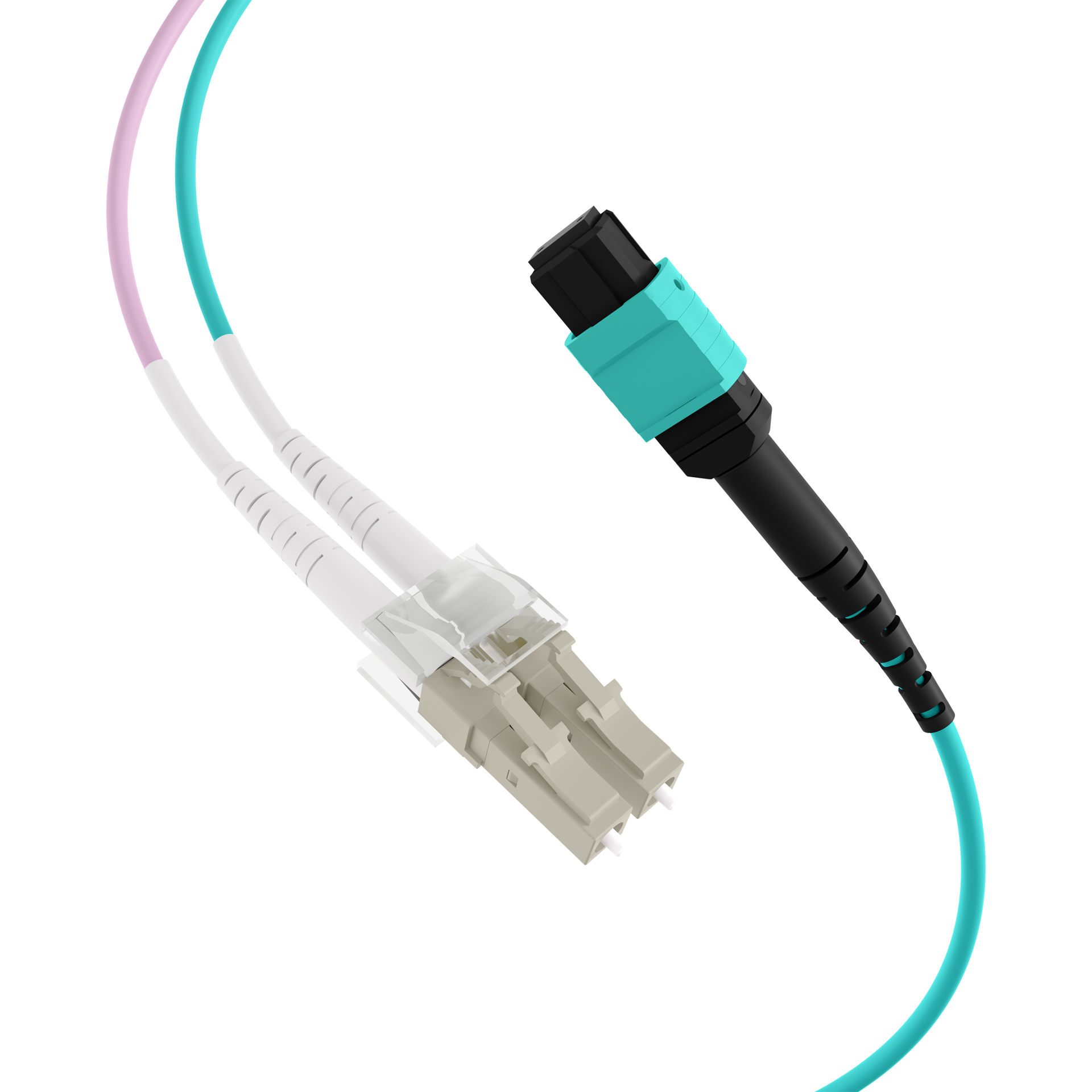

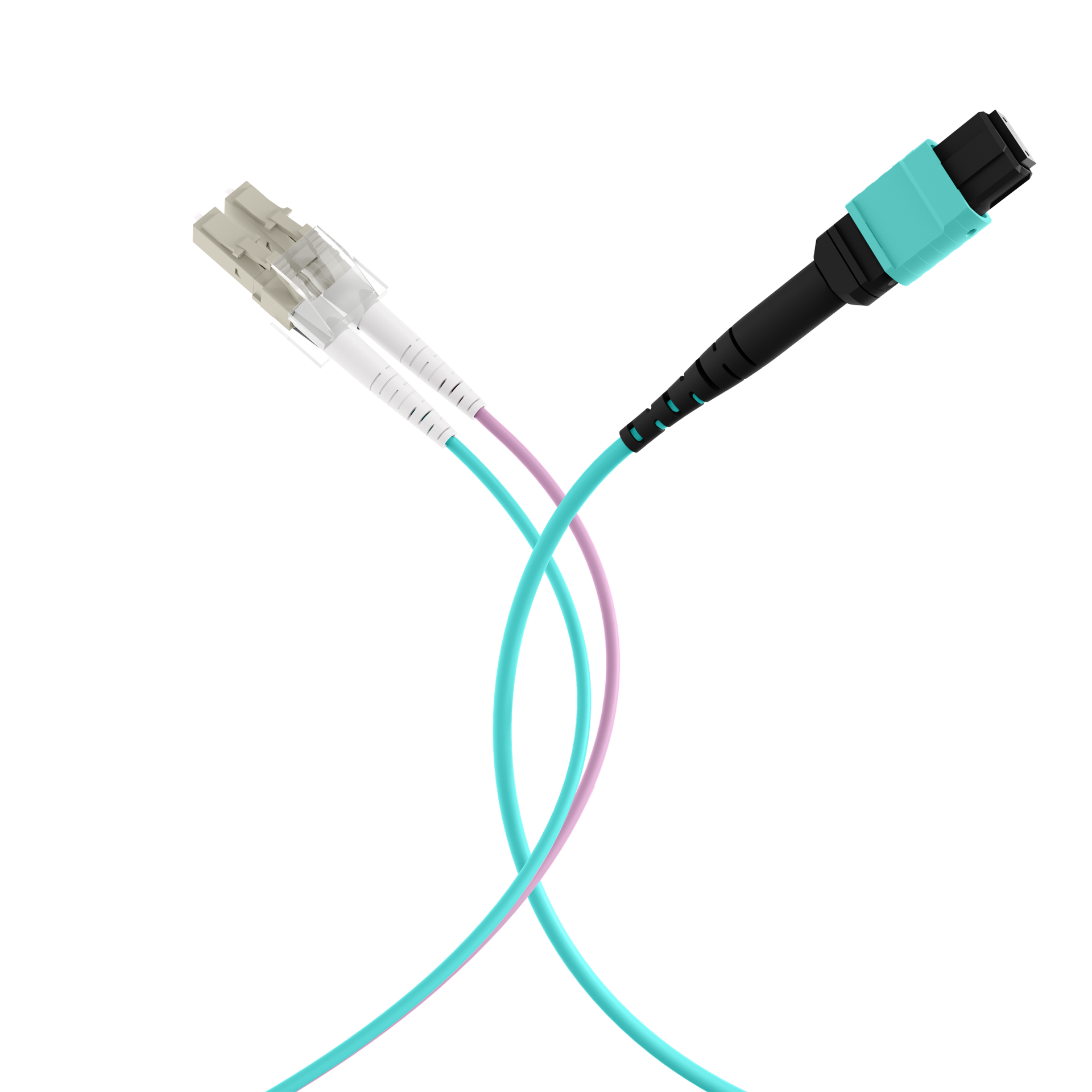

MTP®(F)-LC Trunk cable OM3 12 fibers Typ B LSZH aqua 7,5m
Varenummer:
MTPF12LCOM3-7,5
EAN Nr.:
4049759241124
Produktinformation til MTP®(F)-LC Trunk cable OM3 12 fibers Typ B LSZH aqua 7,5m
Application: Suitable for transmission links up to 100 Gigabit

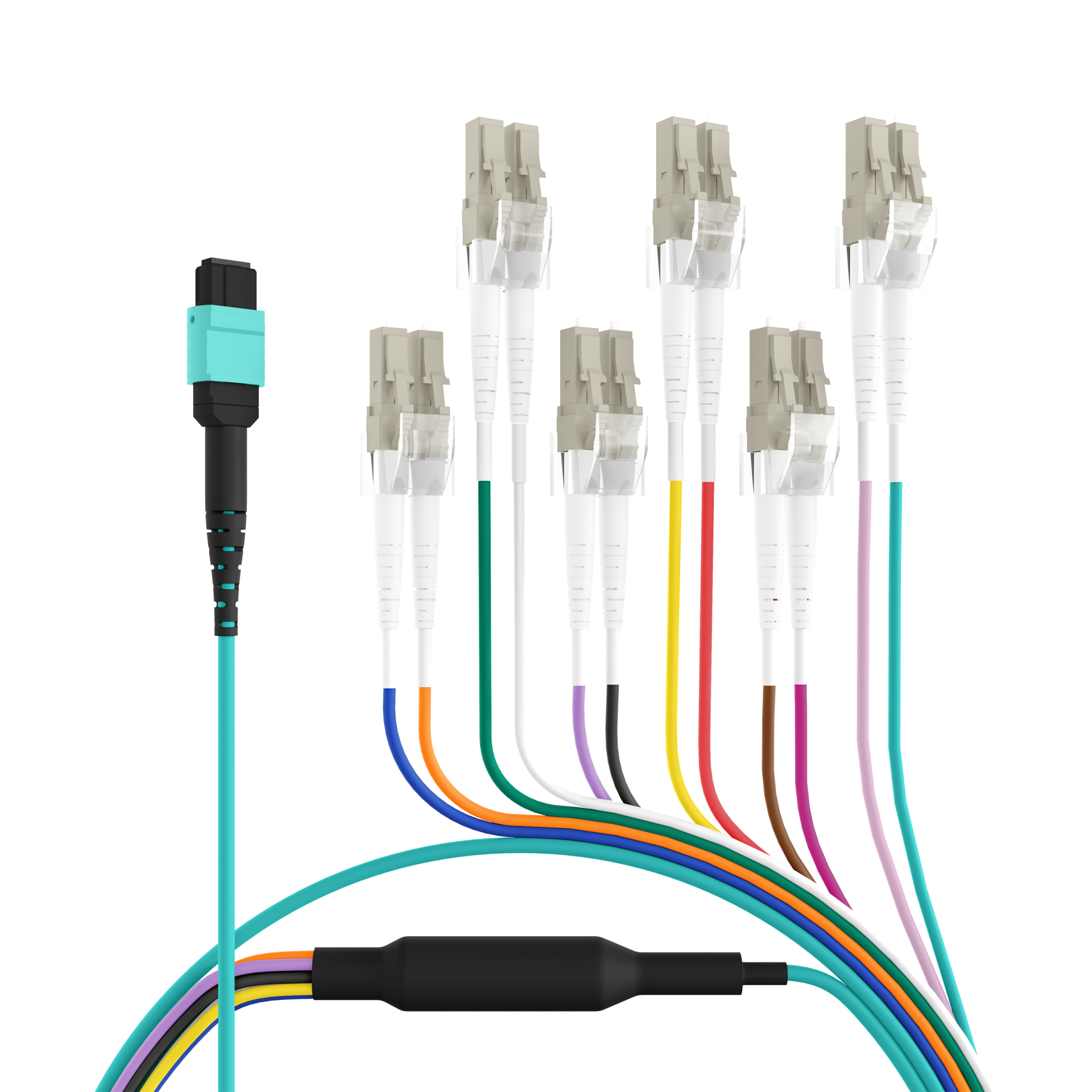

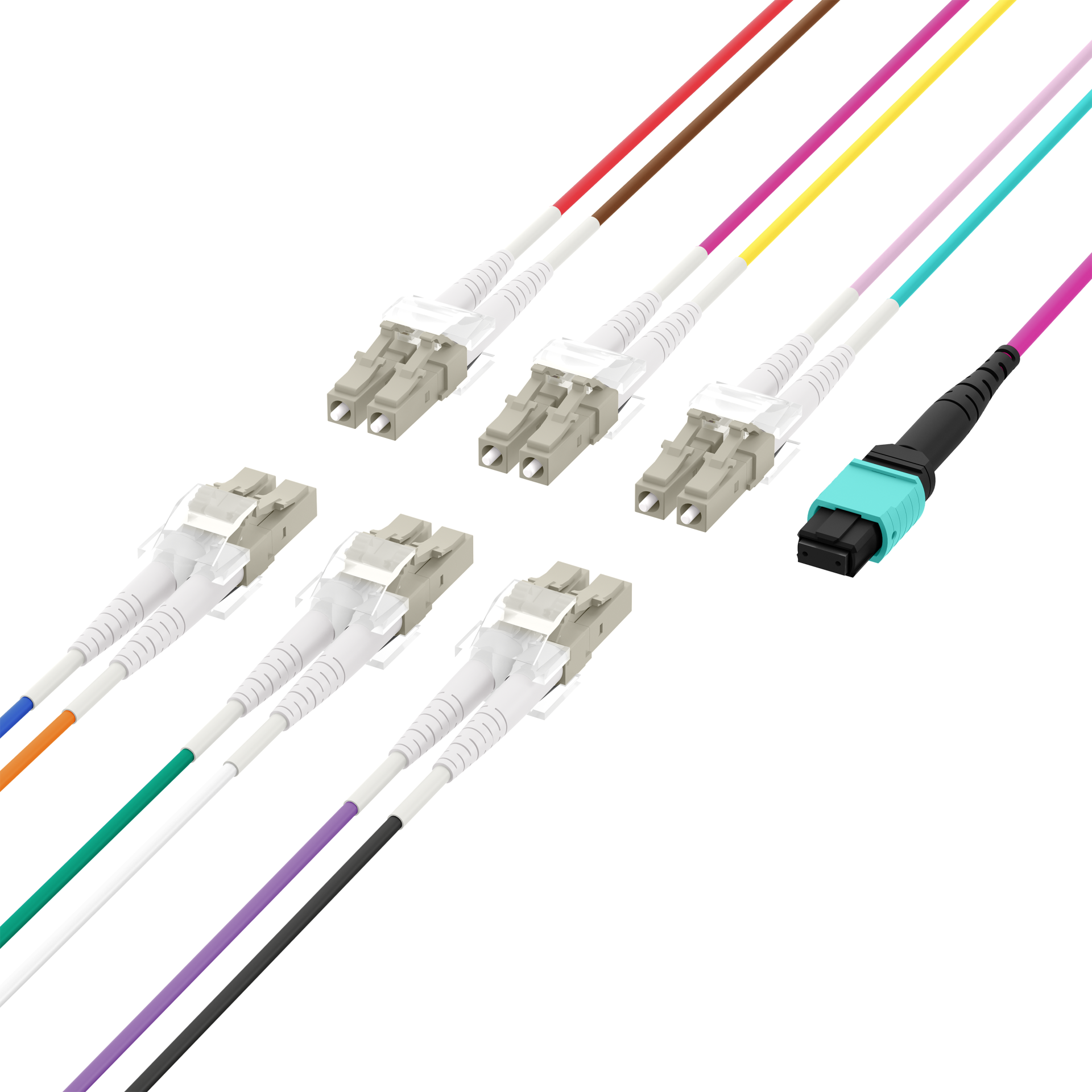

Construction: 1 multi-connector MTP® on one side,
6 LC-Duplex connector on the other side
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 12 fibers
Furcation length: 50cm
Cable diameter multi-connector: 3mm
Cable diameter single-connector: 2mm
Colour: OM5, OM4, OM3 and OS2 acc. to colour code DIN VDE 0888
Construction: 1 multi-connector MTP® on one side,
6 LC-Duplex connector on the other side
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 12 fibers
Furcation length: 50cm
Cable diameter multi-connector: 3mm
Cable diameter single-connector: 2mm
Colour: OM5, OM4, OM3 and OS2 acc. to colour code DIN VDE 0888
Tekniske egenskaber
| Cable Diameter: | 3.0 mm |
|---|---|
| Category: | OM3 |
| Coding: | 1:1 |
| Colour outer sheath: | turquoise |
| Connector connection 1: | MTP-F |
| Connector connection 2: | LC-Duplex |
| Crossed: | False |
| Fibre type: | OM3 50/125 |
| Halogen free (according to EN 50267-2-3): | True |
| Operating Temperature: | -20 – 70 °C |
| Storage Temperature: | -20 – 70 °C |
| With rodent protection: | False |
Varianten
| Art. Nr. | Bezeichnung | Length | Number of connectors connection 1 | Number of connectors connection 2 | Number of fibres | |
|---|---|---|---|---|---|---|
| MTPF12LCOM3-1 | MTP®(F)-LC Trunk cable OM3 12 fibers Typ B LSZH aqua 1m | 1.0 m | 1 x MTP® female | 12 x LC | 12 | |
| MTPF12LCOM3-2 | MTP®(F)-LC Trunk cable OM3 12 fibers Typ B LSZH aqua 2m | 2.0 m | 1 x MTP® female | 12 x LC | 12 | |
| MTPF12LCOM3-3 | MTP®(F)-LC Trunk cable OM3 12 fibers Typ B LSZH aqua 3m | 3.0 m | 1 x MTP® female | 12 x LC | 12 | |
| MTPF12LCOM3-5 | MTP®(F)-LC Trunk cable OM3 12 fibers Typ B LSZH aqua 5m | 5.0 m | 1 x MTP® female | 12 x LC | 12 | |
| MTPF12LCOM3-7,5 | MTP®(F)-LC Trunk cable OM3 12 fibers Typ B LSZH aqua 7,5m | 7.5 m | 1 x MTP® female | 12 x LC | 12 | |
| MTPF12LCOM3-10 | MTP®(F)-LC Trunk cable OM3 12 fibers Typ B LSZH aqua 10m | 10.0 m | 1 x MTP® female | 12 x LC | 12 | |
| MTPF12LCOM3-15 | MTP®(F)-LC Trunk cable OM3 12 fibers Typ B LSZH aqua 15m | 15.0 m | 1 x MTP® female | 12 x LC | 12 |
