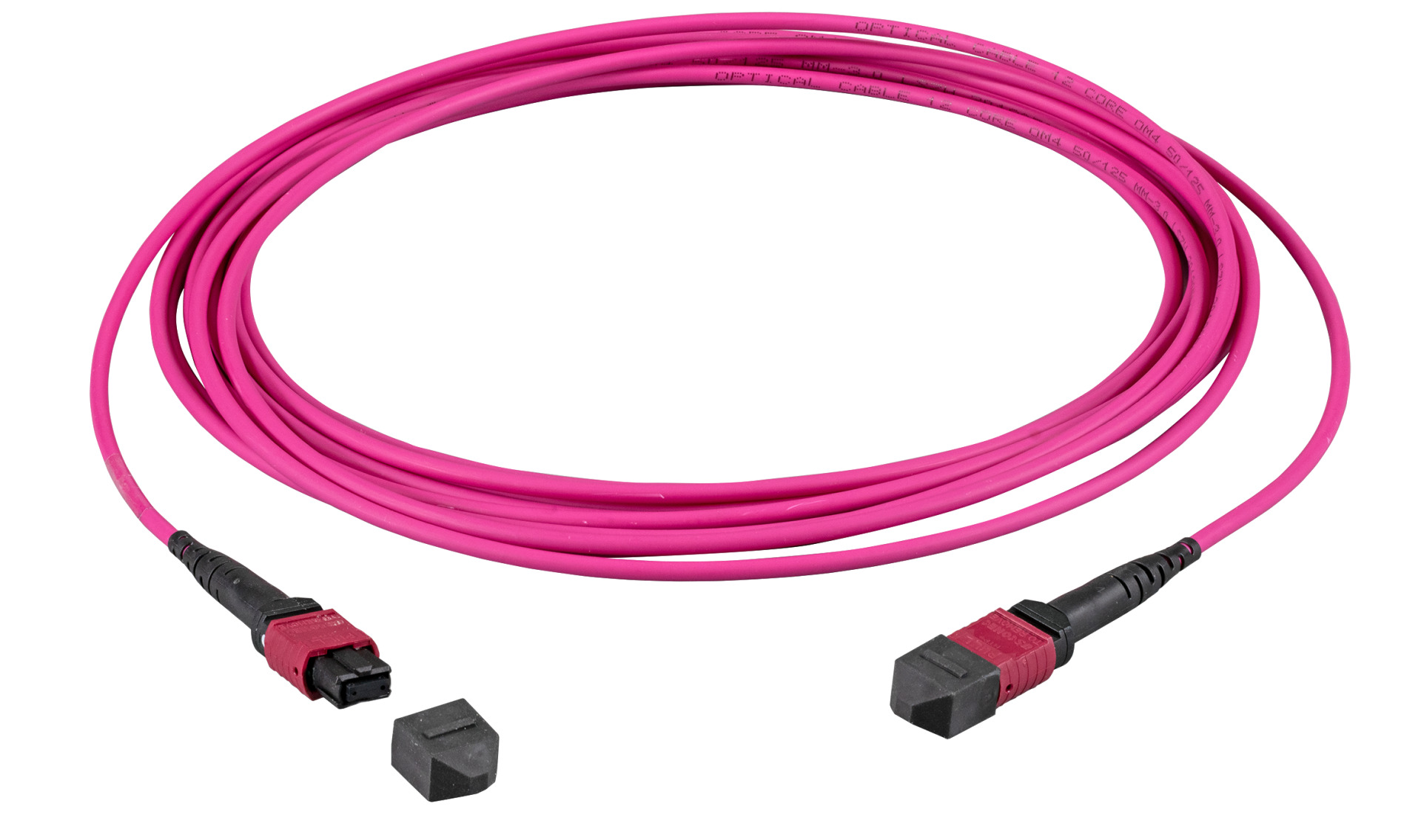

MTP®-F/MTP®-F 48-fiber matrix Patch cable OM4, Code A

Priser kun synlige for indloggede brugere

MTP®-F/MTP®-F 48-fiber matrix patch cable OM4, LSZH erica-violet, Code A, 5m
Varenummer: MTPF48MTPFOM4-5-A
EAN nr.: 4049759237370
Stück

Produktinformation für MTP®-F/MTP®-F 48-fiber matrix patch cable OM4, LSZH erica-violet, Code A, 5m

Application: Server to Server- / Switch to Switch connection,
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow

Available lengths: 1m up to 100m

Note: In each MTP® transmission link, a type B (crossed) patch cable is required

Tekniske egenskaber

Cable Diameter: 9.0 mm
Category: OM4
Coding: Type A straight
Colour outer sheath: erica violet
Connector connection 1: MTP-F
Connector connection 2: MTP-F
Fiber type: OM4 50/125
Halogen free (according to EN 50267-2-3): True
Jacket material: LSZH
Operating Temperature: 0 – 50 °C
Storage Temperature: -20 – 70 °C
With rodent protection: False

Varianter

Art. Nej. Betegnelse Length Number of connectors connection 1 Number of fibres Number of connectors connection 2
MTPF48MTPFOM4-5-A MTP®-F/MTP®-F 48-fiber matrix patch cable OM4, LSZH erica-violet, Code A, 5m 5.0 m 4 x MTP® female 48 4 x MTP® female Vælg varianter
MTPF48MTPFOM4-10-A MTP®-F/MTP®-F 48-fiber matrix patch cable OM4, LSZH erica-violet, Code A, 10m 10.0 m 4 x MTP® female 48 4 x MTP® female Vælg varianter
MTPF48MTPFOM4-15-A MTP®-F/MTP®-F 48-fiber matrix patch cable OM4, LSZH erica-violet, Code A, 15m 15.0 m 4 x MTP® female 48 4 x MTP® female Vælg varianter
MTPF48MTPFOM4-20-A MTP®-F/MTP®-F 48-fiber matrix patch cable OM4, LSZH erica-violet, Code A, 20m 20.0 m 4 x MTP® female 48 4 x MTP® female Vælg varianter
MTPF48MTPFOM4-25-A MTP®-F/MTP®-F 48-fiber matrix patch cable OM4, LSZH erica-violet, Code A, 25m 25.0 m 4 x MTP® female 48 4 x MTP® female Vælg varianter
MTPF48MTPFOM4-30-A MTP®-F/MTP®-F 48-fiber matrix patch cable OM4, LSZH erica-violet, Code A, 30m 30.0 m 4 x MTP® female 48 4 x MTP® female Vælg varianter
