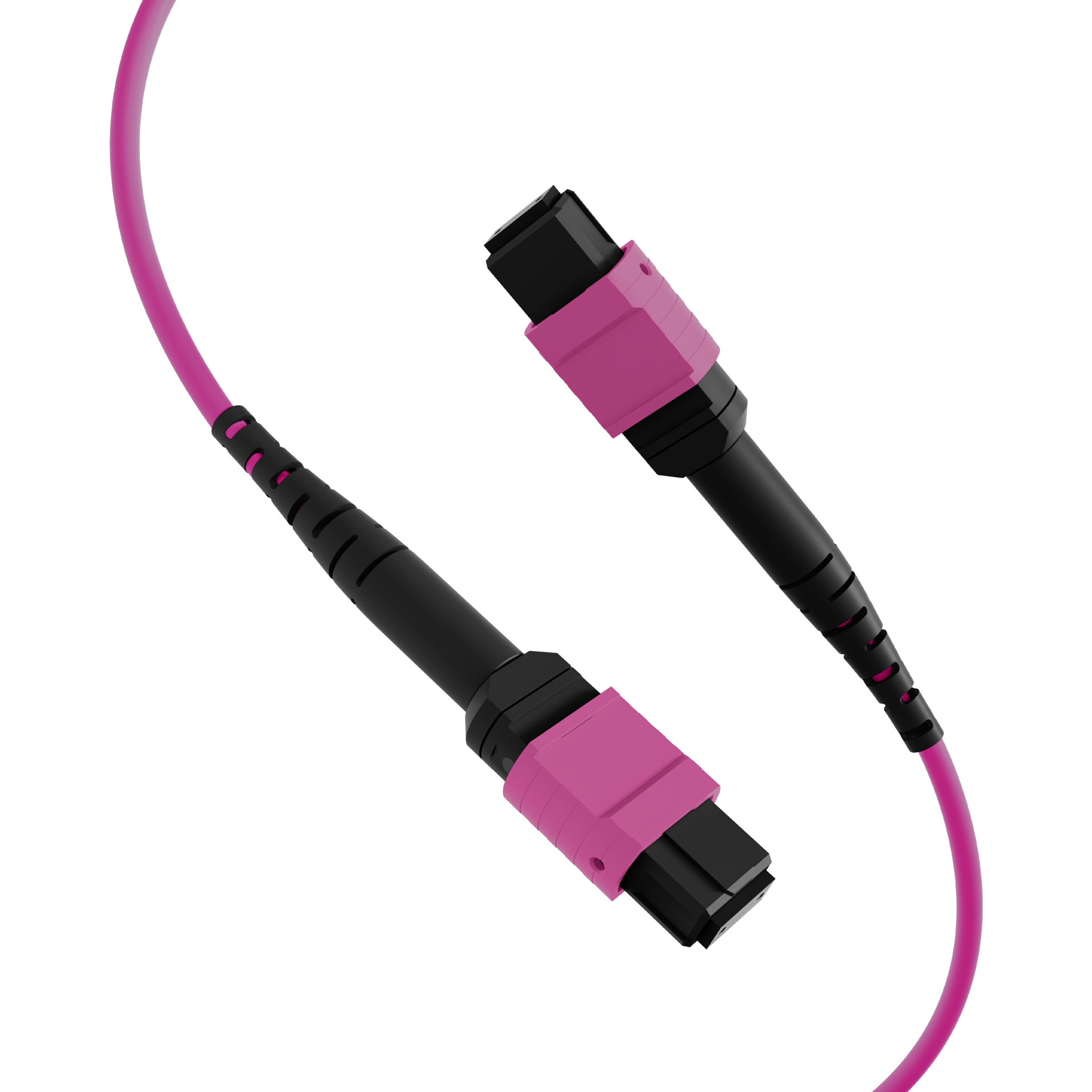

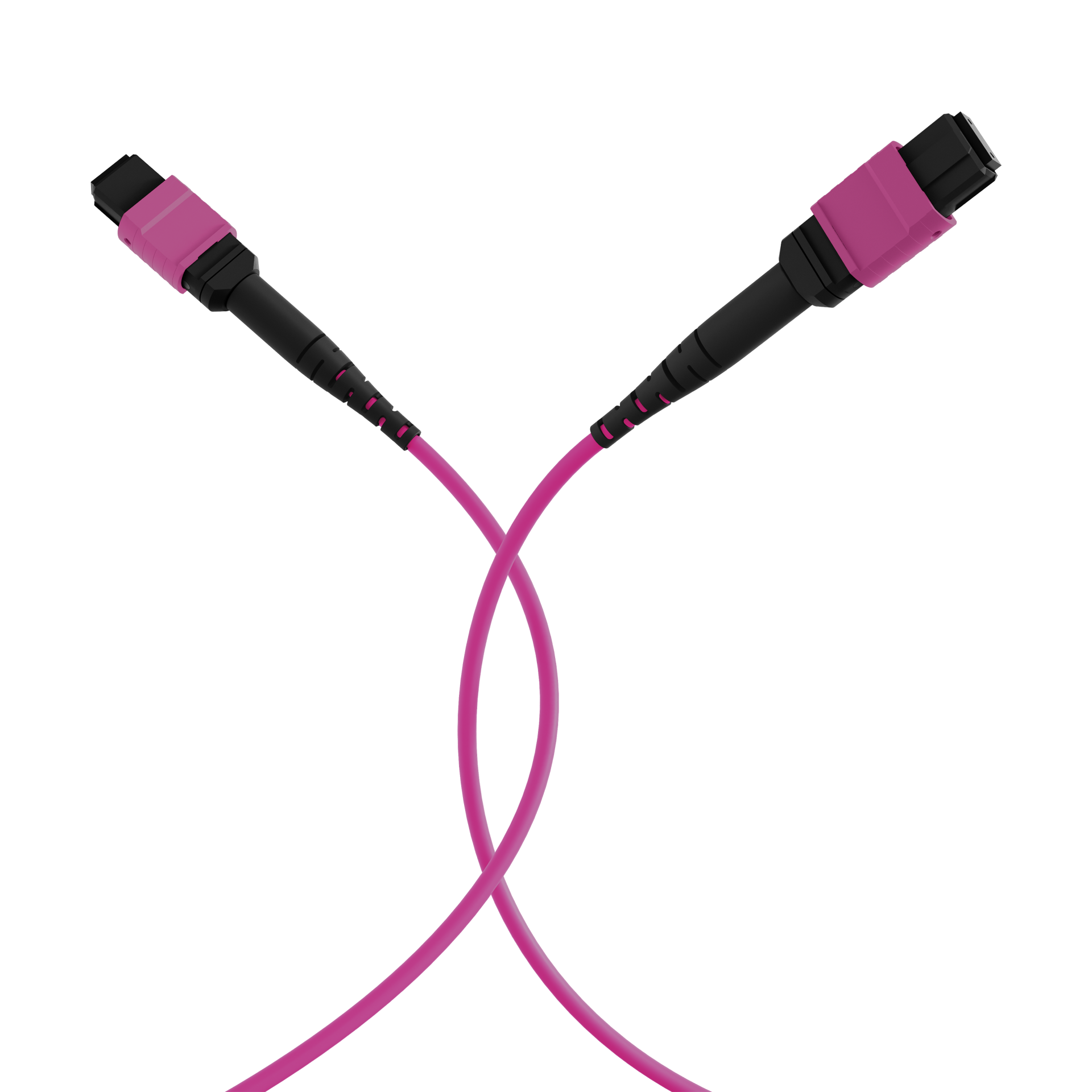

MTP®-F/MTP®-F 48-fiber matrix Patch cable OM4, Code A
MTP®(F)-MTP®(F) Patch cable OM4 48 fibers Typ A LSZH erica-violet 5m
Varenummer:
MTPF48MTPFOM4-5-A
EAN Nr.:
4049759237370
Produktinformationen für MTP®(F)-MTP®(F) Patch cable OM4 48 fibers Typ A LSZH erica-violet 5m
Application: Server to Server- / Switch to Switch connection,
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m
Note: In each MTP® transmission link, a type B (crossed) patch cable is required
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m
Note: In each MTP® transmission link, a type B (crossed) patch cable is required
Technische Eigenschaften
Cable Diameter: | 9.0 mm |
---|---|
Category: | OM4 |
Coding: | Type A straight |
Colour outer sheath: | erica violet |
Connector connection 1: | MTP-F |
Connector connection 2: | MTP-F |
Fibre type: | OM4 50/125 |
Halogen free (according to EN 50267-2-3): | True |
Jacket material: | LSZH |
Operating Temperature: | 0 – 50 °C |
Storage Temperature: | -20 – 70 °C |
With rodent protection: | False |
Varianten
Art. Nr. | Bezeichnung | Length | Number of connectors connection 1 | Number of fibres | Number of connectors connection 2 | |
---|---|---|---|---|---|---|
MTPF48MTPFOM4-5-A | MTP®(F)-MTP®(F) Patch cable OM4 48 fibers Typ A LSZH erica-violet 5m | 5.0 m | 4 x MTP® female | 48 | 4 x MTP® female | |
MTPF48MTPFOM4-10-A | MTP®(F)-MTP®(F) Patch cable OM4 48 fibers Typ A LSZH erica-violet 10m | 10.0 m | 4 x MTP® female | 48 | 4 x MTP® female | |
MTPF48MTPFOM4-15-A | MTP®(F)-MTP®(F) Patch cable OM4 48 fibers Typ A LSZH erica-violet 15m | 15.0 m | 4 x MTP® female | 48 | 4 x MTP® female | |
MTPF48MTPFOM4-20-A | MTP®(F)-MTP®(F) Patch cable OM4 48 fibers Typ A LSZH erica-violet 20m | 20.0 m | 4 x MTP® female | 48 | 4 x MTP® female | |
MTPF48MTPFOM4-25-A | MTP®(F)-MTP®(F) Patch cable OM4 48 fibers Typ A LSZH erica-violet 25m | 25.0 m | 4 x MTP® female | 48 | 4 x MTP® female | |
MTPF48MTPFOM4-30-A | MTP®(F)-MTP®(F) Patch cable OM4 48 fibers Typ A LSZH erica-violet 30m | 30.0 m | 4 x MTP® female | 48 | 4 x MTP® female |
