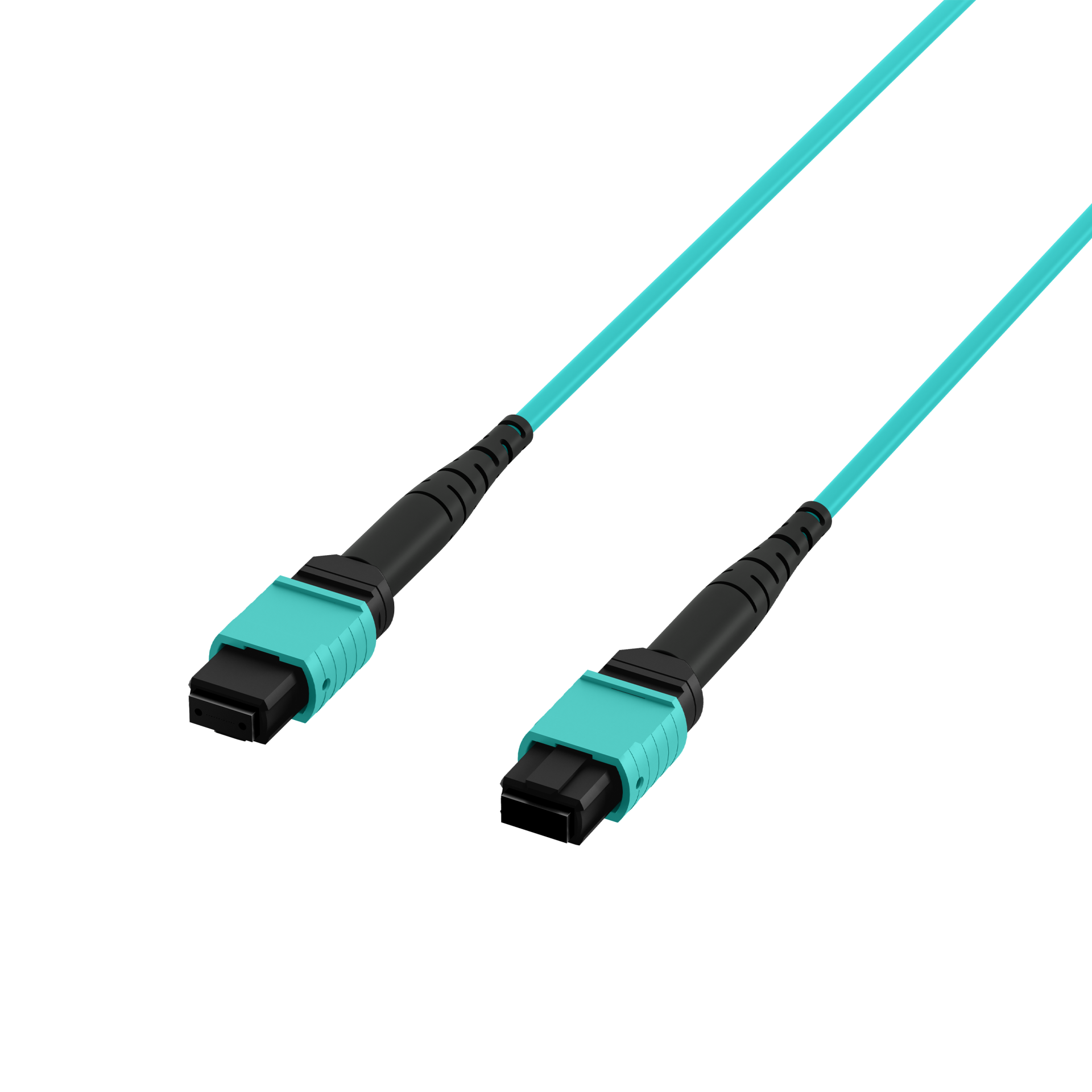

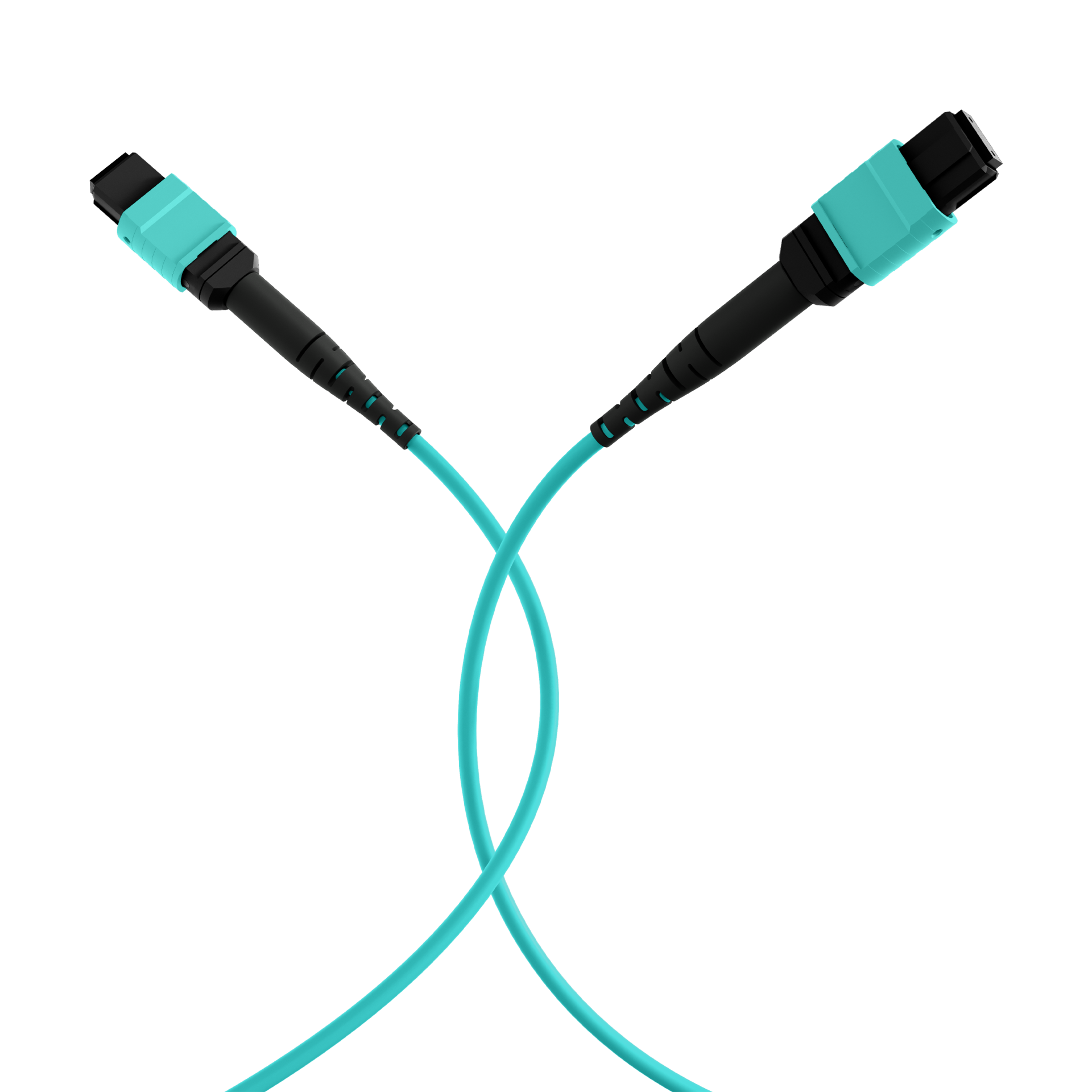

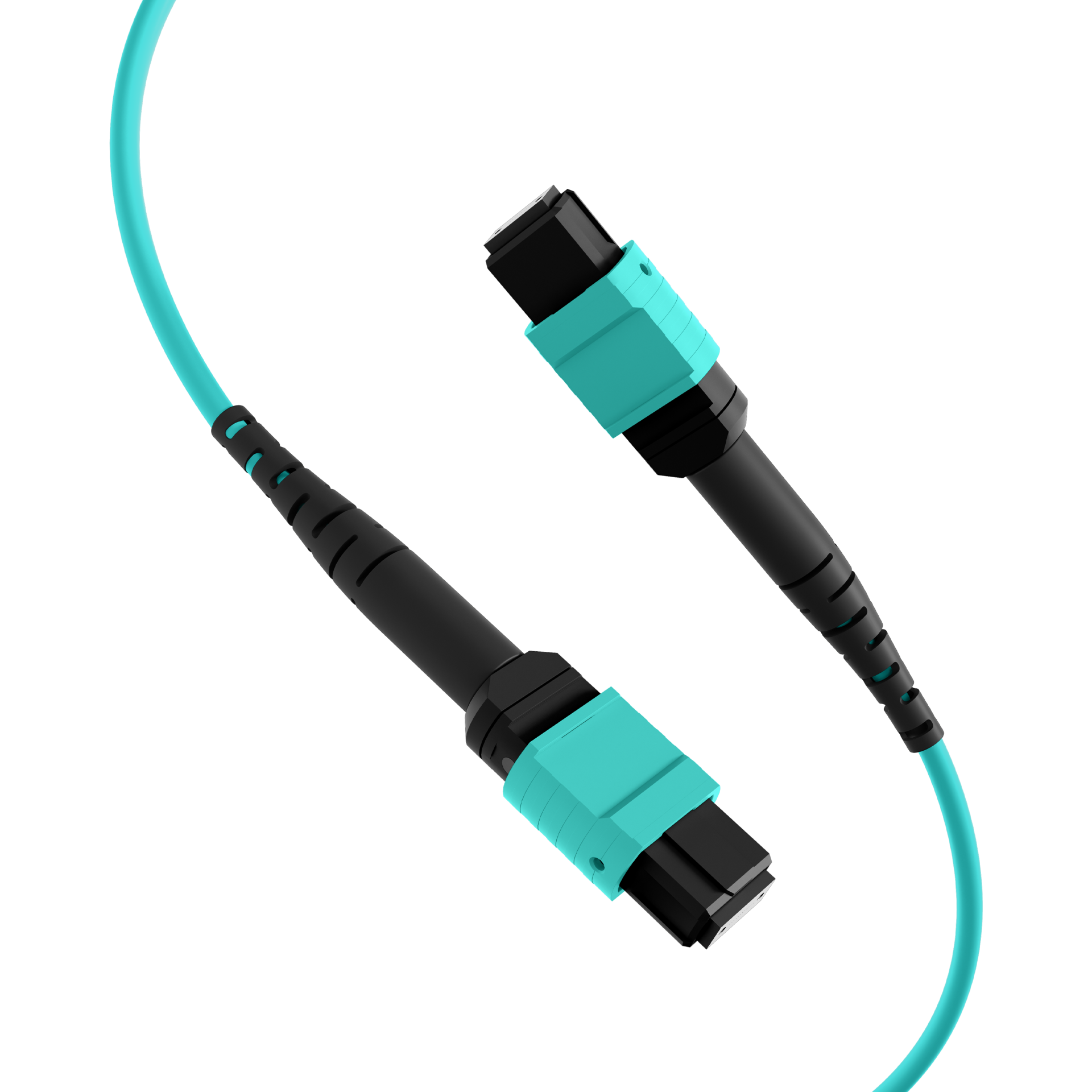

MTP®-F/MTP®-F 12-fiber matrix Patch cable OM3, Code A

Priser kun synlige for indloggede brugere

MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ A LSZH aqua 0,5m
Varenummer: MTPF12MTPFOM3-0,5-A
EAN nr.: 4049759229436
Piece

Produktinformation für MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ A LSZH aqua 0,5m

Application: Server to Server- / Switch to Switch connection,
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow

Available lengths: 1m up to 100m

Note: In each MTP® transmission link, a type B (crossed) patch cable is required

Tekniske egenskaber

Cable Diameter: 3.0 mm
Category: OM3
Coding: Type A straight
Colour outer sheath: aqua
Connector connection 1: MTP-F
Connector connection 2: MTP-F
Fibre type: OM3 50/125
Halogen free (according to EN 50267-2-3): True
Jacket material: LSZH
Operating Temperature: 0 – 50 °C
Storage Temperature: -20 – 70 °C
With rodent protection: False

Varianter

Art. Nej. Betegnelse Number of connectors connection 1 Number of fibres Number of connectors connection 2 Length
MTPF12MTPFOM3-0,5-A MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ A LSZH aqua 0,5m 1 x MTP® female 12 1 x MTP® female 0.5 m
MTPF12MTPFOM3-1-A MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ A LSZH aqua 1m 1 x MTP® female 12 1 x MTP® female 1.0 m
MTPF12MTPFOM3-2-A MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ A LSZH aqua 2m 1 x MTP® female 12 1 x MTP® female 2.0 m
MTPF12MTPFOM3-3-A MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ A LSZH aqua 3m 1 x MTP® female 12 1 x MTP® female 3.0 m
MTPF12MTPFOM3-5-A MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ A LSZH aqua 5m 1 x MTP® female 12 1 x MTP® female 5.0 m
MTPF12MTPFOM3-7,5-A MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ A LSZH aqua 7,5m 1 x MTP® female 12 1 x MTP® female 7.5 m
MTPF12MTPFOM3-10-A MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ A LSZH aqua 10m 1 x MTP® female 12 1 x MTP® female 10.0 m
MTPF12MTPFOM3-15-A MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ A LSZH aqua 15m 1 x MTP® female 12 1 x MTP® female 15.0 m

accessory

MTP/MPO adapter with flange, codable up/up or up/down

used with

Ferrule Cleaner MPO II, push-pull-technology
