MTP/MPO Cassette OM4 1xMPO to 24xLC magenta
EFB-Elektronik GmbH

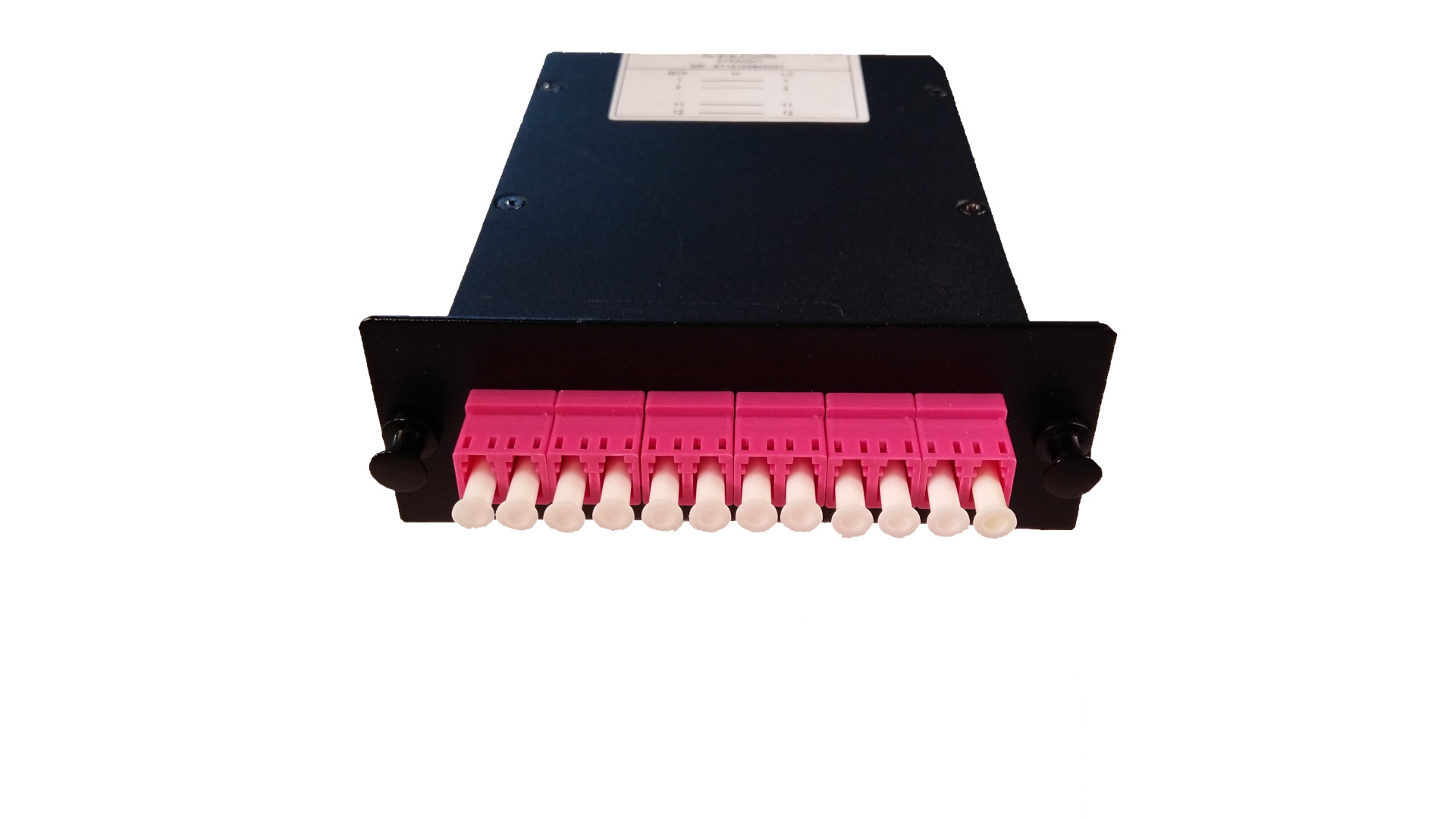

MTP/MPO Cassette OM4 1xMPO to 24xLC magenta Type A
Varenummer:
DK-819LC24OM4
EAN nr.:
5705721136117
Produktinformation til MTP/MPO Cassette OM4 1xMPO to 24xLC magenta Type A
- MTP/ MPO-Male Fanout Cassette, converting one or two MTP/MPO to LC or SC-adapters
LowLoss description means: attenuation per cassette max. 0,35dB
- MTP/ MPO adapters
- Quick lock
- Colour RAL9005
LowLoss description means: attenuation per cassette max. 0,35dB
- MTP/ MPO adapters
- Quick lock
- Colour RAL9005
| Coding: | Type A straight |
|---|---|
| Connector connection 1: | MTP-M |
| Connector connection 2: | LC-Duplex |
| Fibre type: | OM4 |
Tekniske egenskaber
| Coding: | Type A straight |
|---|---|
| Connector connection 1: | MTP-M |
| Connector connection 2: | LC-Duplex |
| Fibre type: | OM4 |
Varianter
| Art. Nej. | Betegnelse | Number of fibres | Number of connectors connection 2 | Number of connectors connection 1 | |
|---|---|---|---|---|---|
| DK-819LC24OM4 | MTP/MPO Cassette OM4 1xMPO to 24xLC magenta Type A | 24 | 12 | 2 | |
| DK-819LC24OM4-X | MTP/MPO Cassette OM4 1xMPO to 24xLC magenta Type C | 24 | 12 | 2 |
Produktinformation til MTP/MPO Cassette OM4 1xMPO to 24xLC magenta Type A
- MTP/ MPO-Male Fanout Cassette, converting one or two MTP/MPO to LC or SC-adapters
LowLoss description means: attenuation per cassette max. 0,35dB
- MTP/ MPO adapters
- Quick lock
- Colour RAL9005
LowLoss description means: attenuation per cassette max. 0,35dB
- MTP/ MPO adapters
- Quick lock
- Colour RAL9005
| Coding: | Type A straight |
|---|---|
| Connector connection 1: | MTP-M |
| Connector connection 2: | LC-Duplex |
| Fibre type: | OM4 |
| Coding: | Type A straight |
|---|---|
| Connector connection 1: | MTP-M |
| Connector connection 2: | LC-Duplex |
| Fibre type: | OM4 |
Varianter
| Art. Nej. | Betegnelse | Number of fibres | Number of connectors connection 2 | Number of connectors connection 1 | |
|---|---|---|---|---|---|
| DK-819LC24OM4 | MTP/MPO Cassette OM4 1xMPO to 24xLC magenta Type A | 24 | 12 | 2 | |
| DK-819LC24OM4-X | MTP/MPO Cassette OM4 1xMPO to 24xLC magenta Type C | 24 | 12 | 2 |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
