MTP/MPO Trunkcable OM3

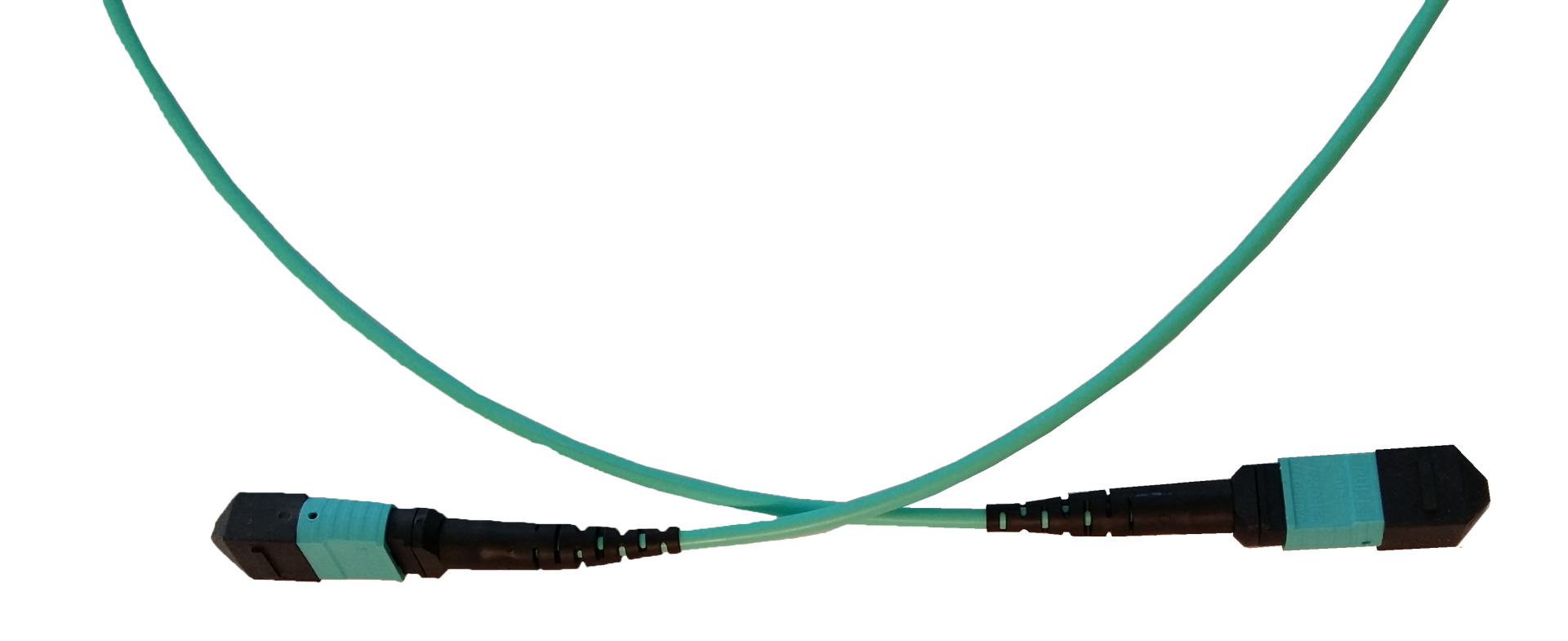

MTP/MPO Trunkcable OM3 12 fibers Type A LSZH turqoise 10m
Varenummer:
DK-12FTC45OM3.10
Produktinformation til MTP/MPO Trunkcable OM3 12 fibers Type A LSZH turqoise 10m
MTP/MPO Trunk Cable designed for Data Centers, High Speed Ethernet. High density and scalability. MTP/MPO are designed with a form factor like other standard Fiber Optic connectors like LC, SC but with a high density based on a matrix of 12 fiber.
The cables provide a Low loss connection with an Insertion Loss "IL" at maximum 0,35db and a return loss of minimum 30db
The cables provide a Low loss connection with an Insertion Loss "IL" at maximum 0,35db and a return loss of minimum 30db
Tekniske egenskaber
| Cable Diameter: | 4.5 mm |
|---|---|
| Category: | OM3 |
| Coding: | Type A straight |
| Colour outer sheath: | turquoise |
| Connector connection 1: | MTP-F |
| Connector connection 2: | MTP-F |
| Crossed: | No |
| Fibre type: | OM3 50/125 |
| Flame-retardant: | According to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket Material: | LSZH |
| With rodent protection: | False |
Varianten
| Art. Nr. | Bezeichnung | Number of fibres | Length | |
|---|---|---|---|---|
| DK-12FTC45OM3.10 | MTP/MPO Trunkcable OM3 12 fibers Type A LSZH turqoise 10m | 12 | 10 m | |
| DK-12FTC45OM3.12 | MTP/MPO Trunkcable OM3 12 fibers Type A LSZH turqoise 12m | 12 | 12 m | |
| DK-12FTC45OM3.15 | MTP/MPO Trunkcable OM3 12 fibers Type A LSZH turqoise 15m | 12 | 15 m | |
| DK-12FTC45OM3.20 | MTP/MPO Trunkcable OM3 12 fibers Type A LSZH turqoise 20m | 12 | 20 m | |
| DK-12FTC45OM3.25 | MTP/MPO Trunkcable OM3 12 fibers Type A LSZH turqoise 25m | 12 | 25 m | |
| DK-12FTC45OM3.5 | MTP/MPO Trunkcable OM3 12 fibers Type A LSZH turqoise 5m | 12 | 5 m | |
| DK-12FTC45OM3.7 | MTP/MPO Trunkcable OM3 12 fibers Type A LSZH turqoise 7m | 12 | 7 m |

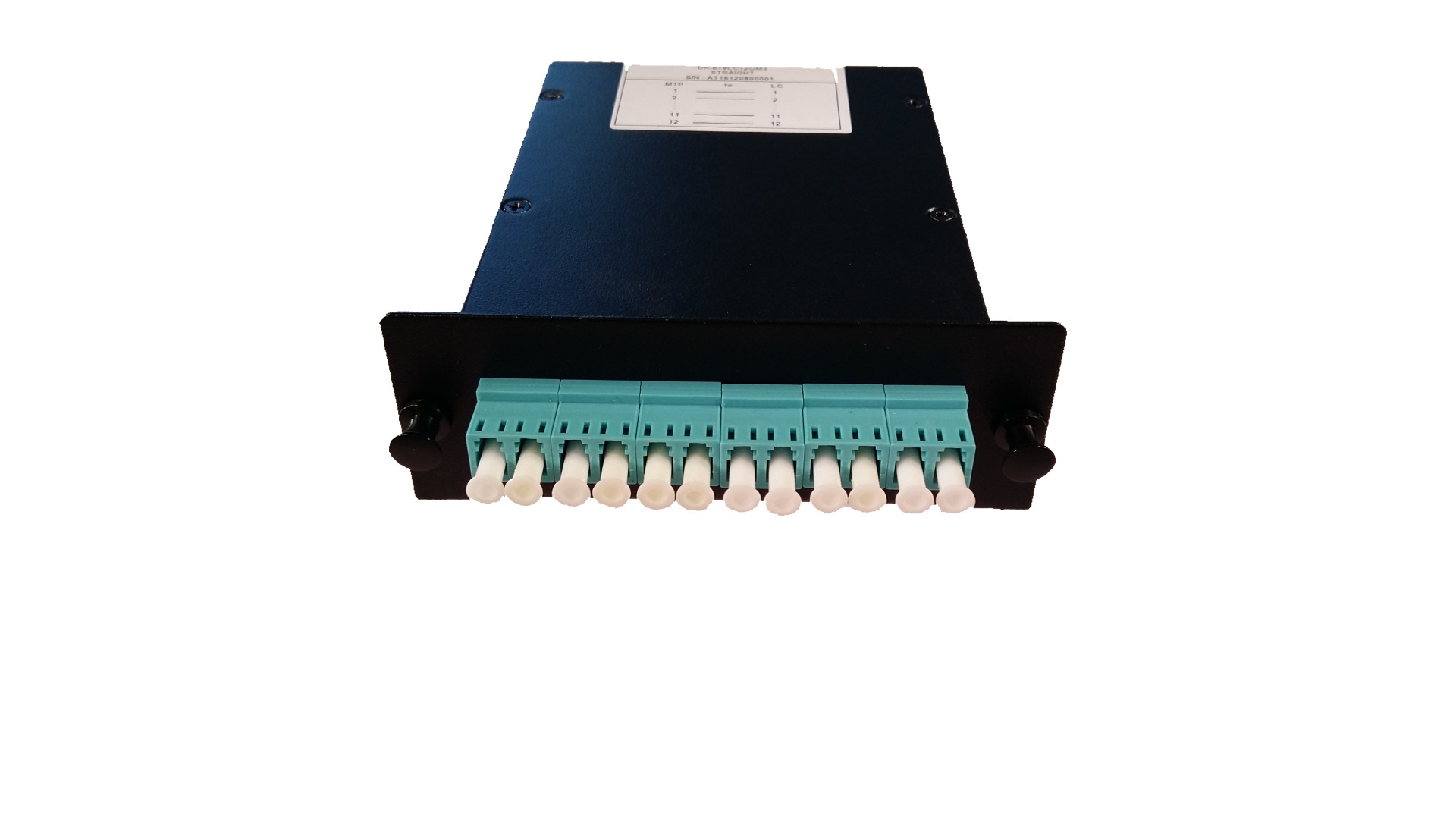

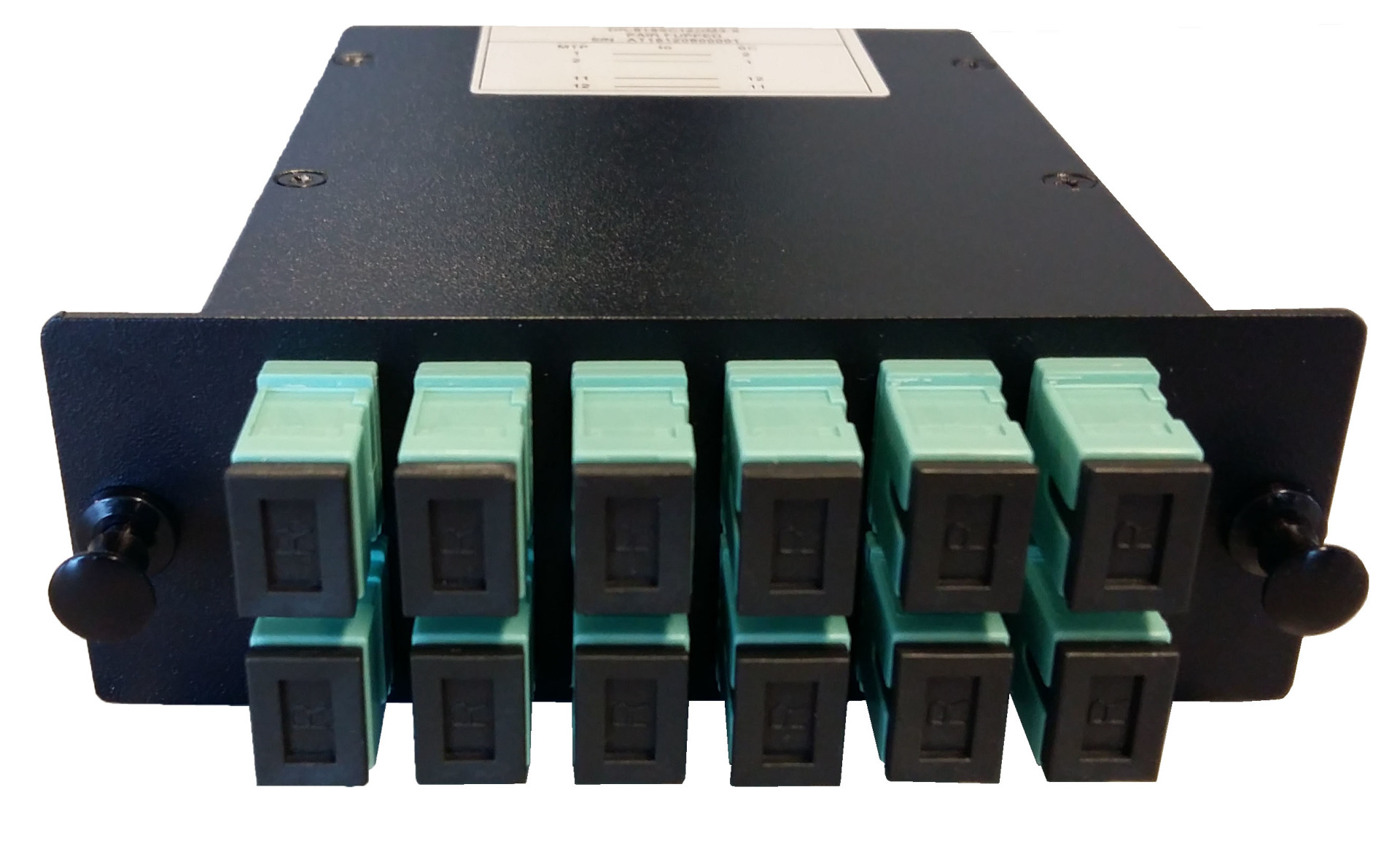

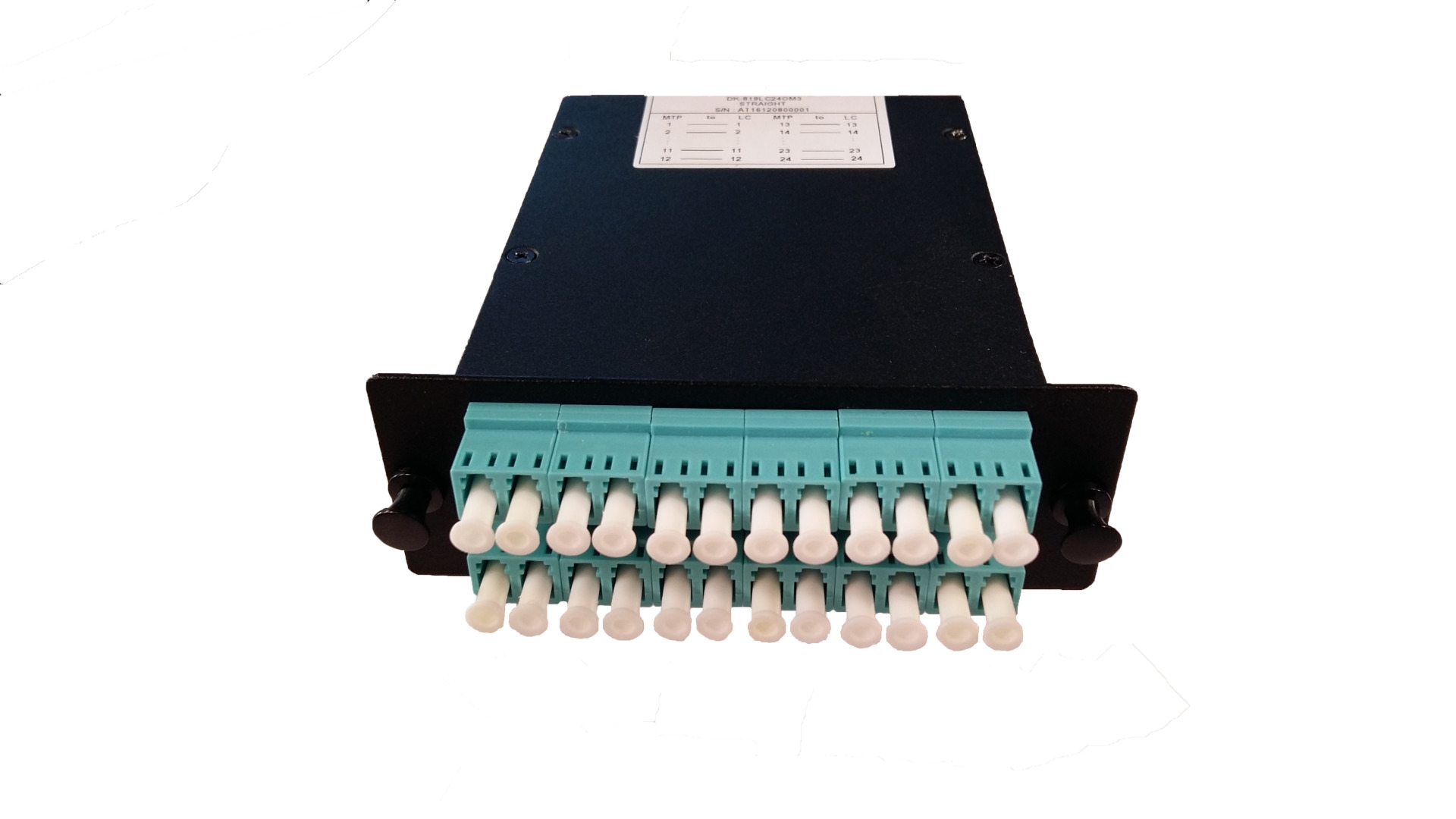

accessory
