Network-Isolator Cat.6A for Healthcare

Network-Isolator Cat.6A for Healthcare Jack/Jack
Varenummer: NET-ISOADAPRJ45

Produktinformation für Network-Isolator Cat.6A for Healthcare Jack/Jack

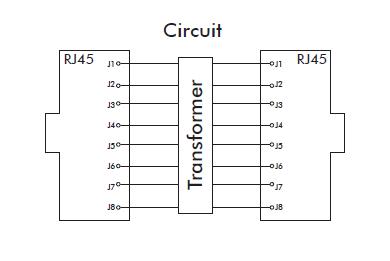

With galvanic separation
1-Line Fast/Gigabit, 10G Ethernet
Protects equipment
Easy connection for cables with RJ-45 connector
Can be placed under a desk or on a wall
Fully compatible with industry-standard Ethernet networks
Provides protection for Ethernet data pairs

Category Standards for Test Criteria
Interface Input IEC 60603-7 RJ45 Jack RJ45 Jack
Interface Output IEC 60603-7 RJ45 Jack RJ45 Plug
Protection rating EN60529 IP40 IP40
Mating cycles RJ45 Plug/ Jack <750 <750
Performance Class ISO11801, Channel Cat.6A (ClassEa) Cat.6A (ClassEa)
AC Dielectric Strength 50Hz, for 60sec. 6kV 6kV
DC Dielectric Strength For 60sec. 8,5kV 8,5kV
Total Leakage Current 216VAC~264VAC 50Hz Typical: 12µA
Max.: 16µA Typical: 12µA
Max.: 16µA
Working Voltage ≤250Vrms/ ≤354Vpk 3000VAC 3000VAC
Insulation section IEC 60601-1 2Mopp 2Mopp
Temperature Min.: -10°C
Max.: 70°C Min.: -10°C
Max.: 70°C
Air Humidity Min.: 10%
Max.: 90% Min.: 10%
Max.: 90%

IEC 60601-1: 2005 + A1:2012 Ed. 3.1 (section 17 - EMV)
IEC60601-1-2: 2007
Low voltage directive 2014/35/EU
EMC directive 14/30/EU

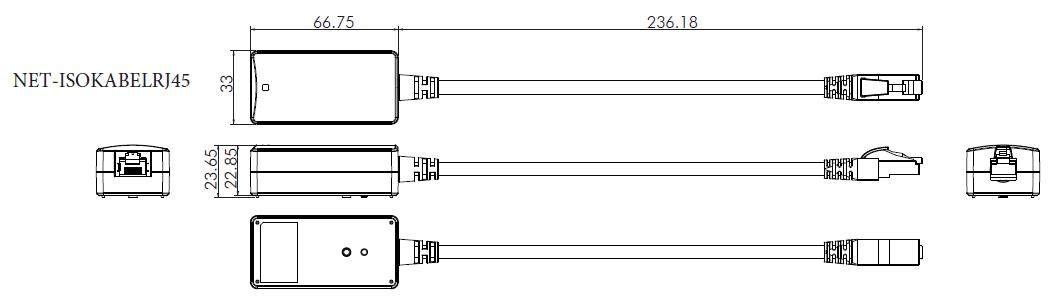

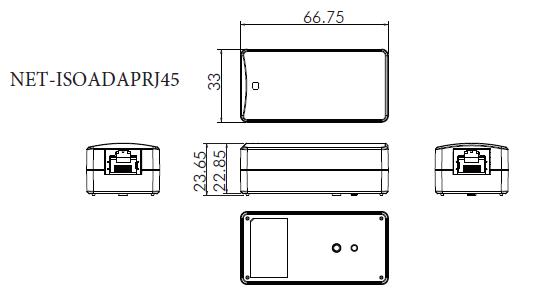

Dimensions and weight
Dimension: 66,75 x 33 x 23,65 mm (WxDxH)
Weight NET-ISOADAPRJ45: 0,03 kg
Weight NET-ISOKABELRJ45: 0,04 kg

Tekniske egenskaber

Category: Cat.6
Connector Type 1: RJ45
Connector Type 2: RJ45
Dimension (WxDxH): 66,75 x 33 x 23,65 mm
Fast Ethernet: True
Gigabit Ethernet: True
Humiditiy: 10 – 90 %
Operating Temperature: -10 – 70 °C
PoE-suitable: False
Storage Temperature: -10 – 70 °C
Weight: 0.03 kg


Art. Nej. Betegnelse Model

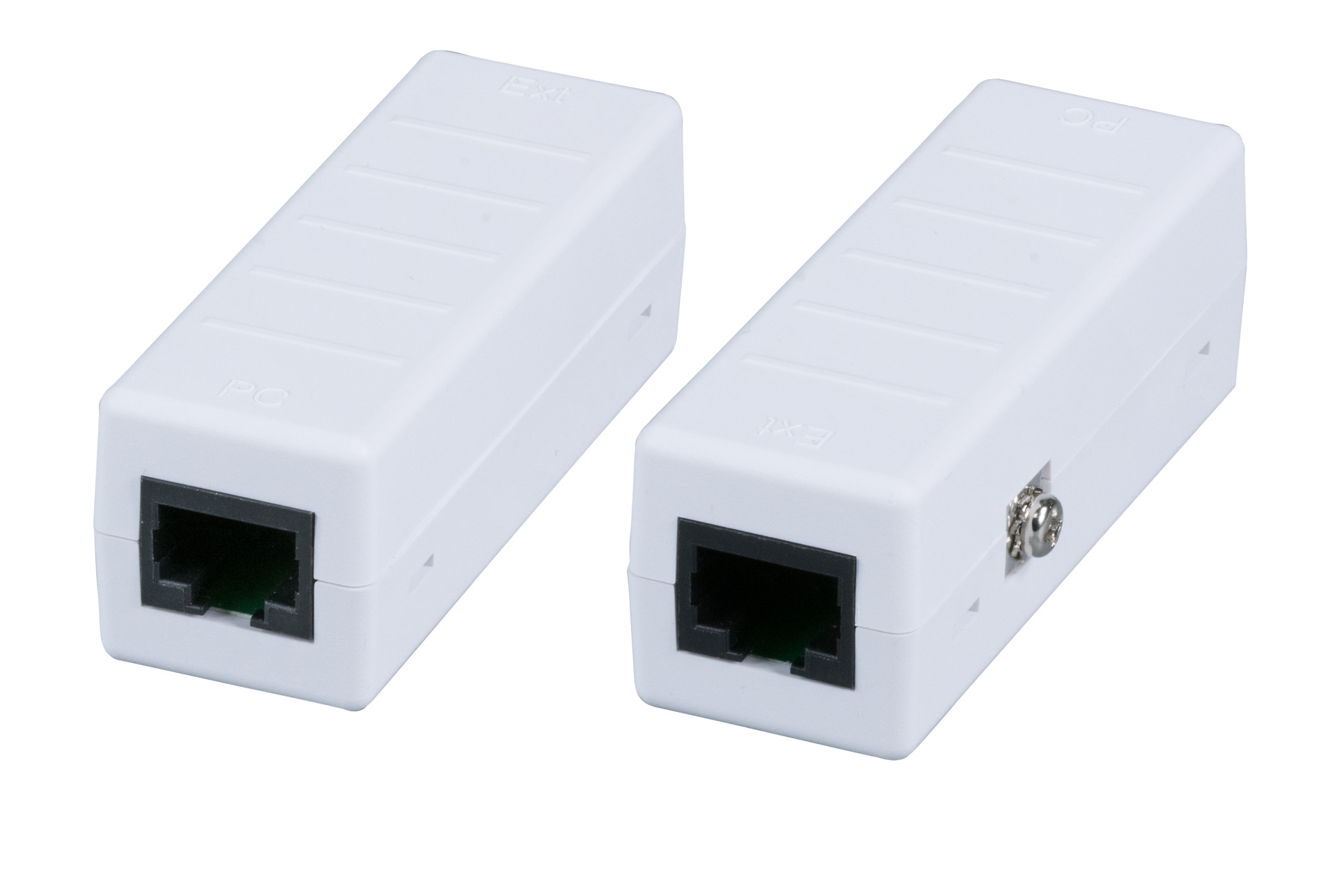

NET-ISOADAPRJ45 Network-Isolator Cat.6A for Healthcare Jack/Jack Jack/Jack

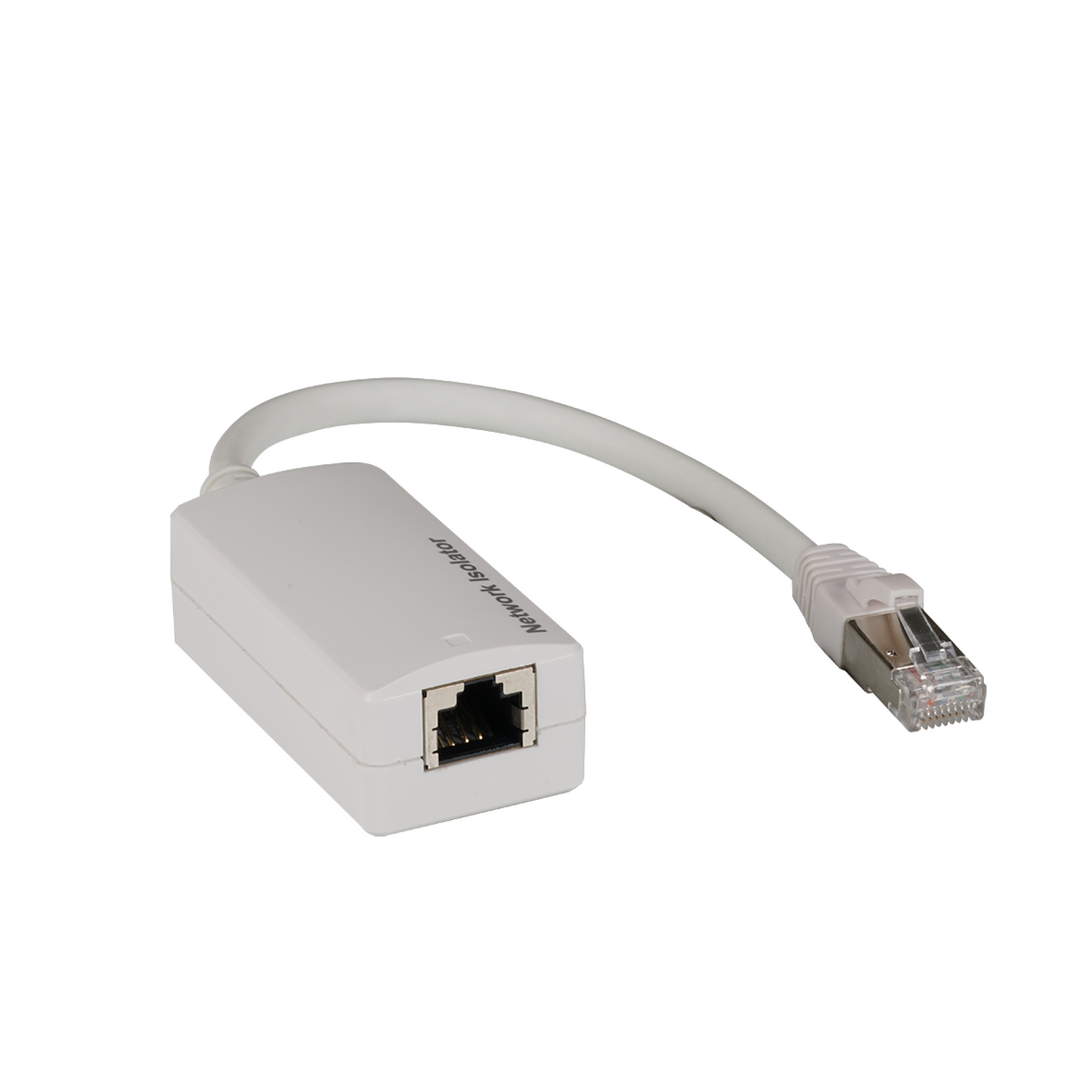

NET-ISOKABELRJ45 Network-Isolator Cat.6A for Healthcare Plug/Jack with cable 0,15m Plug/Jack
