Partially Assembled Breakoutbox OM3
Partially Assembled Breakoutbox with 3 LC-Duplex adapter OM3
Varenummer:
B65901.3OM3
EAN Nr.:
4049759262280
Produktinformation til Partially Assembled Breakoutbox with 3 LC-Duplex adapter OM3
Partially assembled Breakout box equipped with LC duplex adapter
OM3
Front panel screwed and adapters inserted
Metal box
OM3
Front panel screwed and adapters inserted
Metal box
Tekniske egenskaber
| Adapter material: | Plastic adapter |
|---|---|
| Depth: | 170 mm |
| Fibre class: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Sliding: | non sliding version |
| Width: | 482 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | False |
Varianten
| Art. Nr. | Bezeichnung | With number of couplings/adapters | Type of connector external | Colour | Suitable for number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|
| B65901.6OM3 | Partially Assembled Breakoutbox with 6 LC-Duplex adapter OM3 | 6 | LC-Duplex | grey | 6 | 7035 | LC-Duplex | aqua | |
| B65901.12OM3 | Partially Assembled Breakoutbox with 12 LC-Duplex adapter OM3 | 12 | LC-Duplex | grey | 12 | 7035 | LC-Duplex | aqua | |

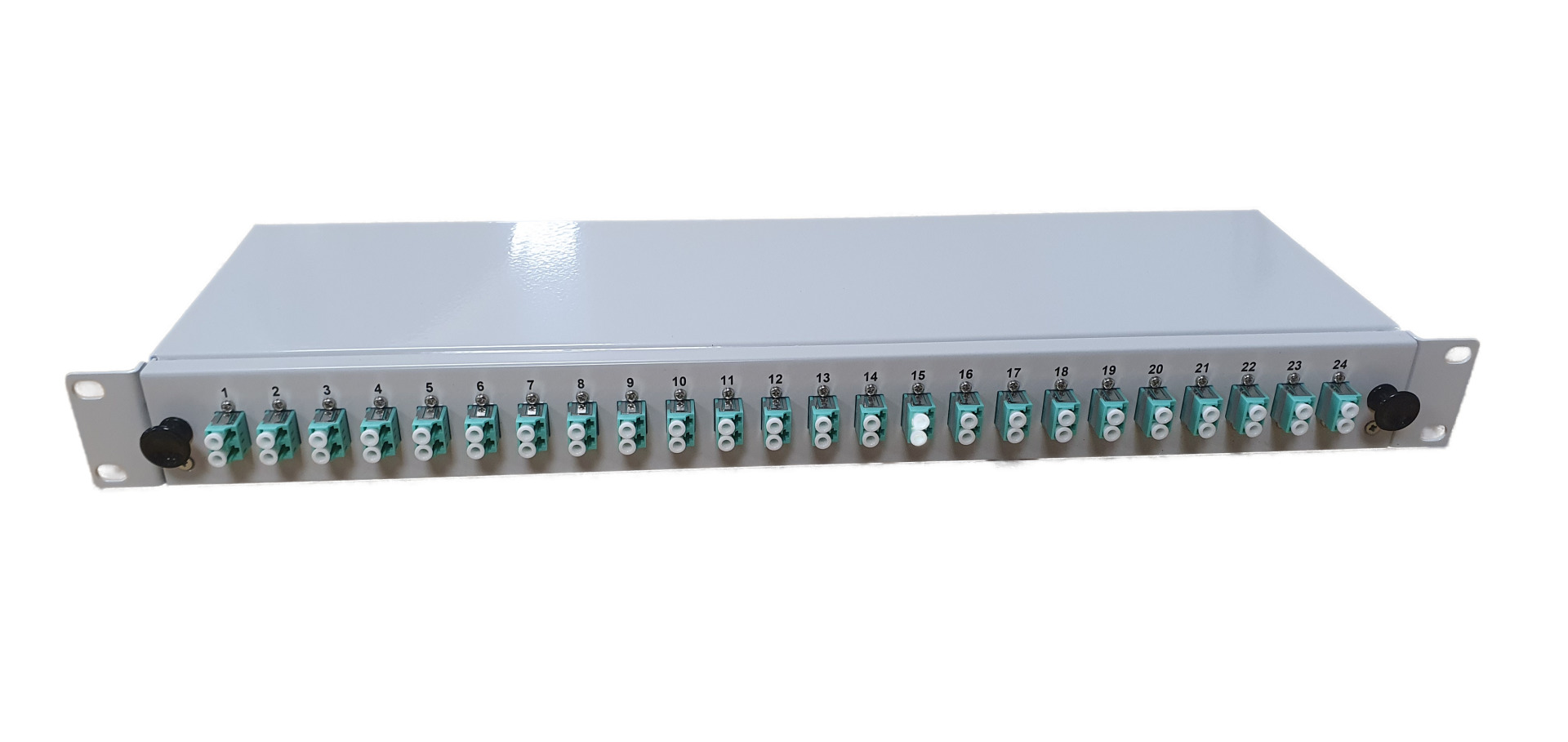

| B65901.24OM3 | Partially Assembled Breakoutbox with 24 LC-Duplex adapter OM3 | 24 | LC-Duplex | grey | 24 | 7035 | LC-Duplex | aqua | |
| B65901.2OM3 | Partially Assembled Breakoutbox with 2 LC-Duplex adapter OM3 | 2 | LC-Duplex | grey | 2 | 7035 | LC-Duplex | aqua | |
| B65901.3OM3 | Partially Assembled Breakoutbox with 3 LC-Duplex adapter OM3 | 3 | LC-Duplex | grey | 3 | 7035 | LC-Duplex | aqua | |
| B65901.4OM3 | Partially Assembled Breakoutbox with 4 LC-Duplex adapter OM3 | 4 | LC-Duplex | grey | 4 | 7035 | LC-Duplex | aqua | |
| B65901.8OM3 | Partially Assembled Breakoutbox with 8 LC-Duplex adapter OM3 | 8 | LC-Duplex | grey | 8 | 7035 | LC-Duplex | aqua |
