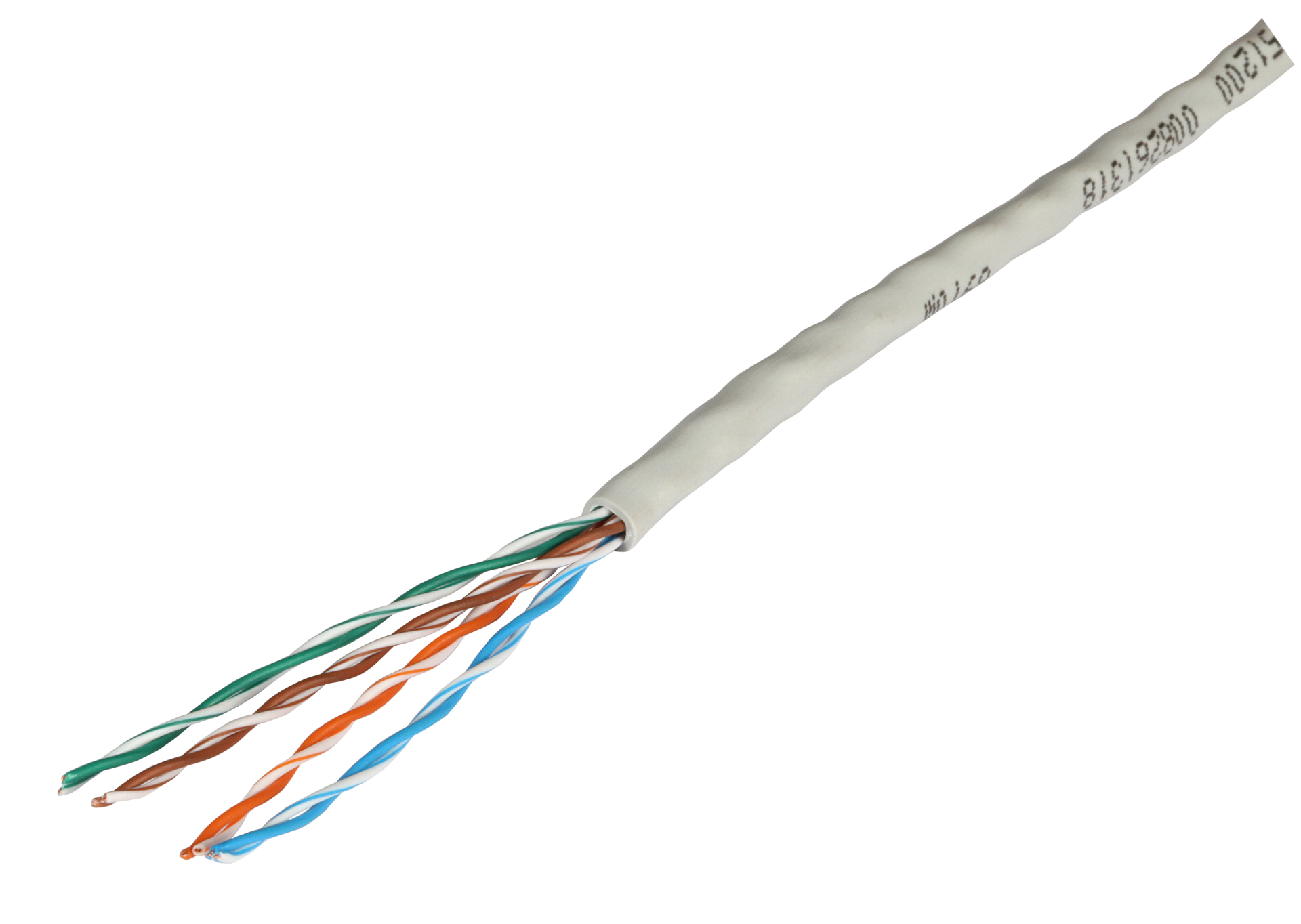

Cat.5e 300MHzU/UTP, grey
Patch Cable Cat.5e UTP 4x2xAWG26, grey
Varenummer:
99148.1
EAN nr.:
8717511119856
Produktinformation til Patch Cable Cat.5e UTP 4x2xAWG26, grey
Mechanically high-quality 300 MHz patch cord. Clear differentiation of the cores in the assembled connector thanks to different core colours. Compatible with all common connector systems according to EN 50173 and ISO/IEC 11801 as well as D-Sub systems. As data patch cables in patch panels and as device connection cables. For the transmission of digital and analogue voice, image and data signals. ISDN, Ethernet 10 BASE-T, Fast Ethernet 100 BASE-T, Gigabit Ethernet 1000 BASE-T, Token Ring 4/16 Mbit/s, TP-PMD/TP-DDI 125 Mbit/s, ATM 155 Mbit/s.
| AWG-size: | 26/7 |
|---|---|
| Armour: | none |
| Bending radius (dynamic): | 40 mm |
| Cable: | EN 50288-4-1 300, IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | U/UTP |
| Cable type: | Draka UC300 S26 UTP |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Category: | 5E |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 2 = stranded |
| Conductor material: | Copper, tinned |
| Core identification: | Colour |
| Core insulation: | Polyethylene (PE) |
| Coupling attenuation: | ≥ 50 dB |
| Diameter conductor: | 0.48 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | none |
| Flame retardant: | acc. to EN 60332-1 |
| Halogen free: | False |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 2000 MOhm/km |
| Jacket material: | Polyvinylchlorid (PVC) |
| Loop resistance: | 260 Ohm/km |
| Low smoke: | nein |
| Max. frequency: | MHz MHz |
| NVP value: | 67 % |
| Nominal cross section conductor: | 0.16 mm² |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: | acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 3 % |
| Screen over stranding: | None |
| Screen over stranding element: | without |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit bis 2.5Gbit |
| UV resistant: | no |
Tekniske egenskaber
| AWG-size: | 26/7 |
|---|---|
| Armour: | none |
| Bending radius (dynamic): | 40 mm |
| Cable: | EN 50288-4-1 300, IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | U/UTP |
| Cable type: | Draka UC300 S26 UTP |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Category: | 5E |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 2 = stranded |
| Conductor material: | Copper, tinned |
| Core identification: | Colour |
| Core insulation: | Polyethylene (PE) |
| Coupling attenuation: | ≥ 50 dB |
| Diameter conductor: | 0.48 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | none |
| Flame retardant: | acc. to EN 60332-1 |
| Halogen free: | False |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 2000 MOhm/km |
| Jacket material: | Polyvinylchlorid (PVC) |
| Loop resistance: | 260 Ohm/km |
| Low smoke: | nein |
| Max. frequency: | MHz MHz |
| NVP value: | 67 % |
| Nominal cross section conductor: | 0.16 mm² |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: | acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 3 % |
| Screen over stranding: | None |
| Screen over stranding element: | without |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit bis 2.5Gbit |
| UV resistant: | no |
Varianter
| Art. Nej. | Betegnelse | Colour outer sheath | Type | Length | Number of cores | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 99148.1000 | Cat.5e 300MHzU/UTP, grey | grey | simplex | 1000.0 m | 8 | 11 kg/km | 25 kg/km | 55 N | 4.7 mm | 344 MJ/km | |
| 99148.1 | Patch Cable Cat.5e UTP 4x2xAWG26, grey | grey | simplex | 1.0 m | 8 | 11 kg/km | 25 kg/km | 55 N | 4.7 mm | 344 MJ/km |
Produktinformation til Patch Cable Cat.5e UTP 4x2xAWG26, grey
Mechanically high-quality 300 MHz patch cord. Clear differentiation of the cores in the assembled connector thanks to different core colours. Compatible with all common connector systems according to EN 50173 and ISO/IEC 11801 as well as D-Sub systems. As data patch cables in patch panels and as device connection cables. For the transmission of digital and analogue voice, image and data signals. ISDN, Ethernet 10 BASE-T, Fast Ethernet 100 BASE-T, Gigabit Ethernet 1000 BASE-T, Token Ring 4/16 Mbit/s, TP-PMD/TP-DDI 125 Mbit/s, ATM 155 Mbit/s.
| AWG-size: | 26/7 |
|---|---|
| Armour: | none |
| Bending radius (dynamic): | 40 mm |
| Cable: | EN 50288-4-1 300, IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | U/UTP |
| Cable type: | Draka UC300 S26 UTP |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Category: | 5E |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 2 = stranded |
| Conductor material: | Copper, tinned |
| Core identification: | Colour |
| Core insulation: | Polyethylene (PE) |
| Coupling attenuation: | ≥ 50 dB |
| Diameter conductor: | 0.48 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | none |
| Flame retardant: | acc. to EN 60332-1 |
| Halogen free: | False |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 2000 MOhm/km |
| Jacket material: | Polyvinylchlorid (PVC) |
| Loop resistance: | 260 Ohm/km |
| Low smoke: | nein |
| Max. frequency: | MHz MHz |
| NVP value: | 67 % |
| Nominal cross section conductor: | 0.16 mm² |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: | acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 3 % |
| Screen over stranding: | None |
| Screen over stranding element: | without |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit bis 2.5Gbit |
| UV resistant: | no |
| AWG-size: | 26/7 |
|---|---|
| Armour: | none |
| Bending radius (dynamic): | 40 mm |
| Cable: | EN 50288-4-1 300, IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | U/UTP |
| Cable type: | Draka UC300 S26 UTP |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Category: | 5E |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 2 = stranded |
| Conductor material: | Copper, tinned |
| Core identification: | Colour |
| Core insulation: | Polyethylene (PE) |
| Coupling attenuation: | ≥ 50 dB |
| Diameter conductor: | 0.48 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | none |
| Flame retardant: | acc. to EN 60332-1 |
| Halogen free: | False |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 2000 MOhm/km |
| Jacket material: | Polyvinylchlorid (PVC) |
| Loop resistance: | 260 Ohm/km |
| Low smoke: | nein |
| Max. frequency: | MHz MHz |
| NVP value: | 67 % |
| Nominal cross section conductor: | 0.16 mm² |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: | acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 3 % |
| Screen over stranding: | None |
| Screen over stranding element: | without |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit bis 2.5Gbit |
| UV resistant: | no |
Varianter
| Art. Nej. | Betegnelse | Colour outer sheath | Type | Length | Number of cores | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 99148.1000 | Cat.5e 300MHzU/UTP, grey | grey | simplex | 1000.0 m | 8 | 11 kg/km | 25 kg/km | 55 N | 4.7 mm | 344 MJ/km | |
| 99148.1 | Patch Cable Cat.5e UTP 4x2xAWG26, grey | grey | simplex | 1.0 m | 8 | 11 kg/km | 25 kg/km | 55 N | 4.7 mm | 344 MJ/km |
Sikkerhedsanvisninger
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
Producentangivelse
Draka Comteq Germany GmbH & Co. KG
Piccoloministraße 2
51063 Köln
