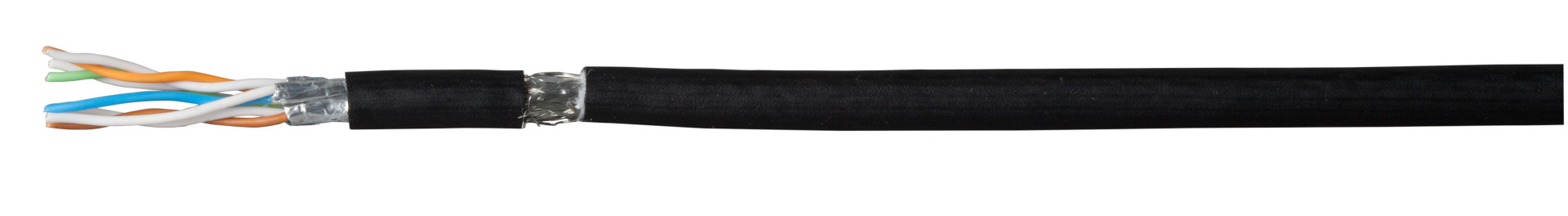

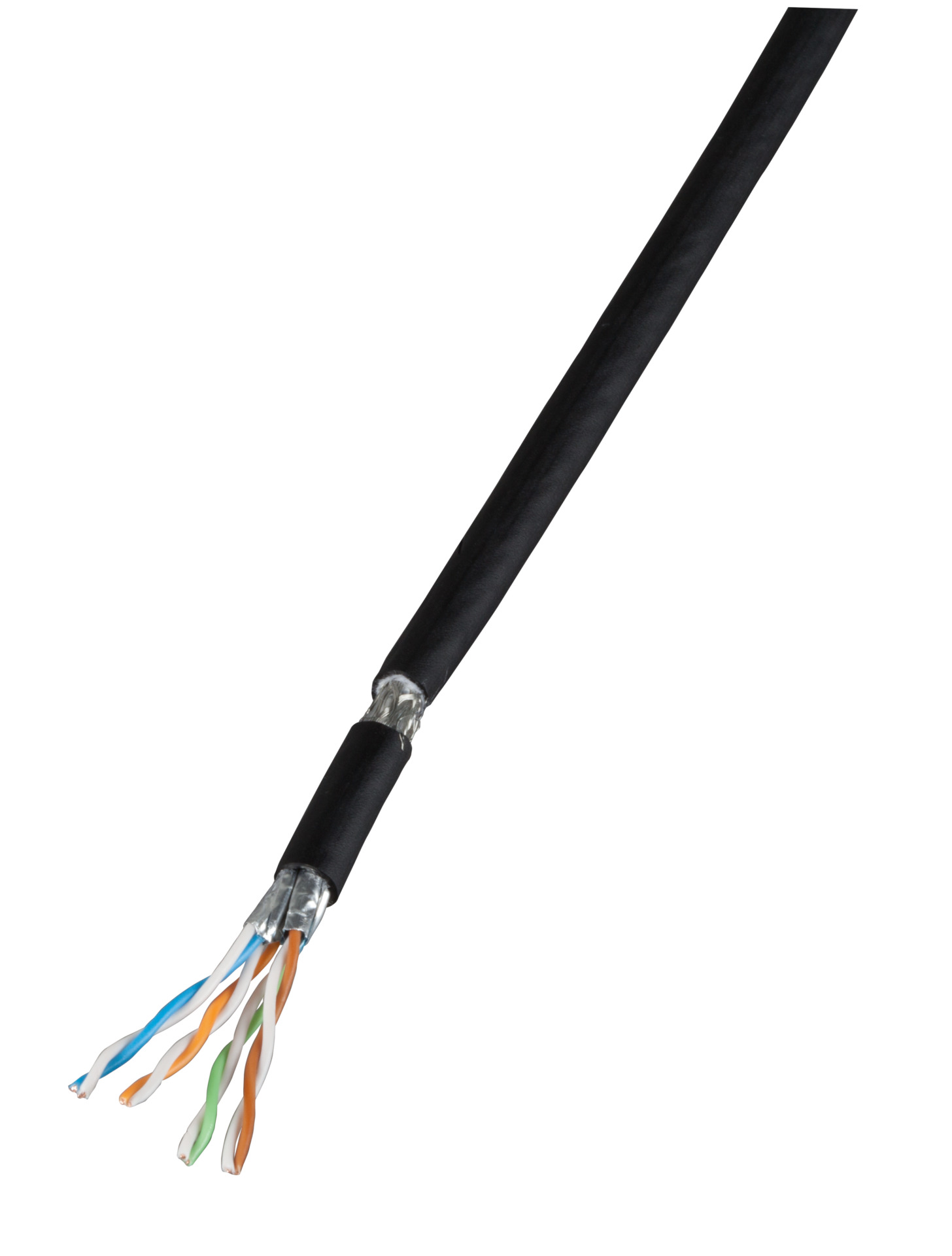

Cat.7 FlexCable S/FTP 1000MHz, Pur/Rubber, RAL9005


PATCH PRO FLEX CAT 7 Kabel PUR/Gummi, RAL9005, UV best.
Varenummer:
99262.1
Produktinformation til PATCH PRO FLEX CAT 7 Kabel PUR/Gummi, RAL9005, UV best.
Cat.7 patch cable - exceeds the requirements of ISO/IEC 11801, IEC 61156-6, EN 50173-1 and EN 50288 . Application area: Data cable for studio application, Video-Ethernet; IEEE 802.3; 10Base-T; 100Base-T; 1000Base-T; IEEE 802.5 16 MB; ISDN; FDDI; ATM. Suitable for outdoor (UV resistant) but not for direct burial. Suitable for constant movements.
Tekniske egenskaber
AWG-size: | 26/7 |
---|---|
Bending radius (dynamic): | 8 x OD |
Bending radius (static): | 4 x OD |
Cable: | IEC 61156-6 |
Cable Construction: | S/FTP |
Cabling standards: |
EN 50173 EN 50288-4-2 ISO/IEC 11801 |
Capacity to earth: | nom. 43 nF/km |
Category: | 7 |
Conductor category: | Class 2 = stranded |
Conductor material: | Cu, tinned |
Core identification: | Colour |
Core insulation: | Foam-Skin-PE |
Delay skew: | max. 10 ns/100m |
Flame-retardant: | No |
Halogen free (acc. EN 50267-2-2): | False |
Halogen free (according to EN 60754-1/2): | False |
Impedance: | 100 ± 5 Ohm |
Installation standard: | EN 50174 |
Jacket Material: | Polyurethane (PUR) |
Loop resistance: | max. 250 Ohm/km |
Low smoke: | No |
Low smoke (acc. EN 61034-2): | False |
Max. Freuqency: | 1000 MHz |
NVP value: | 75 % |
Nominal cross section conductor: | 0.14 mm² |
Operating temperature, fix: | -20 – 60 °C |
Operating temperature, flexible: | 0 – 50 °C |
PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
Resistance unbalance: | 2 % |
Screen over stranding: | braiding |
Screen over stranding element: | Foil |
Stranding element: | Pairs |
Transfer impedance at 1MHz: | 25 mOhm/m |
Transfer impedance at 10MHz: | 25 mOhm/m |
Transmission standards: | IEEE 802.3 10Mbit to 10Gbit |
UV resistance: | yes |
Varianten
Art. Nr. | Bezeichnung | Colour outer sheath | Number of cores | RAL colour | Type | Length | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
99262.100 | PATCH PRO FLEX CAT 7 Kabel PUR/Gummi, RAL9005, UV best., 100m | black | 8 | RAL 9005 | simplex | 100.0 m | 17.5 kg/km | 35 kg/km | 100 N | 6.4 mm | 688 MJ/km | |
99262.1 | PATCH PRO FLEX CAT 7 Kabel PUR/Gummi, RAL9005, UV best. | black | 8 | RAL 9005 | simplex | 1.0 m | 17.5 kg/km | 35 kg/km | 100 N | 6.4 mm | 688 MJ/km | |
99262.500 | PATCH PRO FLEX CAT 7 Kabel PUR/Gummi, RAL9005, UV best., 500m | black | 8 | RAL 9005 | simplex | 500.0 m | 17.5 kg/km | 35 kg/km | 100 N | 6.4 mm | 688 MJ/km |
