Cat.7 Dätwyler 7702 1200 MHz PIMF S/FTP
Priser kun synlige for indloggede brugere
PatchC. Cat.7 DW7702 P S/FTP AWG26, 1200mHz, grey
Varenummer:
98711.1
EAN nr.:
4049759074159
Produktinformation für PatchC. Cat.7 DW7702 P S/FTP AWG26, 1200mHz, grey
Electrically and mechanically excellent Cat.7 Patch cable- Exceeding the requirements of ISO/IEC 11801, IEC 61156-6, EN 50173-1 and EN50288-4-2. Excellent shielding due to pair and foil shielding. Good assemblation of connectors because of different wire colours. Compatible with all relevant connection systems of EN50173, ISO/IEC 11801 and IEC 60603-x. Use as a data patch cable or connection cable, special used for Consolidation points. Usable for all ICT Network application until Class F (600MHz) in accordance with EN50173-1 and ISO/IEC 11801. Also usable for Multimedia applications in CATV Frequence level till 862MHZ according to IEC15018. Suitable for data connection on power over ethernet (PoE/PoE+).
Tekniske egenskaber
| (Halogenfree): | acc. EN 60754-1/2 |
|---|---|
| AWG-size: | 26/7 |
| Bending radius (dynamic): | 40 mm |
| Bending radius (static): | 20 mm |
| Cable: |
EN 50288-4-1 IEC 61156-6 |
| Cable Construction: | S/FTP |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Category: | 7 |
| Conductor category: | Class 1 = solid |
| Conductor material: | Cu, tinned |
| Core identification: | Colour |
| Core insulation: | PVC |
| Delay skew: | 4 ns/100m |
| Flame-retardant: | According to IEC/EN 60332-1-2 |
| Halogen free (acc. EN 50267-2-2): | True |
| Impedance: | 100 ± 5 Ohm |
| Installation standard: | EN 50174 |
| Jacket material: | FRNC-B |
| Loop resistance: | 270 Ohm/km |
| Low smoke: | acc. EN 61034-2 |
| Low smoke (acc. EN 61034-2): | True |
| Max. Freuqency: | 1200 MHz |
| NVP value: | 78 % |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 3 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Stranding element: | Pairs |
| UV resistance: | no |
Varianter
| Art. Nej. | Betegnelse | Length | Number of cores | Type | Colour outer sheath | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 98711.1 | PatchC. Cat.7 DW7702 P S/FTP AWG26, 1200mHz, grey | 1.0 m | 8 | simplex | grey | 18.1 kg/km | 39.5 kg/km | 56 N | 5.8 mm | 0.38 MJ/m | |
| 98712.1 | PatchC. Cat.7 DW7702 P S/FTP AWG26, 1200mHz, blue | 1.0 m | 8 | simplex | blue | 18.1 kg/km | 39.5 kg/km | 56 N | 5.8 mm | 0.38 MJ/m | |
| 98713.1 | PatchC. Cat.7 DW7702 P S/FTP AWG26, 1200mHz, yellow | 1.0 m | 8 | simplex | yellow | 18.1 kg/km | 39.5 kg/km | 56 N | 5.8 mm | 0.38 MJ/m | |
| 98714.1 | PatchC. Cat.7 DW7702 P S/FTP AWG26, 1200mHz, red | 1.0 m | 8 | simplex | red | 18.1 kg/km | 39.5 kg/km | 56 N | 5.8 mm | 0.38 MJ/m | |
| 98715.1 | PatchC. Cat.7 DW7702 P S/FTP AWG26, 1200mHz, green | 1.0 m | 8 | simplex | green | 18.1 kg/km | 39.5 kg/km | 56 N | 5.8 mm | 0.38 MJ/m | |
| 98716.1 | PatchC. Cat.7 DW7702 P S/FTP AWG26, 1200mHz, black | 1.0 m | 8 | simplex | black | 18.1 kg/km | 39.5 kg/km | 56 N | 5.8 mm | 0.38 MJ/m |

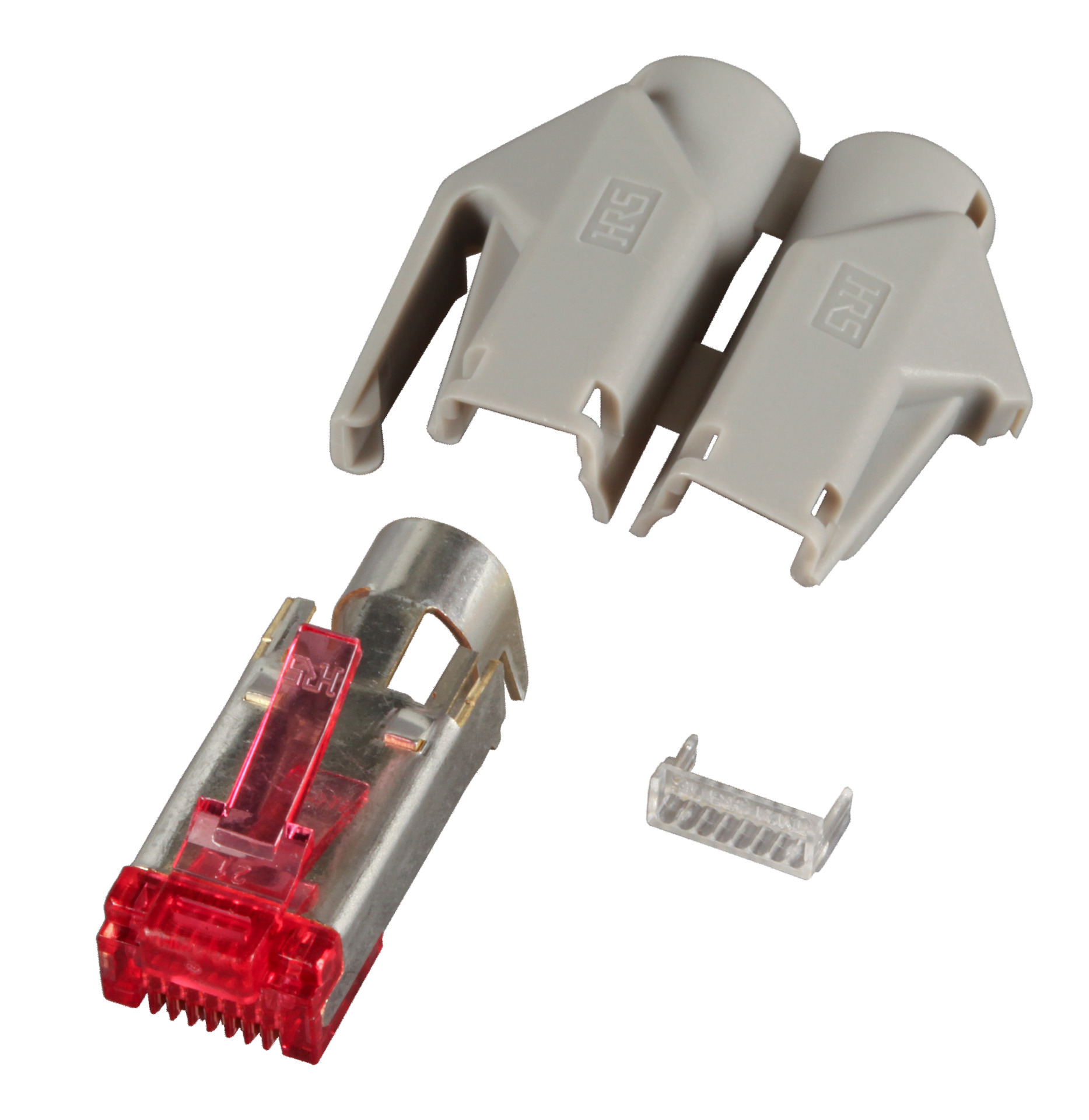

accessory
