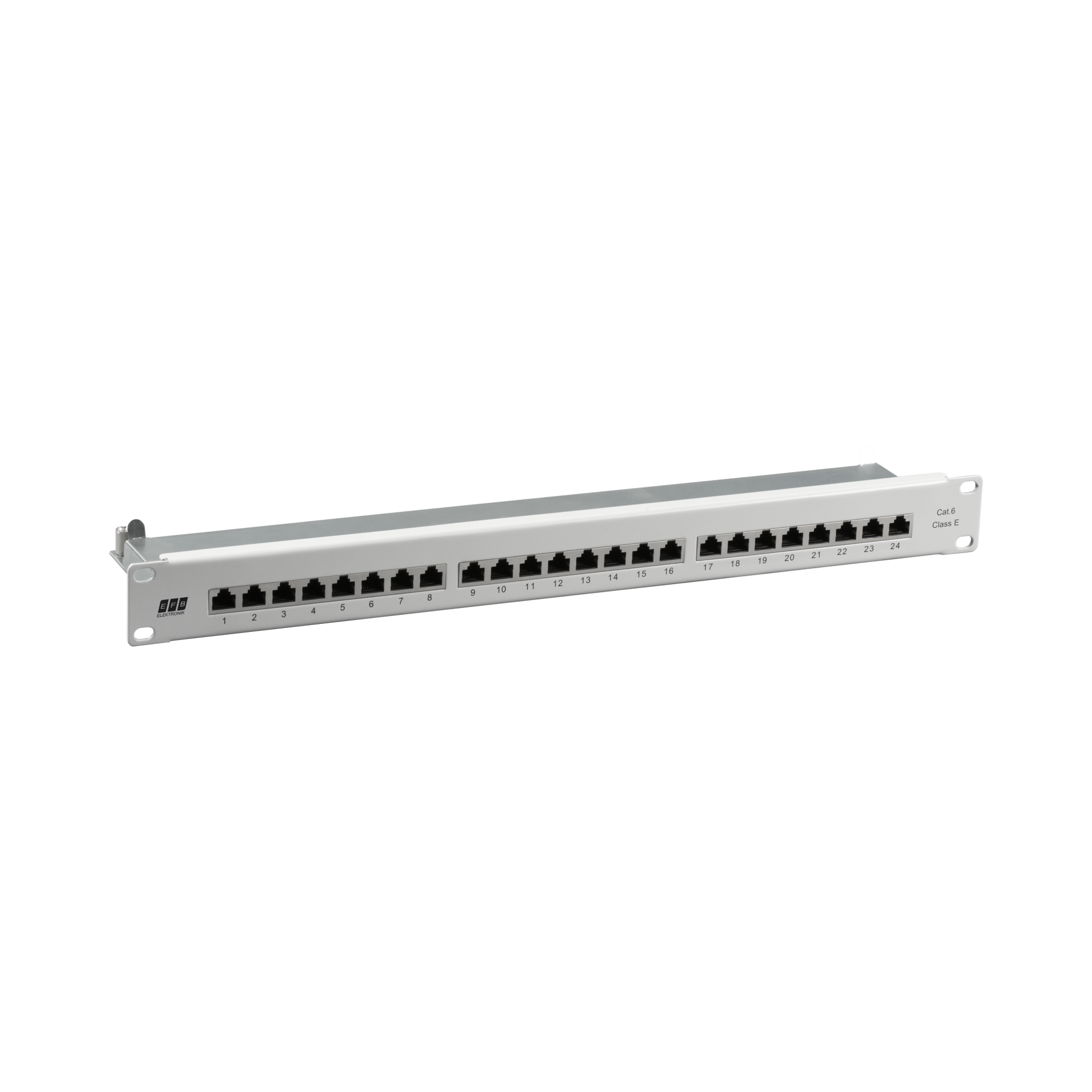

Patchpanel STP 24xRJ45 Cat.6, 19“ 1U
Patchpanel STP 24xRJ45 Cat.6, 19“ 1U, RAL7035 grey
Varenummer:
37667.1M
EAN Nr.:
4049759180102
Produktinformation til Patchpanel STP 24xRJ45 Cat.6, 19“ 1U, RAL7035 grey
The high quality of the shielded Cat.6 RJ45 patch panel ensures excellent performance for 5 Gigabit Ethernet applications.
19" mounting, 1U
24 Ports

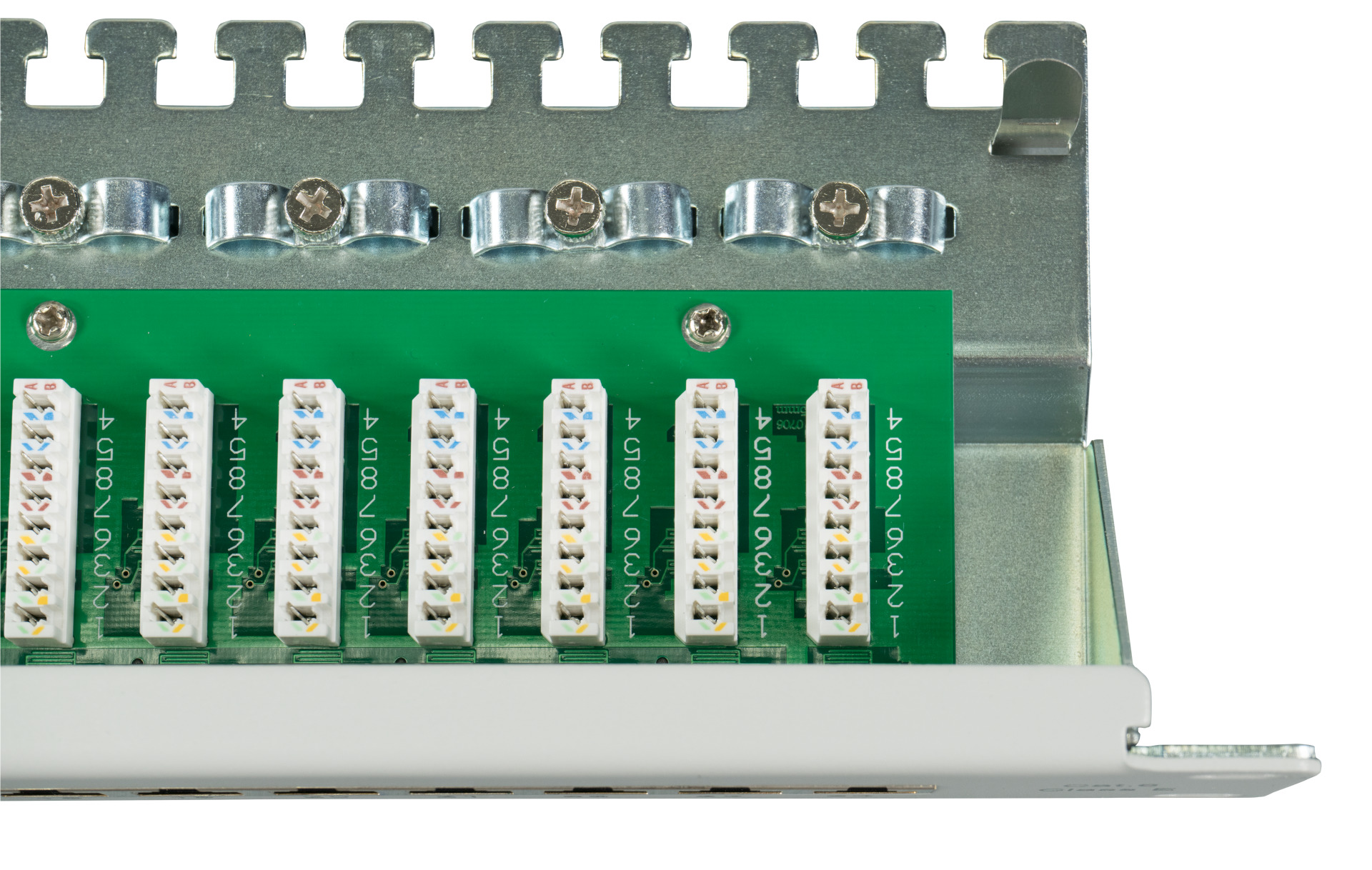

LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Lid with quick release

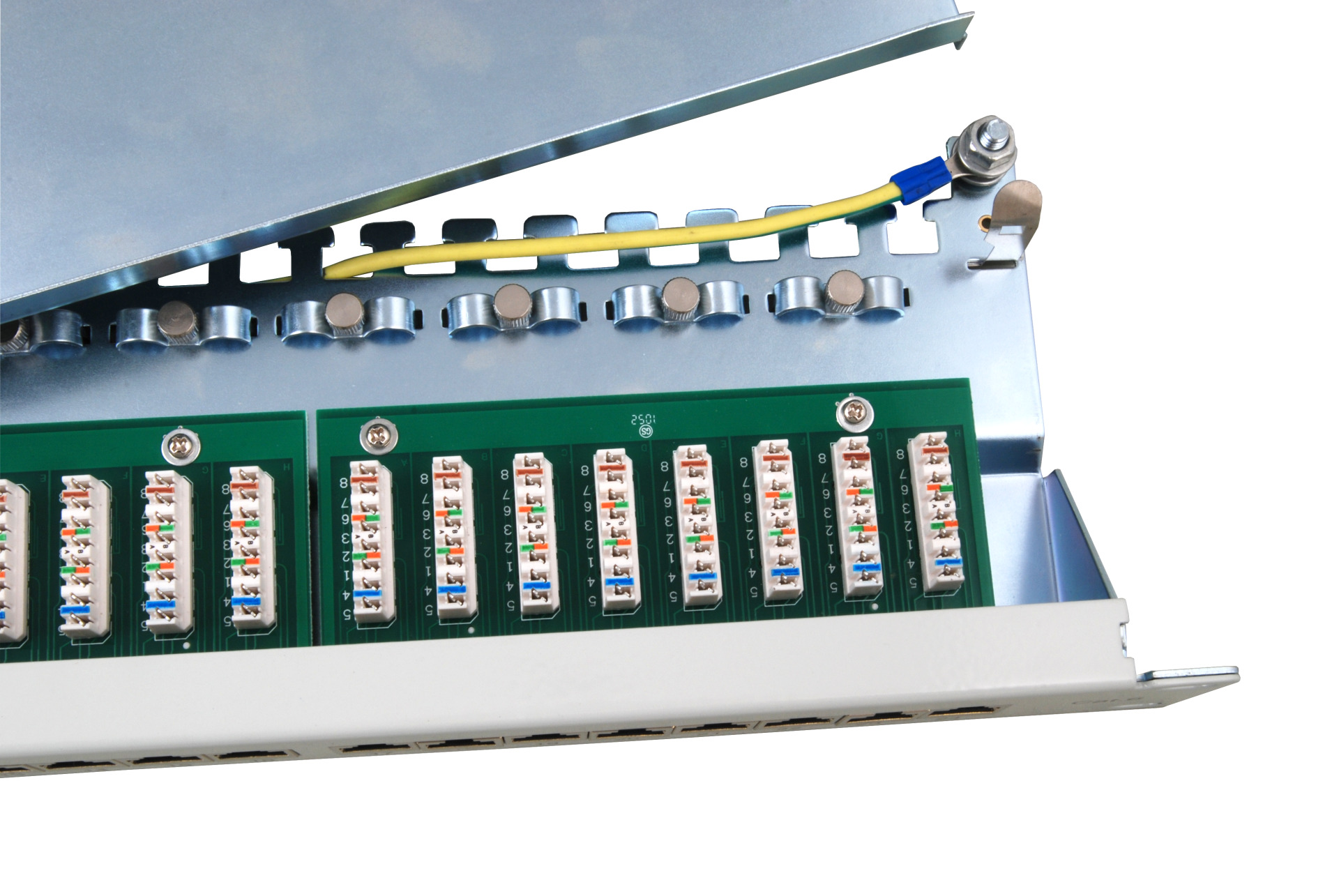

With earthing terminal
Scope of delivery:

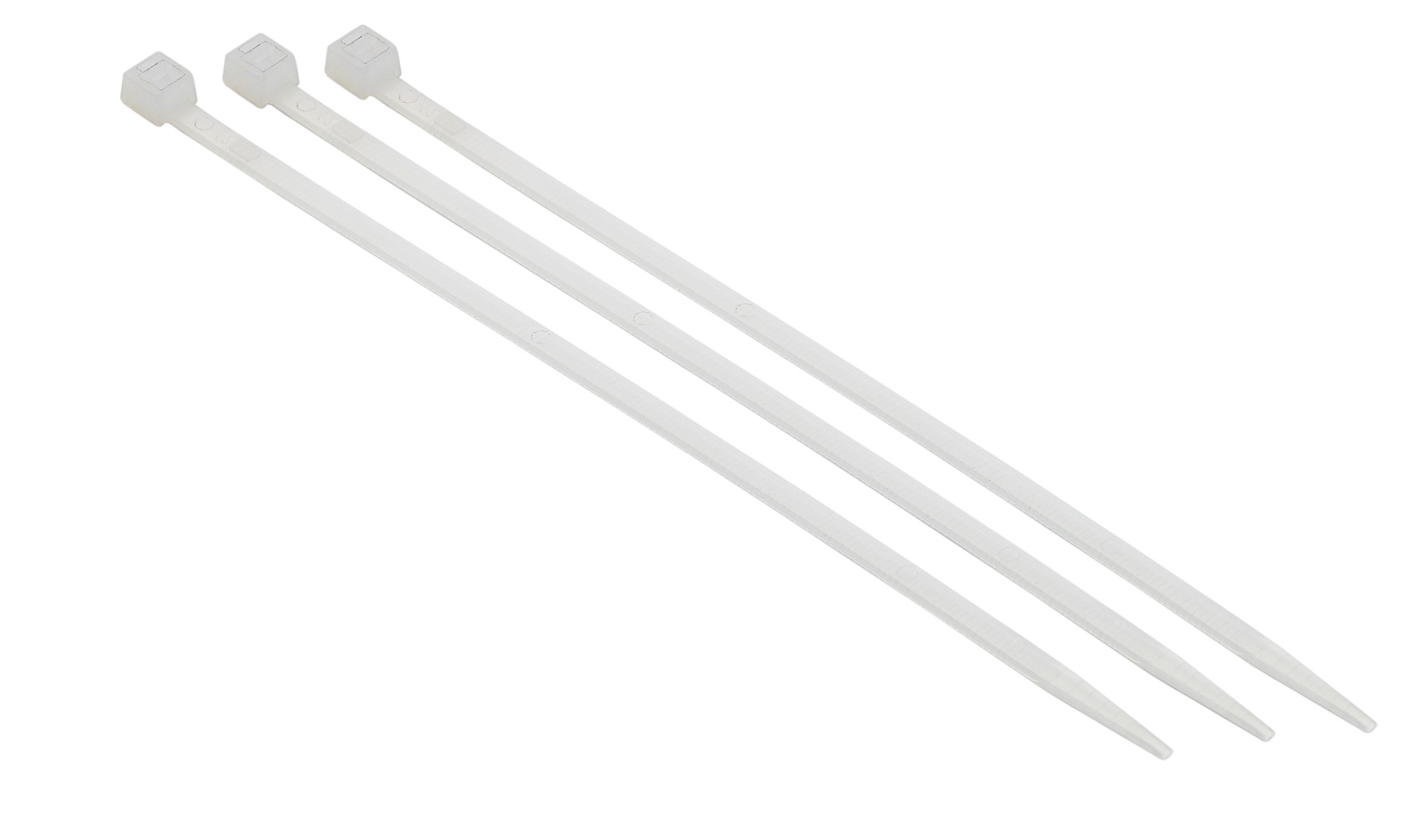

24 cable ties, Instruction manual, 4 screw M6x18mm with nuts
19" mounting, 1U
24 Ports
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Lid with quick release
With earthing terminal
Scope of delivery:
24 cable ties, Instruction manual, 4 screw M6x18mm with nuts
Tekniske egenskaber
| Category: | 6 |
|---|---|
| Colour code: | acc. TIA/EIA 568A/B |
| Complaint to UL94: | V-0 |
| Connection type: | LSA |
| Contact Resistance: | 100 mΩ |
| Contact coating: | 3 µ" gold plated |
| Cross section: | AWG 24 - AWG 22 |
| Current capacity: | 1.5 A |

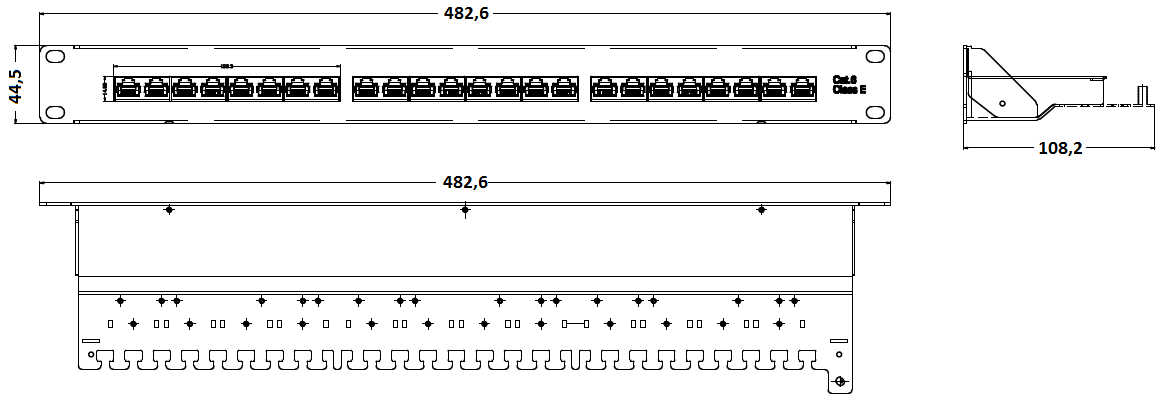

| Depth: | 108.0 mm |
| Dielectric Withstanding Voltage: | 750 V AC 60Hz |
| Durability LSA contacts: | 200 |
| Electrical strength: | 125 V AC RMS |
| Height: | 44.5 mm |
| Housing material LSA-terminal: | PC |
| Housing material Panel: | Steel, 1.5mm |
| Housing material of RJ45 jacks: | PBT |
| Insertion force: | 50 N |
| Insulation Resistance: | 1000 MΩ |
| Material LSA contacts: | Phosphor bronze, tinned |
| Mating cycles RJ45 jack: | 750 |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| POE Standard: | POE |
| POE Standard: | 4PPoE |
| POE Standard: | POE+ |
| Screened: | True |
| Suitable for number of connectors: | 24 |
| Tape width: | 250 MHz |
| Temperature Range (Operation): | 0 – 70 °C |
| Temperature Range (Storage): | -40 – 85 °C |
| Transmission: | 5 Gbit |
| Type of connector: | RJ45 8(8) |
| Width: | 482.6 mm |
Varianten
| Art. Nr. | Bezeichnung | Number of buses/couplings | RAL number | Color | |
|---|---|---|---|---|---|
| 37667.1M | Patchpanel STP 24xRJ45 Cat.6, 19“ 1U, RAL7035 grey | 24 | 7035 | grey | |

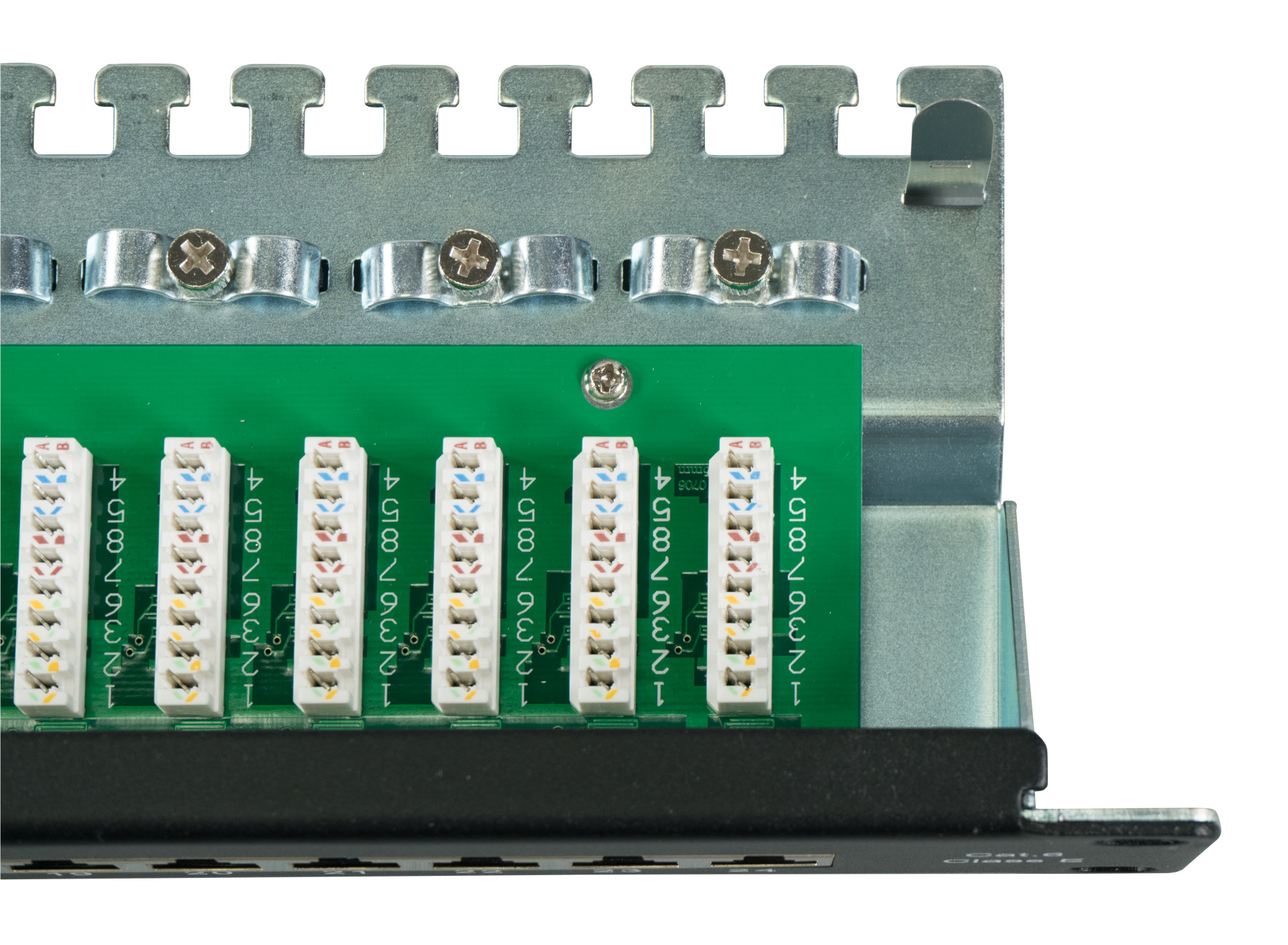

| 37667SW.1M | Patchpanel STP 24xRJ45 Cat.6, 19“ 1U, RAL9005 black | 24 | 9005 | black |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
