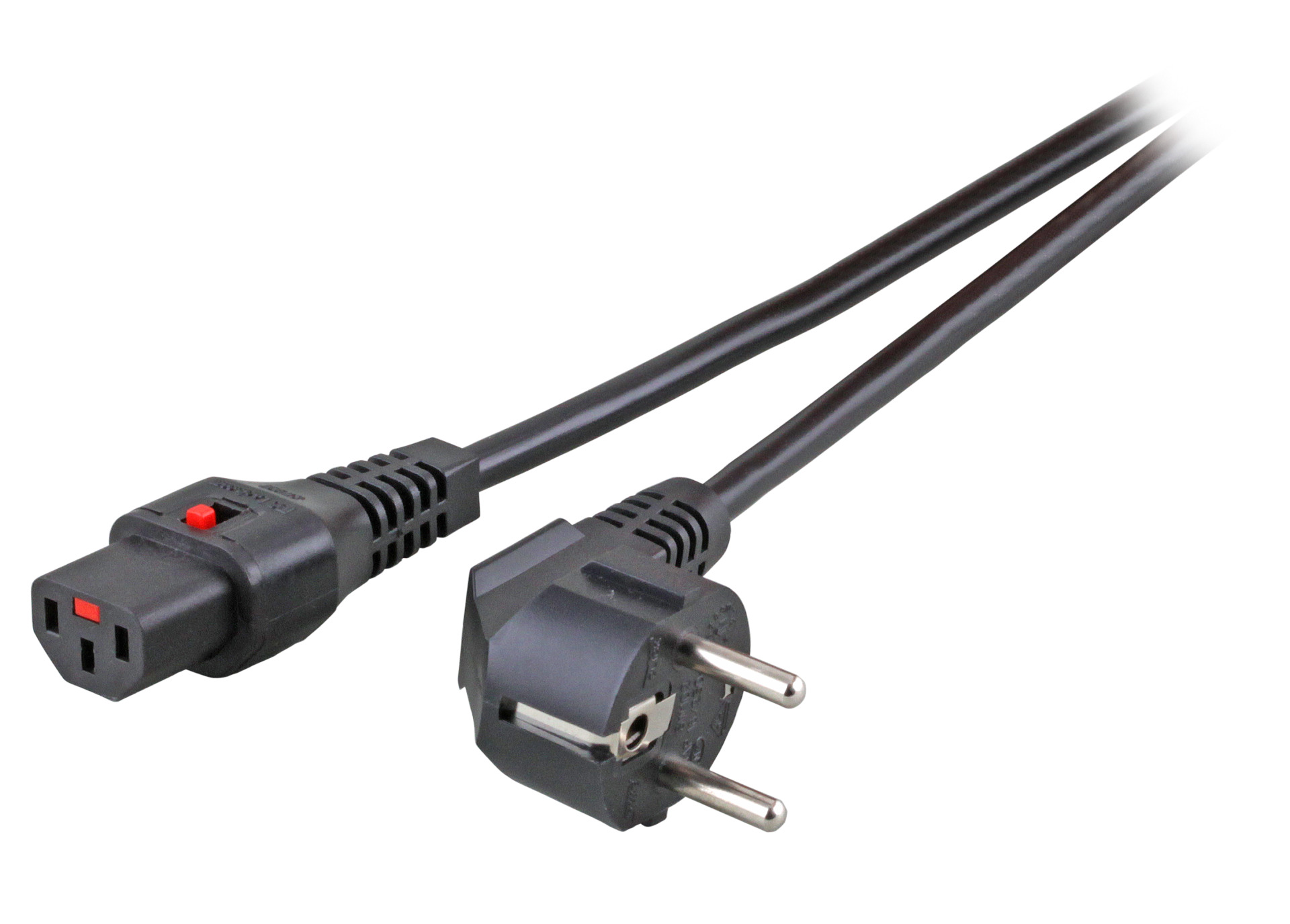

Power Cable CEE7/7 90° - C13 180° with IEC Lock, black
Power Cable CEE7/7 90° - C13 180° with IEC Lock, black
Varenummer:
EK600SW.5
EAN Nr.:
5055287005052
Produktinformation til Power Cable CEE7/7 90° - C13 180° with IEC Lock, black

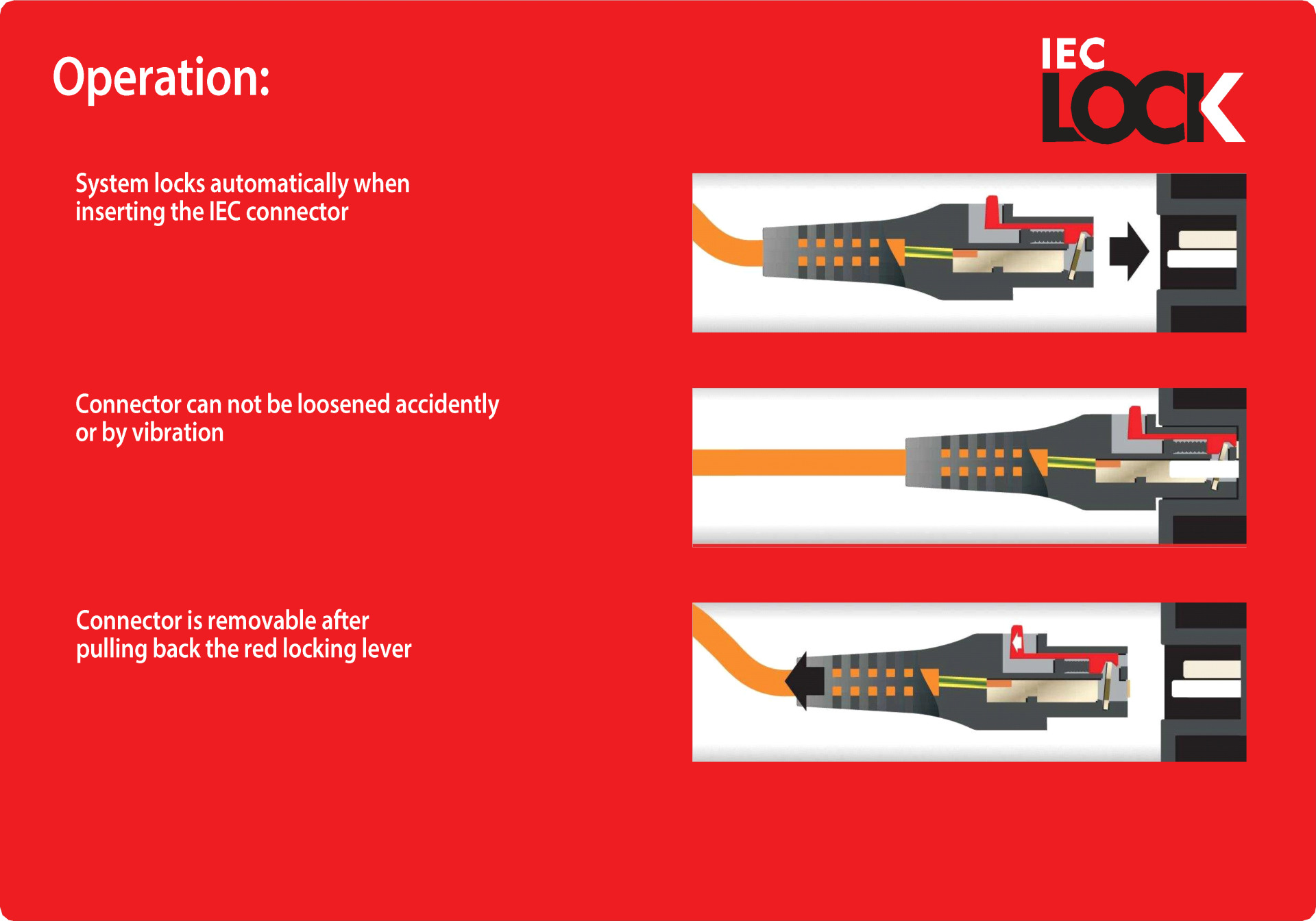

With „IEC Lock“: prevents accidentally removing of the C13 jack from devices
After connecting, the C13 jack only can be released after sliding back the red latch

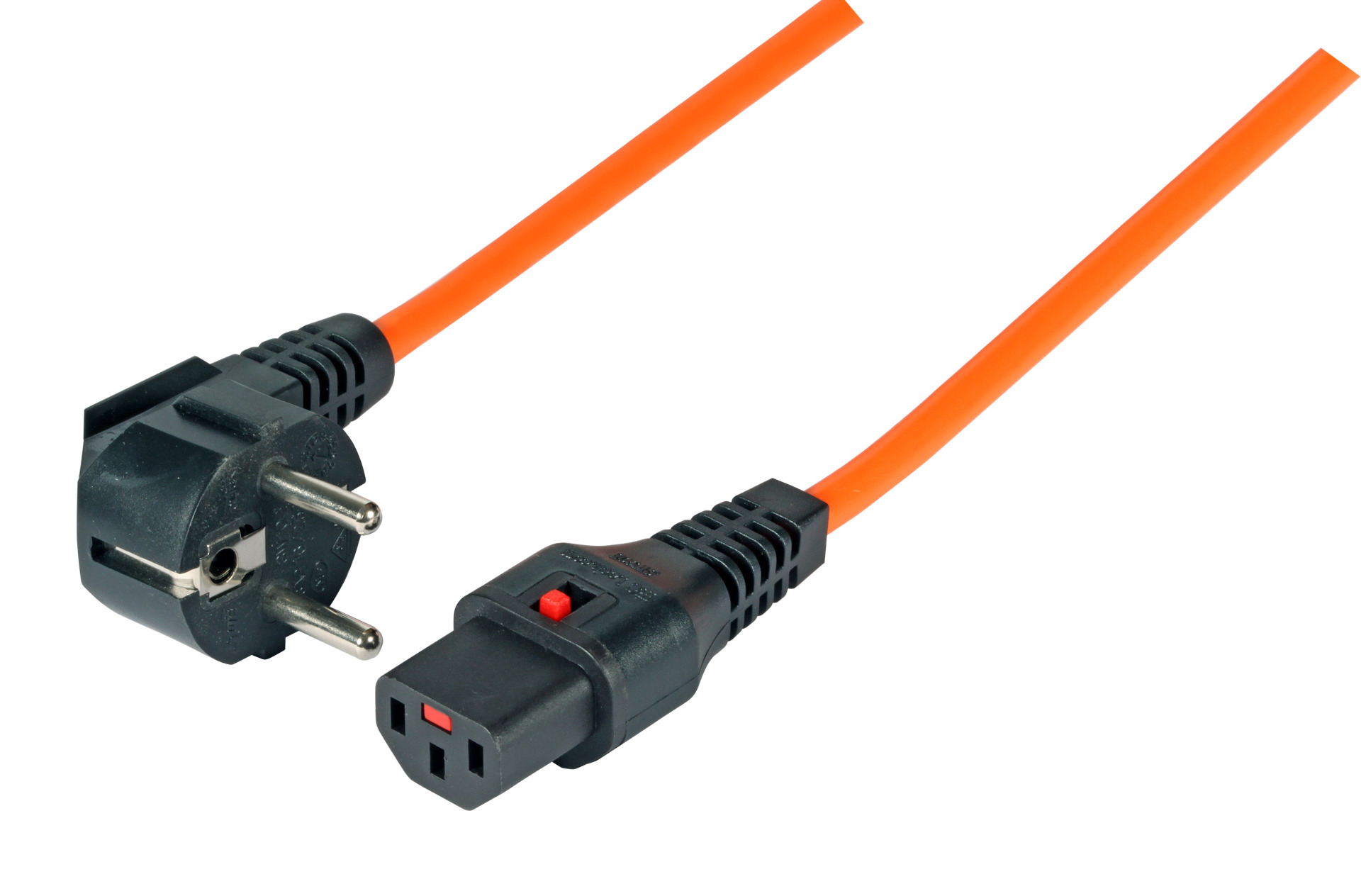

10 A / 250 V VDE tested (optional: orange, blue, grey, white)
Suitable for Germany, Belgium, France and further
Other types on request: UK, USA/NEMA, Switzerland, open end
After connecting, the C13 jack only can be released after sliding back the red latch
10 A / 250 V VDE tested (optional: orange, blue, grey, white)
Suitable for Germany, Belgium, France and further
Other types on request: UK, USA/NEMA, Switzerland, open end
Tekniske egenskaber
| Ader-Zahl: | 3 |
|---|---|
| Anschluss 1: | Schutzkontaktstecker (Typ F), rechtwinklig |
| Anschluss 2: | Kaltgerätebuchse gerade |
| Außenmantelfarbe: | schwarz |
| Halogenfrei: | Nein |
| Mantel-Material: | Polyvinylchlorid (PVC) |
| Mit Schnurschalter: | Nein |
| Nennspannung: | 250 V |
| Schutzleiter: | Ja |
| Spiralleitung: | Nein |
| Temperaturbeständigkeit: | 0 – 70 °C |
| Ölbeständig nach EN 60811-2-1: | Nein |
| Ölbeständig nach EN 60811-404: | Nein |
Varianten
| Art. Nr. | Bezeichnung | Colour outer sheath | Length | Leiternennquerschnitt | Außendurchmesser ca. | Mantel-Farbe | Länge | |
|---|---|---|---|---|---|---|---|---|
| EK600SW.1 | Power Cable CEE7/7 90° - C13 180°, Black, 1.0 m, 3 x 1.00 mm², IEC Lock | black | 1.0 m | 1.00 mm² | 7.1 mm | - | - | |
| EK600SW.2 | Power Cable CEE7/7 90° - C13 180°, Black, 2.0 m, 3 x 1.00 mm², IEC Lock | black | 2.0 m | 1.00 mm² | 7.1 mm | - | - | |
| EK600SW.3 | Power Cable CEE7/7 90° - C13 180°, Black, 3.0 m, 3 x 1.00 mm², IEC Lock | black | 3.0 m | 1.00 mm² | 7.1 mm | - | - | |
| EK600SW.1,5 | Power Cable CEE7/7 90° - C13 180° with IEC Lock, black | - | - | 1,00 mm² | 7,1 mm | schwarz | 1,5 m | |
| EK600SW.5 | Power Cable CEE7/7 90° - C13 180° with IEC Lock, black | - | - | 1,00 mm² | 7,1 mm | schwarz | 5.0 m |
