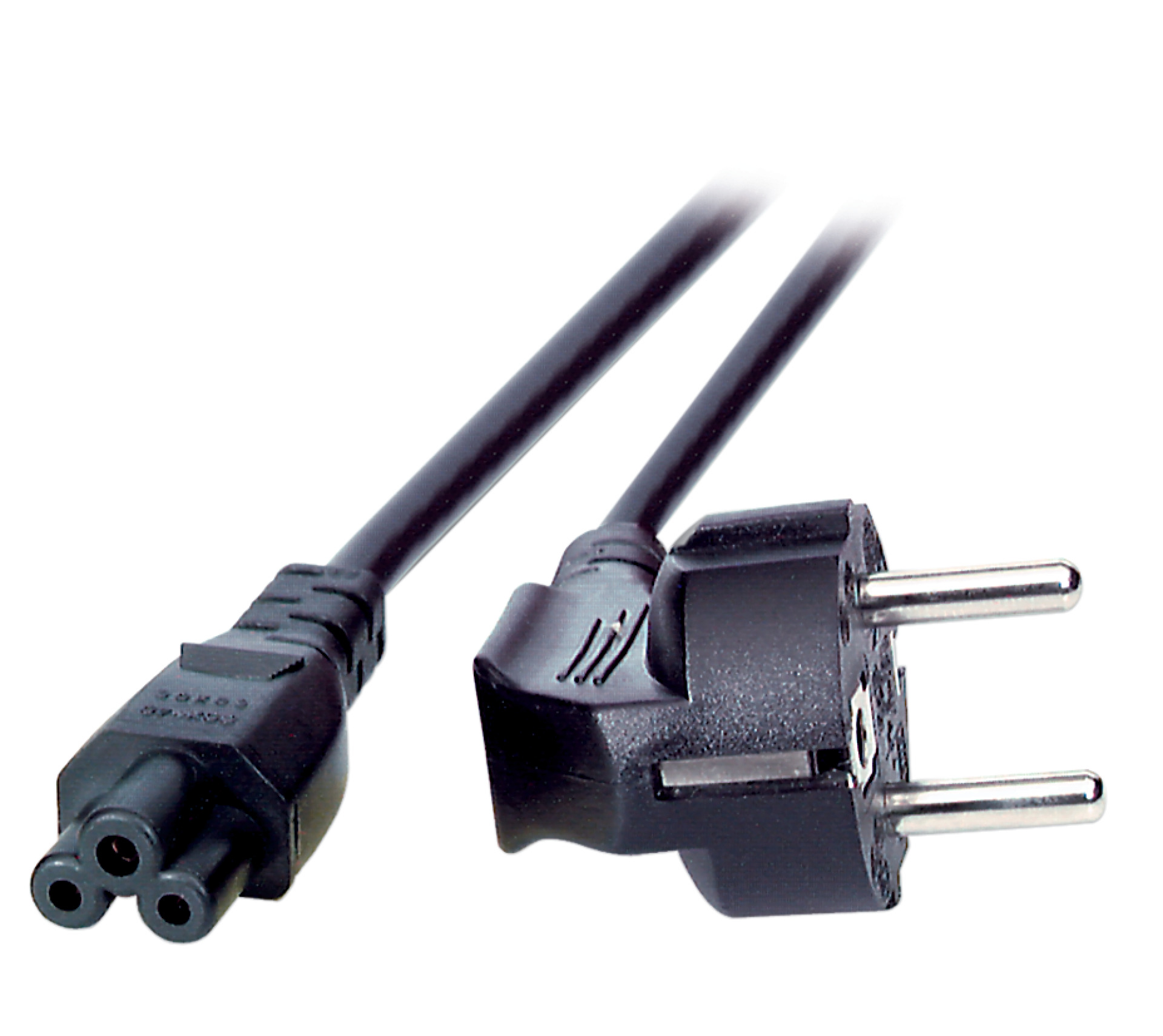

Power Cable CEE7/7 90° - C5 180°, Black
Power Cable CEE7/7 90° - C5 180°, Black, 1.8 m, 3 x 0.75 mm²
Varenummer:
EK552.1,8V2
EAN nr.:
4049759210410
Produktinformation til Power Cable CEE7/7 90° - C5 180°, Black, 1.8 m, 3 x 0.75 mm²
2.5 A / 250 V VDE tested
Suitable for Germany, Belgium, France and further
Suitable for Germany, Belgium, France and further
| Cable printing: | VDE H05VV-F 3G0.75mm² ZHEJIANG JINTING NUCLEAR CABLE CO.,LTD. www.efb-elektronik.de CE |
|---|---|
| Colour outer sheath: | black |
| Connection 1: | Plug with protective contact (type F), right-angled |
| Connection 2: | C5 Mickey Mouse female |
| Connector 1 angulation: | 90 ° |
| Connector 2 angulation: | 180 ° |
| Country suitability: | Europe |
| Halogen free: | False |
| Jacket material: | Polyvinyl chloride (PVC) |
| Locking mechanism: | False |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Plug imprint: | JT008 VDE 250V 16A |
| Protective conductor: | True |
| Security certificates: | VDE |
| Spiralized cable: | False |
| Type of packaging: | Labeled polybag |
| Warranty: | 24 month |
| With cord switch: | False |
Tekniske egenskaber
| Cable printing: | VDE H05VV-F 3G0.75mm² ZHEJIANG JINTING NUCLEAR CABLE CO.,LTD. www.efb-elektronik.de CE |
|---|---|
| Colour outer sheath: | black |
| Connection 1: | Plug with protective contact (type F), right-angled |
| Connection 2: | C5 Mickey Mouse female |
| Connector 1 angulation: | 90 ° |
| Connector 2 angulation: | 180 ° |
| Country suitability: | Europe |
| Halogen free: | False |
| Jacket material: | Polyvinyl chloride (PVC) |
| Locking mechanism: | False |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Plug imprint: | JT008 VDE 250V 16A |
| Protective conductor: | True |
| Security certificates: | VDE |
| Spiralized cable: | False |
| Type of packaging: | Labeled polybag |
| Warranty: | 24 month |
| With cord switch: | False |
Varianter
| Art. Nej. | Betegnelse | Colour outer sheath | With protective conductor | Degree of protection | Nominal voltage | Nominal current | Length | Nominal cross section conductor | Outer diameter approx. | |
|---|---|---|---|---|---|---|---|---|---|---|
| EK552.1,8V2 | Power Cable CEE7/7 90° - C5 180°, Black, 1.8 m, 3 x 0.75 mm² | black | Ja | IP20 | 250 V | 2.5 A | 1.8 m | 0.75 mm² | 6.5 mm | |
| EK552.3V2 | Power Cable CEE7/7 90° - C5 180°, Black, 3.0 m, 3 x 0.75 mm² | black | Ja | IP20 | 250 V | 2.5 A | 3.0 m | 0.75 mm² | 6.5 mm | |
| EK552.5V2 | Power Cable CEE7/7 90° - C5 180°, Black | black | Ja | IP20 | 250 V | 2.5 A | 5.0 m | 0.75 mm² | 6.5 mm |
Produktinformation til Power Cable CEE7/7 90° - C5 180°, Black, 1.8 m, 3 x 0.75 mm²
2.5 A / 250 V VDE tested
Suitable for Germany, Belgium, France and further
Suitable for Germany, Belgium, France and further
| Cable printing: | VDE H05VV-F 3G0.75mm² ZHEJIANG JINTING NUCLEAR CABLE CO.,LTD. www.efb-elektronik.de CE |
|---|---|
| Colour outer sheath: | black |
| Connection 1: | Plug with protective contact (type F), right-angled |
| Connection 2: | C5 Mickey Mouse female |
| Connector 1 angulation: | 90 ° |
| Connector 2 angulation: | 180 ° |
| Country suitability: | Europe |
| Halogen free: | False |
| Jacket material: | Polyvinyl chloride (PVC) |
| Locking mechanism: | False |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Plug imprint: | JT008 VDE 250V 16A |
| Protective conductor: | True |
| Security certificates: | VDE |
| Spiralized cable: | False |
| Type of packaging: | Labeled polybag |
| Warranty: | 24 month |
| With cord switch: | False |
| Cable printing: | VDE H05VV-F 3G0.75mm² ZHEJIANG JINTING NUCLEAR CABLE CO.,LTD. www.efb-elektronik.de CE |
|---|---|
| Colour outer sheath: | black |
| Connection 1: | Plug with protective contact (type F), right-angled |
| Connection 2: | C5 Mickey Mouse female |
| Connector 1 angulation: | 90 ° |
| Connector 2 angulation: | 180 ° |
| Country suitability: | Europe |
| Halogen free: | False |
| Jacket material: | Polyvinyl chloride (PVC) |
| Locking mechanism: | False |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Plug imprint: | JT008 VDE 250V 16A |
| Protective conductor: | True |
| Security certificates: | VDE |
| Spiralized cable: | False |
| Type of packaging: | Labeled polybag |
| Warranty: | 24 month |
| With cord switch: | False |
Varianter
| Art. Nej. | Betegnelse | Colour outer sheath | With protective conductor | Degree of protection | Nominal voltage | Nominal current | Length | Nominal cross section conductor | Outer diameter approx. | |
|---|---|---|---|---|---|---|---|---|---|---|
| EK552.1,8V2 | Power Cable CEE7/7 90° - C5 180°, Black, 1.8 m, 3 x 0.75 mm² | black | Ja | IP20 | 250 V | 2.5 A | 1.8 m | 0.75 mm² | 6.5 mm | |
| EK552.3V2 | Power Cable CEE7/7 90° - C5 180°, Black, 3.0 m, 3 x 0.75 mm² | black | Ja | IP20 | 250 V | 2.5 A | 3.0 m | 0.75 mm² | 6.5 mm | |
| EK552.5V2 | Power Cable CEE7/7 90° - C5 180°, Black | black | Ja | IP20 | 250 V | 2.5 A | 5.0 m | 0.75 mm² | 6.5 mm |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation. Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
