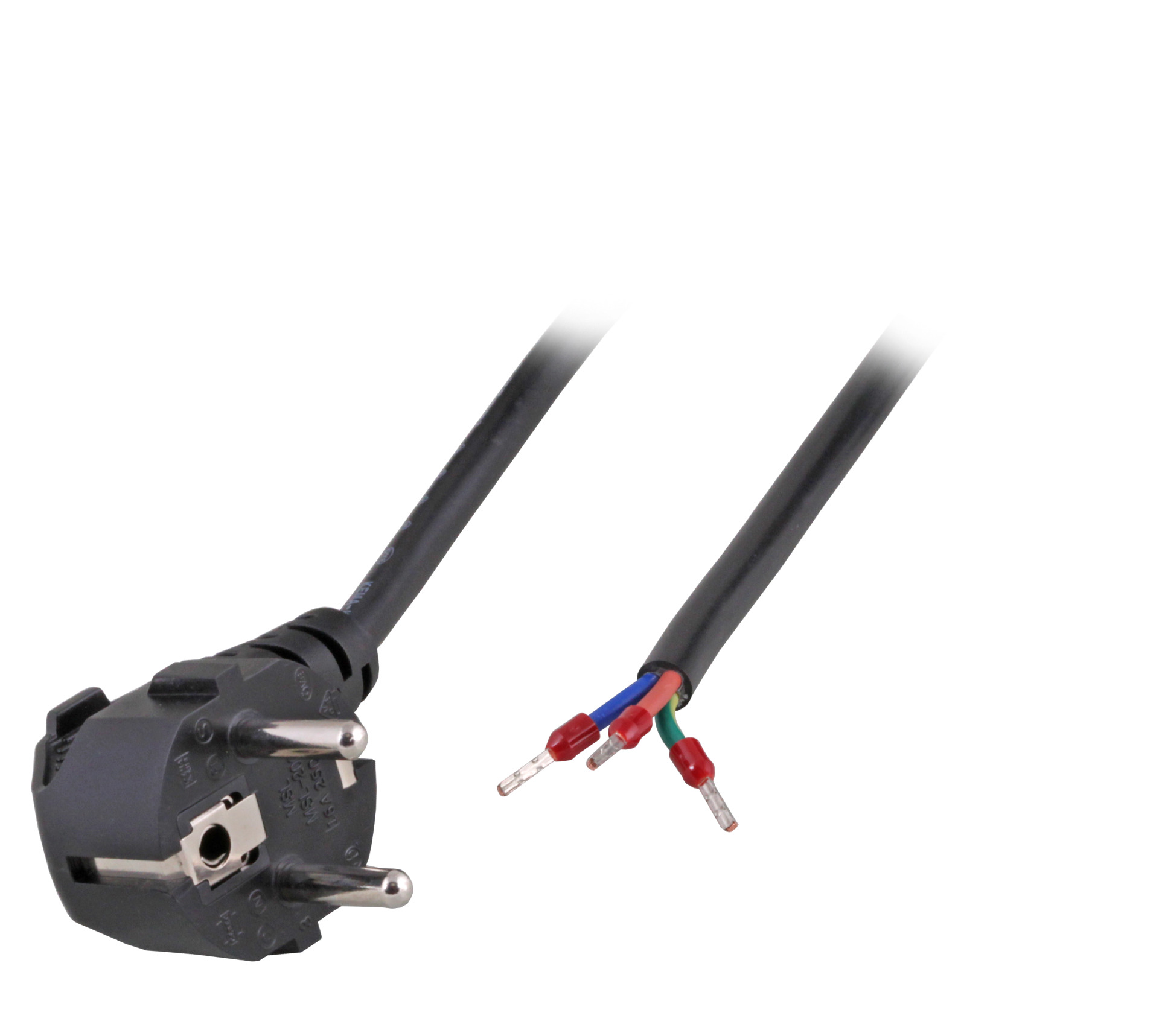

Power Cable CEE7/7 90° - Open End WES, Black
Power Cable CEE7/7 90° - Open End WES, 1.8 m, 3 x 0.75 mm²
Varenummer:
EK504AE.1,8
EAN Nr.:
4049759095352
Produktinformation til Power Cable CEE7/7 90° - Open End WES, 1.8 m, 3 x 0.75 mm²
16 A / 250 V VDE tested
Open End assembled with wire end sleeves
Wire end sleeves for 1.8 m: L = 6 mm, ⊘ 1.7 mm, yellow insulator
Wire end sleeves for 3 + 5 m: L = 8 mm, ⊘ 1.7 mm, red insulator
Cable colour black
Suitable for Germany, Belgium, France and further
Open End assembled with wire end sleeves
Wire end sleeves for 1.8 m: L = 6 mm, ⊘ 1.7 mm, yellow insulator
Wire end sleeves for 3 + 5 m: L = 8 mm, ⊘ 1.7 mm, red insulator
Cable colour black
Suitable for Germany, Belgium, France and further
Tekniske egenskaber
| Colour outer sheath: | black |
|---|---|
| Connection 1: | Socket outlet with protective contact, right-angled |
| Connection 2: | Cable end sleeve |
| Halogen free: | No |
| Jacket material: | Polyvinylchlorid (PVC) |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Protective conductor: | True |
| Spiralized cable: | False |
| Temperature resistance: | 3 – 70 °C |
| With cord switch: | False |
Varianten
| Art. Nr. | Bezeichnung | Colour outer sheath | With protective conductor | Length | Nominal cross section conductor | Outer diameter approx. | |
|---|---|---|---|---|---|---|---|
| EK504AE.1,8 | Power Cable CEE7/7 90° - Open End WES, 1.8 m, 3 x 0.75 mm² | black | True | 1.8 m | 0.75 mm² | 6.8 mm | |
| EK504AE.3 | Power Cable CEE7/7 90° - Open End WES, 3.0 m, 3 x 1.00 mm² | black | True | 3.0 m | 1.00 mm² | 7.1 mm | |
| EK504AE.5 | Power Cable CEE7/7 90° - Open End WES, 5.0 m, 3 x 1.00 mm² | black | True | 5.0 m | 1.00 mm² | 7.1 mm |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
