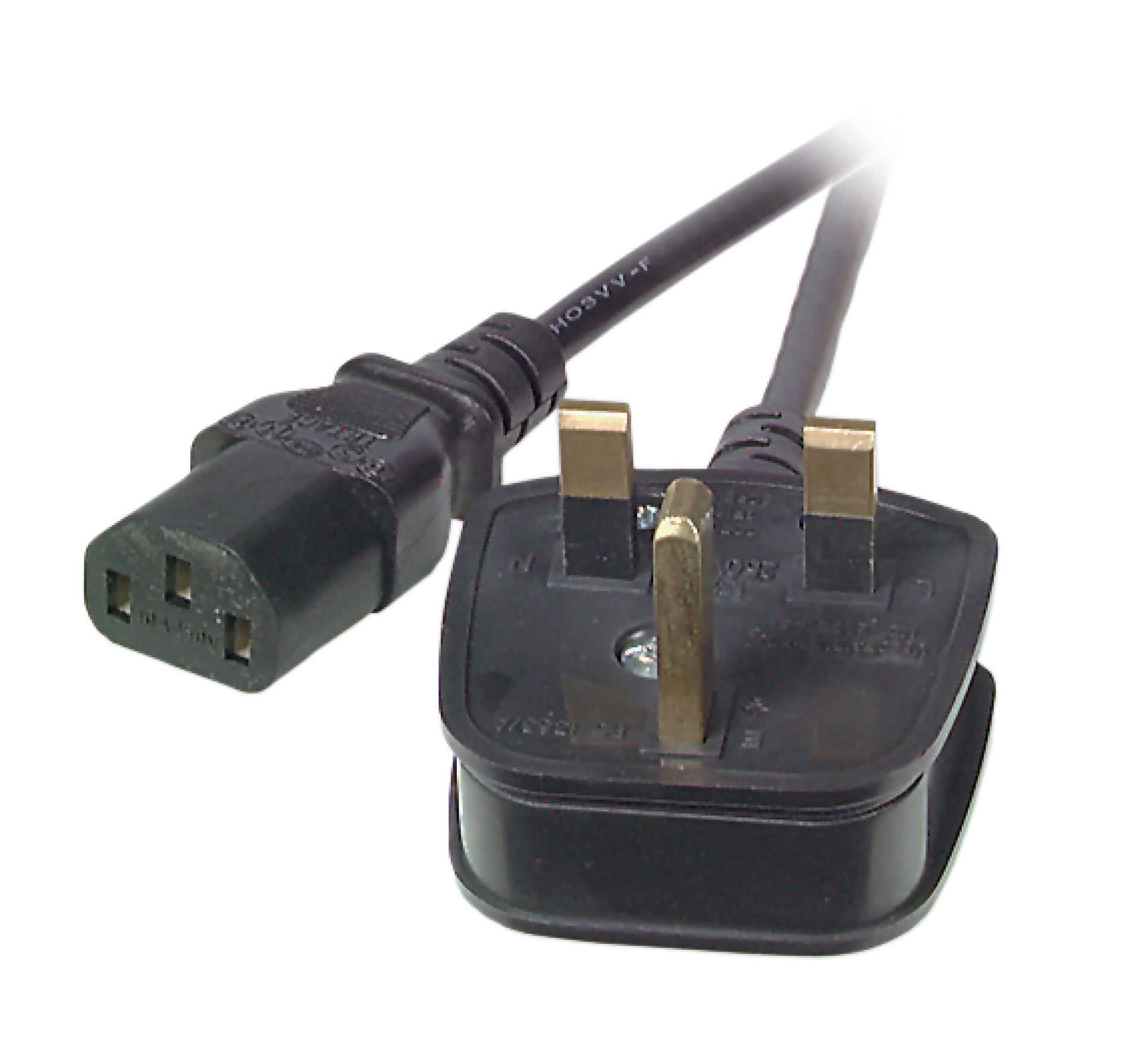

Power Cable UK BS1363A - C13 180°, 5 A, Black
Power Cable UK BS1363A - C13 180°, Black, 2.0 m, 3 x 0.75 mm²
Varenummer:
EK500.2
EAN Nr.:
4049759052966
Produktinformation til Power Cable UK BS1363A - C13 180°, Black, 2.0 m, 3 x 0.75 mm²
5 A / 250 V with fuse 5 A
Suitable for UK, Ireland, Singapur, Malaysia
Suitable for UK, Ireland, Singapur, Malaysia
Tekniske egenskaber
| Colour outer sheath: | black |
|---|---|
| Connection 1: | BS1363A |
| Connection 2: | Cold device plug straight, female |
| Jacket material: | Polyvinylchlorid (PVC) |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Protective conductor: | True |
| Spiralized cable: | False |
| Temperature resistance: | 3 – 70 °C |
| With cord switch: | False |
Varianten
| Art. Nr. | Bezeichnung | Colour outer sheath | Length | Nominal cross section conductor | Outer diameter approx. | |
|---|---|---|---|---|---|---|
| EK500.2 | Power Cable UK BS1363A - C13 180°, Black, 2.0 m, 3 x 0.75 mm² | black | 2.0 m | 0.75 mm² | 6.8 mm | |
| EK500.3 | Power Cable UK BS1363A - C13 180°, Black, 3.0 m, 3 x 1.00 mm² | black | 3.0 m | 1.00 mm² | 7.1 mm | |
| EK500.5 | Power Cable UK BS1363A - C13 180°, Black, 5.0 m, 3 x 1.00 mm² | black | 5.0 m | 1.00 mm² | 7.1 mm |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
