Raw cable Cat.7, S/FTP, LSZH
Raw cable Cat.7, S/FTP, LSZH, black, 100m ring
Varenummer:
MK7104.100B
EAN Nr.:
4049759151614
Produktinformation til Raw cable Cat.7, S/FTP, LSZH, black, 100m ring
The patch cable MK7104 is constructed for transmissions up to 600 MHz and exceeds with the electrical transmission properties and requirements of the category 7. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.
Tekniske egenskaber
| (Halogenfree): | acc. EN 60754-1/2 |
|---|---|
| (Halogenfree): | acc. EN 60754 |
| AWG-size: | 26/7 |
| Bending radius (dynamic): | 5 x OD |
| Bending radius (static): | 5 x OD |
| Cable: | IEC 61156-5 |
| Cable: | EN 50288-4-1 |
| Cable structure: | S/FTP |
| Cable type: | EFB Cat.7 S/FTP Patchcable LSZH |
| Cabling standards: | ANSI/TIA 568-C.2 |
| Cabling standards: | IEC 61156-5:2009 |
| Cabling standards: | ISO/IEC 11801 |
| Cabling standards: | EN 50288-4-1 |
| Cabling standards: | EN 50173-1 |
| Category: | 7 |
| Characteristic impedance: | 100 ± 15 Ohm |
| Conductor category: | Class 2 = stranded |
| Conductor material: | Cu, tinned |
| Core identification: | colour |
| Core insulation: | foam-skin PE |
| Directive/Regulation: | RoHS 2011/65/UE |
| Flame retardant: | acc. EN 60332-1 |
| Halogen free (according to EN 60754-1/2): | True |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 100 MOhm/km |
| Jacket material: | FRNC-B |
| Loop resistance: | ≤ 142 Ohm/km |
| Low smoke: | acc. EN 61034 |
| Low smoke (acc. EN 61034-2): | True |
| Max. frequency: | 600 MHz |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 60 °C |
| Operating temperature, storage: | 0 – 60 °C |
| PoE: | acc. to IEEE802.3af PoE |
| PoE: | acc. to IEEE802.3bt 4PPoE |
| PoE: | acc. to IEEE802.3at PoE+ |
| Resistance unbalance: | ≤ 2 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Stranding element: | Pairs |
| Transmission standards: | IEEE 802.3 10Mbit to 10Gbit |
| UV resistant: | no |
Varianten

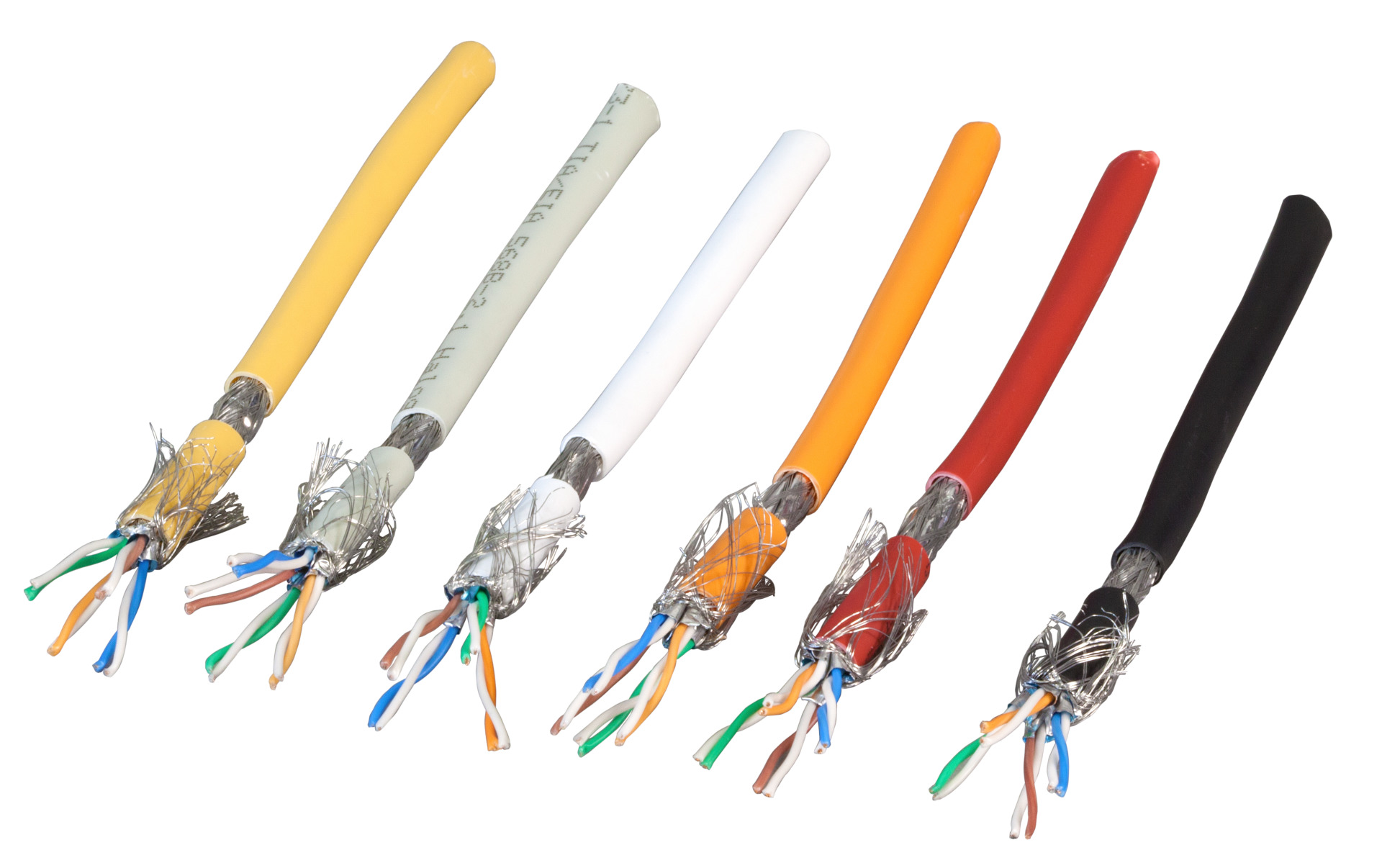

| Art. Nr. | Bezeichnung | Type | Length | Number of cores | Colour outer sheath | Outer diameter approx. | |
|---|---|---|---|---|---|---|---|
| MK7104.100B | Raw cable Cat.7, S/FTP, LSZH, black, 100m ring | simplex | 100.0 m | 8 | black | 6.5 mm | |
| MK7104.100G | Raw cable Cat.7, S/FTP, LSZH, grey, 100m ring | simplex | 100.0 m | 8 | grey | 6.5 mm | |
| MK7104.100W | Raw cable Cat.7, S/FTP, LSZH, white, 100m ring | simplex | 100.0 m | 8 | white | 6.5 mm | |
| MK7104.100BL | Raw cable Cat.7, S/FTP, LSZH | simplex | 100.0 m | 8 | blue | 6.5 mm | |
| MK7104.100GR | Raw cable Cat.7, S/FTP, LSZH | simplex | 100.0 m | 8 | green | 6.5 mm | |
| MK7104.100O | Raw cable Cat.7, S/FTP, LSZH | simplex | 100.0 m | 8 | orange | 6.5 mm | |
| MK7104.100R | Raw cable Cat.7, S/FTP, LSZH | simplex | 100.0 m | 8 | red | 6.5 mm | |
| MK7104.100V | Raw cable Cat.7, S/FTP, LSZH | simplex | 100.0 m | 8 | purple | 6.5 mm | |
| MK7104.100Y | Raw cable Cat.7, S/FTP, LSZH | simplex | 100.0 m | 8 | yellow | 6.5 mm |
Sikkerhedsanvisninger
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
