Flat Cables, pitch 1.27
Ribbon Cable,pitch 1.27,30.5m 10-pole, AWG 28/7
Varenummer:
22310B.30R
EAN Nr.:
4049759039745

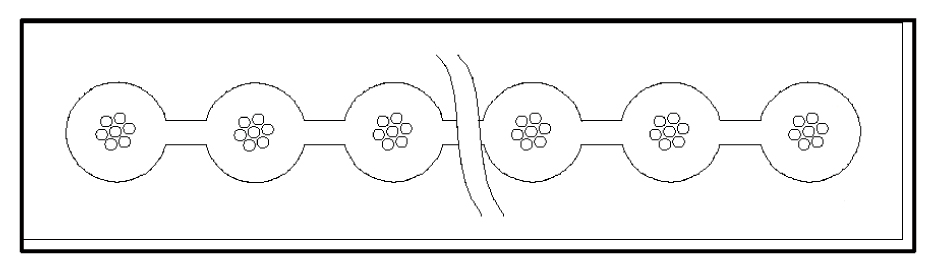

Produktinformationen für Ribbon Cable,pitch 1.27,30.5m 10-pole, AWG 28/7
AWG28/7
Grey with identifier core (red)
30.5 m rolls
Individual wires, tin-plated
Grey with identifier core (red)
30.5 m rolls
Individual wires, tin-plated
Technische Eigenschaften
| AWG-size: | 28 |
|---|---|
| Conductor category: | Class 2 = stranded |
| Core insulation: | PVC |
| Diameter conductor: | 0.127 mm |
| Flame-retardant: | according to EN 60332-1-2 |
| Halogen free (acc. EN 50267-2-2): | False |
| Low smoke (acc. EN 61034-2): | False |
| Low temperature resistant (acc. EN 60811-1-4): | False |
| Nominal cross section conductor: | 0.09 mm² |
| Nominal voltage U: | 300 V |
| Oil resistant (acc. EN 60811-2-1): | False |
| Operating temperature, fix: | -30..+105 – °C |
| Operating temperature, flexible: | -20..+105 – °C |
| Screen: | False |
Varianten
| Art. Nr. | Bezeichnung | Core colour | Number of conductor | Outer diameter approx. | |
|---|---|---|---|---|---|
| 22310B.30R | Ribbon Cable,pitch 1.27,30.5m 10-pole, AWG 28/7 | grey | 10 | 0.93 mm | |
| 22314B.30R | Ribbon Cable,pitch 1.27,30.5m 14-pole, AWG 28/7 | grey | 14 | 0.93 mm | |
| 22316B.30R | Ribbon Cable,pitch 1.27,30.5m 16-pole, AWG 28/7 | grey | 16 | 0.93 mm | |
| 22320B.30R | Ribbon Cable,pitch 1.27,30.5m 20-pole, AWG 28/7 | grey | 20 | 0.93 mm | |
| 22326B.30R | Ribbon Cable,pitch 1.27,30.5m 26-pole, AWG 28/7 | grey | 26 | 0.93 mm | |
| 22334B.30R | Ribbon Cable,pitch 1.27,30.5m 34-pole, AWG 28/7 | grey | 34 | 0.93 mm | |
| 22340B.30R | Ribbon Cable,pitch 1.27,30.5m 40-pole, AWG 28/7 | grey | 40 | 0.93 mm | |
| 22350B.30R | Ribbon Cable,pitch 1.27,30.5m 50-pole, AWG 28/7 | grey | 50 | 0.93 mm |
