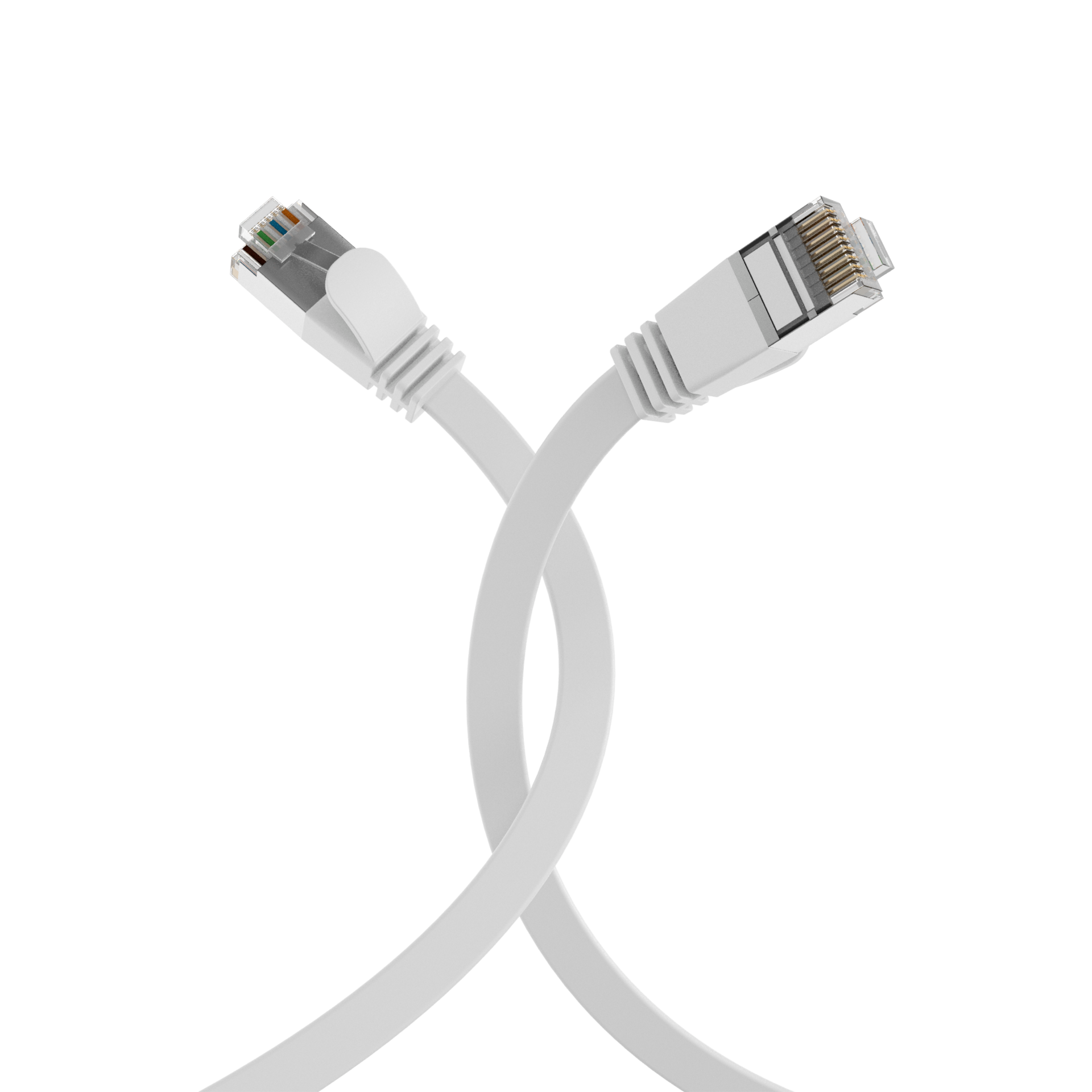

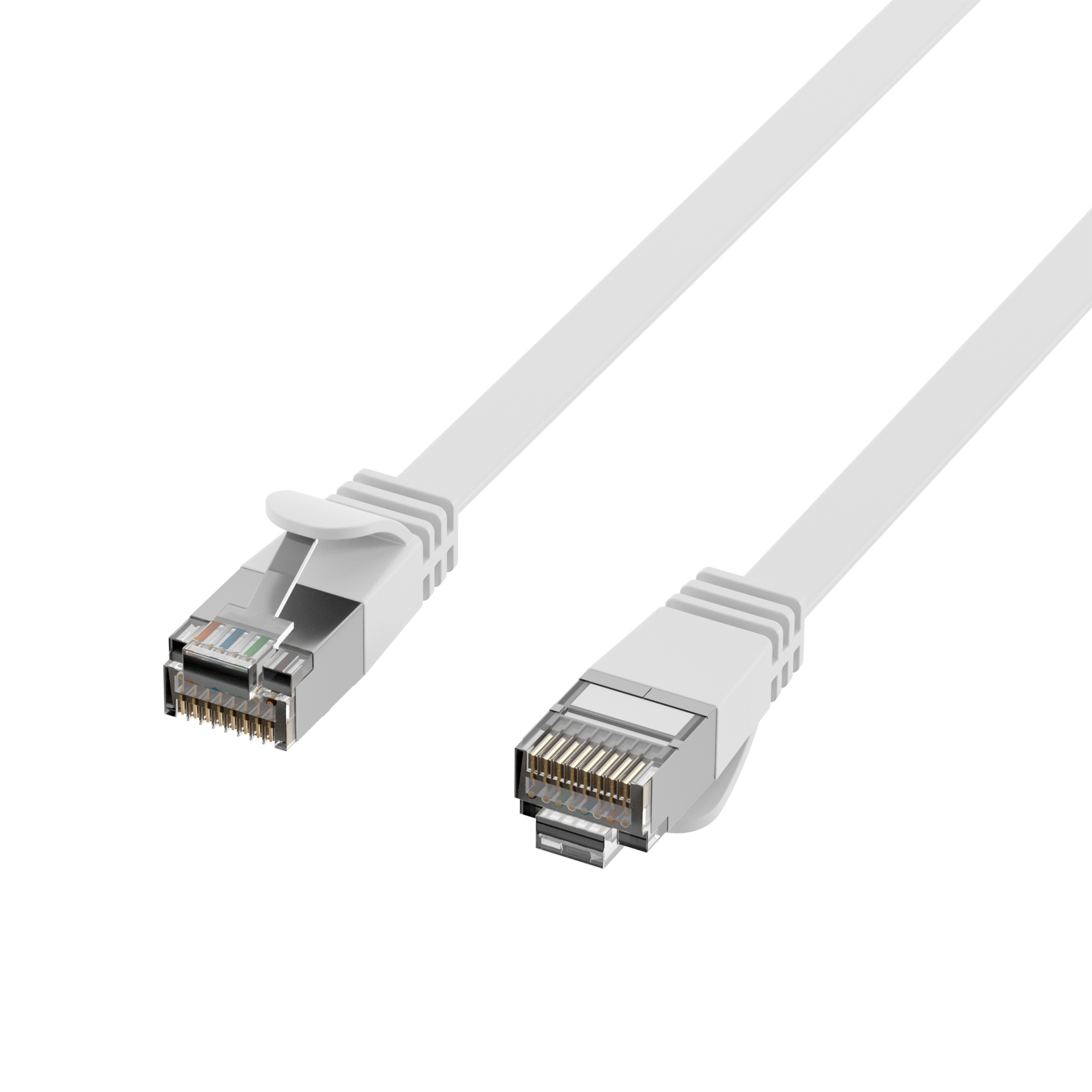

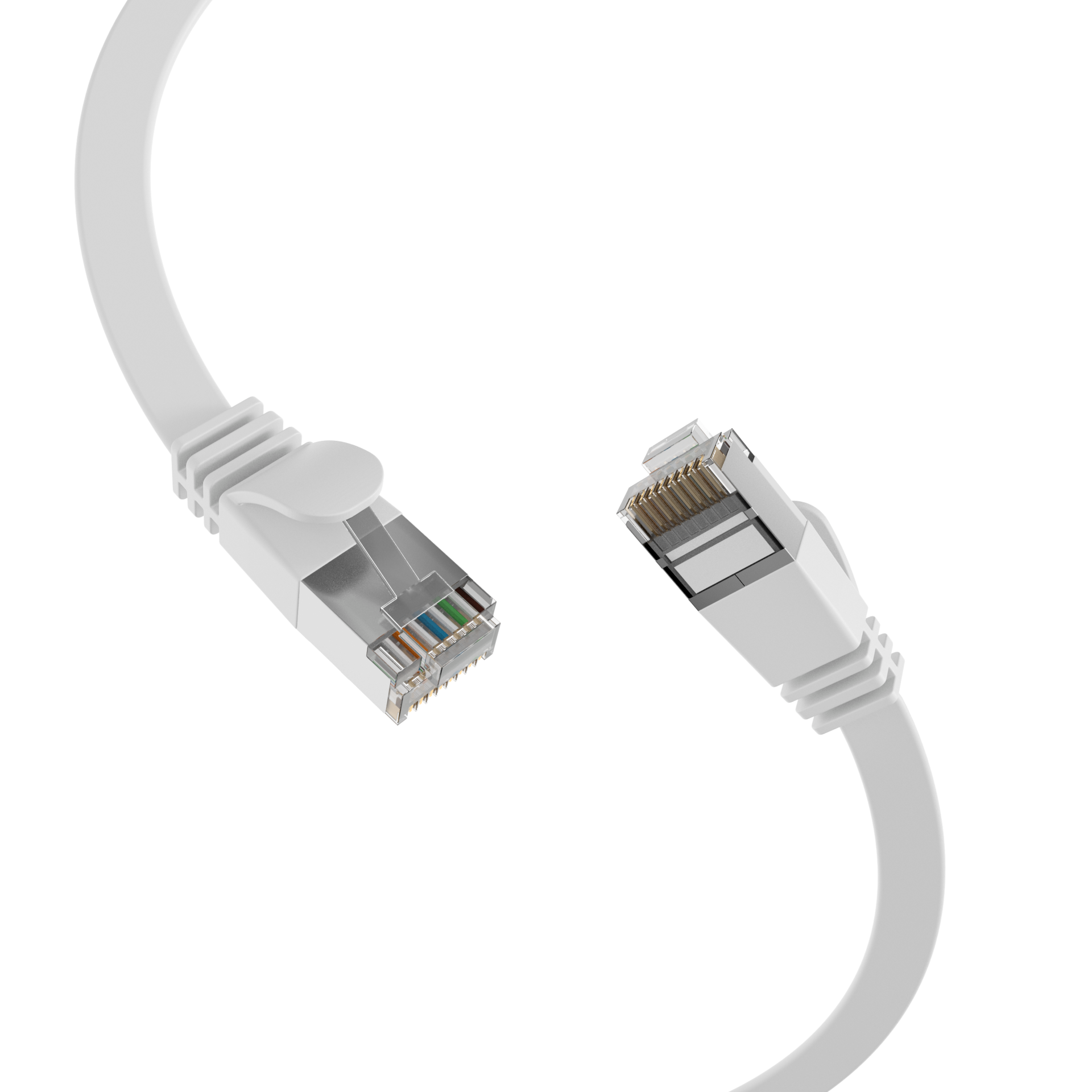

RJ45 Flat Patch Cord Cat.6A U/FTP PVC white
Priser kun synlige for indloggede brugere
RJ45 Flat Patch Cord Cat.6A U/FTP PVC white 1m
Varenummer:
K5545WS.1
EAN nr.:
4049759150938
Produktinformation für RJ45 Flat Patch Cord Cat.6A U/FTP PVC white 1m
The pair-shielded Cat.6A RJ45 flat patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The flat patch cable impresses with its flat construction and is with 2.2mm height ideal for laying e.g. behind ledges or under a carpet. The cast grommet captivates with its slim design and thus simplifies the plugging process in confined spaces.
Sheath material: PVC
Cross section: 4 x 2 x AWG30 / 7
Cable diameter: 7.0x2.2mm
Plug type: short plug
Sheath material: PVC
Cross section: 4 x 2 x AWG30 / 7
Cable diameter: 7.0x2.2mm
Plug type: short plug
Tekniske egenskaber
| (Halogenfree): | False |
|---|---|
| AWG-size: | 30/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >20 mm |
| Cable construction: | 4x2 |
| Cable type: | U/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | white |
| Colour outer sheath: | white |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 376 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 short version |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | False |
| Impedance: | 100 ±15 Ω |
| Insulation resistance: | 100 MΩ |
| Jacket material: | Polyvinylchlorid (PVC) |
| Locking lever: | True |
| Loop resistance: | 752 Ω/km |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 76 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 7.0*2.2 mm |
| POE class: |
PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | SLIM PATCHCABLE U/FTP CAT.6A ***10GB*** www.efb-elektronik.de |
| Resistance unbalance: | < 4 % |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -20 – 55 °C |
| Test voltage: | 1000 V DC, 1min |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianter
| Art. Nej. | Betegnelse | Length | Length tolerance | |
|---|---|---|---|---|
| K5545WS.0,5 | RJ45 Flat Patch Cord Cat.6A U/FTP PVC white 0,5m | 0.5 m | ±5 % | |
| K5545WS.1 | RJ45 Flat Patch Cord Cat.6A U/FTP PVC white 1m | 1.0 m | ±5 % | |
| K5545WS.1,5 | RJ45 Flat Patch Cord Cat.6A U/FTP PVC white 1,5m | 1.5 m | ±5 % | |
| K5545WS.2 | RJ45 Flat Patch Cord Cat.6A U/FTP PVC white 2m | 2.0 m | ±5 % | |
| K5545WS.3 | RJ45 Flat Patch Cord Cat.6A U/FTP PVC white 3m | 3.0 m | ±5 % | |
| K5545WS.5 | RJ45 Flat Patch Cord Cat.6A U/FTP PVC white 5m | 5.0 m | ±5 % | |
| K5545WS.0,25 | RJ45 Flat Patch Cord Cat.6A U/FTP PVC white 0,25m | 0.25 m | ±5 % |
