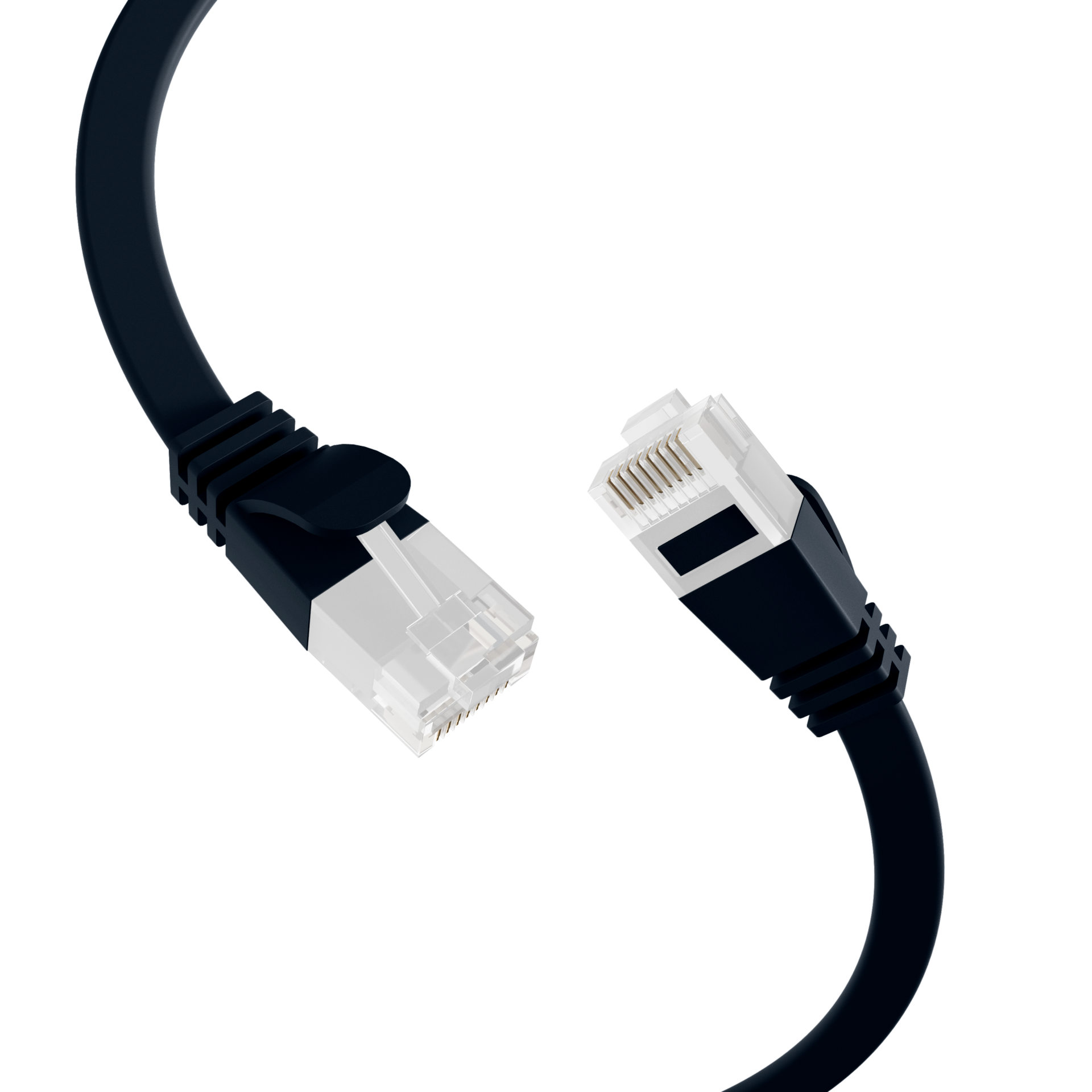

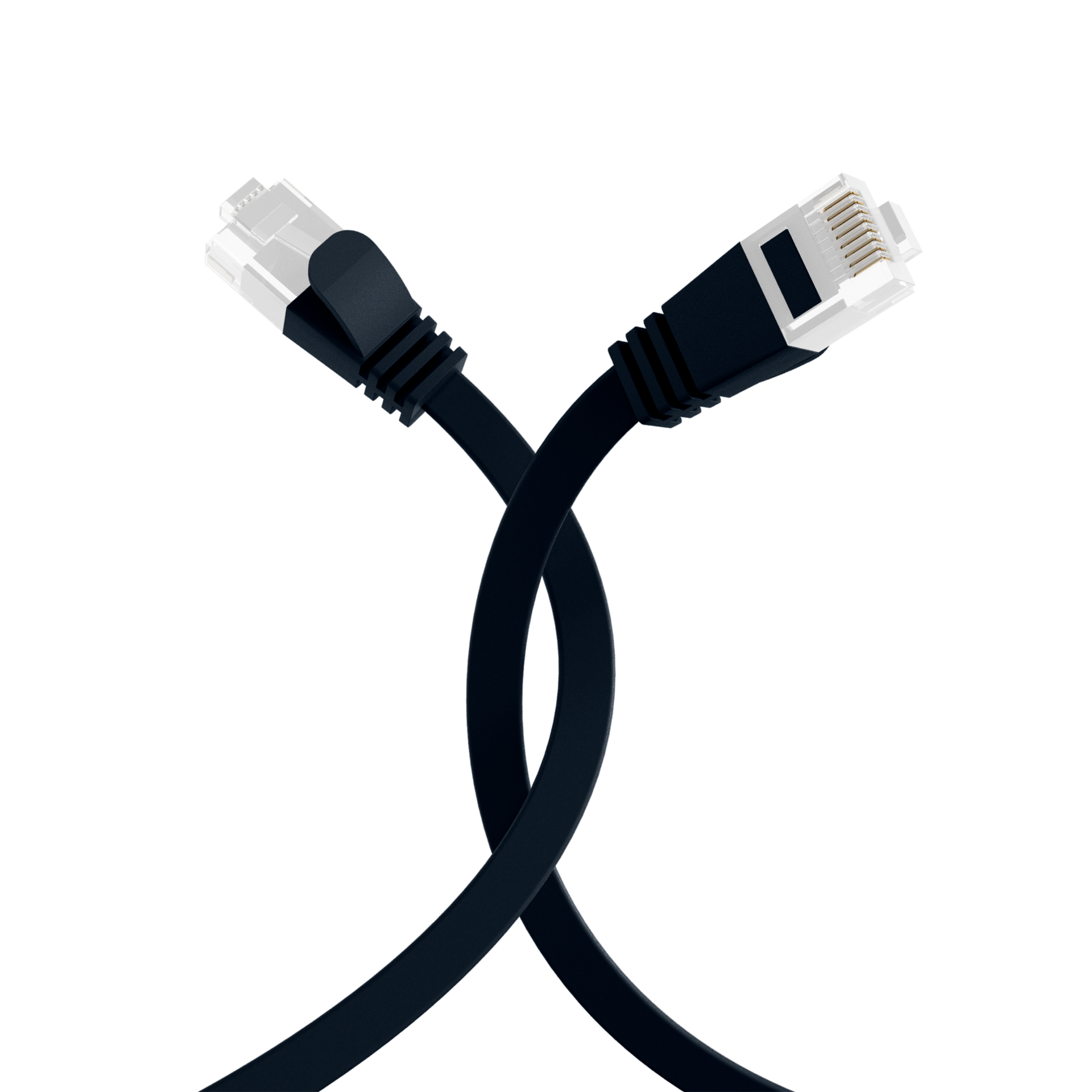

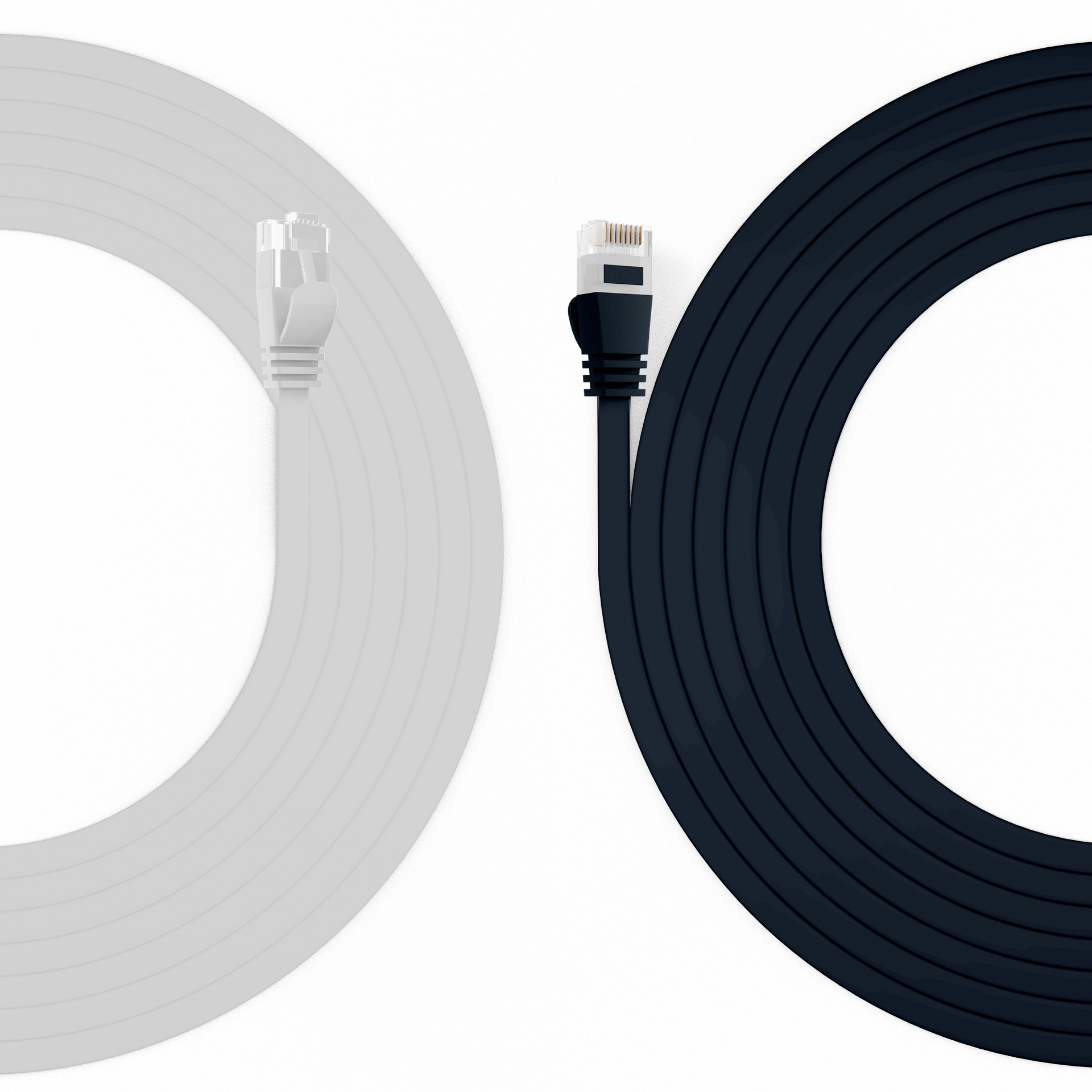

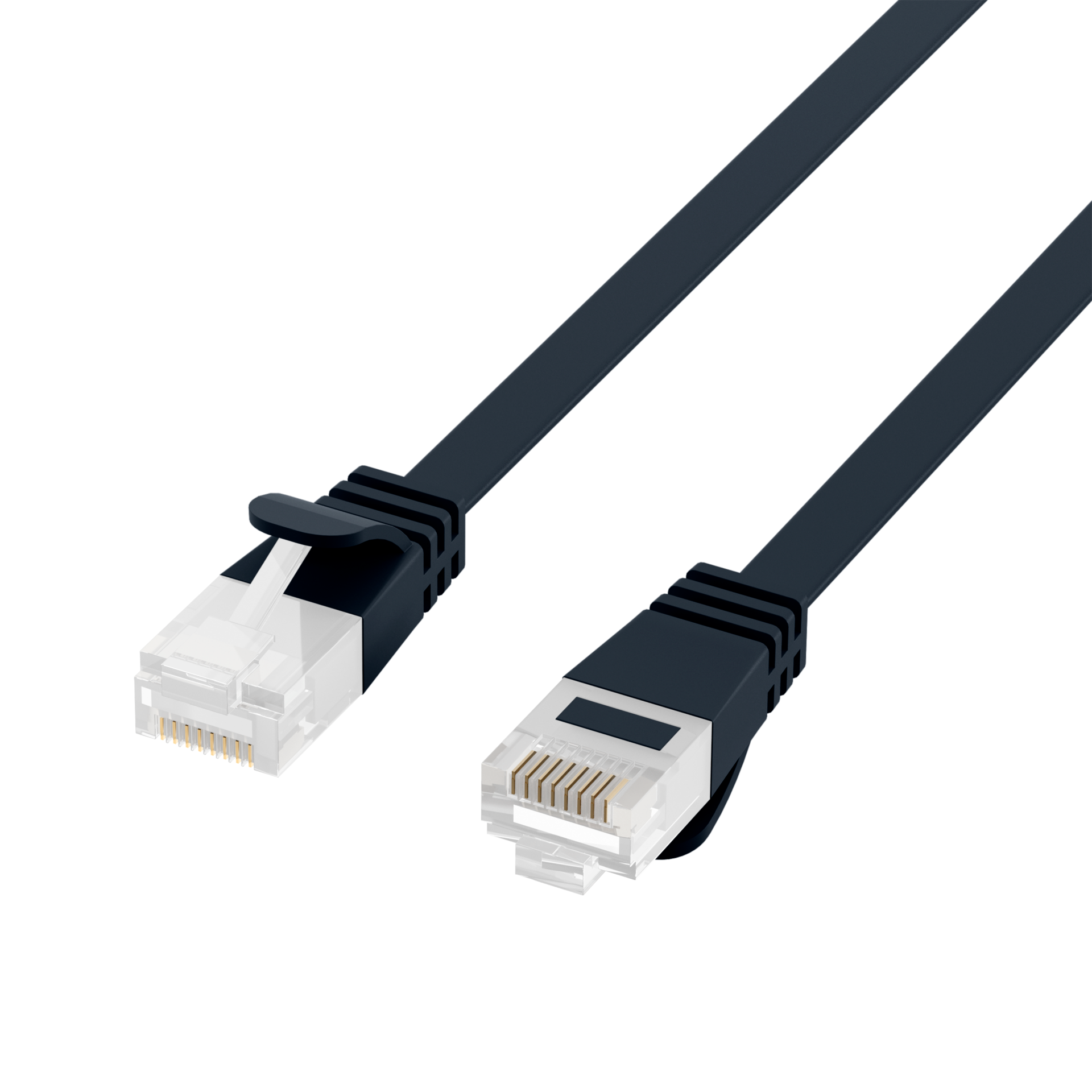

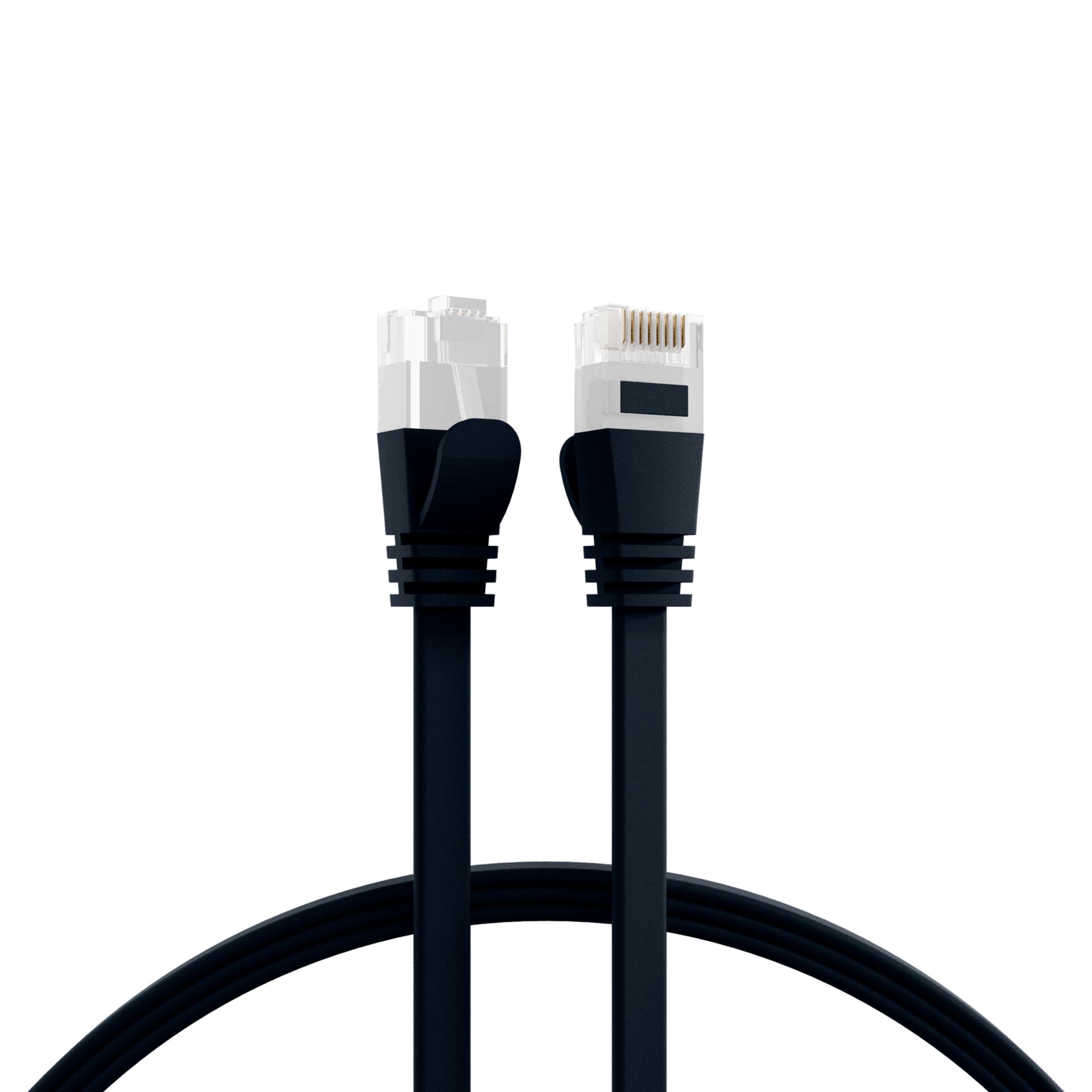

RJ45 Flat Patch Cord Cat.6A U/UTP PVC black
RJ45 Flat Patch Cord Cat.6A U/UTP PVC black 0.25m
Varenummer:
K8107SW.0,25
EAN Nr.:
4049759155735
Produktinformation til RJ45 Flat Patch Cord Cat.6A U/UTP PVC black 0.25m
RJ45 flat patch cable Cat.6A U/UTP PVC
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product features
• Cat.6A ( TIA)
• U/UTP cable with AWG30/7
• Sheath material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
< br>The jacket of the patch cable is made of polyvinyl chloride (PVC) material. The cable also offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af.
The assignment of the particularly short RJ45 plugs is 1:1 and follows TIA/EIA 568B. Suitable for the temperature range -20 – 55 °C.
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling. This achieves a frequency range of 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product features
• Cat.6A ( TIA)
• U/UTP cable with AWG30/7
• Sheath material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
< br>The jacket of the patch cable is made of polyvinyl chloride (PVC) material. The cable also offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af.
The assignment of the particularly short RJ45 plugs is 1:1 and follows TIA/EIA 568B. Suitable for the temperature range -20 – 55 °C.
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling. This achieves a frequency range of 500 MHz.
Tekniske egenskaber
| (Halogenfree): | False |
|---|---|
| AWG-size: | 30/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of Application: | Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | 10 mm |
| Cable construction: | 4x2 |
| Cable type: | U/UTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | black |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 376 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 short version |
| Contacts: | Gold plated µ" Gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | False |
| Impedance: | 100 ±15 Ω |
| Insulation Resistance: | 100 MΩ |
| Jacket Material: | Polyvinylchlorid (PVC) |
| Length imprint: | False |
| Locking lever: | True |
| Loop resistance: | 752 Ω/km |
| Mating cycles: | 2000 |
| Model: | Unshielded |
| NVP value: | 76 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.0*1.6 mm |
| POE class: |
PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | SLIM PATCHCABLE U/UTP CAT.6A ***10GB*** www.efb-elektronik.de |
| Resistance unbalance: | < 4 % |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -20 – 55 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K8107SW.0,25 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC black 0.25m | 0.25 m | ±5 % | |
| K8107SW.0,5 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC black 0,5m | 0.5 m | ±5 % | |
| K8107SW.1 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC black 1m | 1.0 m | ±5 % | |
| K8107SW.1,5 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC black 1,5m | 1.5 m | ±5 % | |
| K8107SW.2 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC black 2m | 2.0 m | ±5 % | |
| K8107SW.3 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC black 3m | 3.0 m | ±5 % | |
| K8107SW.5 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC black 5m | 5.0 m | ±5 % |
