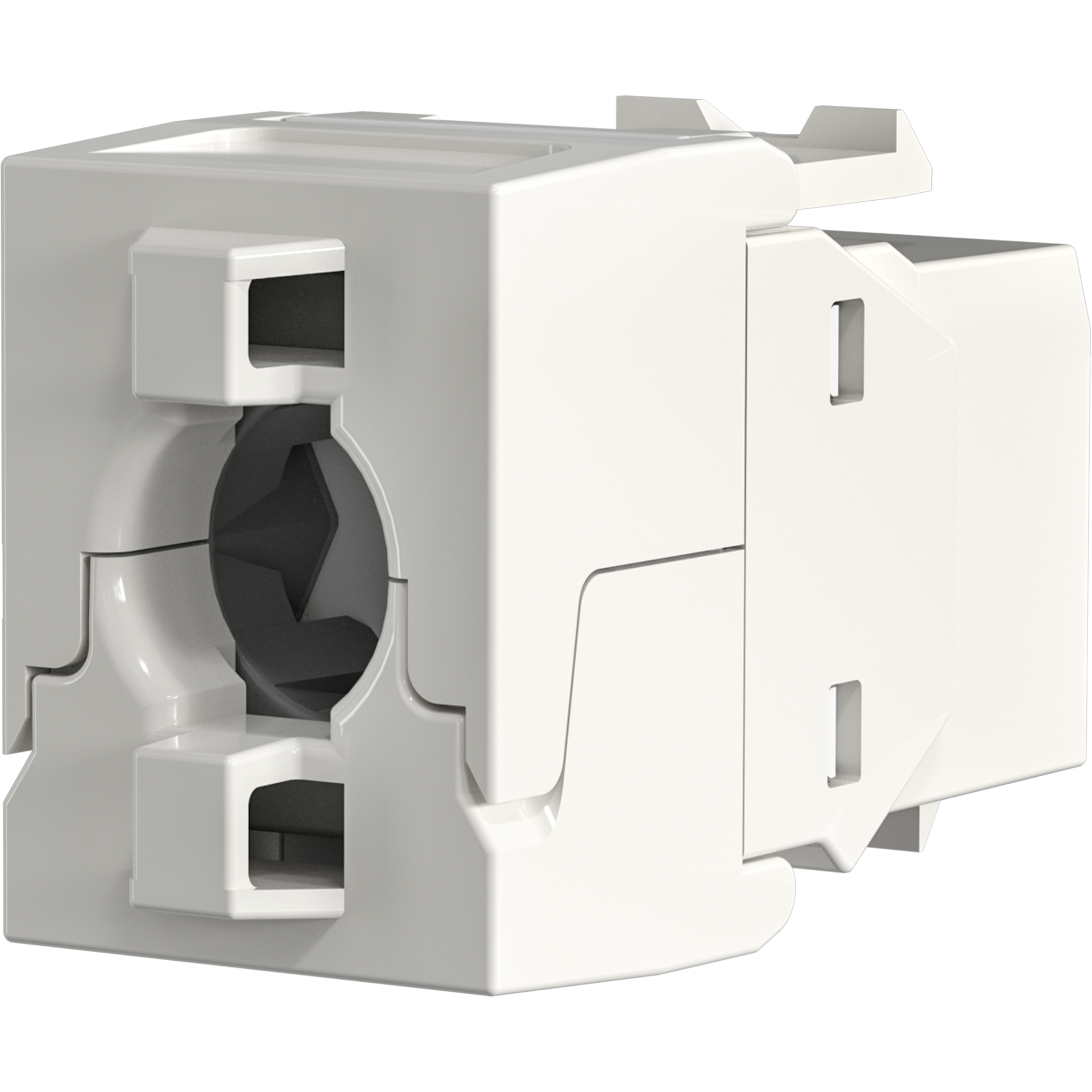

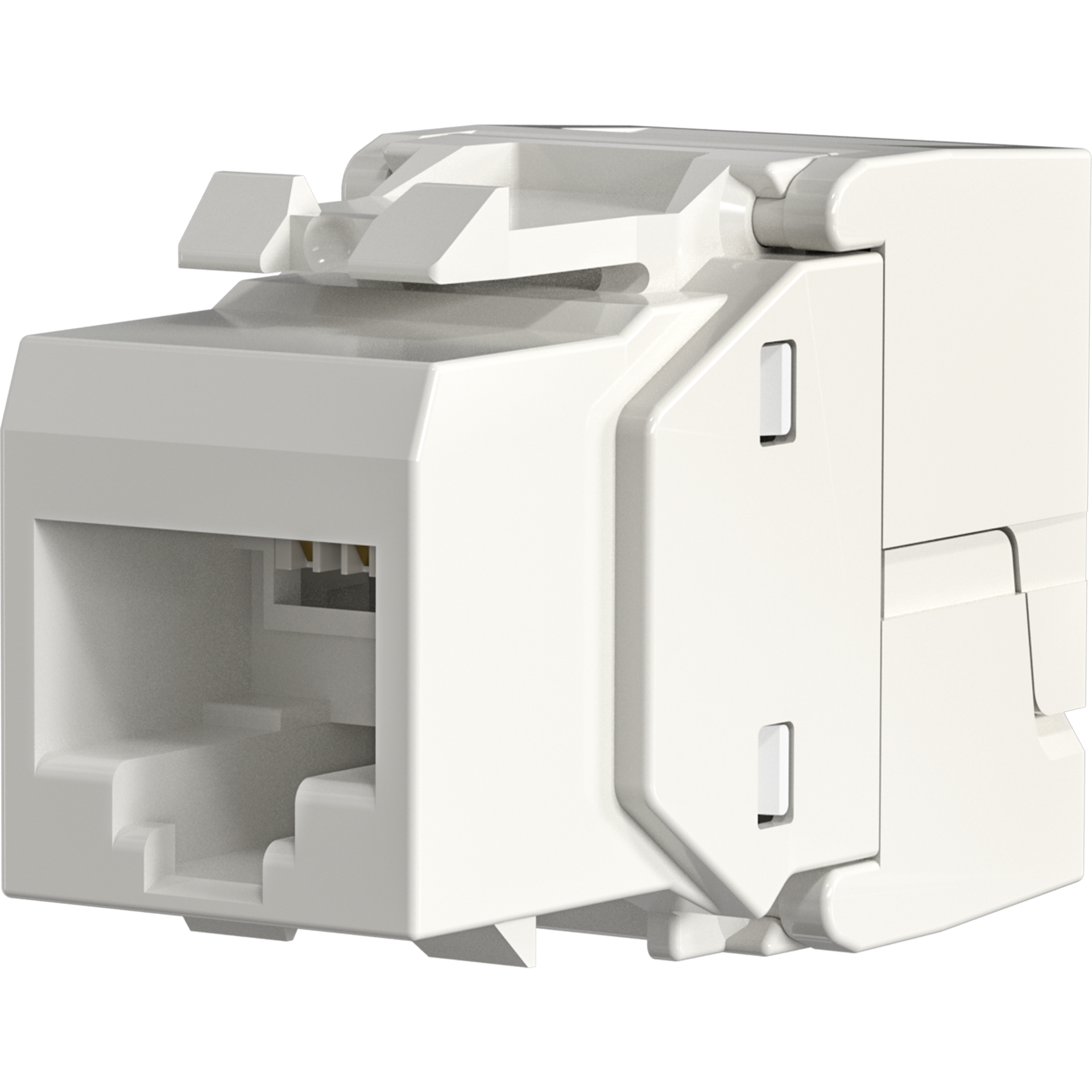

RJ45 Keystone UTP, Cat.6, 250MHz, components certified
RJ45 Keystone UTP, Cat.6, 250MHz, component certified, white
Varenummer:
E-20080
EAN Nr.:
4049759083717
Produktinformation til RJ45 Keystone UTP, Cat.6, 250MHz, component certified, white
Specifications:
Plastic housing PC+ABS

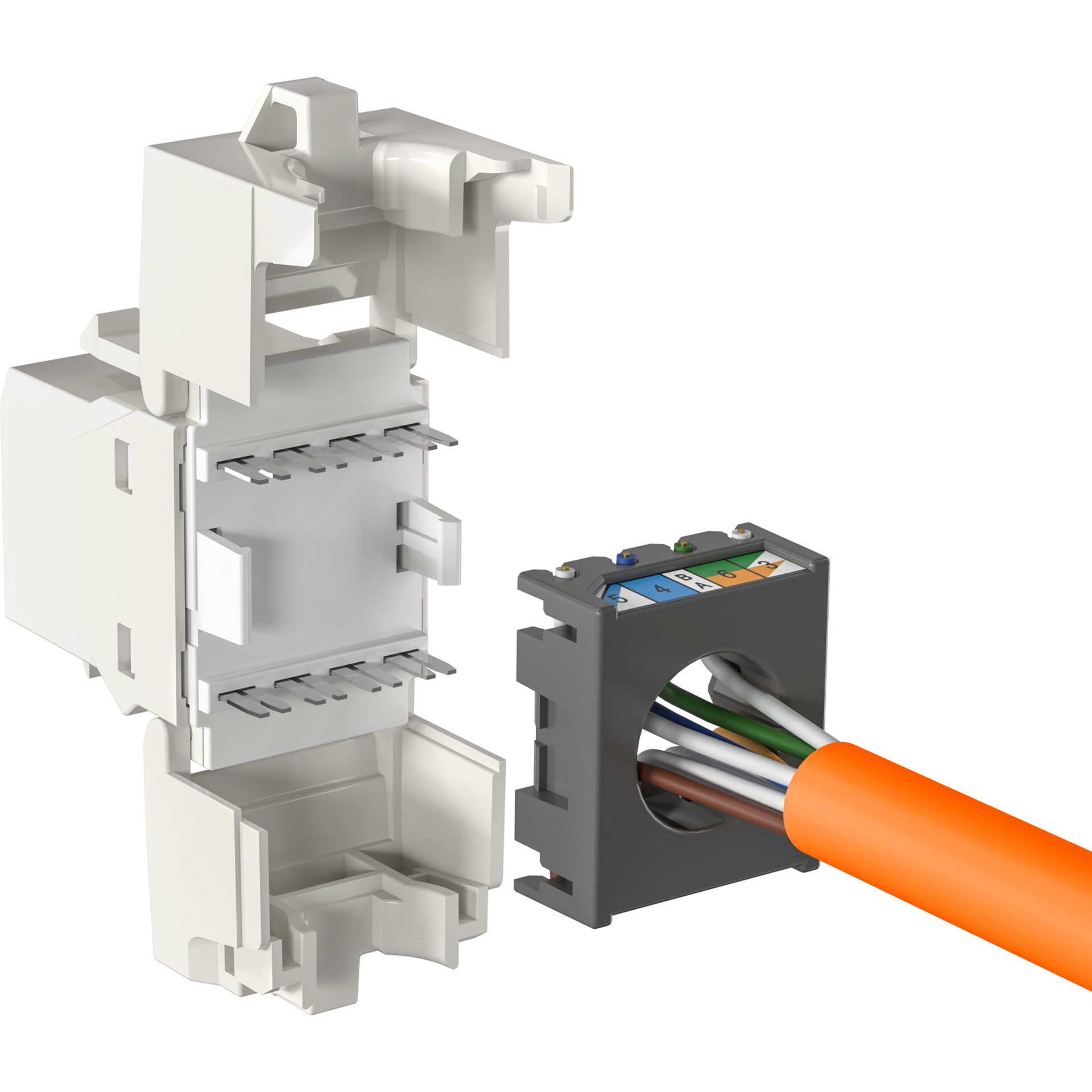

Compact cable presorter for AWG 24/1 .. 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots
Scope of delivery:

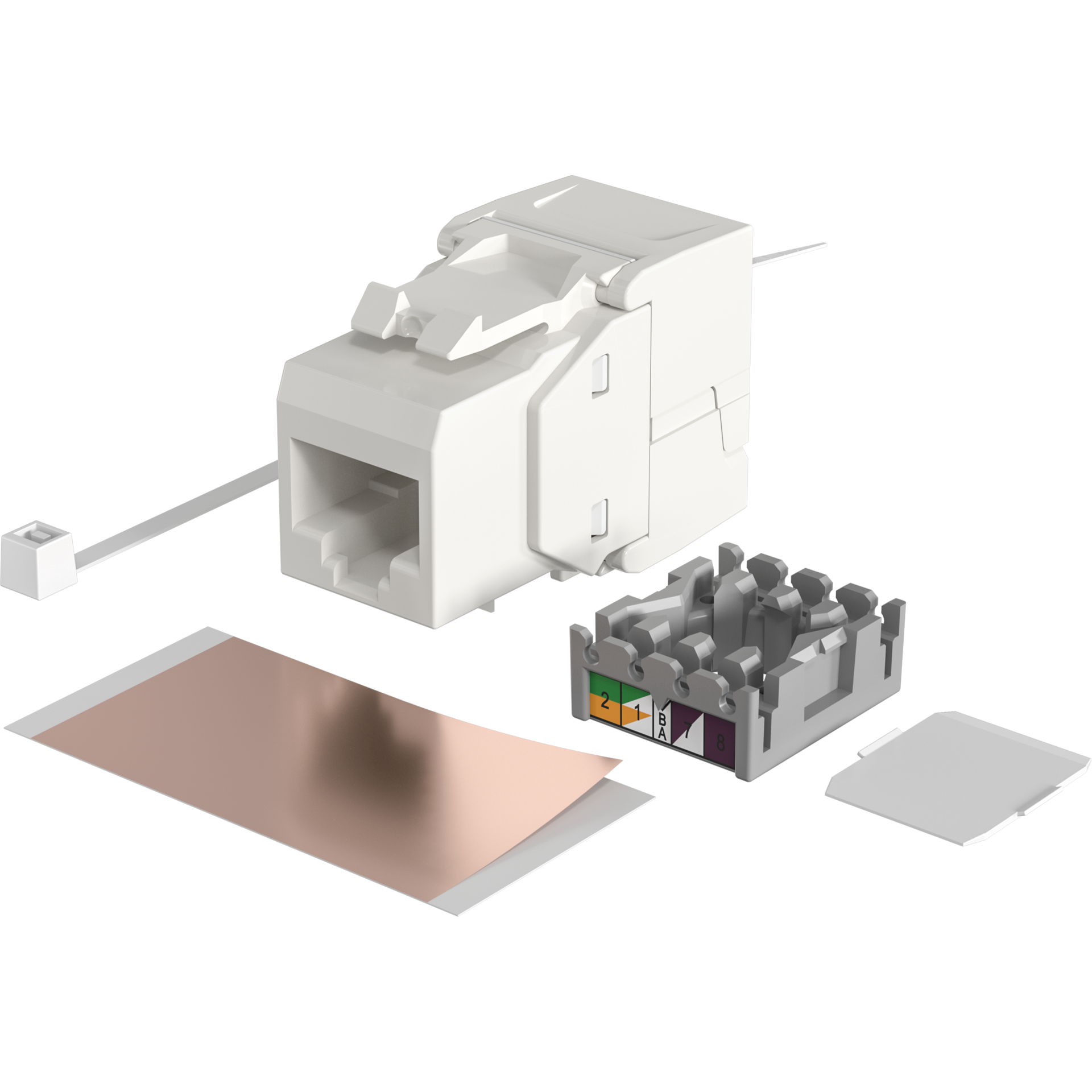

1 x RJ45 keystone, Cable coder, 1 x hinged dust cover, 1 x cable tie, 1 x mounting instruction
Plastic housing PC+ABS
Compact cable presorter for AWG 24/1 .. 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots
Scope of delivery:
1 x RJ45 keystone, Cable coder, 1 x hinged dust cover, 1 x cable tie, 1 x mounting instruction
Tekniske egenskaber
4PPOE certified: | True |
---|---|
AWG-range: | 24 – 22 |
Category: | 6 |
Complaint to UL94: | V-0 |
Connection type: | Insulation displacement connector |
Contact Resistance: | ≤ 20 mΩ |
Contact coating: | 50 µ" |
Current Rating: | 2 A |
Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
Dust cover: | true |
For UAE suitable: | True |
Housing material: | Plastic |
Insulation Resistance: | ≥ 500 MΩ |
Mating cycles: | ≥ 750 |
Max. cable diameter: | 8.5 mm |
Model: | jack |
Screened: | False |
Special tool necessary: | False |
Suitable for flat cable: | False |
Suitable for litz wire conductor: | True |
Suitable for round cable: | True |
Suitable for solid core: | True |
Temperature range: | -40 – 66 °C |
Type of connector: | RJ45 8(8) |
