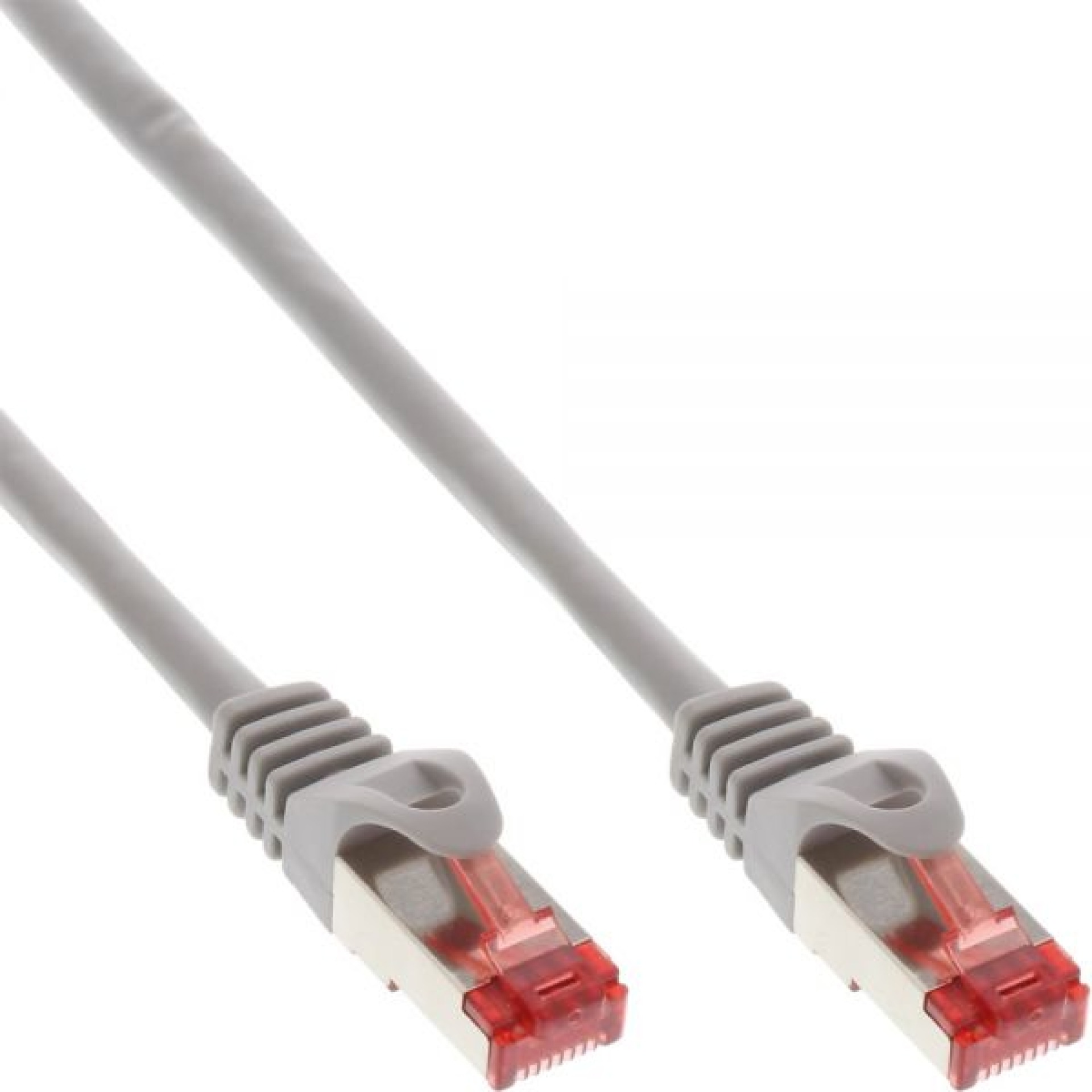

RJ45 Patch Cable Cat.5e F/UTP LSZH, grey
RJ45 patch cable Cat.5e F/UTP LSZH 0.5 m grey
Varenummer:
K8111GR.0,5
EAN Nr.:
5705721127917
Produktinformation til RJ45 patch cable Cat.5e F/UTP LSZH 0.5 m grey
Tekniske egenskaber
| AWG-size: | 26/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Bending radius: | >25 mm |
| Cable construction: | 4x2 |
| Cable shape: | rund |
| Cable type: | F/UTP |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 5e |
| Colour anti-kink sleeve: | grey |
| Colour outer sheath: | grey |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Connector: | IEC 60603-7-3 |
| Connector type: | RJ45 standard |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | acc. IEC60754-2 |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 |
| Jacket material: | LSZH |
| Length imprint: | False |
| Locking lever: | True |
| Mating cycles: | ≥750 |
| Model: | shielded |
| Oil resistant: | No |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | 0 – 60 °C |
| Outer diameter of the cable: | 5.7 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Printing: | F/UTP 300 CAT.5E 26AWG×4P PATCH ISO/IEC 11801 & EN 50173 VERIFIED ***2,5 GIGABIT*** www.efb-elektronik.de |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 100MHz |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
| UV resistant: | no |
Varianten
| Art. Nr. | Bezeichnung | Length | POE class | |
|---|---|---|---|---|
| K8111GR.0,5 | RJ45 patch cable Cat.5e F/UTP LSZH 0.5 m grey | 0.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | |
| K8111GR.1 | RJ45 patch cable Cat.5e F/UTP LSZH 1 m grey | 1.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | |
| K8111GR.10 | RJ45 patch cable Cat.5e F/UTP LSZH 10 m grey | 10.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | |
| K8111GR.15 | RJ45 patch cable Cat.5e F/UTP LSZH 15 m grey | 15.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | |
| K8111GR.2 | RJ45 patch cable Cat.5e F/UTP LSZH 2 m grey | 2.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | |
| K8111GR.3 | RJ45 patch cable Cat.5e F/UTP LSZH 3 m grey | 3.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | |
| K8111GR.5 | RJ45 patch cable Cat.5e F/UTP LSZH 5 m grey | 5.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | |
| K8111GR.7,5 | RJ45 patch cable Cat.5e F/UTP LSZH 7.5 m grey | 7.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt |
