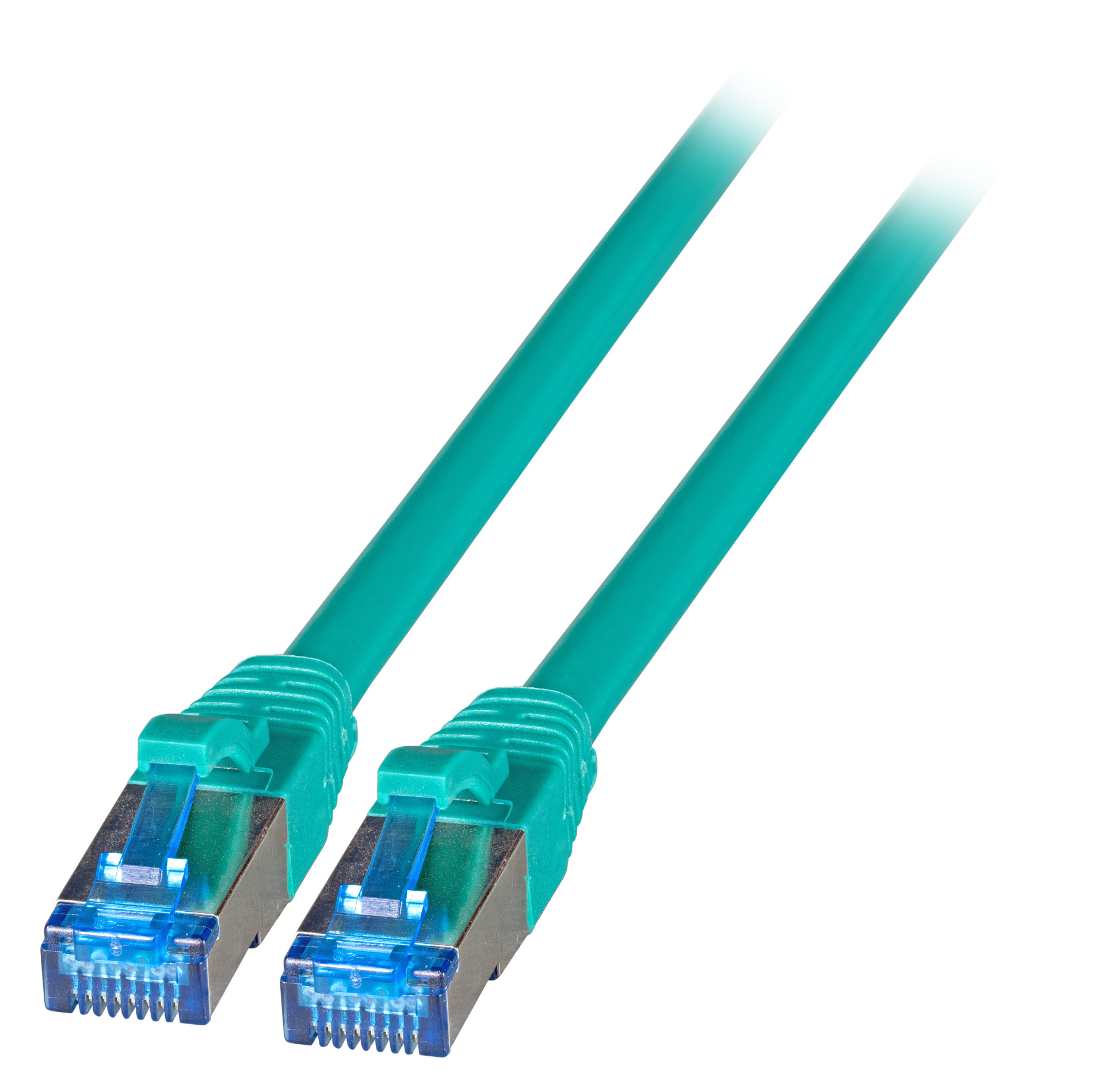

RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, green

Priser kun synlige for indloggede brugere

RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 0,15m, green
Varenummer: K5525FGN.0,15
EAN nr.: 4049759187125
Stück

Produktinformation für RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 0,15m, green

The shielded Cat.6A RJ45 patch cable with component certification from the GHMT ensures excellent performance for 10 Gigabit Ethernet applications. The TPE outer sheath makes the cable highly flexible and thus easier to handle. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Very flexible TPE/LSZH outer sheath superflex
Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Length imprint on the boot

Tekniske egenskaber

(Halogenfree): True
AWG-size: 26/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Structured cabling;Industrial Ethernet;Data center
Bandwidth: 500MHz
Bending radius: >32.5 mm
Cable construction: 4x2
Cable type: S/FTP
Cabling Standard: ISO/IEC 11801;ANSI/TIA-568-C.2;EN50173
Category: 6A (IEC)
Colour anti-kink sleeve: green
Colour outer sheath: green
Conductive shield: 360° shield contact
Conductor Material: Copper
Conductor resistance DC: 142 Ω/km
Connector: IEC 60603-7-51
Connector type: RJ45 Standard blue
Contact resistance: 30 mΩ
Contacts: 50 µ" gold plated
Current capacity: max. 1 A
Fire retardant version: True
Halogen-free: yes
Impedance: 100 ±25 Ω
Insulation resistance: 100 MΩ
Jacket material: TPE/LSZH
Length imprint: True
Locking lever: True
Loop resistance: 284 Ω/km
Low smoke: acc. IEC61034
Mating cycles: 2000
Model: Shielded
NVP value: - %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.5 mm
POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
Pin assignment: 1:1
Printing: Cat.6A Patchcord SUPERFLEX S/FTP
Raw cable: Cat.7
Resistance unbalance: 2 %
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: -20 – 75 °C
Test voltage: 1000 V DC, 1min
Transmission: 10Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianter

Art. Nej. Betegnelse Length Length tolerance
K5525FGN.0,15 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 0,15m, green 0.15 m ±5 % Vælg varianter
K5525FGN.0,25 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 0,25m, green 0.25 m ±5 % Vælg varianter
K5525FGN.0,5 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 0,5m, green 0.5 m ±5 % Vælg varianter
K5525FGN.1 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 1m, green 1.0 m ±5 % Vælg varianter
K5525FGN.1,5 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 1,5m, green 1.5 m ±5 % Vælg varianter
K5525FGN.10 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 10m, green 10.0 m ±5 % Vælg varianter
K5525FGN.15 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 15m, green 15.0 m ±5 % Vælg varianter
K5525FGN.2 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 2m, green 2.0 m ±5 % Vælg varianter
K5525FGN.20 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 20m, green 20.0 m ±5 % Vælg varianter
K5525FGN.25 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 25m, green 25.0 m ±5 % Vælg varianter
K5525FGN.3 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 3m, green 3.0 m ±5 % Vælg varianter
K5525FGN.30 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 30m, green 30.0 m ±5 % Vælg varianter
K5525FGN.5 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 5m, green 5.0 m ±5 % Vælg varianter
K5525FGN.7,5 RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 7,5m, green 7.5 m ±5 % Vælg varianter
