RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green

RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 0,15m
Varenummer: K5525FGN.0,15
EAN Nr.: 4049759187125

Produktinformation til RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 0,15m

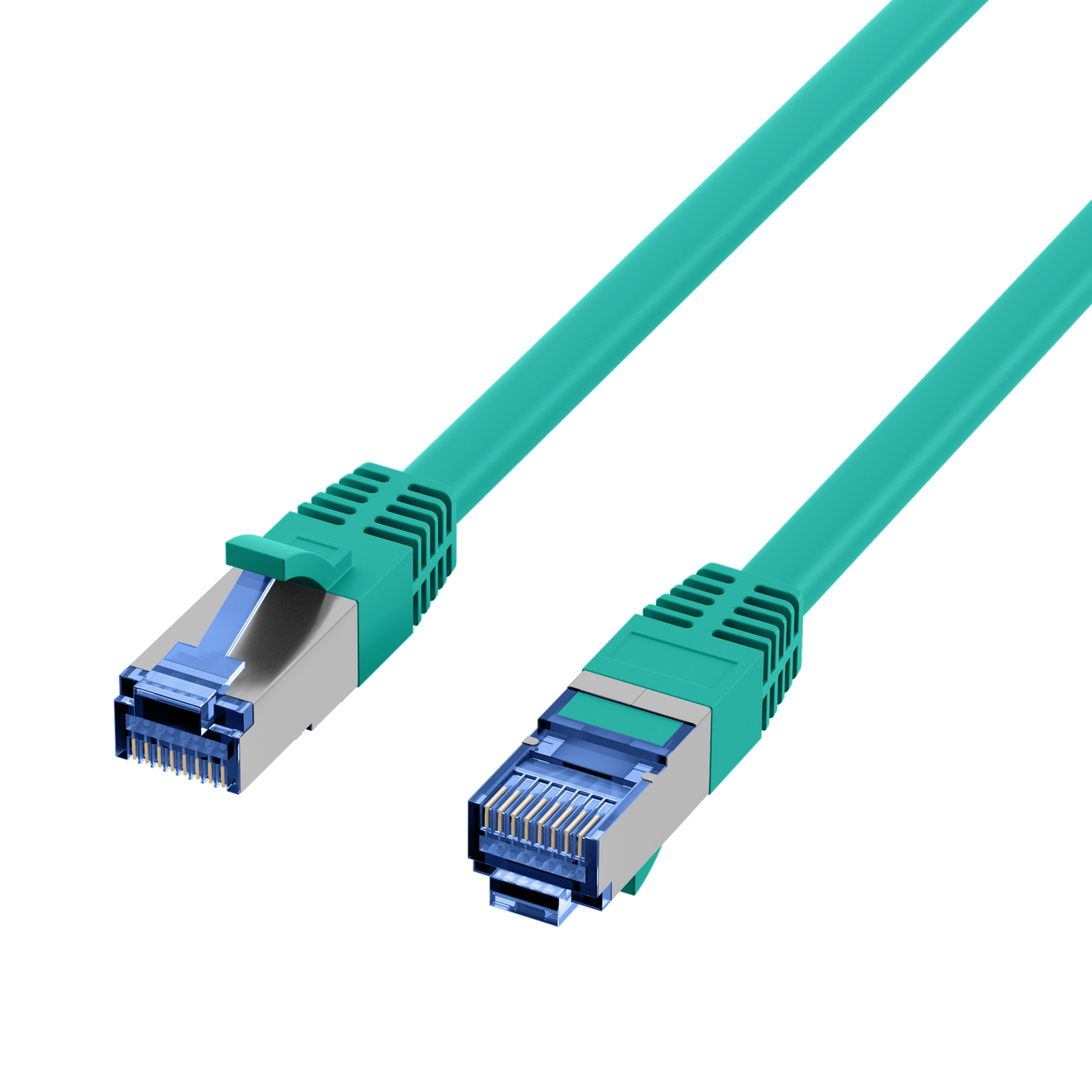

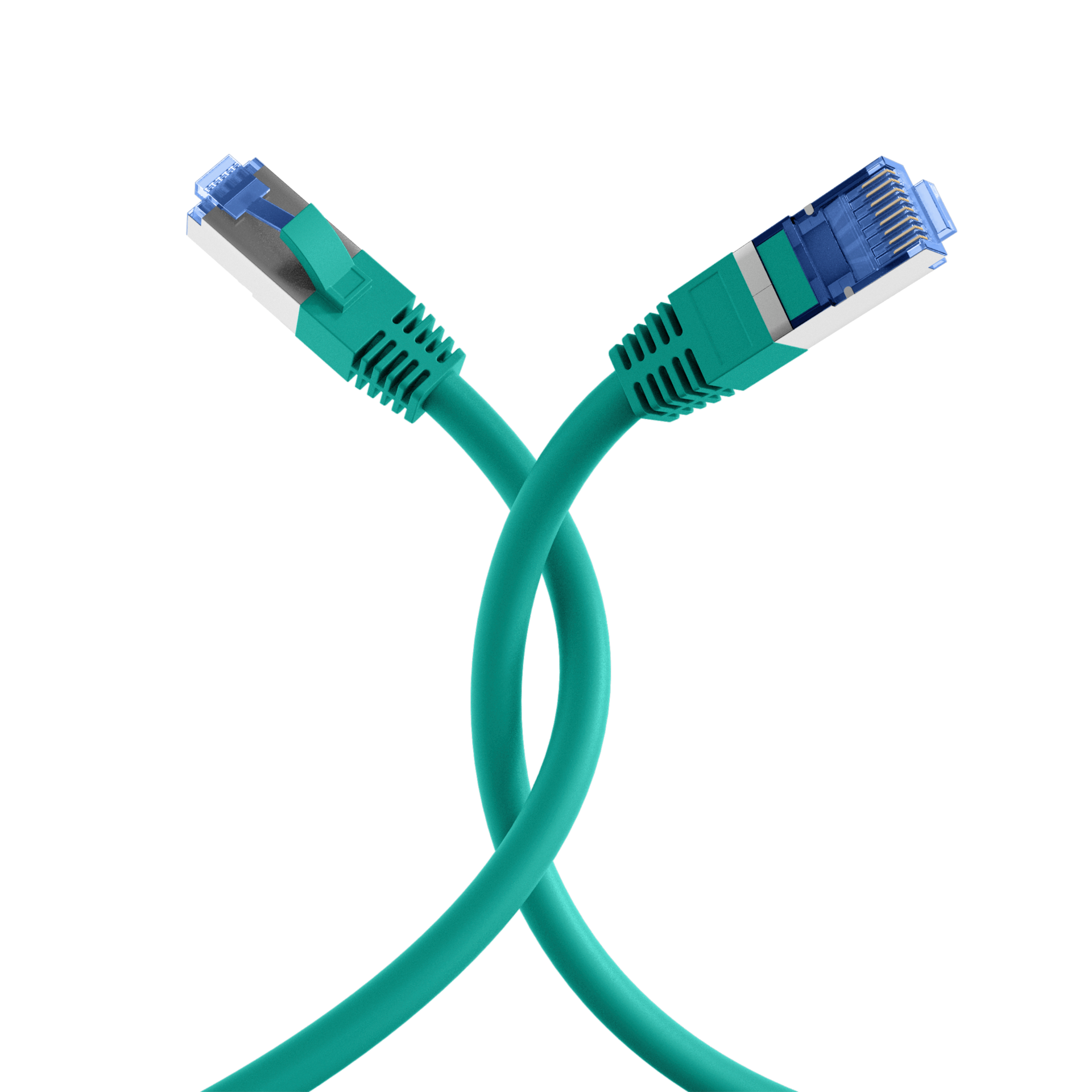

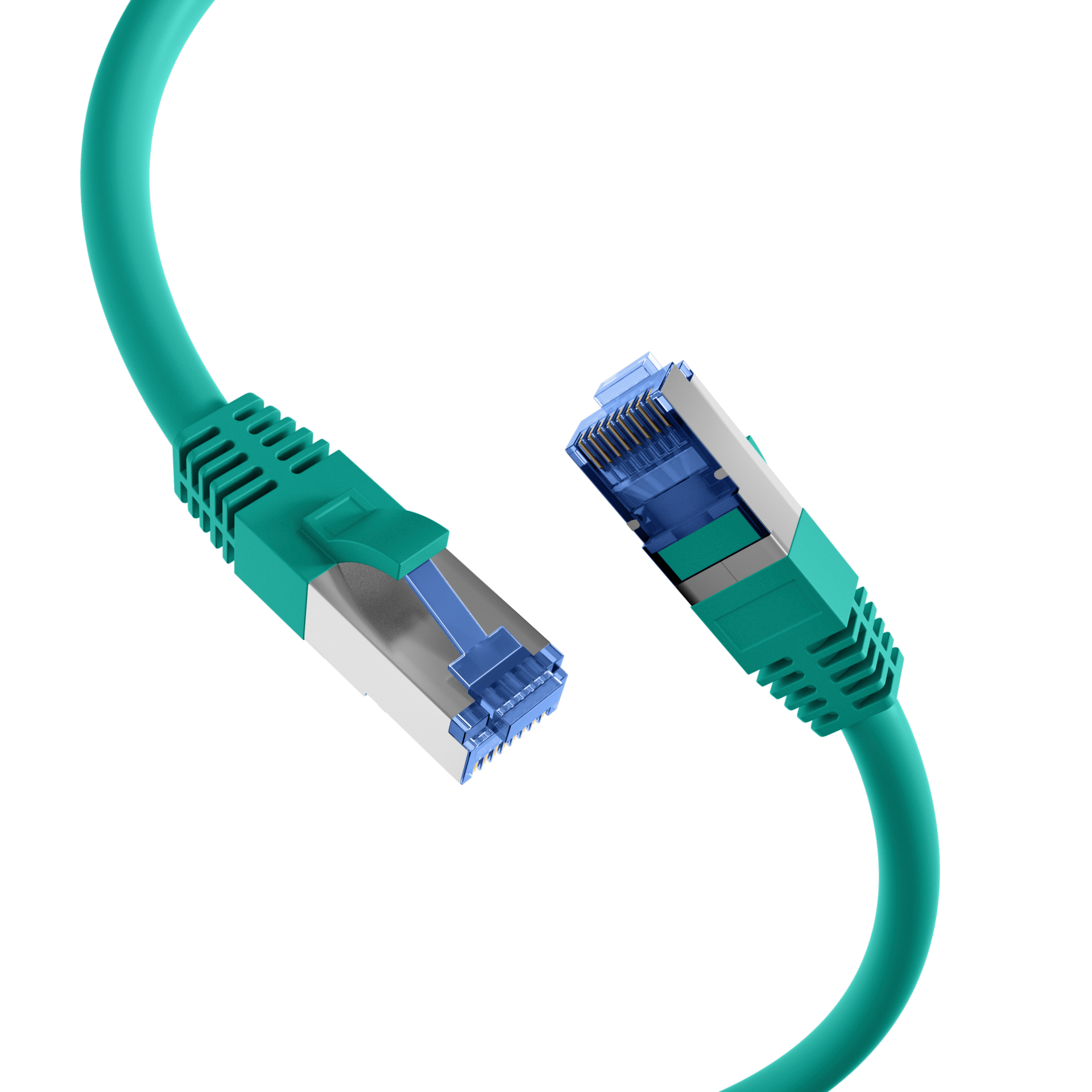

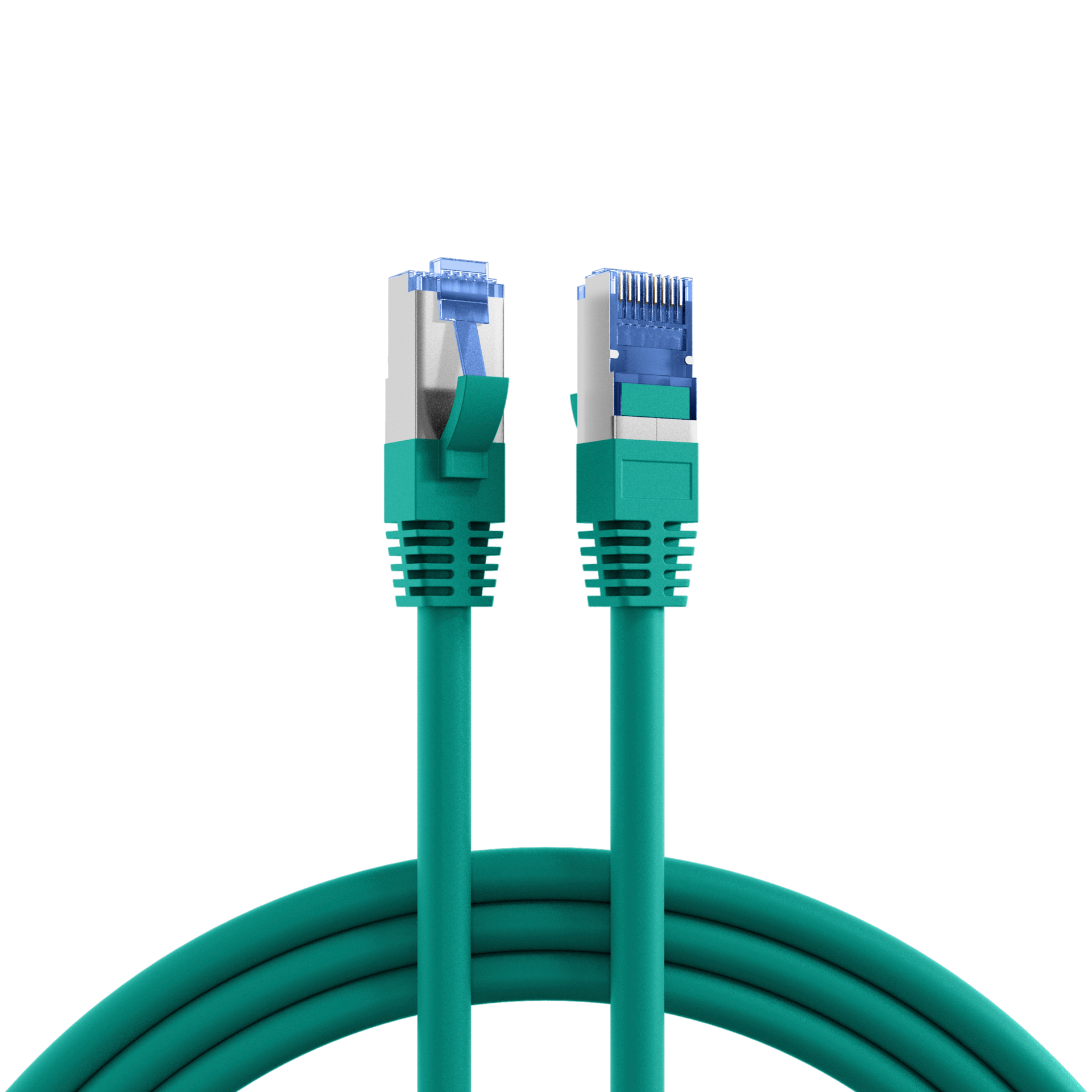

RJ45 patch cable Cat.6A S/FTP TPE Cat.7 raw cable superflex

The Cat.6A (IEC) patch cable has gold-plated contacts and enables 10Gbit Ethernet as a transmission standard.

Technical product features
• Cat.6A (IEC)
• S/FTP cable with AWG26/7
• Sheath material made of halogen-free TPE/LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts

The jacket of the shielded patch cable is made of halogen-free TPE/LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.

The assignment of the blue RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the extended temperature range -20 - 75 °C.

The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. This enables a bandwidth of up to 500 MHz.

Tekniske egenskaber

(Halogenfree): True
AWG-size: 26/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: moulded-on
Area of Application: Data center
Industrial Ethernet

Structured cabling
Bandwidth: 500MHz
Bending radius: >32.5 mm
Cable construction: 4x2
Cable type: S/FTP
Cabling Standard: ANSI/TIA-568-C.2
EN50173

ISO/IEC 11801
Category: 6A (IEC)
Colour anti-kink sleeve: green
Colour outer sheath: green
Conductive shield: 360° shield contact
Conductor Material: Copper
Conductor resistance DC: 142 Ω/km
Connector: IEC 60603-7-51
Connector type: RJ45 Standard blue
Contact Resistance: 30 mΩ
Contacts: 50 µ" gold plated
Current Rating: max. 1 A
Fire retardant version: True
Halogen-free: acc. IEC60754-2
Impedance: 100 ±25 Ω
Insulation Resistance: 100 MΩ
Jacket Material: TPE/LSZH
Length imprint: True
Locking lever: True
Loop resistance: 284 Ω/km
Low smoke: acc. IEC61034
Mating cycles: ≥750
Model: Shielded
NVP value: - %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.5 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at

PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: Cat.6A Patchcord SUPERFLEX S/FTP www.efb-elektronik.de
Raw cable: Cat.7
Resistance unbalance: 2 %
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: -20 – 75 °C
Test voltage: 1000 (V DC, 1min) core/core und core/screen
Transmission: 10Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianten

Art. Nr. Bezeichnung Length Length tolerance
K5525FGN.0,15 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 0,15m 0.15 m ±5 %
K5525FGN.0,25 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 0,25m 0.25 m ±5 %
K5525FGN.0,5 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 0,5m 0.5 m ±5 %
K5525FGN.1 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 1m 1.0 m ±5 %
K5525FGN.1,5 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 1,5m 1.5 m ±5 %
K5525FGN.2 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 2m 2.0 m ±5 %
K5525FGN.3 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 3m 3.0 m ±5 %
K5525FGN.5 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 5m 5.0 m ±5 %
K5525FGN.7,5 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 7,5m 7.5 m ±5 %
K5525FGN.10 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 10m 10.0 m ±5 %
K5525FGN.15 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 15m 15.0 m ±5 %
K5525FGN.20 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 20m 20.0 m ±5 %
K5525FGN.25 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 25m 25.0 m ±5 %
K5525FGN.30 RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 30m 30.0 m ±5 %
