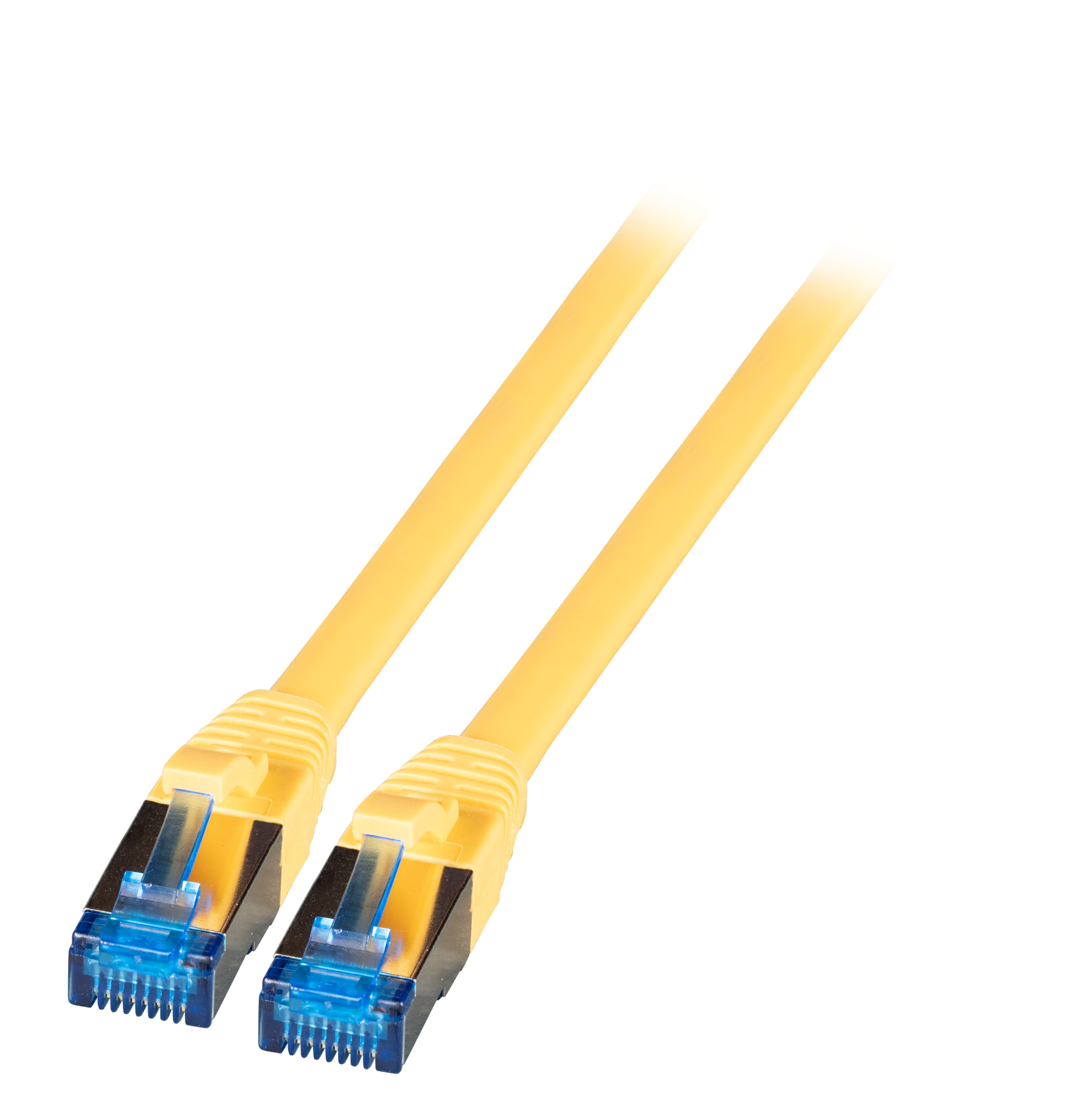

RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow
RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 0,15m
Varenummer:
K5525FGE.0,15
EAN Nr.:
4049759186982
Produktinformation til RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 0,15m
RJ45 patch cable Cat.6A S/FTP TPE Cat.7 raw cable superflex
The Cat.6A (IEC) patch cable has gold-plated contacts and enables 10Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6A (IEC)
• S/FTP cable with AWG26/7
• Sheath material made of halogen-free TPE/LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free TPE/LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the blue RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the extended temperature range -20 - 75 °C.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. This enables a bandwidth of up to 500 MHz.
The Cat.6A (IEC) patch cable has gold-plated contacts and enables 10Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6A (IEC)
• S/FTP cable with AWG26/7
• Sheath material made of halogen-free TPE/LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free TPE/LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the blue RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the extended temperature range -20 - 75 °C.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. This enables a bandwidth of up to 500 MHz.
Tekniske egenskaber
| AWG-Querschnitt: | 26/7 |
|---|---|
| Ausführung: | Geschirmt |
| Ausführung flammwidrig: | nach IEC60332-1 |
| Außendurchmesser des Kabels: | 6,5 mm |
| Bandbreite: | 500MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >32,5 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Einsatzort: | Rechenzentrum |
| Farbe der Knickschutztülle: | gelb |
| Geeignet für Schutzart (IP): | IP20 |
| Halogenfrei: | nach IEC60754-2 |
| Harmonisierte Norm: | EN 50575 |
| Impedanz: | 100 ±25 Ω |
| Isolationswiderstand: | 100 MΩ |
| Kabelaufdruck: | SFTP 300 CAT.5E 26AWGX4P PATCH ISO/IEC 11801 & EN 50173 VERIFIED www.efb-elektronik.de |
| Kabelform: | rund |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | S/FTP |
| Kategorie: | 6A (IEC) |
| Knickschutztülle: | angespritzt |
| Kontakte: | Vergoldet |
| Kontaktwiderstand: | 30 mΩ |
| Leitermaterial: | Kupfer |
| Leiterwiderstand DC: | 142 Ω/km |
| Längenaufdruck: | Ja |
| Mantel-Farbe: | gelb |
| Mantel-Material: | TPE/LSZH |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Raucharm: | nach IEC61034 |
| Rohkabel: | Cat.7 |
| Schirmkontaktierung: | 360° Schirmbefestigung |
| Schleifenwiderstand: | 284 Ω/km |
| Silikonfrei: | Ja |
| Steckertyp: | RJ45 Standard blau |
| Steckverbinder: | IEC 60603-7-51 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich: | -20 – 75 °C |
| UL approbiert: | Nein |
| UV beständig: | Nein |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Widerstandsunsymmetrie: | ≤ 2 % |
| Ölbeständig: | Nein |
| Übertragung: | 10Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K5525FGE.0,15 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 0,15m | 0.15 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5525FGE.0,25 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 0,25m | 0.25 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5525FGE.0,5 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5525FGE.1 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 1m | 1,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5525FGE.1,5 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 1,5m | 1,5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5525FGE.2 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 2m | 2,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5525FGE.3 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 3m | 3,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5525FGE.5 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5525FGE.7,5 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 7,5m | 7.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5525FGE.10 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 10m | 10,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5525FGE.15 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 15m | 15,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5525FGE.20 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 20m | 20.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5525FGE.25 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 25m | 25.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at | ±5 % | |
| K5525FGE.30 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 30m | 30,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at | ±5 % |
