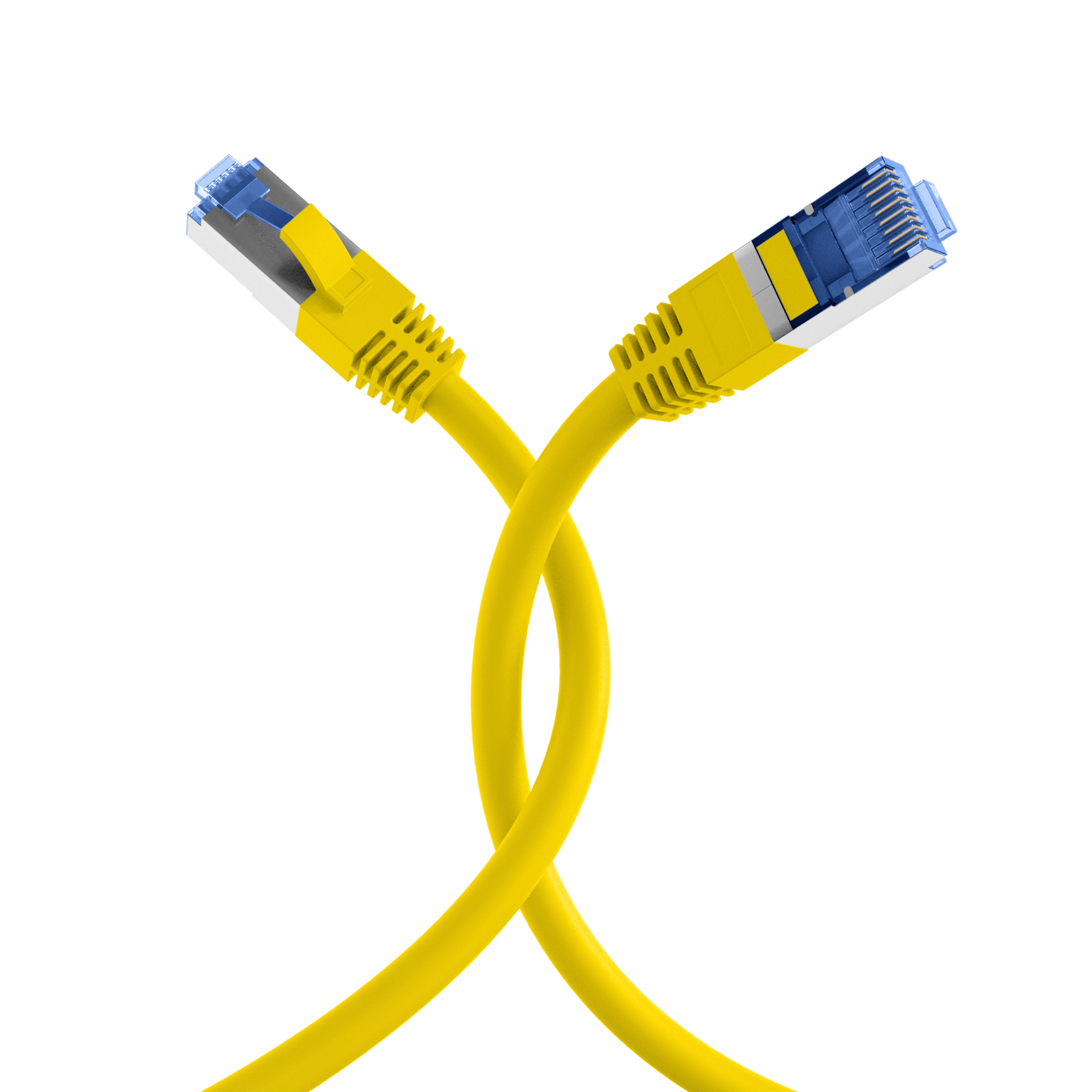

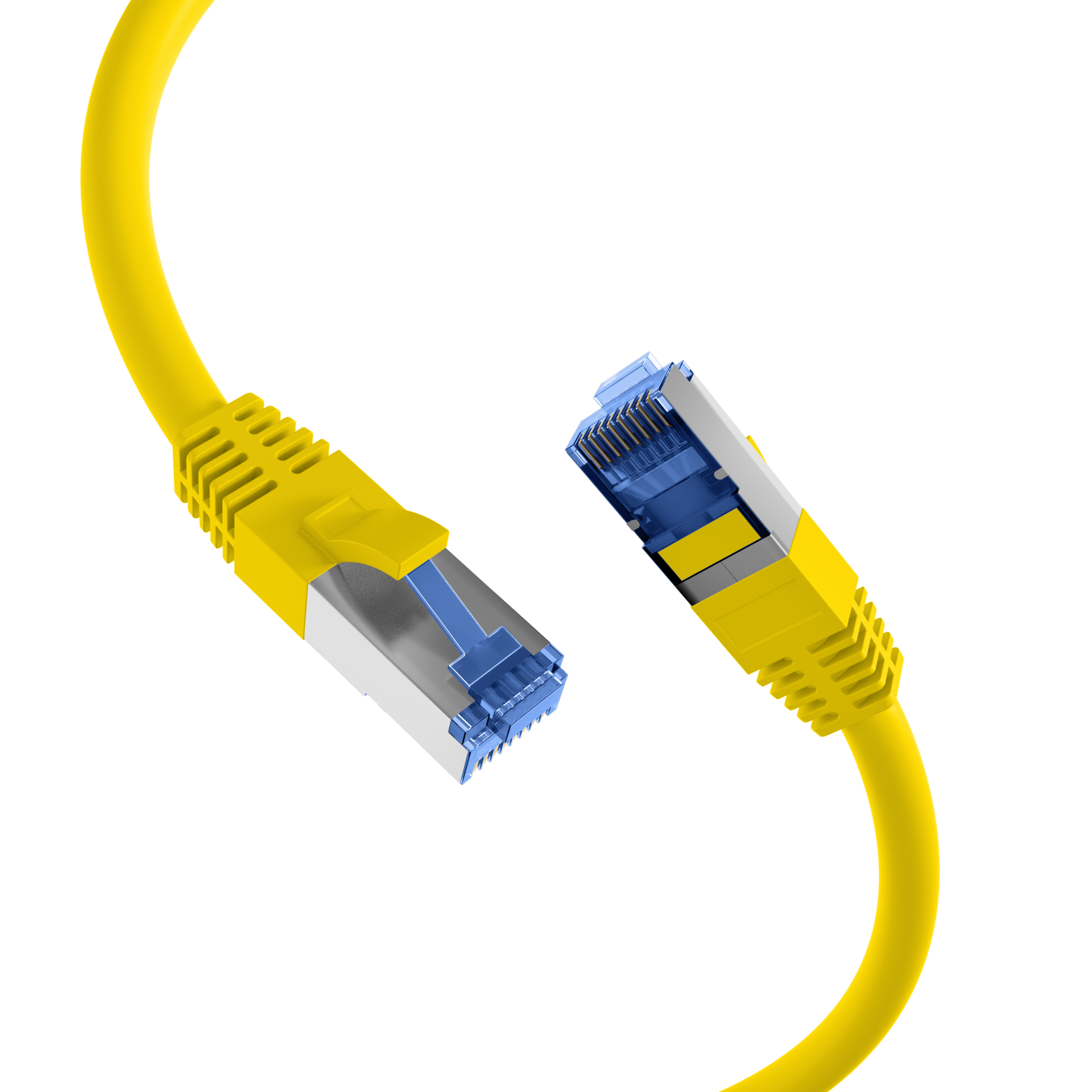

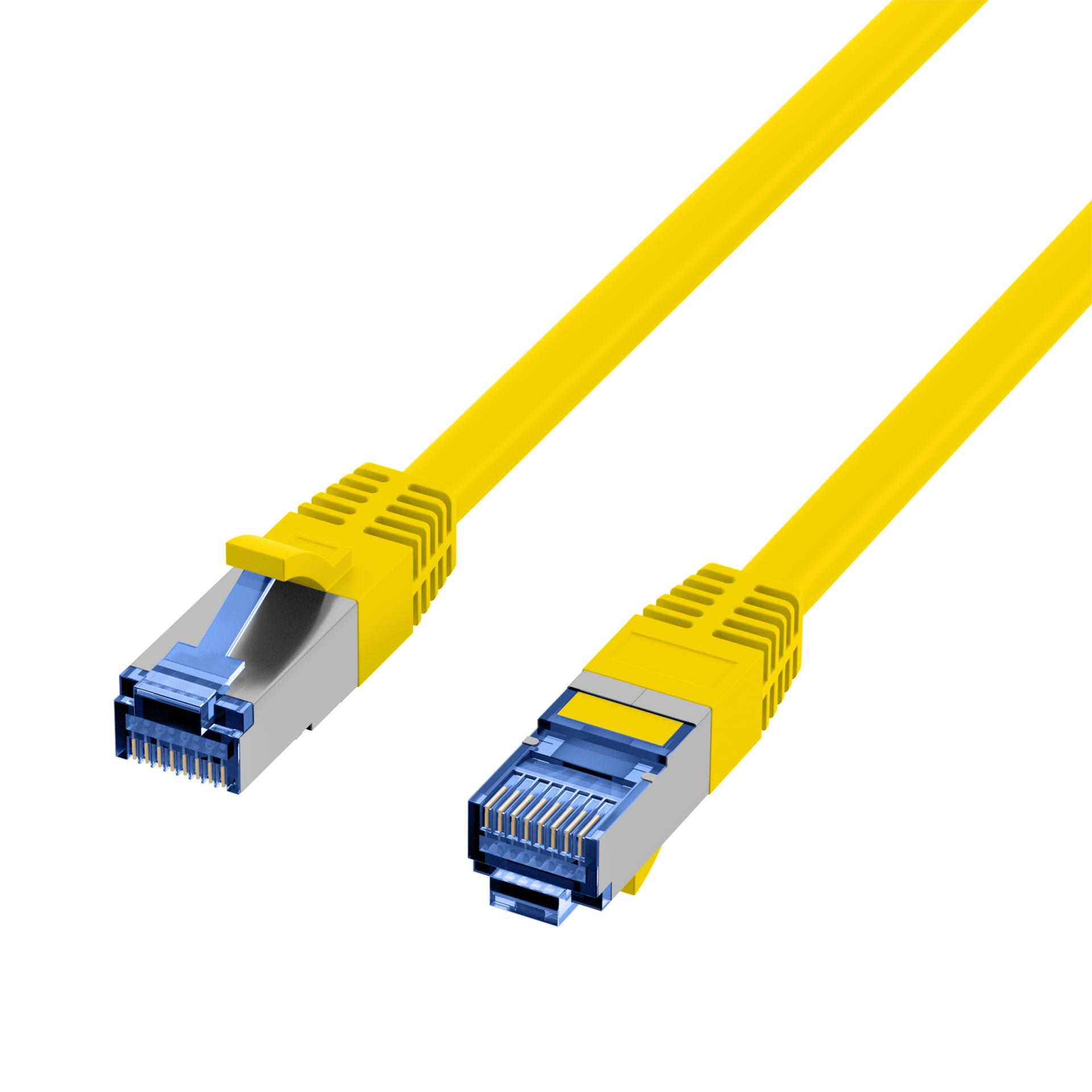

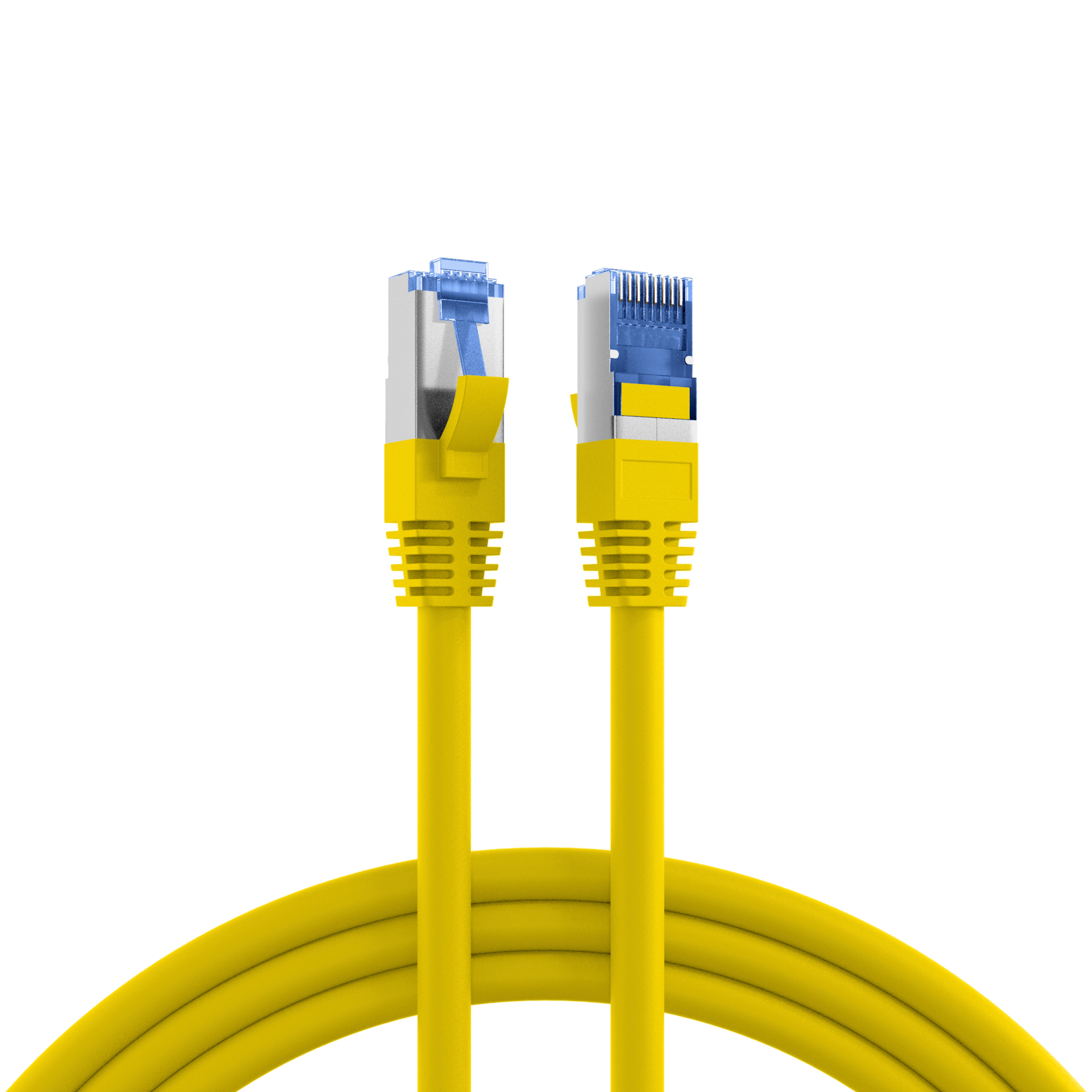

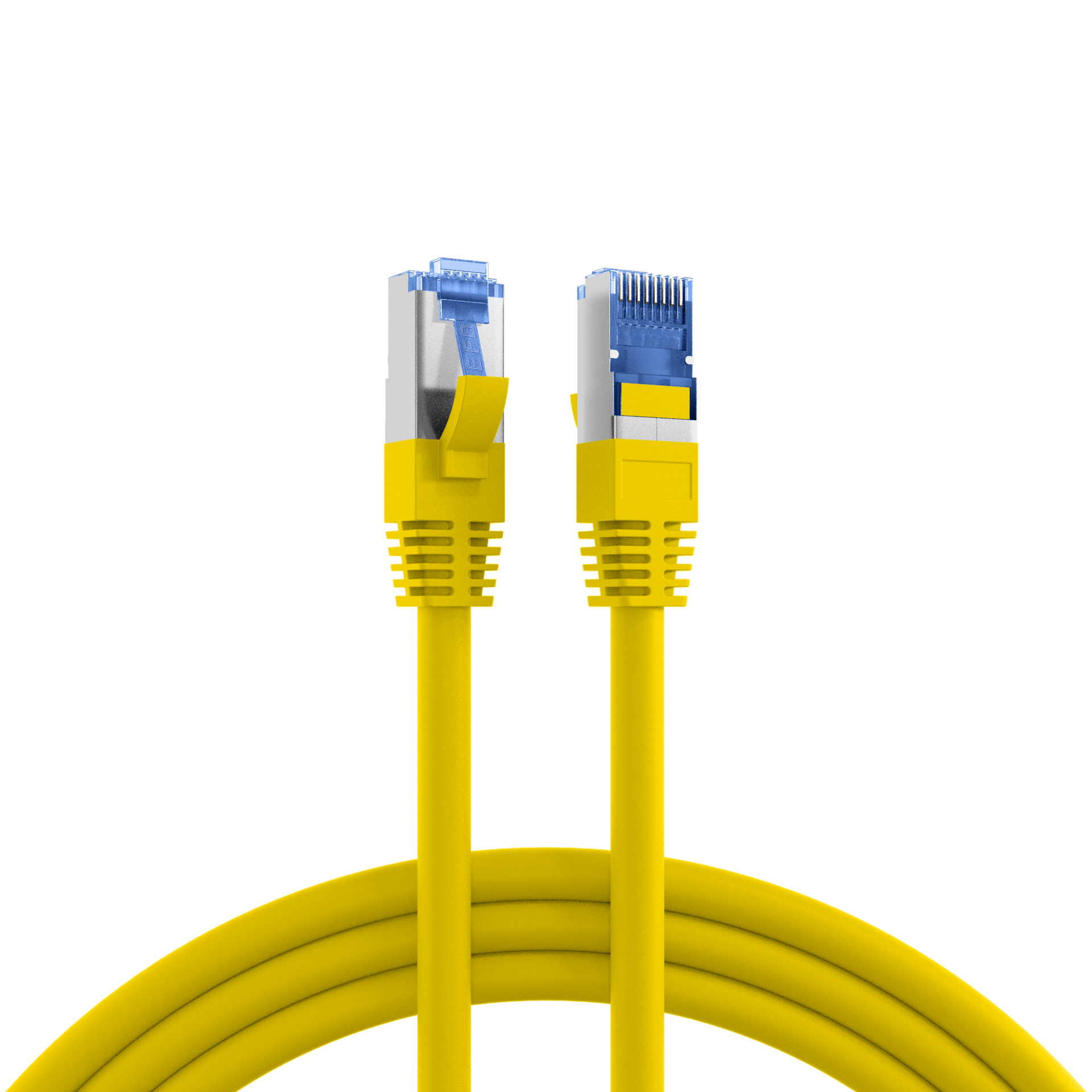

RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow
RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 0,15m
Varenummer:
K5525FGE.0,15
EAN Nr.:
4049759186982
Produktinformationen für RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 0,15m
RJ45 patch cable Cat.6A S/FTP TPE Cat.7 raw cable superflex
The Cat.6A (IEC) patch cable has gold-plated contacts and enables 10Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6A (IEC)
• S/FTP cable with AWG26/7
• Sheath material made of halogen-free TPE/LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free TPE/LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the blue RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the extended temperature range -20 - 75 °C.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. This enables a bandwidth of up to 500 MHz.
The Cat.6A (IEC) patch cable has gold-plated contacts and enables 10Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6A (IEC)
• S/FTP cable with AWG26/7
• Sheath material made of halogen-free TPE/LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free TPE/LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the blue RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the extended temperature range -20 - 75 °C.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. This enables a bandwidth of up to 500 MHz.
Technische Eigenschaften
| (Halogenfree): | True |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >32.5 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (IEC) |
| Colour anti-kink sleeve: | yellow |
| Colour outer sheath: | yellow |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 142 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 Standard blue |
| Contact resistance: | 30 mΩ |
| Contacts: | 50 µ" gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | True |
| Halogen-free: | acc. IEC60754-2 |
| Impedance: | 100 ±25 Ω |
| Insulation resistance: | 100 MΩ |
| Jacket material: | TPE/LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 284 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | ≥750 |
| Model: | Shielded |
| NVP value: | - % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.5 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | Cat.6A Patchcord SUPERFLEX S/FTP www.efb-elektronik.de |
| Raw cable: | Cat.7 |
| Resistance unbalance: | 2 % |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -20 – 75 °C |
| Test voltage: | 1000 V DC, 1min |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K5525FGE.0,15 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 0,15m | 0.15 m | ±5 % | |
| K5525FGE.0,25 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 0,25m | 0.25 m | ±5 % | |
| K5525FGE.0,5 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 0,5m | 0.5 m | ±5 % | |
| K5525FGE.1 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 1m | 1.0 m | ±5 % | |
| K5525FGE.1,5 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 1,5m | 1.5 m | ±5 % | |
| K5525FGE.2 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 2m | 2.0 m | ±5 % | |
| K5525FGE.3 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 3m | 3.0 m | ±5 % | |
| K5525FGE.5 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 5m | 5.0 m | ±5 % | |
| K5525FGE.7,5 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 7,5m | 7.5 m | ±5 % | |
| K5525FGE.10 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 10m | 10.0 m | ±5 % | |
| K5525FGE.15 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 15m | 15.0 m | ±5 % | |
| K5525FGE.20 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 20m | 20.0 m | ±5 % | |
| K5525FGE.25 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 25m | 25.0 m | ±5 % | |
| K5525FGE.30 | RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex yellow 30m | 30.0 m | ±5 % |
