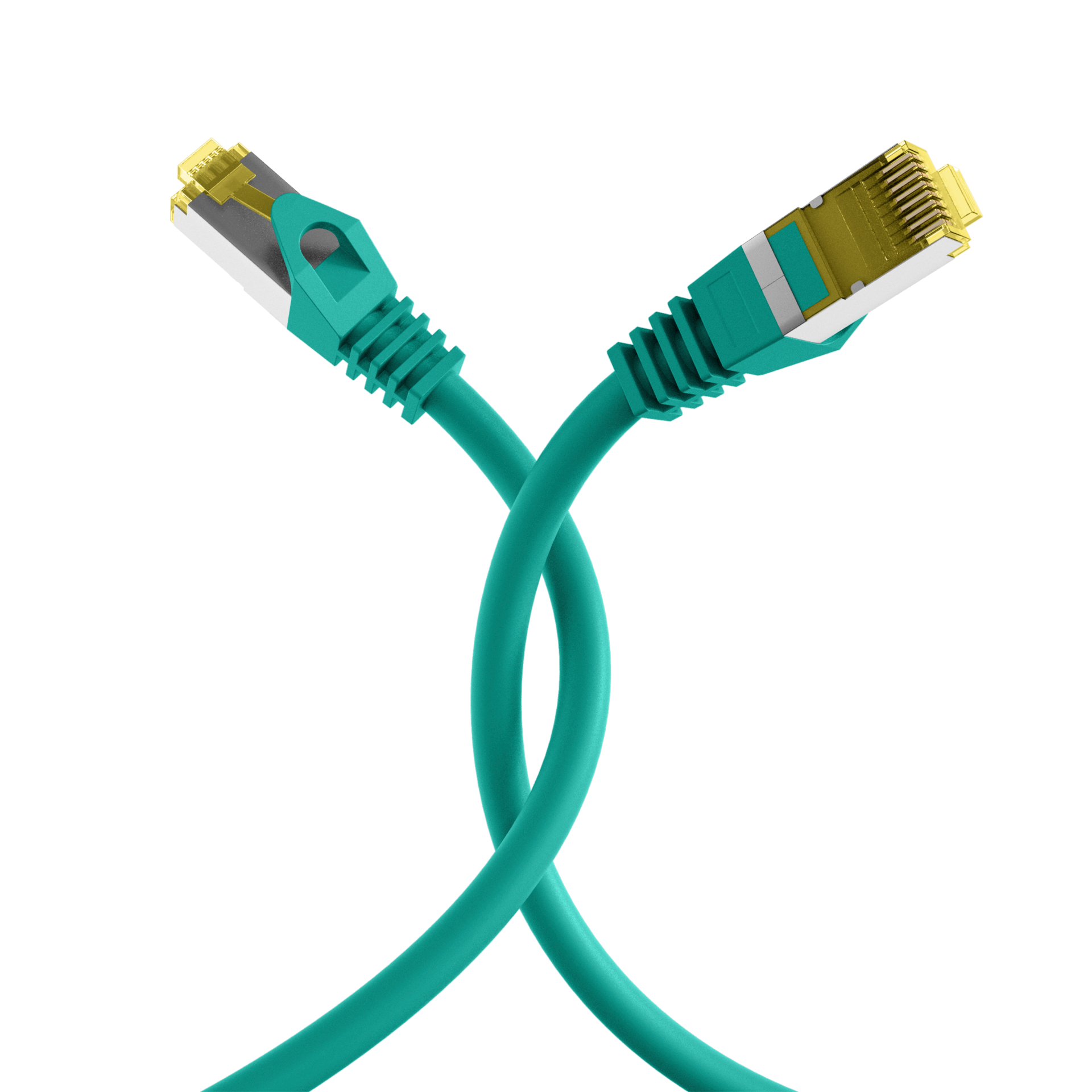

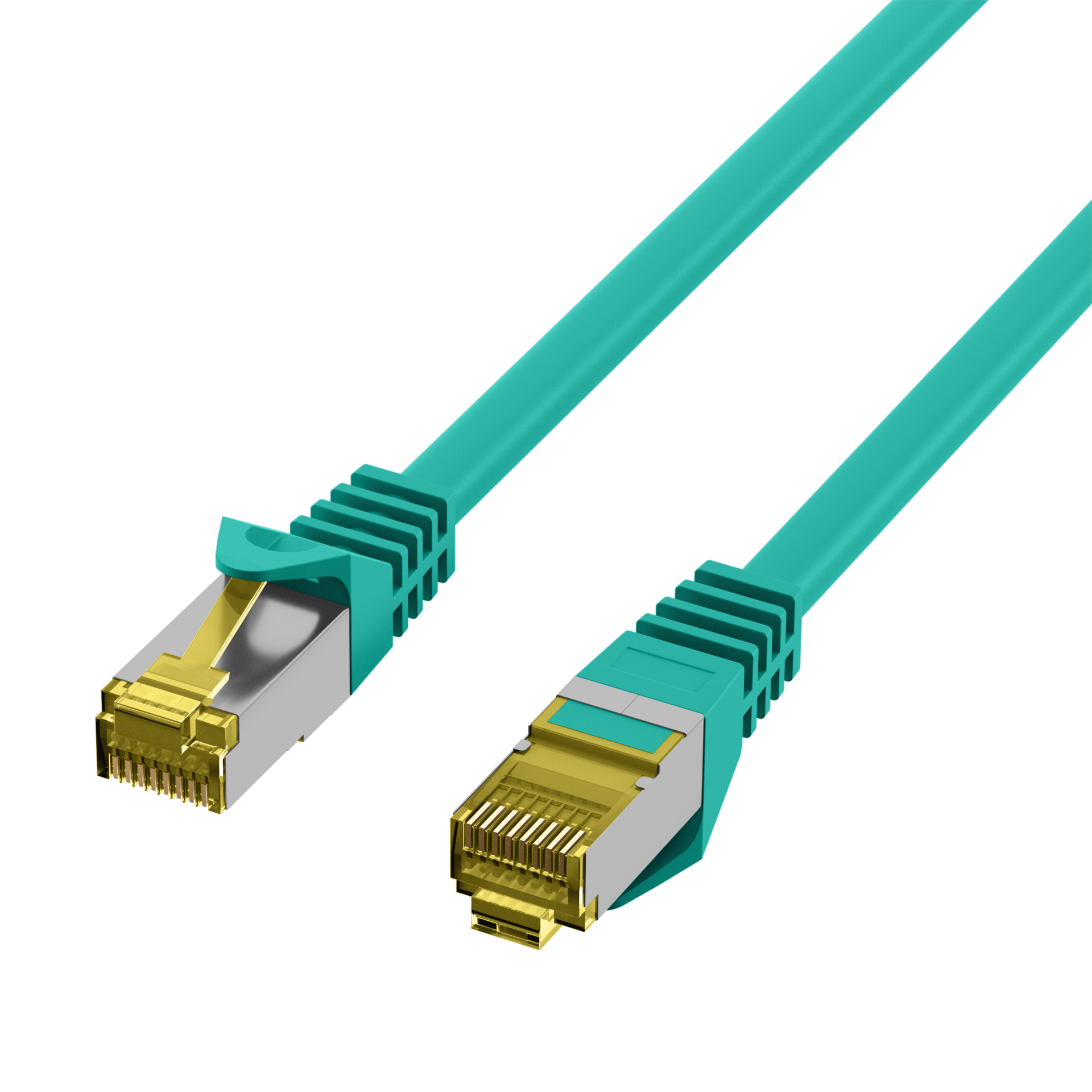

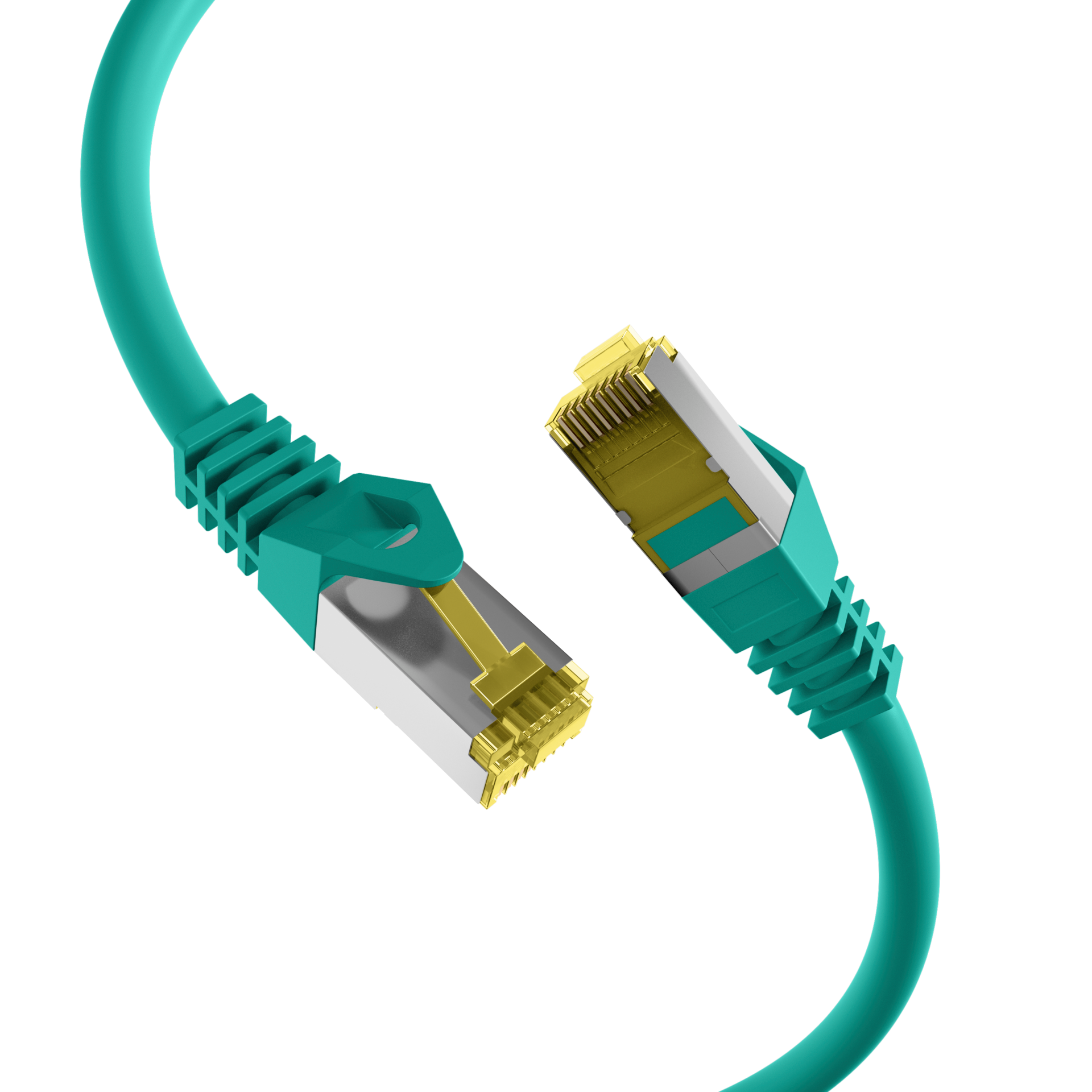

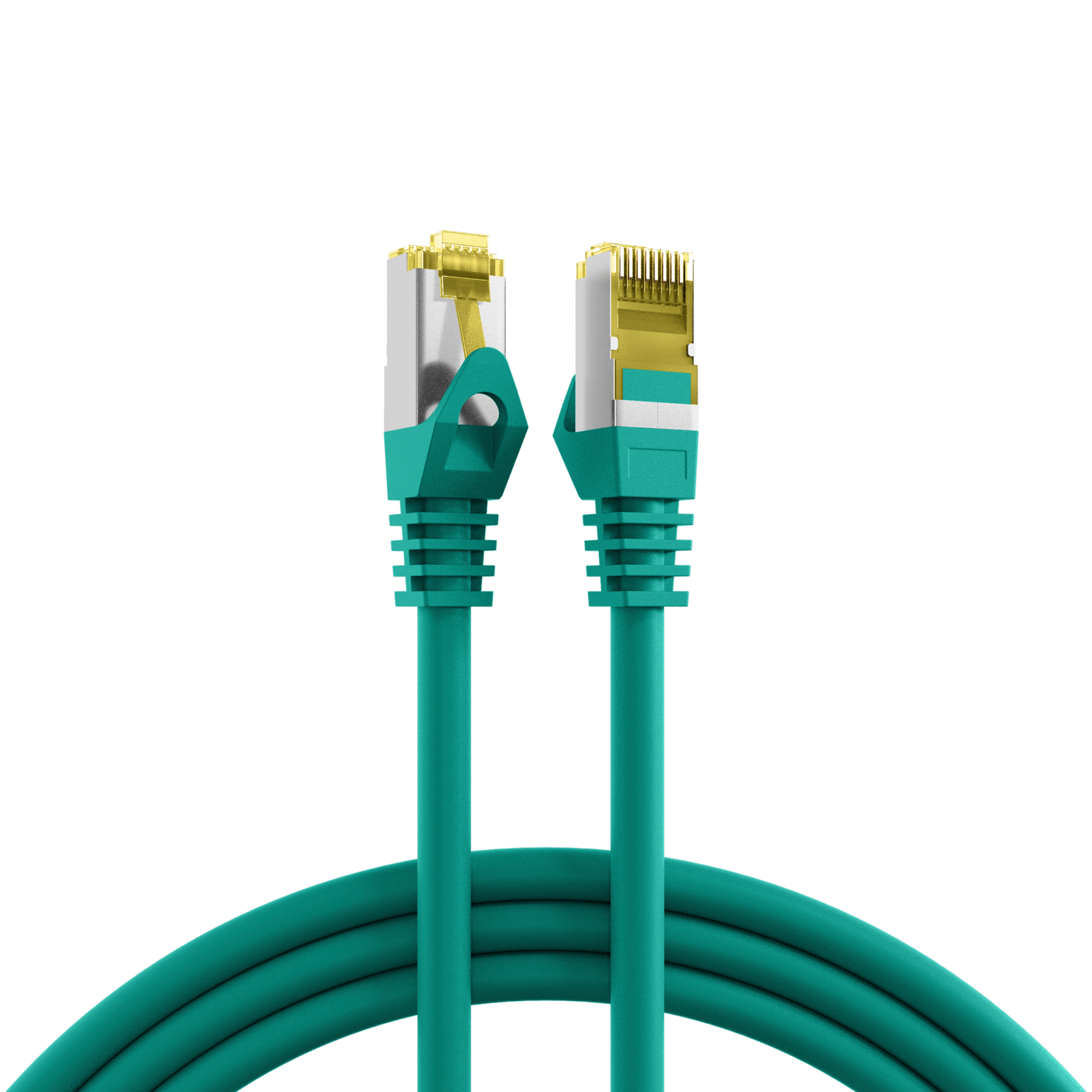

RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, green

Priser kun synlige for indloggede brugere

RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 0,15m, green
Varenummer: MK7001.0,15GR
EAN nr.: 4049759247980
Stück

Produktinformation für RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 0,15m, green

The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Length imprint on the boot

Tekniske egenskaber

(Halogenfree): True
AWG-size: 26/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Data center, Industrial Ethernet, Structured cabling
Bandwidth: 500MHz
Bending radius: >32.5 mm
Cable construction: 4x2
Cable type: S/FTP
Category: 6A (TIA)
Colour anti-kink sleeve: green
Colour outer sheath: green
Conductive shield: Selected shield contact
Conductor Material: Copper
Conductor resistance DC: 146 Ω/km
Connector: IEC 60603-7-51
Connector type: RJ45 Standard yellow
Contact resistance: 30 mΩ
Contacts: Gold plated
Current capacity: max. 1 A
Fire retardant version: True
Flame-retardant: acc. IEC60332-1
Halogen-free: yes
Impedance: 100 ±5 Ω
Insulation resistance: 10 MΩ
Jacket material: LSZH
Length imprint: True
Locking lever: True
Loop resistance: 292 Ω/km
Low smoke: acc. IEC61034
Mating cycles: 2000
Model: Shielded
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.5 mm
POE class: 4PPoE acc. to IEEE802.3bt, PoE+ acc. to IEEE802.3at, PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: Cat.7 raw cable S/FTP 4x2xAWG26/7 PIMF 600MHz ISO/IEC 11801 & EN50173-1 TIA/EIA 568B-2.1 Halogen Free ***10GIGABIT***
Raw cable: Cat.7
Resistance unbalance: 5 %
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: -20 – 60 °C
Test voltage: 1000 V DC, 1min
Transmission: 10Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianter

Art. Nej. Betegnelse Length Length tolerance
MK7001.0,25GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 0,25m, green 0.25 m ±5 % Vælg varianter
MK7001.0,5GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 0,5m, green 0.5 m ±5 % Vælg varianter
MK7001.1GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 1m, green 1.0 m ±5 % Vælg varianter
MK7001.1,5GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 1,5m, green 1.5 m ±5 % Vælg varianter
MK7001.2GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 2m, green 2.0 m ±5 % Vælg varianter
MK7001.3GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 3m, green 3.0 m ±5 % Vælg varianter
MK7001.5GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 5m, green 5.0 m ±5 % Vælg varianter
MK7001.7,5GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 7,5m, green 7.5 m ±5 % Vælg varianter
MK7001.10GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 10m, green 10.0 m ±5 % Vælg varianter
MK7001.15GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 15m, green 15.0 m ±5 % Vælg varianter
MK7001.20GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 20m, green 20.0 m ±5 % Vælg varianter
MK7001.25GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 25m, green 25.0 m ±5 % Vælg varianter
MK7001.30GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 30m, green 30.0 m ±5 % Vælg varianter
MK7001.0,15GR RJ45 Patch cable S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, 0,15m, green 0.15 m ±5 % Vælg varianter
