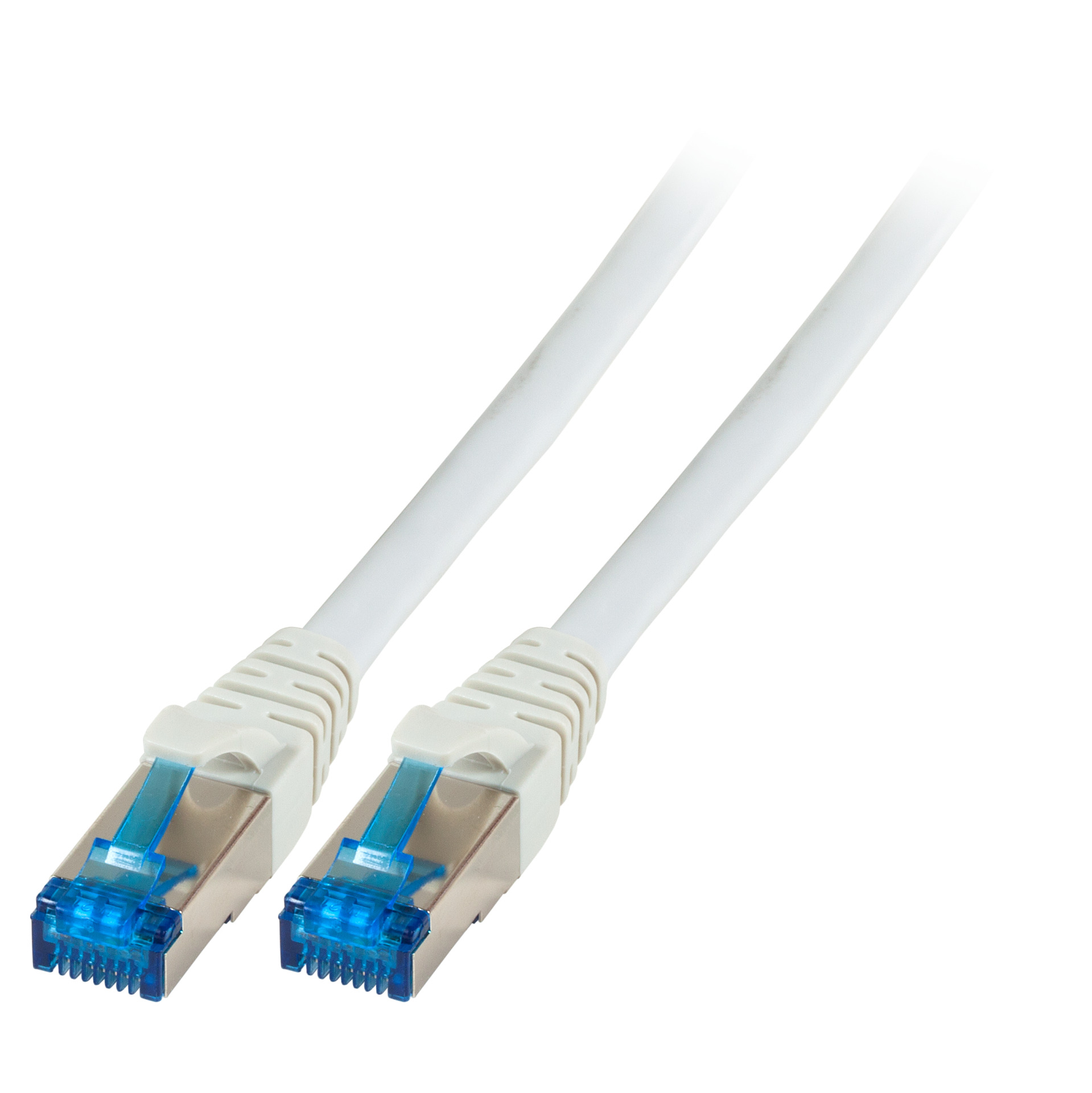

RJ45 Patch Cord Cat.6A S/FTP PVC UL grey
RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 0,5m
Varenummer:
K5535GR.0,5
EAN Nr.:
4049759084103
Produktinformation til RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 0,5m
RJ45 patch cable Cat.6A S/FTP PVC UL
The Cat.6A (TIA) patch cable enables 10Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product properties
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Sheath material made of polyvinyl chloride (PVC)
• Fire protection: flame retardant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
• UL number of the assembly E337615
The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The blue RJ45 connectors are assigned according to TIA/EIA 568B and are 1:1.
The network cable has a copper conductor material and is ideal for use in structured building cabling, Industrial Ethernet and in data centers. This enables a bandwidth of up to 500 MHz.
The Cat.6A (TIA) patch cable enables 10Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product properties
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Sheath material made of polyvinyl chloride (PVC)
• Fire protection: flame retardant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
• UL number of the assembly E337615
The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The blue RJ45 connectors are assigned according to TIA/EIA 568B and are 1:1.
The network cable has a copper conductor material and is ideal for use in structured building cabling, Industrial Ethernet and in data centers. This enables a bandwidth of up to 500 MHz.
Tekniske egenskaber
| (Halogenfree): | False |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | 31 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | grey |
| Colour outer sheath: | grey |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 142 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 Standard blue |
| Contact Resistance: | 30 MΩ |
| Contacts: | 50 µ" gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | yes |
| Halogen-free: | No |
| Impedance: | 100 ±15 Ω |
| Insulation Resistance: | 100 MΩ |
| Jacket Material: | Polyvinylchlorid (PVC) |
| Length imprint: | False |
| Locking lever: | True |
| Loop resistance: | 284 Ω/km |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | - % |
| Oil resistant: | no |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.5 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | E132276-C(UL) CM 75°C 4PR 26AWG CSA LL64151-C CMG 75°C FT4 Cat.6(A) SSTP PATCH CORD www.efb-elektronik.de |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | -10 – 50 °C |
| Temperature Range (Operation): | -25 – 60 °C |
| Temperature Range (Storage): | -25 – 70 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | True |
| UV resistance: | No |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K5535GR.0,5 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 0,5m | 0.5 m | ±5 % | |
| K5535GR.1 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 1m | 1.0 m | ±5 % | |
| K5535GR.2 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 2m | 2.0 m | ±5 % | |
| K5535GR.3 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 3m | 3.0 m | ±5 % | |
| K5535GR.5 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 5m | 5.0 m | ±5 % | |
| K5535GR.7,5 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 7,5m | 7.5 m | ±5 % | |
| K5535GR.10 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 10m | 10.0 m | ±5 % | |
| K5535GR.20 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 20m | 20.0 m | ±5 % | |
| K5535GR.30 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 30m | 30.0 m | ±5 % |
