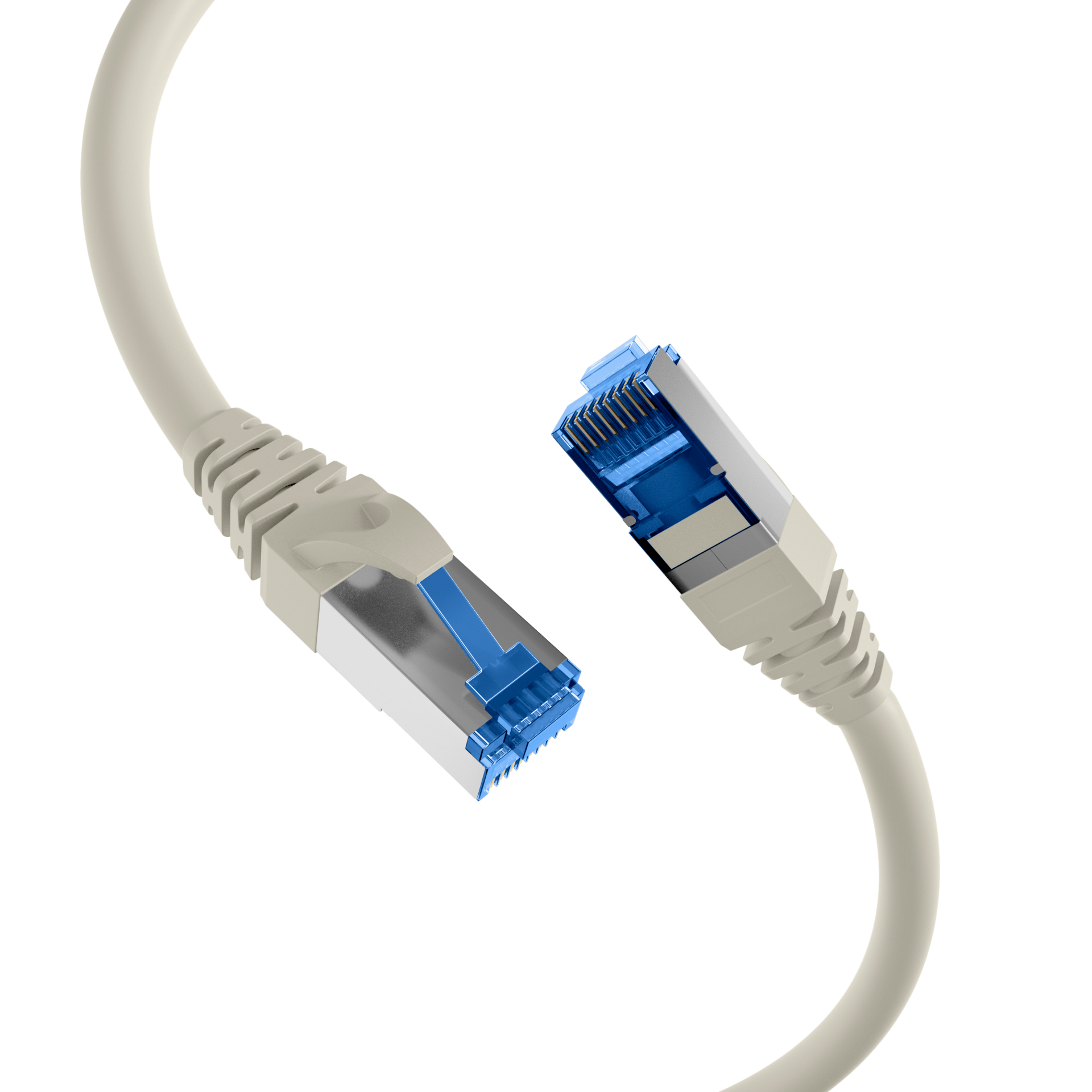

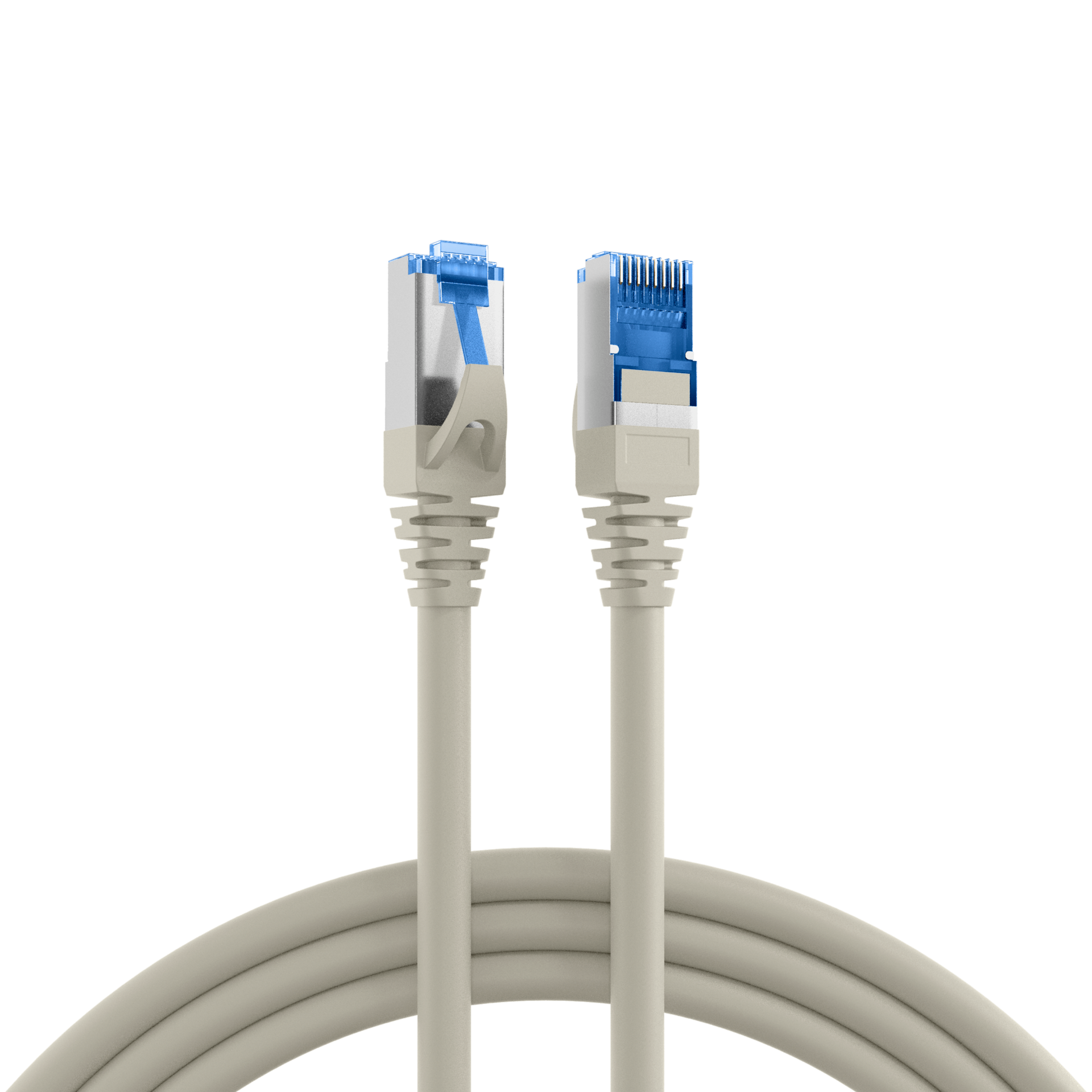

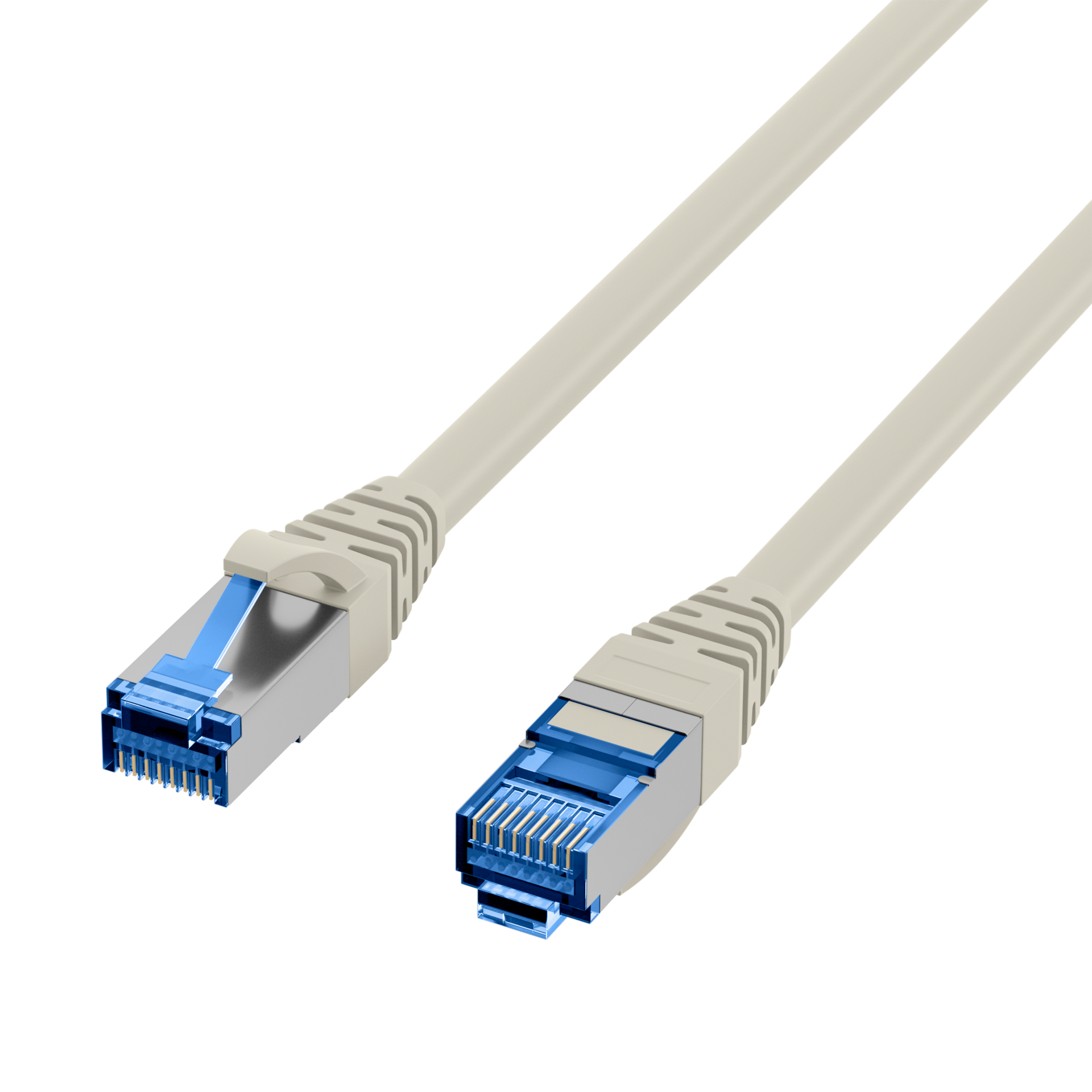

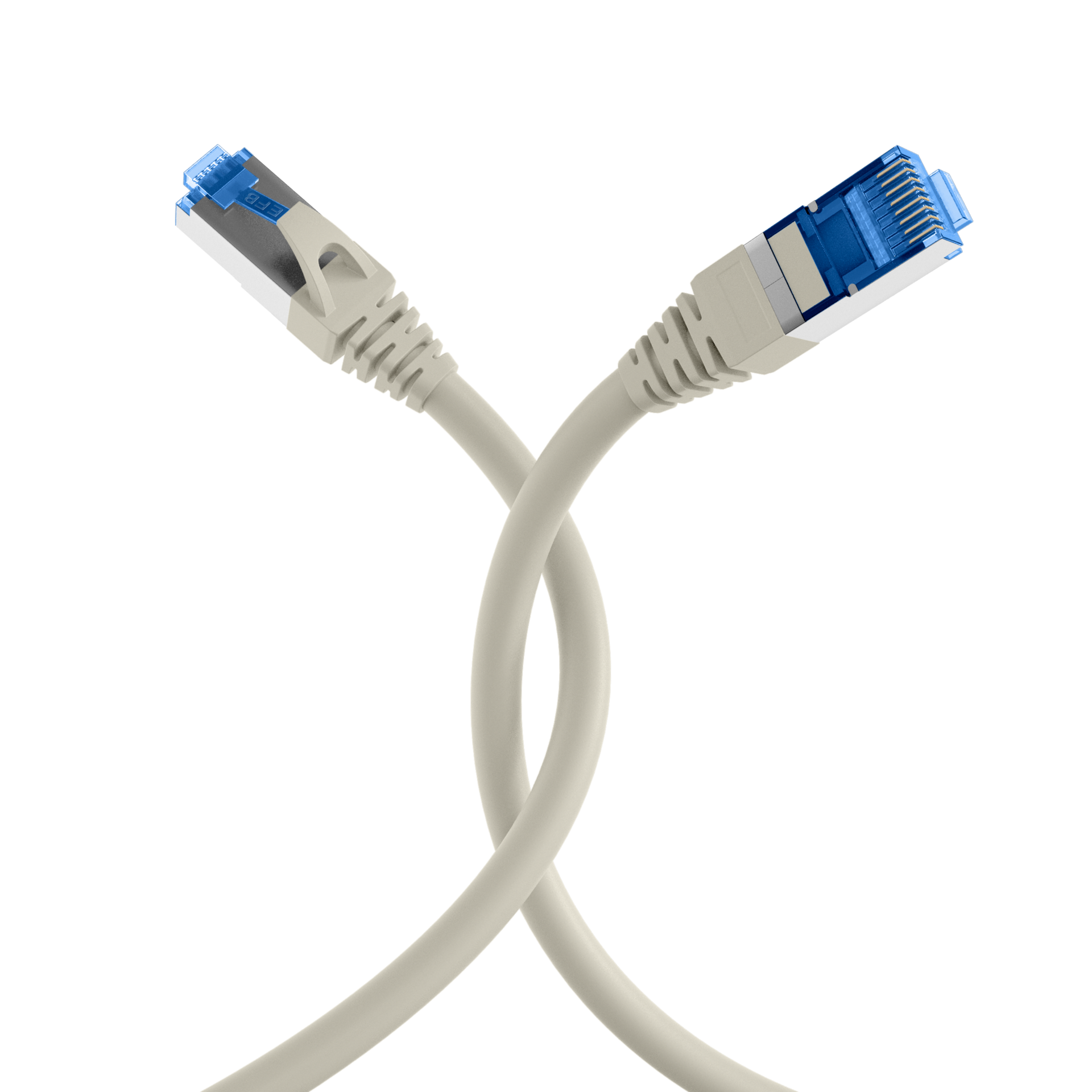

RJ45 Patch Cord Cat.6A S/FTP PVC UL grey
RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 0,5m
Varenummer:
K5535GR.0,5
EAN Nr.:
4049759084103
Produktinformation til RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 0,5m
RJ45 patch cable Cat.6A S/FTP PVC UL
The Cat.6A (TIA) patch cable enables 10Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product properties
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Sheath material made of polyvinyl chloride (PVC)
• Fire protection: flame retardant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
• UL number of the assembly E337615
The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The blue RJ45 connectors are assigned according to TIA/EIA 568B and are 1:1.
The network cable has a copper conductor material and is ideal for use in structured building cabling, Industrial Ethernet and in data centers. This enables a bandwidth of up to 500 MHz.
The Cat.6A (TIA) patch cable enables 10Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product properties
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Sheath material made of polyvinyl chloride (PVC)
• Fire protection: flame retardant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
• UL number of the assembly E337615
The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The blue RJ45 connectors are assigned according to TIA/EIA 568B and are 1:1.
The network cable has a copper conductor material and is ideal for use in structured building cabling, Industrial Ethernet and in data centers. This enables a bandwidth of up to 500 MHz.
Tekniske egenskaber
| AWG-Querschnitt: | 26/7 |
|---|---|
| Ausführung: | Geschirmt |
| Ausführung flammwidrig: | nach IEC60332-1 |
| Außendurchmesser des Kabels: | 6,5 mm |
| Bandbreite: | 500MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >31 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Einsatzort: | Rechenzentrum |
| Farbe der Knickschutztülle: | grau |
| Geeignet für Schutzart (IP): | IP20 |
| Halogenfrei: | Nein |
| Harmonisierte Norm: | EN 50575 |
| Impedanz: | 100 ±15 Ω |
| Isolationswiderstand: | 100 MΩ |
| Kabelaufdruck: | Cat.6A Patchcord SUPERFLEX S/FTP www.efb-elektronik.de |
| Kabelform: | rund |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | S/FTP |
| Kategorie: | 6A (TIA) |
| Knickschutztülle: | angespritzt |
| Kontakte: | Vergoldet µ" gold plated |
| Kontaktwiderstand: | 30 mΩ |
| Leitermaterial: | Kupfer |
| Leiterwiderstand DC: | 142 Ω/km |
| Längenaufdruck: | Nein |
| Mantel-Farbe: | grau |
| Mantel-Material: | Polyvinylchlorid (PVC) |
| NVP-Wert: | 0 % |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Schirmkontaktierung: | Punktueller Schirmkontakt |
| Schleifenwiderstand: | 284 Ω/km |
| Steckertyp: | RJ45 Standard blau |
| Steckverbinder: | IEC 60603-7-51 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich: | -25 – 60 °C |
| Temperaturbereich (Betrieb): | -25 – 60 °C |
| Temperaturbereich (Installation): | -10 – 50 °C |
| Temperaturbereich (Lagerung): | -25 – 70 °C |
| UL approbiert: | Ja |
| UV beständig: | Nein |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Ölbeständig: | Nein |
| Übertragung: | 10Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE Klasse | Längentoleranz | |
|---|---|---|---|---|---|
| K5535GR.0,5 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5535GR.1 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 1m | 1,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5535GR.2 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 2m | 2,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5535GR.3 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 3m | 3,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5535GR.5 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5535GR.7,5 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 7,5m | 7.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5535GR.10 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 10m | 10,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5535GR.20 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 20m | 20.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5535GR.30 | RJ45 Patch Cord Cat.6A S/FTP PVCUL grey 30m | 30,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at | ±5 % | |
| K5535GR.15 | RJ45 Patch Cord Cat.6A S/FTP PVC UL grey | 15,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % |
