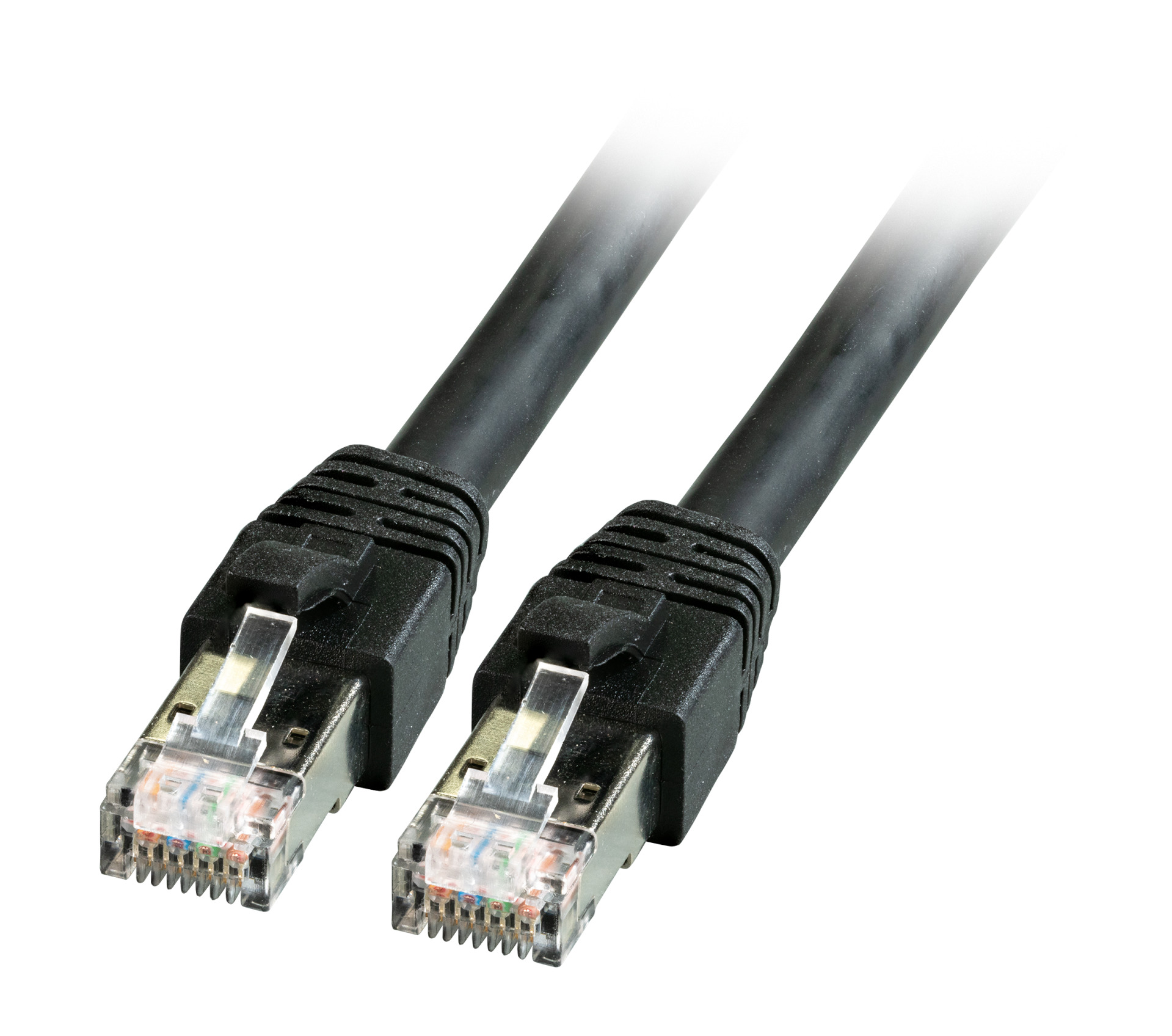

RJ45 Patch Cord Cat.8.1 S/FTP BC black
RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 0,5m
Varenummer:
K5528SW.0,5
EAN Nr.:
4049759215552
Produktinformation til RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 0,5m
RJ45 patch cable Cat.8.1 S/FTP LSZH BC
The Cat.8.1 patch cable enables 25Gbit and 40Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product properties
• Cat.8.1
• S/FTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded The patch cable is made of halogen-free LSZH material and has a length print on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range 0 - 60 °C.
The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This enables a bandwidth of 2000 MHz.
The Cat.8.1 patch cable enables 25Gbit and 40Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product properties
• Cat.8.1
• S/FTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded The patch cable is made of halogen-free LSZH material and has a length print on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range 0 - 60 °C.
The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This enables a bandwidth of 2000 MHz.
Tekniske egenskaber
| AWG-Querschnitt: | 24/7 |
|---|---|
| Ausführung: | Geschirmt |
| Außendurchmesser des Kabels: | 8 mm |
| Bandbreite: | 2000MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >40 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Einsatzort: | Rechenzentrum |
| Farbe der Knickschutztülle: | schwarz |
| Flammwidrig: | nach IEC60332-1 |
| Geeignet für Schutzart (IP): | IP20 |
| Halogen frei: | nach IEC60754-2 |
| Impedanz: | 100 ±15 Ω |
| Isolationswiderstand: | 10 MΩ |
| Kabelaufdruck: | Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568B.2-1 Halogen Free ***Gigabit*** www.efb-elektronik.de |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | S/FTP |
| Kategorie: | 8.1 |
| Knickschutztülle: | angespritzt |
| Kontakte: | Vergoldet |
| Kontaktwiderstand: | 5 mΩ |
| Leitermaterial: | Kupfer |
| Längenaufdruck: | Ja |
| Mantel-Farbe: | schwarz |
| Mantel-Material: | LSZH |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Schirmkontaktierung: | Punktueller Schirmkontakt |
| Steckertyp: | RJ45 standard |
| Steckverbinder: | IEC 60603-7-81 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich: | 0 – 60 °C |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Ölbeständig: | Nein |
| Übertragung: | 40Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K5528SW.0,5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528SW.1 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 1m | 1,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528SW.2 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 2m | 2,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528SW.3 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 3m | 3,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528SW.5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528SW.7,5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 7,5m | 7.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528SW.10 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 10m | 10,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % |
