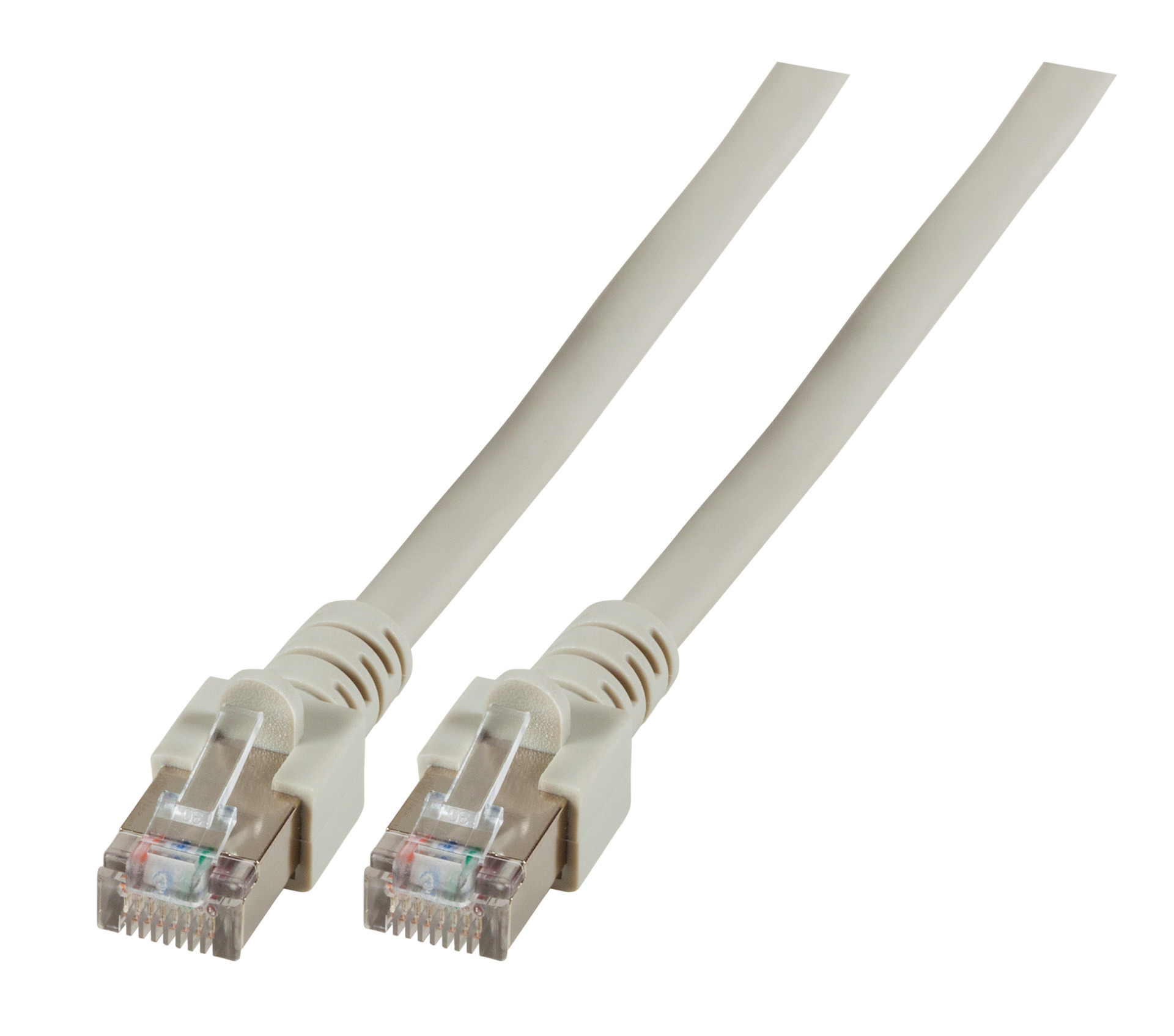

RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey
RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 0,15m
Varenummer:
K5455.0,15
EAN Nr.:
4049759064952
Produktinformation til RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 0,15m
RJ45 patch cable Cat.5e SF/UTP PVC CCA
The Cat.5e patch cable enables 2.5Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product features
• Cat.5e
• SF/UTP cable with AWG26/7
• Jacket material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket The shielded patch cable is made of polyvinyl chloride (PVC) material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range -5 - 70 °C.
The LAN cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
The Cat.5e patch cable enables 2.5Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product features
• Cat.5e
• SF/UTP cable with AWG26/7
• Jacket material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket The shielded patch cable is made of polyvinyl chloride (PVC) material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range -5 - 70 °C.
The LAN cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
Tekniske egenskaber
| (Halogenfrei): | Nein |
|---|---|
| AWG-Querschnitt: | 26/7 |
| Ausführung: | Geschirmt |
| Ausführung flammwidrig: | Nein |
| Außendurchmesser des Kabels: | 5.7 mm |
| Bandbreite: | 100MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >25 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Farbe der Knickschutztülle: | grau |
| Flammwidrig: | nach IEC60332-1 |
| Geeignet für Schutzart (IP): | IP20 |
| Gesamtabschirmung: | >65 % |
| Halogen frei: | Nein |
| Impedanz: | 100 |
| Isolationswiderstand: | 10 MΩ |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | SF/UTP |
| Kategorie: | 5E |
| Knickschutztülle: | angespritzt |
| Kontakte: | Vergoldet |
| Kontaktwiderstand: | 30 mΩ |
| Leitermaterial: | CCA |
| Leiterwiderstand DC: | 146 Ω/km |
| Längenaufdruck: | Ja |
| Mantel-Farbe: | grau |
| Mantel-Material: | Polyvinylchlorid (PVC) |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Schirmkontaktierung: | Punktueller Schirmkontakt |
| Schleifenwiderstand: | 292 Ω/km |
| Silikonfrei: | Ja |
| Steckertyp: | RJ45 standard |
| Steckverbinder: | IEC 60603-7-3 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich: | -5 – 70 °C |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Widerstandsunsymmetrie: | 5 % |
| Ölbeständig: | Nein |
| Übertragung: | 2,5Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K5455.0,15 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 0,15m | 0.15 m | No | ±5 % | |
| K5455.0,25 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 0,25m | 0.25 m | No | ±5 % | |
| K5455.0,3 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 0,3m | 0.3 m | No | ±5 % | |
| K5455.0,5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 0,5m | 0.5 m | No | ±5 % | |
| K5455.1 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 1m | 1,0 m | No | ±5 % | |
| K5455.1,5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 1,5m | 1,5 m | No | ±5 % | |
| K5455.2 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 2m | 2,0 m | No | ±5 % | |
| K5455.3 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 3m | 3,0 m | No | ±5 % | |
| K5455.5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 5m | 5.0 m | No | ±5 % | |
| K5455.7,5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 7,5m | 7.5 m | No | ±5 % | |
| K5455.10 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 10m | 10,0 m | No | ±5 % | |
| K5455.15 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 15m | 15,0 m | No | ±5 % | |
| K5455.20 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 20m | 20.0 m | No | ±5 % | |
| K5455.25 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 25m | 25.0 m | No | ±5 % | |
| K5455.30 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 30m | 30,0 m | No | ±5 % |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt

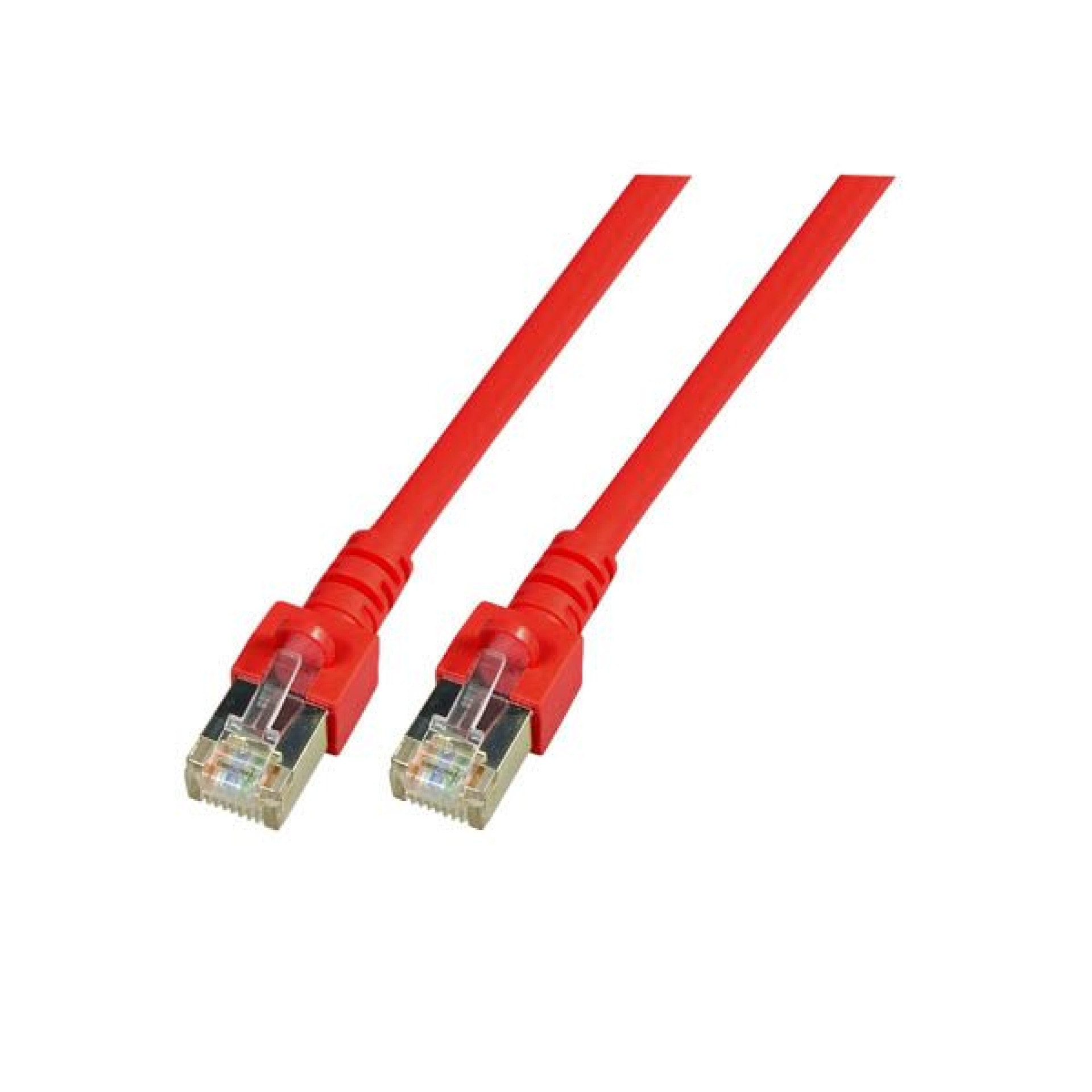

similar product
