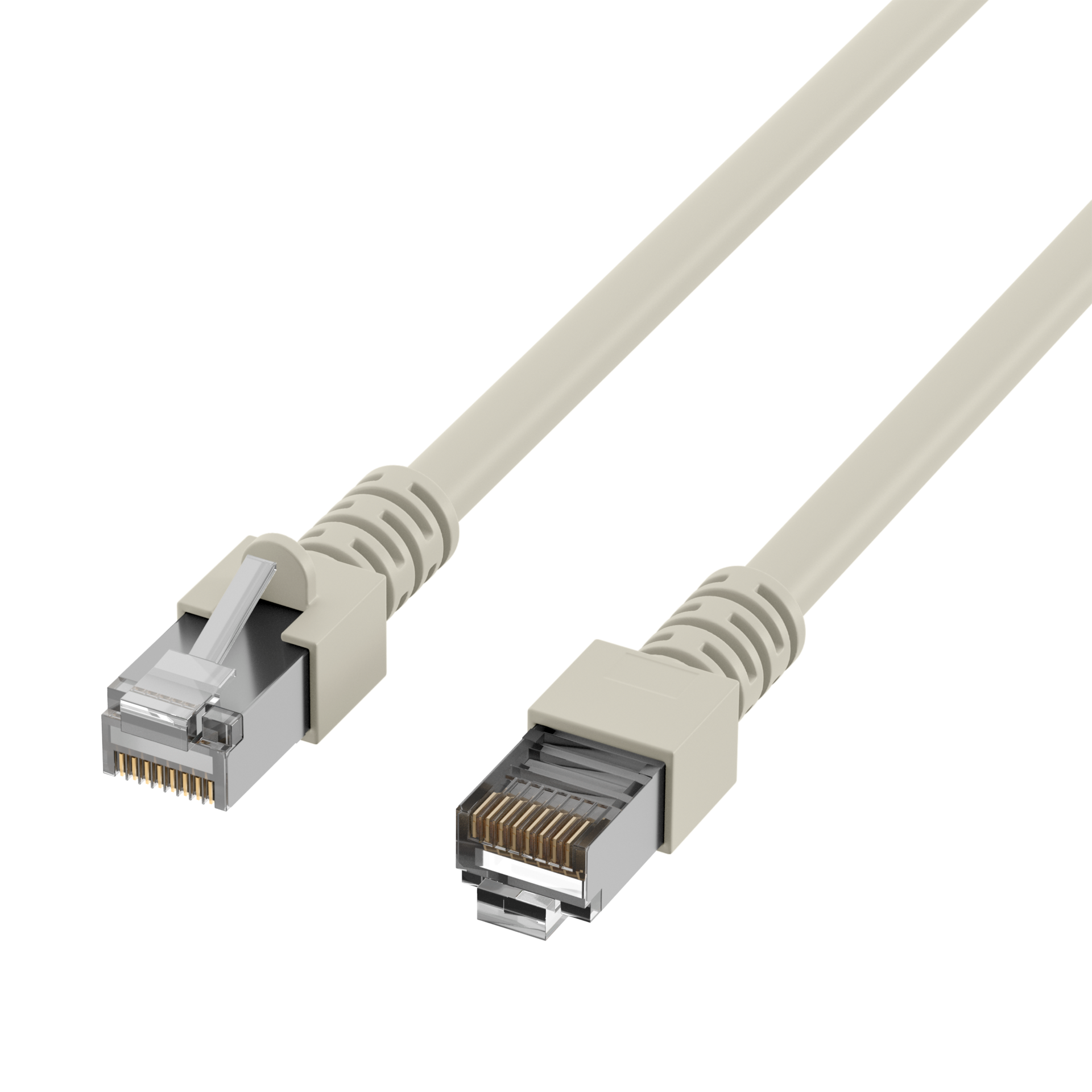

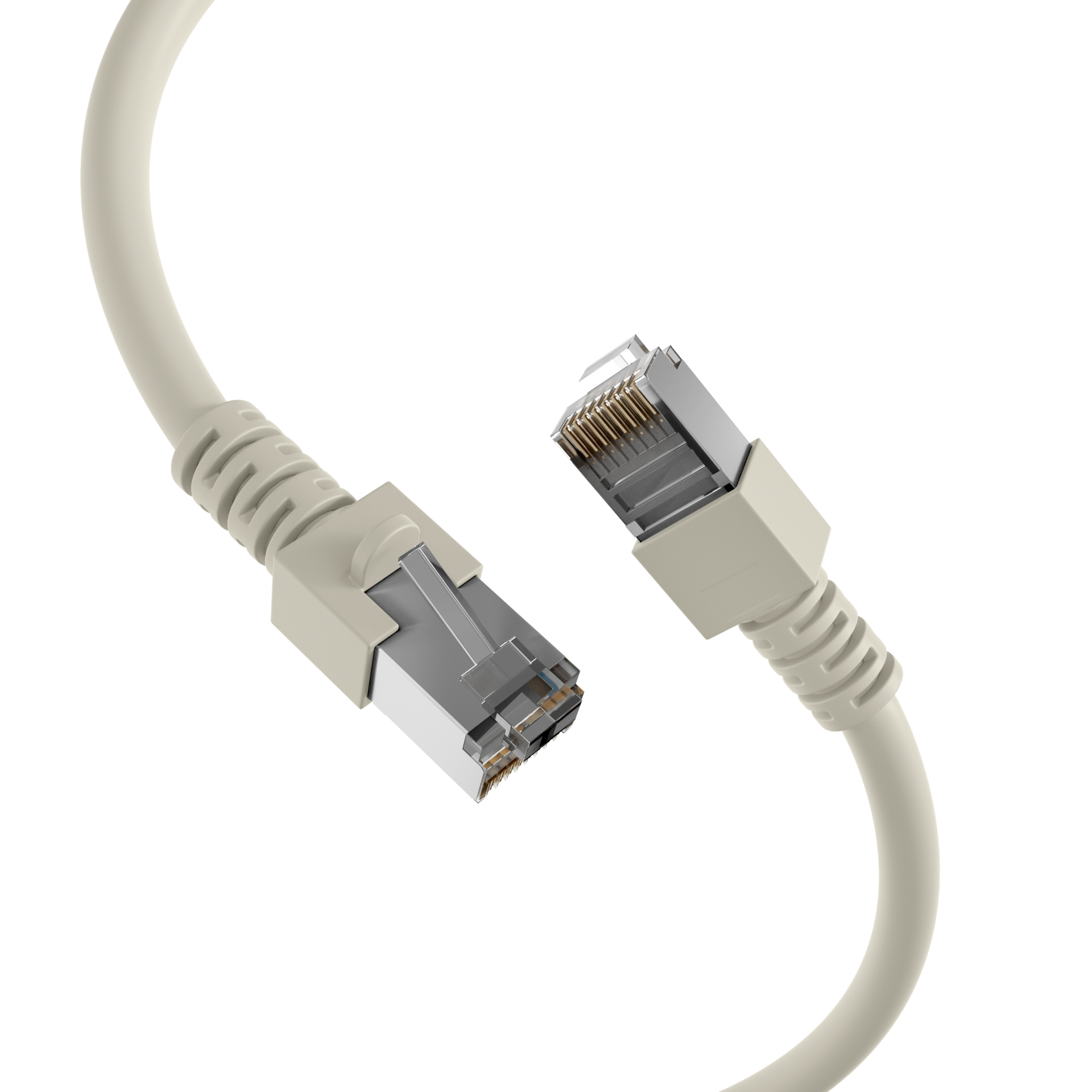

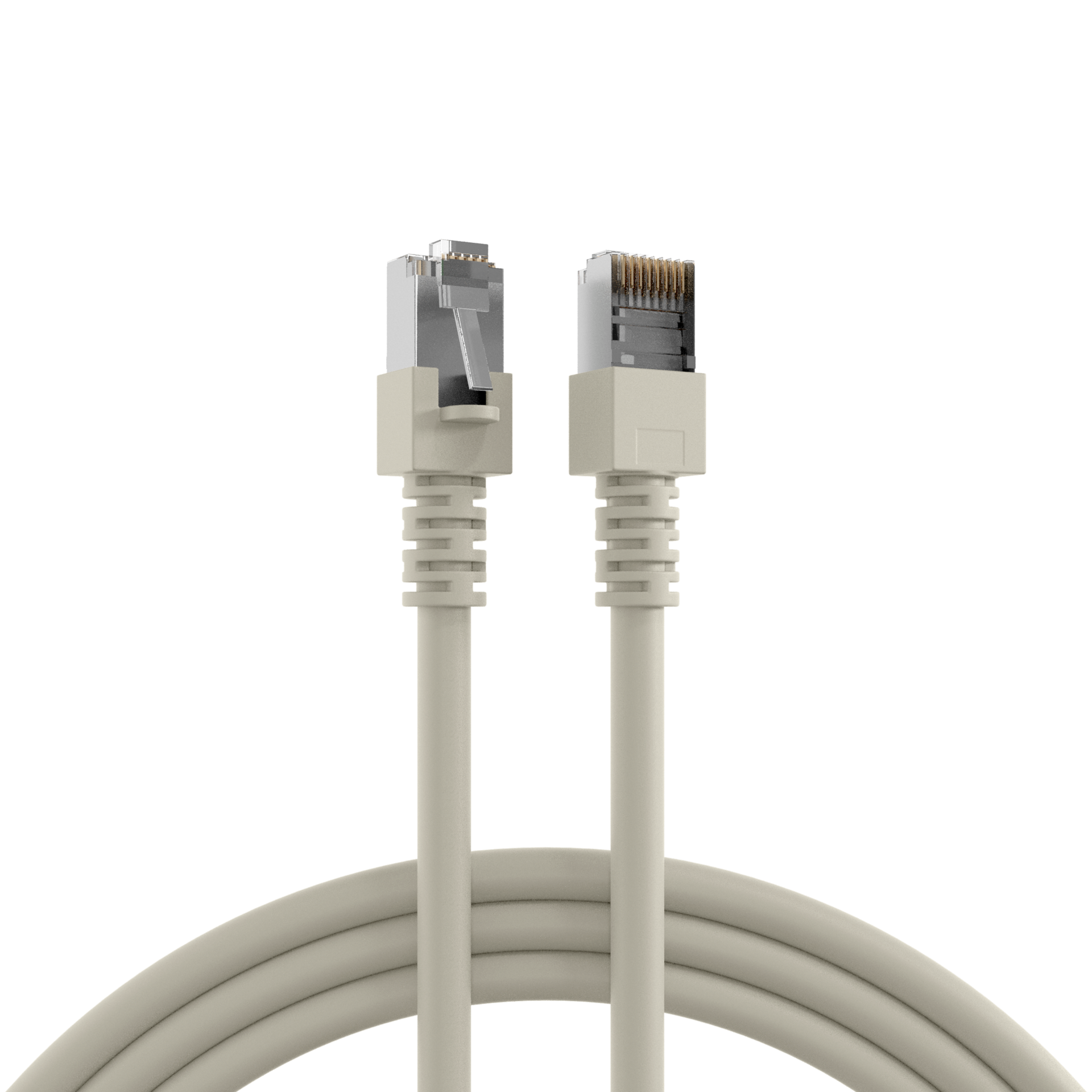

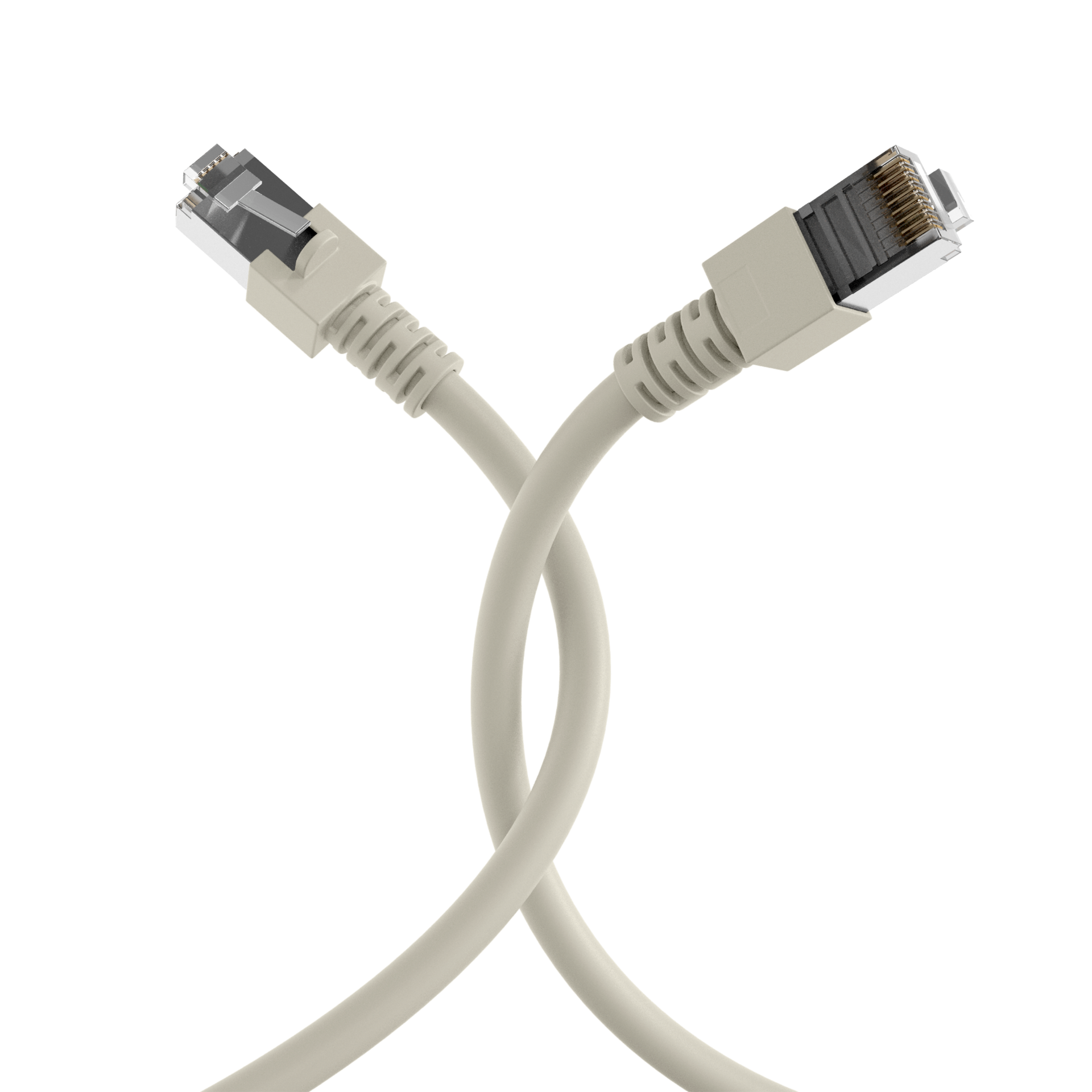

RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey
RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 0,15m
Varenummer:
K5455.0,15
EAN Nr.:
4049759064952
Produktinformation til RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 0,15m
RJ45 patch cable Cat.5e SF/UTP PVC CCA
The Cat.5e patch cable enables 2.5Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product features
• Cat.5e
• SF/UTP cable with AWG26/7
• Jacket material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket The shielded patch cable is made of polyvinyl chloride (PVC) material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range -5 - 70 °C.
The LAN cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
The Cat.5e patch cable enables 2.5Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product features
• Cat.5e
• SF/UTP cable with AWG26/7
• Jacket material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket The shielded patch cable is made of polyvinyl chloride (PVC) material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range -5 - 70 °C.
The LAN cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
Tekniske egenskaber
| (Halogenfree): | False |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of Application: |
Industrial Ethernet Structured cabling |
| Bandwidth: | 100MHz |
| Bending radius: | >25 mm |
| Cable construction: | 4x2 |
| Cable type: | SF/UTP |
| Cabling Standard: |
ANSI/TIA-568 EN50173 ISO/IEC 11801 |
| Category: | 5e |
| Colour anti-kink sleeve: | grey |
| Colour outer sheath: | grey |
| Conductive shield: | Selected shield contact |
| Conductor Material: | CCA |
| Conductor resistance DC: | 146 Ω/km |
| Connector: | IEC 60603-7-3 |
| Connector type: | RJ45 standard |
| Contact Resistance: | 30 mΩ |
| Contacts: | Gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | False |
| Flame-retardant: | acc. IEC60332-1 |
| Halogen-free: | No |
| Impedance: | 100 |
| Insulation Resistance: | 10 MΩ |
| Jacket Material: | Polyvinylchlorid (PVC) |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 292 Ω/km |
| Mating cycles: | ≥750 |
| Model: | shielded |
| Oil resistant: | No |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.7 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Printing: | Cat.7 raw cable S/FTP 4x2xAWG26/7 PIMF 600MHz ISO/IEC 11801 & EN50173-1 TIA/EIA 568B-2.1 Halogen Free ***10GIGABIT*** |
| Resistance unbalance: | 5 % |
| Resistant to chemicals: | False |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -5 – 70 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Total screening: | 65 % |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K5455.0,15 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 0,15m | 0.15 m | No | ±5 % | |
| K5455.0,25 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 0,25m | 0.25 m | No | ±5 % | |
| K5455.0,3 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 0,3m | 0.3 m | No | ±5 % | |
| K5455.0,5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 0,5m | 0.5 m | No | ±5 % | |
| K5455.1 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 1m | 1.0 m | No | ±5 % | |
| K5455.1,5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 1,5m | 1.5 m | No | ±5 % | |
| K5455.2 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 2m | 2.0 m | No | ±5 % | |
| K5455.3 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 3m | 3.0 m | No | ±5 % | |
| K5455.5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 5m | 5.0 m | No | ±5 % | |
| K5455.7,5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 7,5m | 7.5 m | No | ±5 % | |
| K5455.10 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 10m | 10.0 m | No | ±5 % | |
| K5455.15 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 15m | 15.0 m | No | ±5 % | |
| K5455.20 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 20m | 20.0 m | No | ±5 % | |
| K5455.25 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 25m | 25.0 m | No | ±5 % | |
| K5455.30 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 30m | 30.0 m | No | ±5 % |
