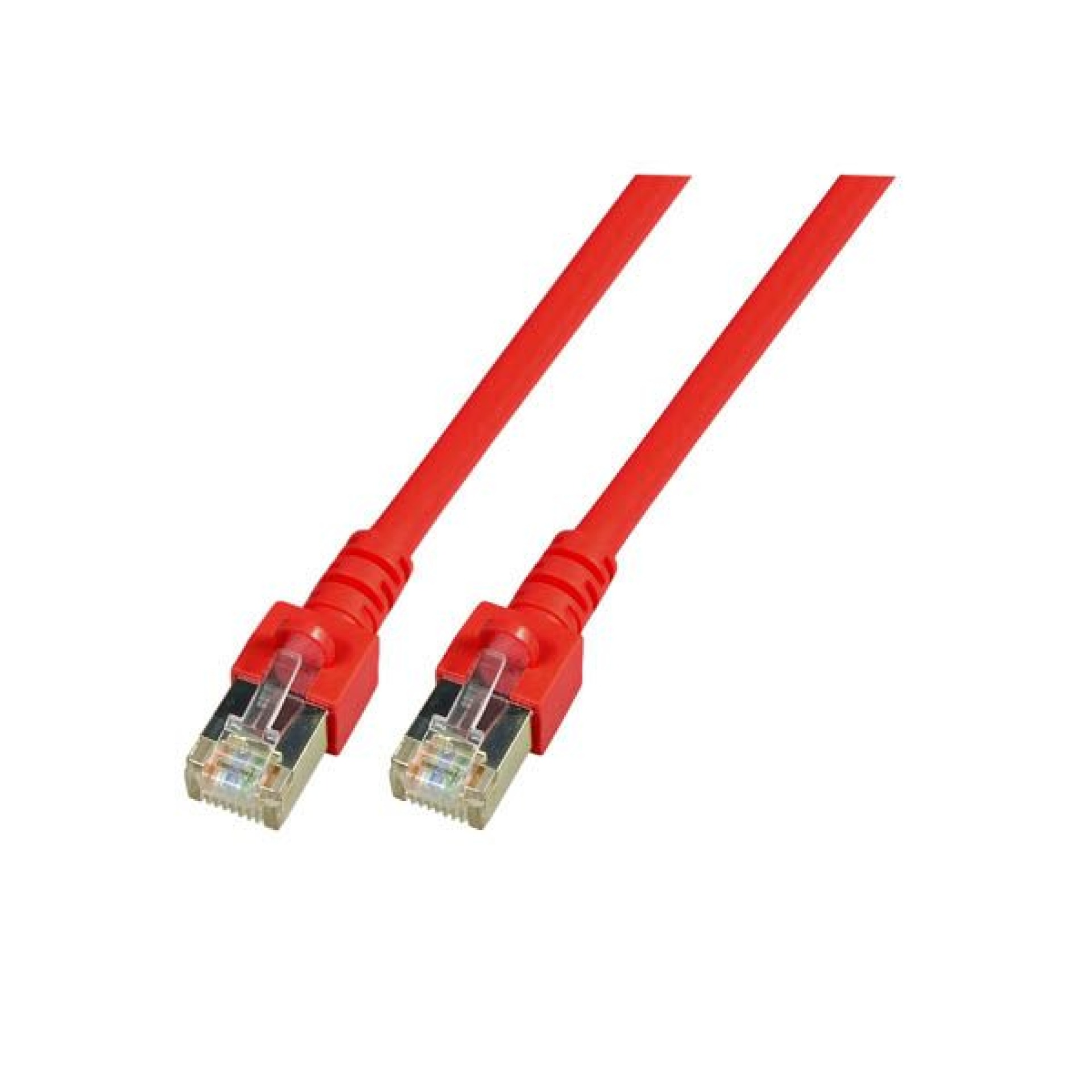

RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red
RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 0,5m
Varenummer:
K5458.0,5
EAN Nr.:
4049759030407
Produktinformation til RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 0,5m
RJ45 patch cable Cat.5e SF/UTP PVC CCA
The Cat.5e patch cable enables 2.5Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product features
• Cat.5e
• SF/UTP cable with AWG26/7
• Jacket material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket The shielded patch cable is made of polyvinyl chloride (PVC) material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range -5 - 70 °C.
The LAN cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
The Cat.5e patch cable enables 2.5Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product features
• Cat.5e
• SF/UTP cable with AWG26/7
• Jacket material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket The shielded patch cable is made of polyvinyl chloride (PVC) material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range -5 - 70 °C.
The LAN cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
Tekniske egenskaber
| (Halogenfree): | False |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 100MHz |
| Bending radius: | >25 mm |
| Cable construction: | 4x2 |
| Cable type: | SF/UTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 5e |
| Colour anti-kink sleeve: | red |
| Colour outer sheath: | red |
| Conductive shield: | Selected shield contact |
| Conductor Material: | CCA |
| Conductor resistance DC: | 146 Ω/km |
| Connector: | IEC 60603-7-3 |
| Connector type: | RJ45 standard |
| Contact Resistance: | 30 mΩ |
| Contacts: | Gold plated µ" Gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | False |
| Insulation Resistance: | 10 MΩ |
| Jacket Material: | Polyvinylchlorid (PVC) |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 292 Ω/km |
| Mating cycles: | 2000 |
| Model: | Shielded |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.7 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | SFTP 300 CAT.5E 26AWGX4P PATCH ISO/IEC 11801 & EN 50173 VERIFIED www.efb-elektronik.de |
| Resistance unbalance: | 5 % |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -5 – 70 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Total screening: | 65 % |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K5458.0,5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 0,5m | 0.5 m | ±5 % | |
| K5458.1 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 1m | 1.0 m | ±5 % | |
| K5458.1,5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 1,5m | 1.5 m | ±5 % | |
| K5458.2 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 2m | 2.0 m | ±5 % | |
| K5458.3 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 3m | 3.0 m | ±5 % | |
| K5458.5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 5m | 5.0 m | ±5 % | |
| K5458.7,5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 7,5m | 7.5 m | ±5 % | |
| K5458.10 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 10m | 10.0 m | ±5 % | |
| K5458.15 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 15m | 15.0 m | ±5 % | |
| K5458.20 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 20m | 20.0 m | ±5 % | |
| K5458.25 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 25m | 25.0 m | ±5 % | |
| K5458.30 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 30m | 30.0 m | ±5 % |

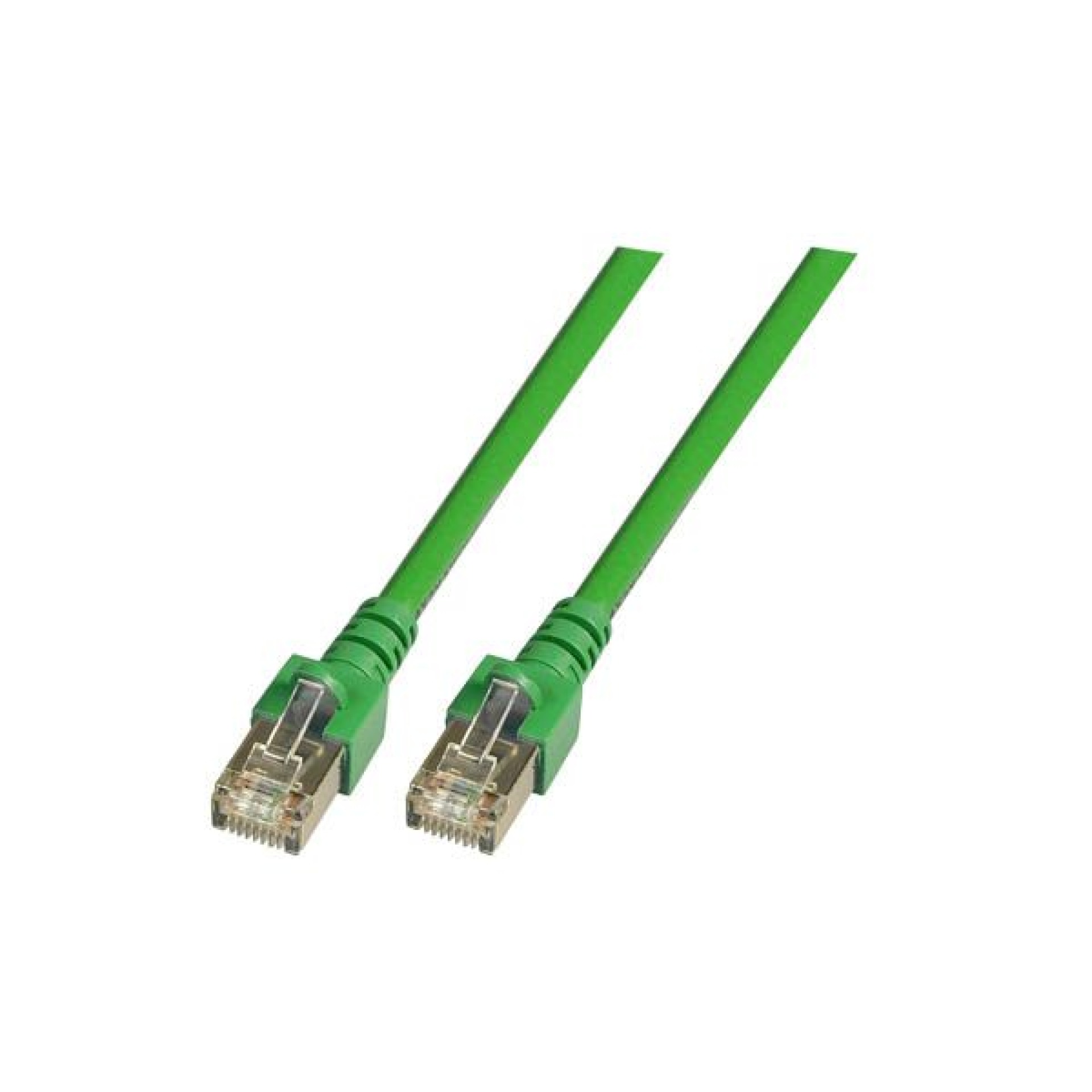

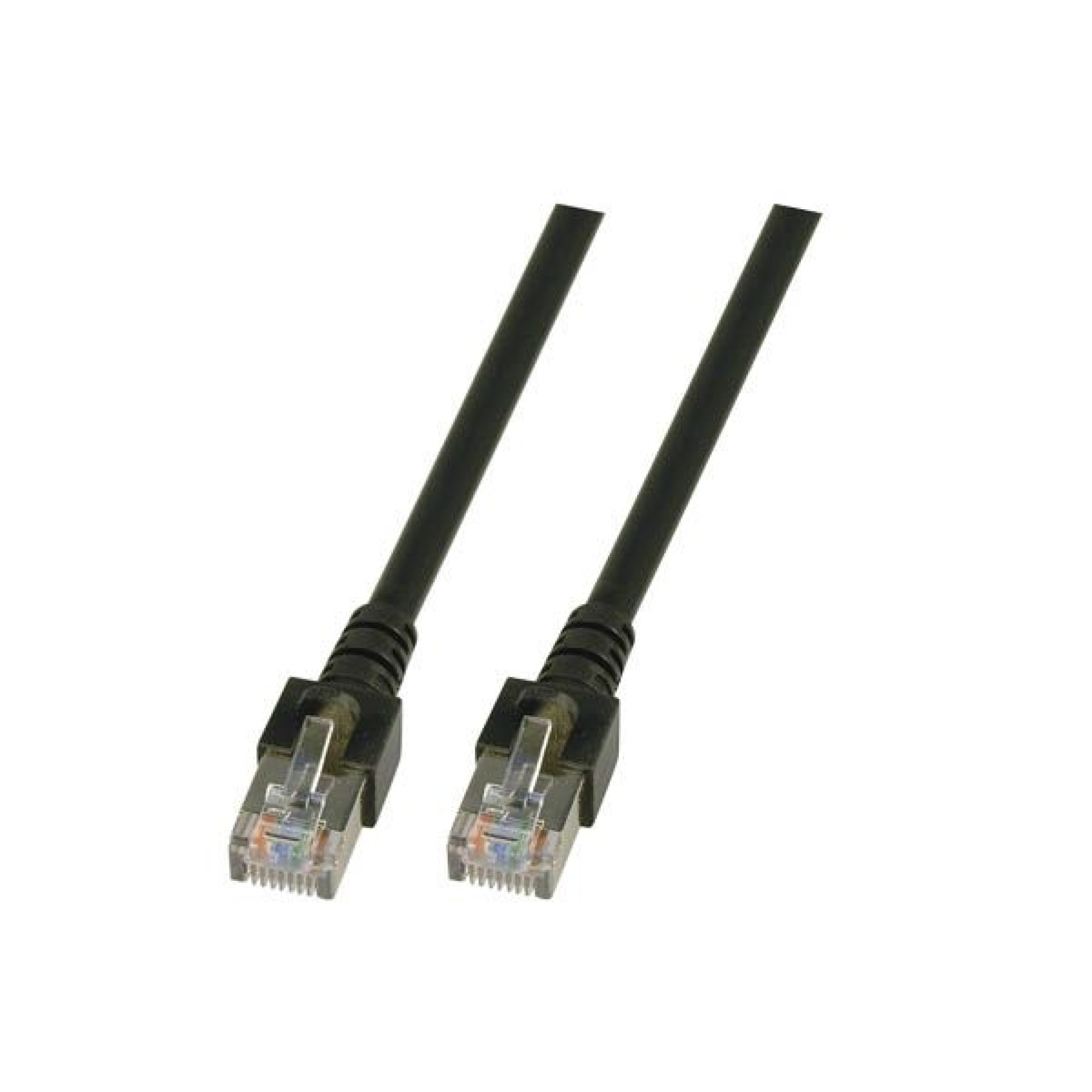

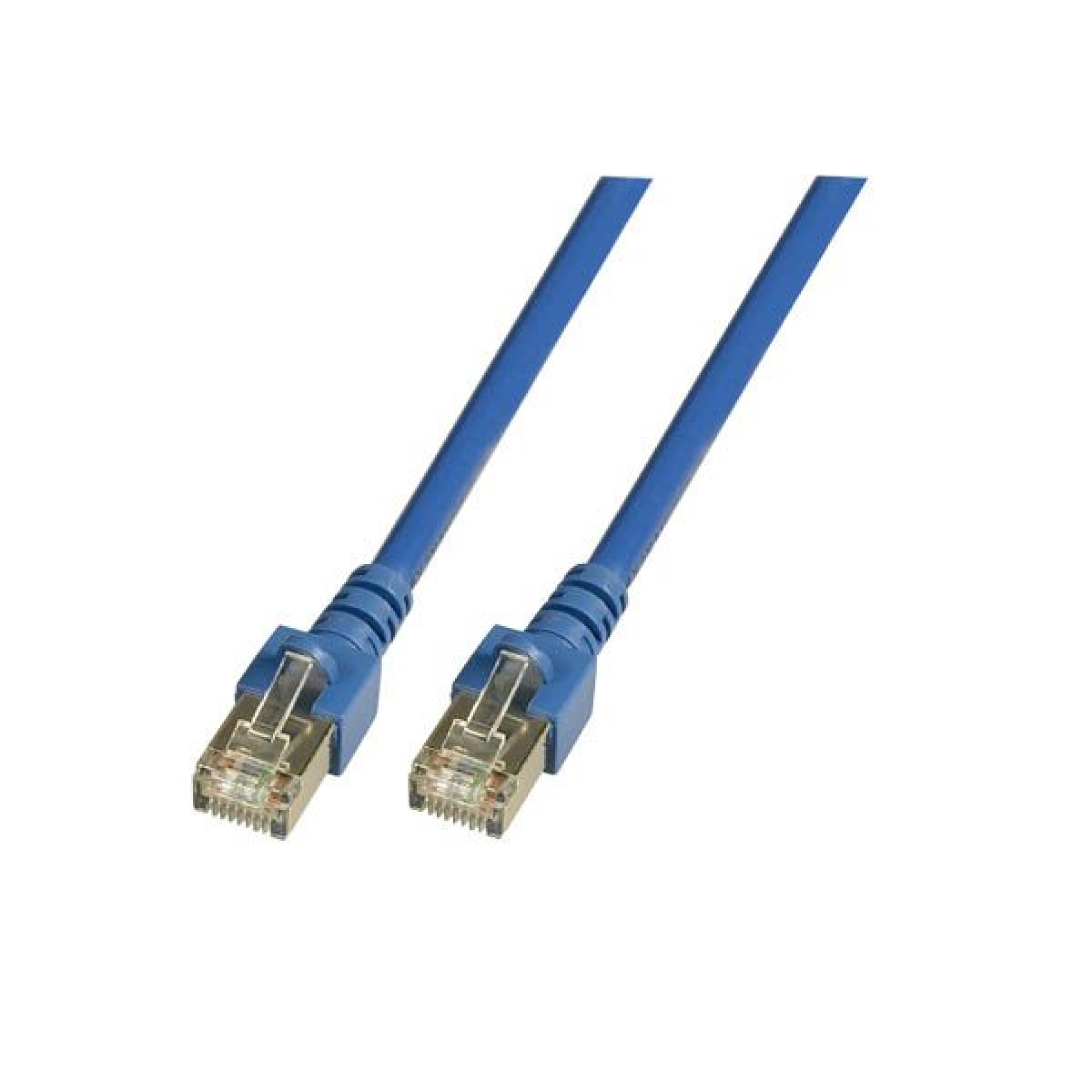

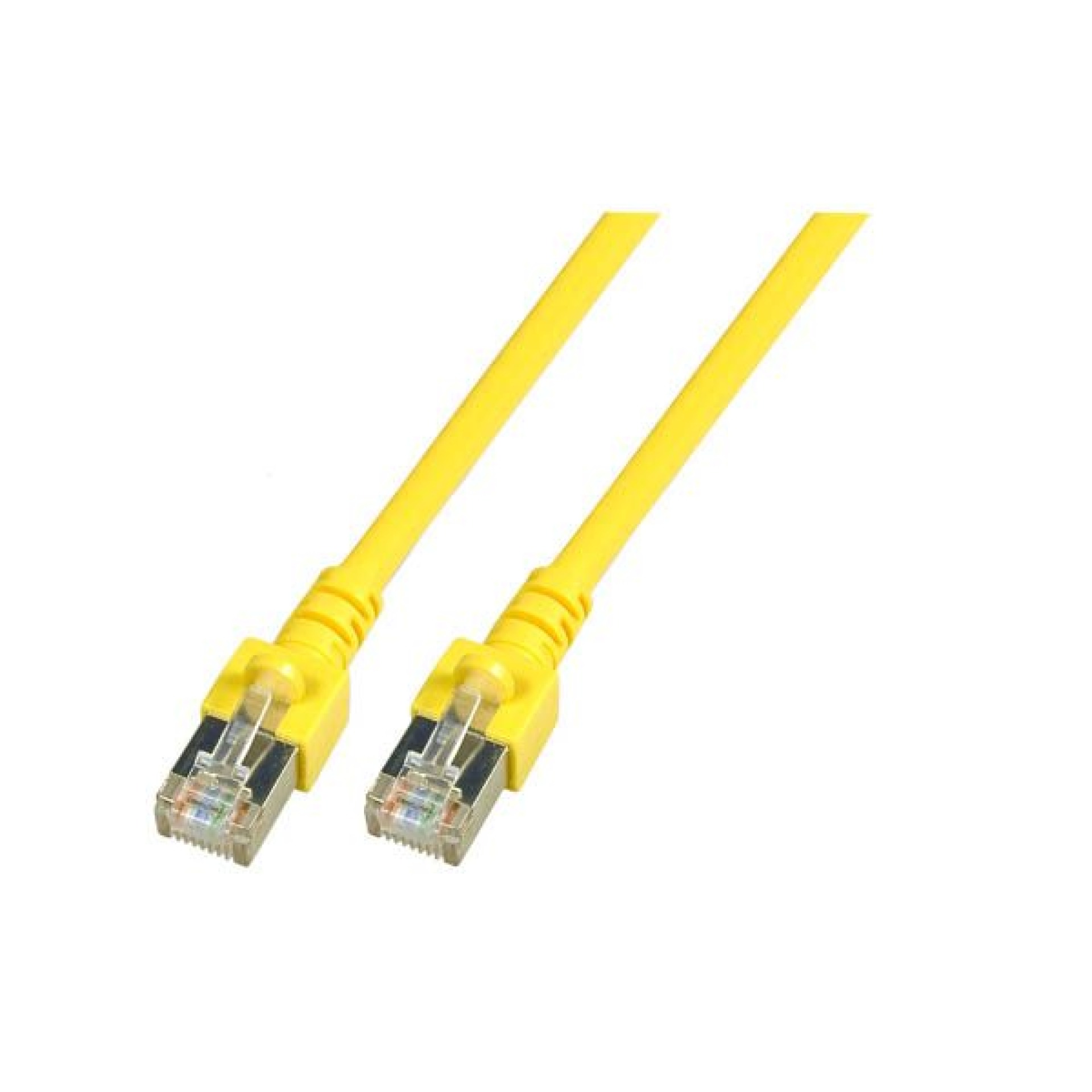

similar product
