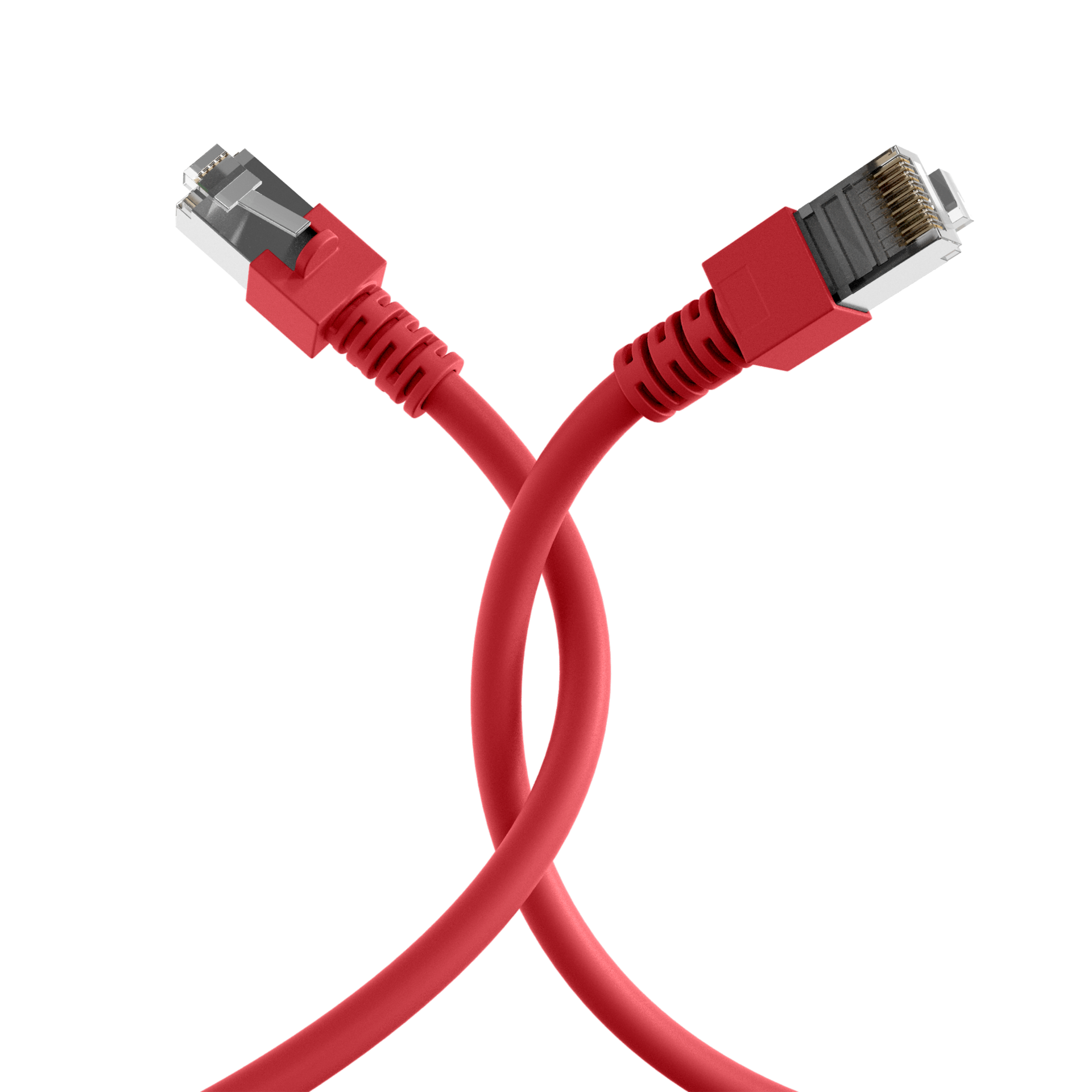

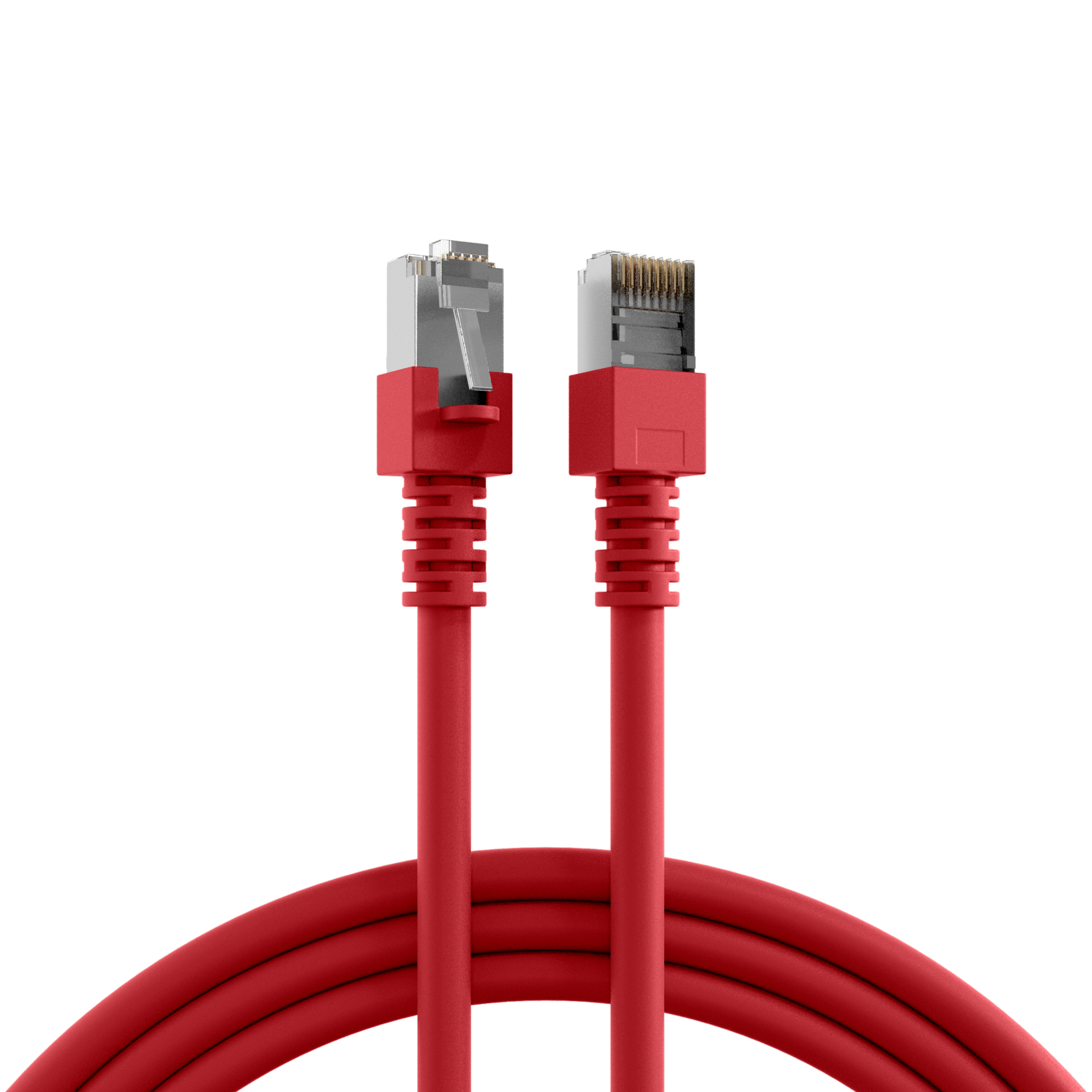

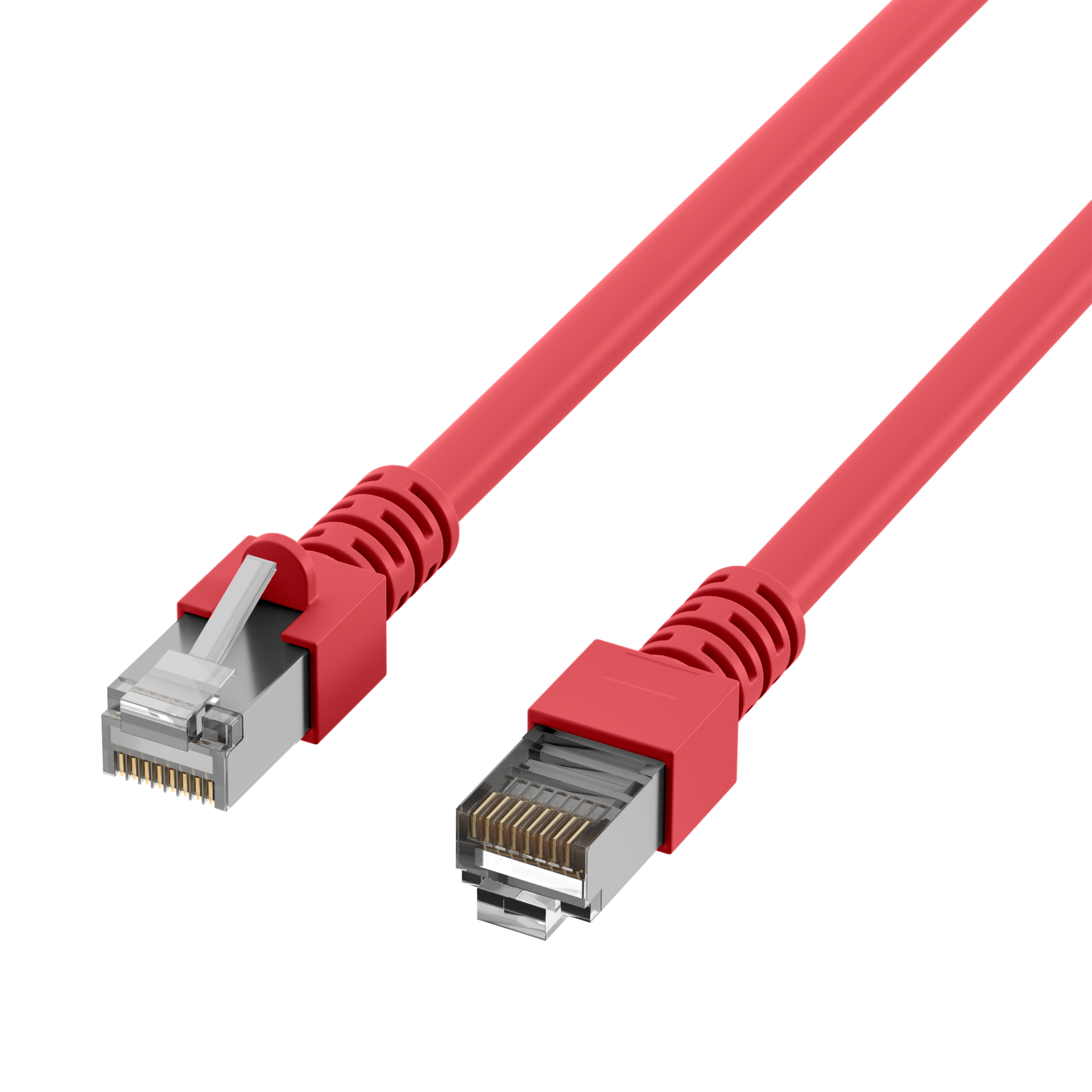

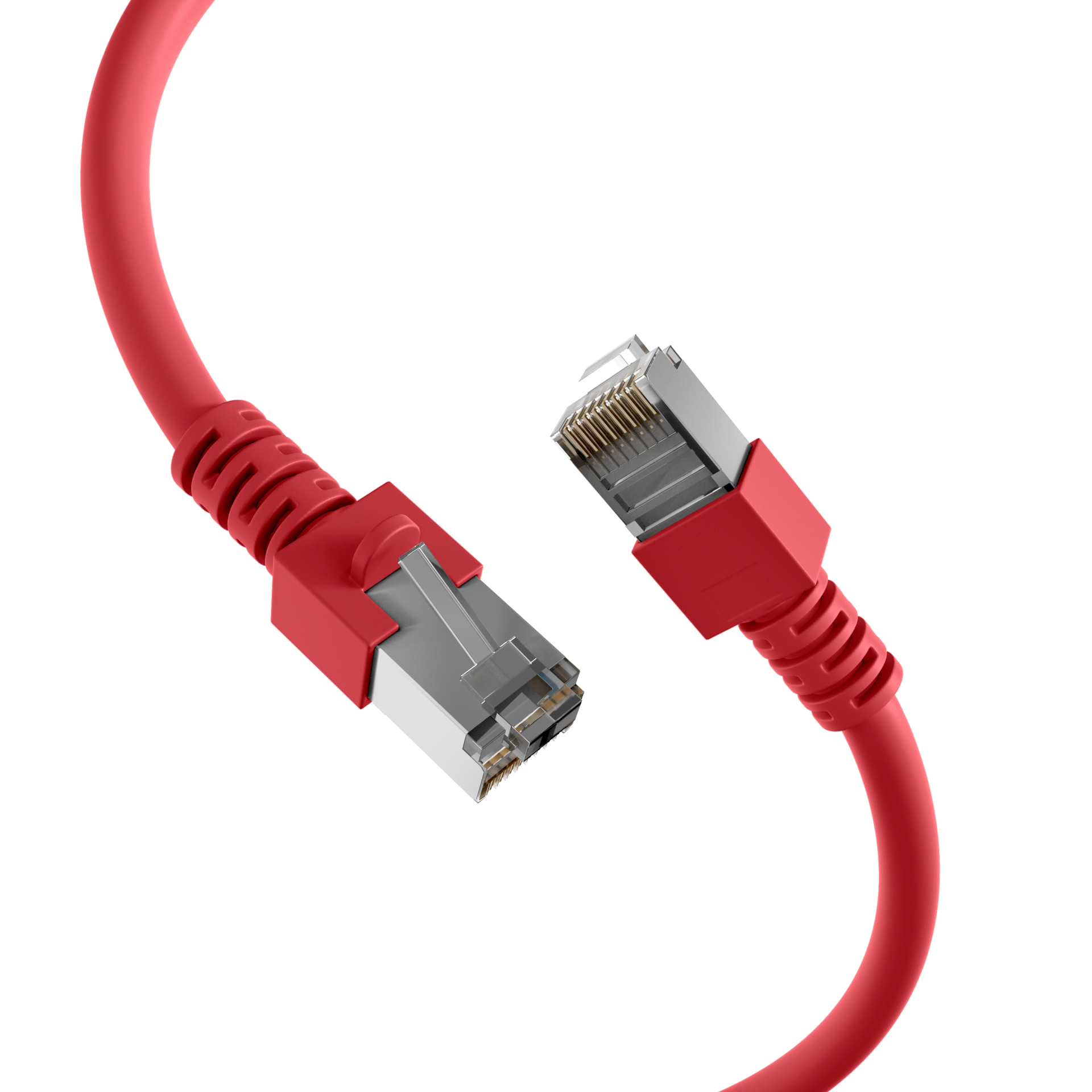

RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red

Priser kun synlige for indloggede brugere

RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 0,5m
Varenummer: K5458.0,5
EAN nr.: 4049759030407
Stück

Produktinformation für RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 0,5m

The Cat.5e RJ45 patch cable ensures good characteristics for 2.5 Gigabit Ethernet applications. Due to the double shielding, the patch cable is even better protected against EMC radiation.

Cross section 4 x 2 x AWG26/7
Cast anti-kink grommet (patented)
Cable structure SF/UTP
Length imprint on the grommet
Conductor material CCA

Tekniske egenskaber

(Halogenfree): False
AWG-size: 26/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Data center
Industrial Ethernet

Structured cabling
Bandwidth: 100MHz
Bending radius: >25 mm
Cable construction: 4x2
Cable type: SF/UTP
Cabling Standard: ANSI/TIA-568-C.2
EN50173

ISO/IEC 11801
Category: 5e
Colour anti-kink sleeve: red
Colour outer sheath: red
Conductive shield: Selected shield contact
Conductor Material: CCA
Conductor resistance DC: 146 Ω/km
Connector: IEC 60603-7-3
Connector type: RJ45 standard
Contact resistance: 30 mΩ
Contacts: Gold plated µ" Vergoldet
Current capacity: max. 1 A
Fire retardant version: False
Insulation resistance: 10 MΩ
Jacket material: Polyvinylchlorid (PVC)
Length imprint: True
Locking lever: True
Loop resistance: 292 Ω/km
Mating cycles: 2000
Model: Shielded
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 5.7 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at

PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: SFTP 300 CAT.5E 26AWGX4P PATCH ISO/IEC 11801 & EN 50173 VERIFIED www.efb-elektronik.de
Resistance unbalance: 5 %
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: -5 – 70 °C
Test voltage: 1000 V DC, 1min
Total screening: 65 %
Transmission: 2.5Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianter

Art. Nej. Betegnelse Length Length tolerance
K5458.0,5 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 0,5m 0.5 m ±5 %
K5458.1 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 1m 1.0 m ±5 %
K5458.1,5 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 1,5m 1.5 m ±5 %
K5458.2 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 2m 2.0 m ±5 %
K5458.3 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 3m 3.0 m ±5 %
K5458.5 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 5m 5.0 m ±5 %
K5458.7,5 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 7,5m 7.5 m ±5 %
K5458.10 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 10m 10.0 m ±5 %
K5458.15 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 15m 15.0 m ±5 %
K5458.20 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 20m 20.0 m ±5 %
K5458.25 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 25m 25.0 m ±5 %
K5458.30 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 30m 30.0 m ±5 %
