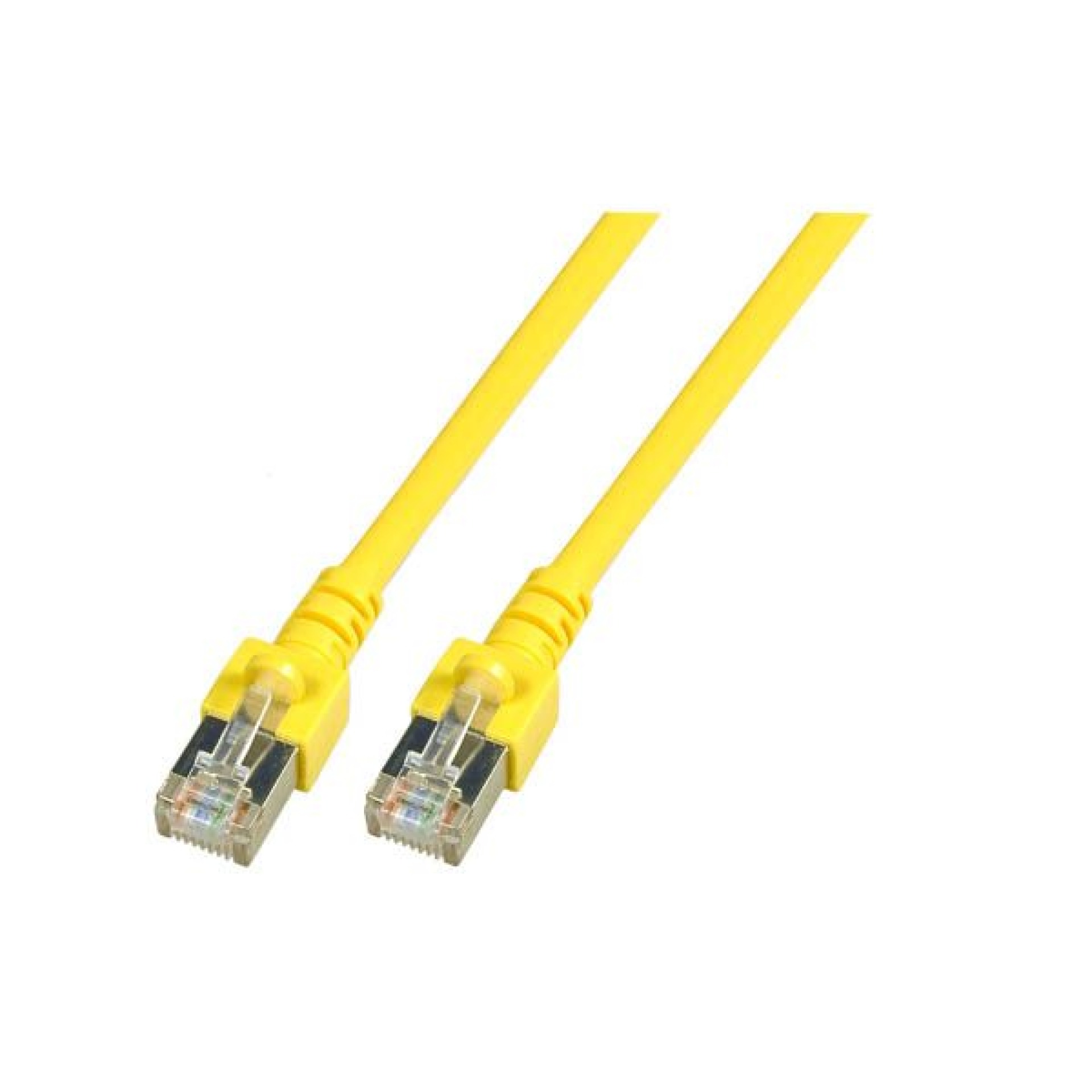

RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, yellow

Priser kun synlige for indloggede brugere

RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 0.5m, yellow
Varenummer: K5457.0,5
EAN nr.: 4049759030285
Stück

Produktinformation für RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 0.5m, yellow

The Cat.5e RJ45 patch cable ensures good characteristics for 2.5 Gigabit Ethernet applications. Due to the double shielding, the patch cable is even better protected against EMC radiation.

Cross section 4 x 2 x AWG26/7
Cast anti-kink grommet (patented)
Cable structure SF/UTP
Length imprint on the grommet
Conductor material CCA

Tekniske egenskaber

(Halogenfree): False
AWG-size: 26/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Structured cabling;Industrial Ethernet;Data center
Bandwidth: 100MHz
Bending radius: >25 mm
Cable construction: 4x2
Cable type: SF/UTP
Category: 5e
Colour anti-kink sleeve: yellow
Colour outer sheath: yellow
Conductive shield: Selected shield contact
Conductor Material: CCA
Conductor resistance DC: 146 Ω/km
Connector: IEC 60603-7-3
Connector type: RJ45 Standard
Contact resistance: 30 mΩ
Contacts: Gold plated
Current capacity: max. 1 A
Fire retardant version: False
Insulation resistance: 10 MΩ
Jacket material: Polyvinylchlorid (PVC)
Length imprint: True
Locking lever: True
Loop resistance: 292 Ω/km
Mating cycles: 2000
Model: Shielded
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 5.7 mm
POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
Pin assignment: 1:1
Printing: SFTP 300 CAT.5E 26AWGX4P PATCH ISO/IEC 11801 & EN 50173 VERIFIED
Resistance unbalance: 5 %
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: -5 – 70 °C
Test voltage: 1000 V DC, 1min
Total screening: 65 %
Transmission: 2.5Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianter

Art. Nej. Betegnelse Length Length tolerance
K5457.0,5 RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 0.5m, yellow 0.5 m ±5 % Vælg varianter
K5457.1 RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 1m, yellow 1.0 m ±5 % Vælg varianter
K5457.1,5 RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 1.5m, yellow 1.5 m ±5 % Vælg varianter
K5457.10 RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 10m, yellow 10.0 m ±5 % Vælg varianter
K5457.15 RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 15m, yellow 15.0 m ±5 % Vælg varianter
K5457.2 RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 2m, yellow 2.0 m ±5 % Vælg varianter
K5457.20 RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 20m, yellow 20.0 m ±5 % Vælg varianter
K5457.25 RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 25m, yellow 25.0 m ±5 % Vælg varianter
K5457.3 RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 3m, yellow 3.0 m ±5 % Vælg varianter
K5457.30 RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 30m, yellow 30.0 m ±5 % Vælg varianter
K5457.5 RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 5m, yellow 5.0 m ±5 % Vælg varianter
K5457.7,5 RJ45 Patch cable SF/UTP, Cat.5e, PVC, CCA, 7.5m, yellow 7.5 m ±5 % Vælg varianter
