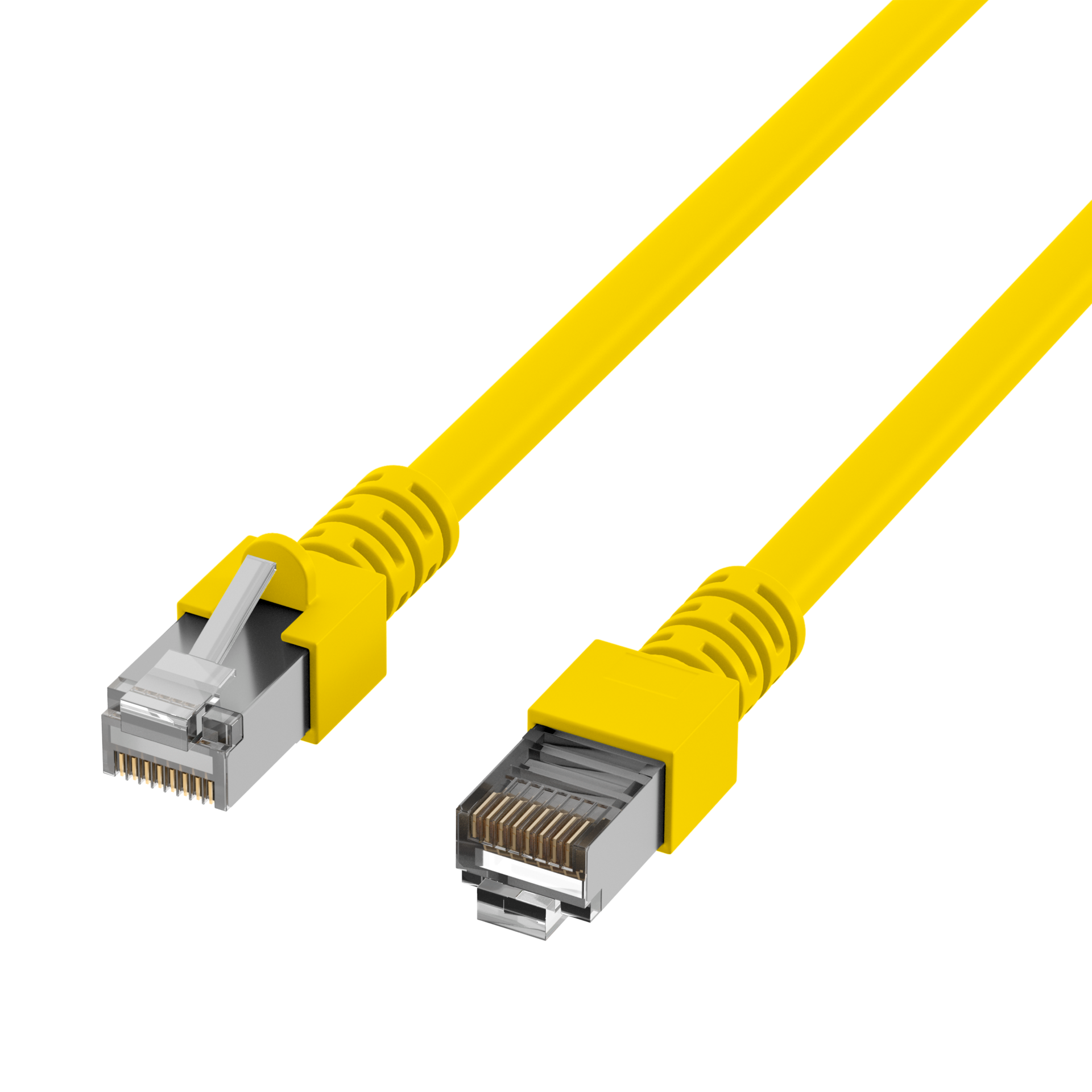

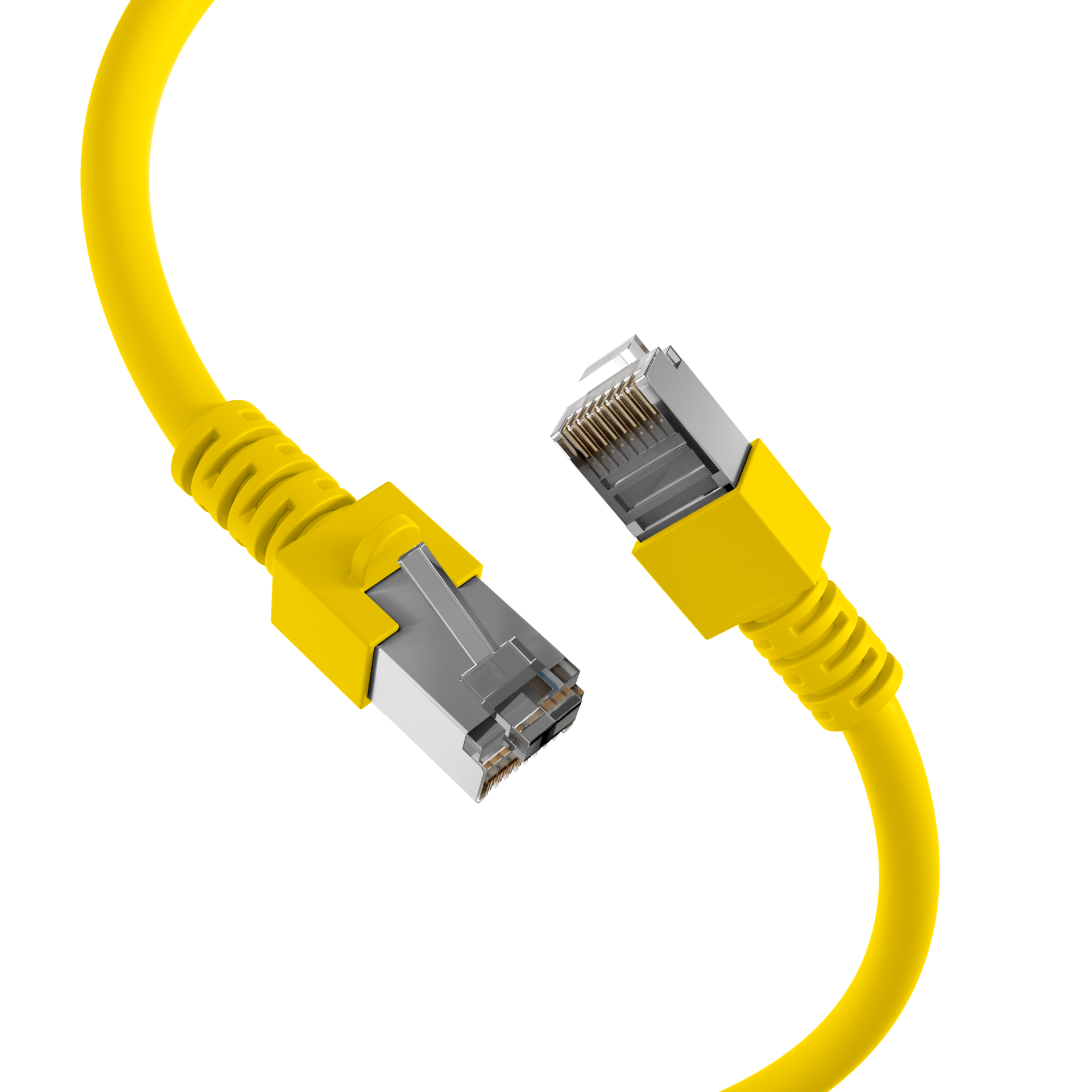

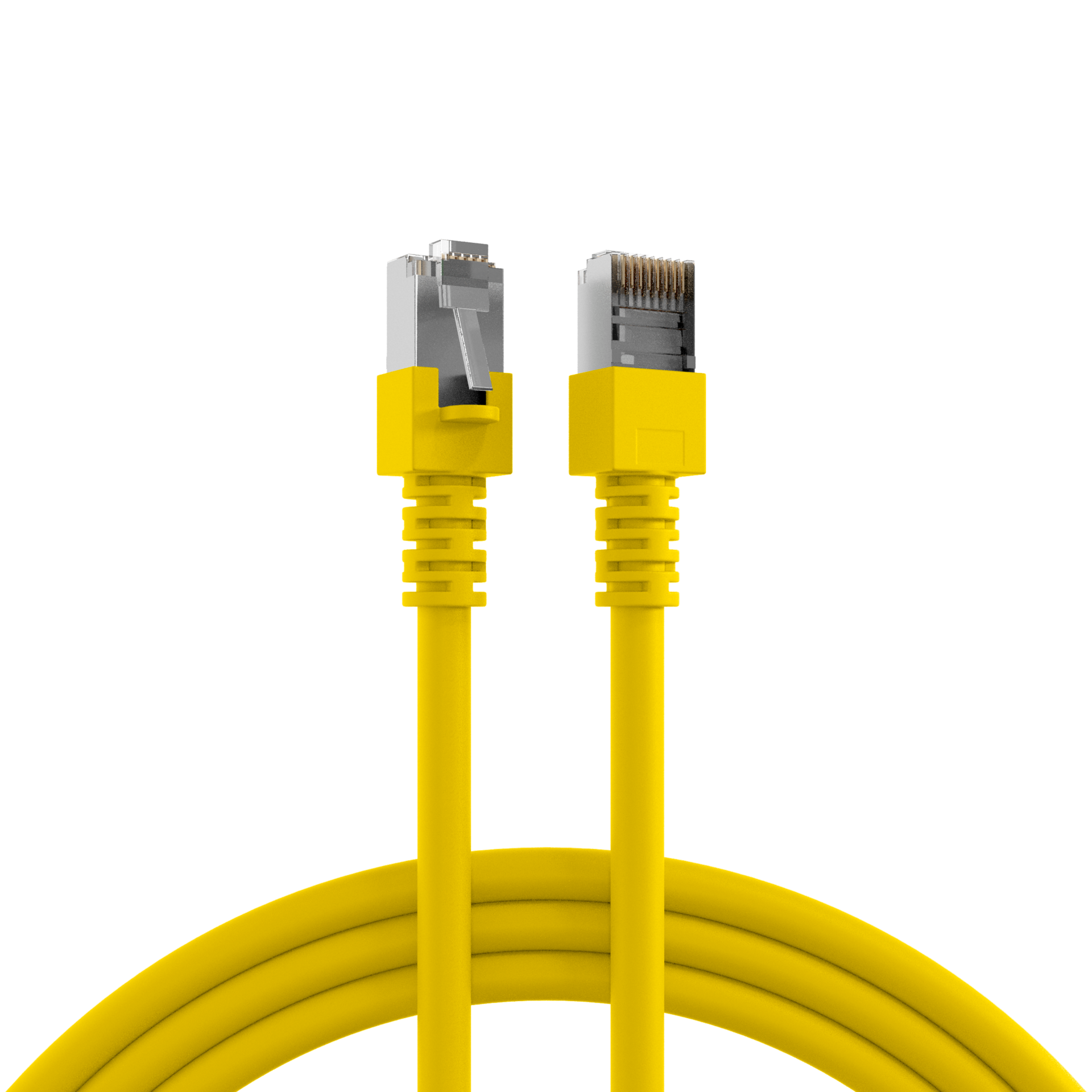

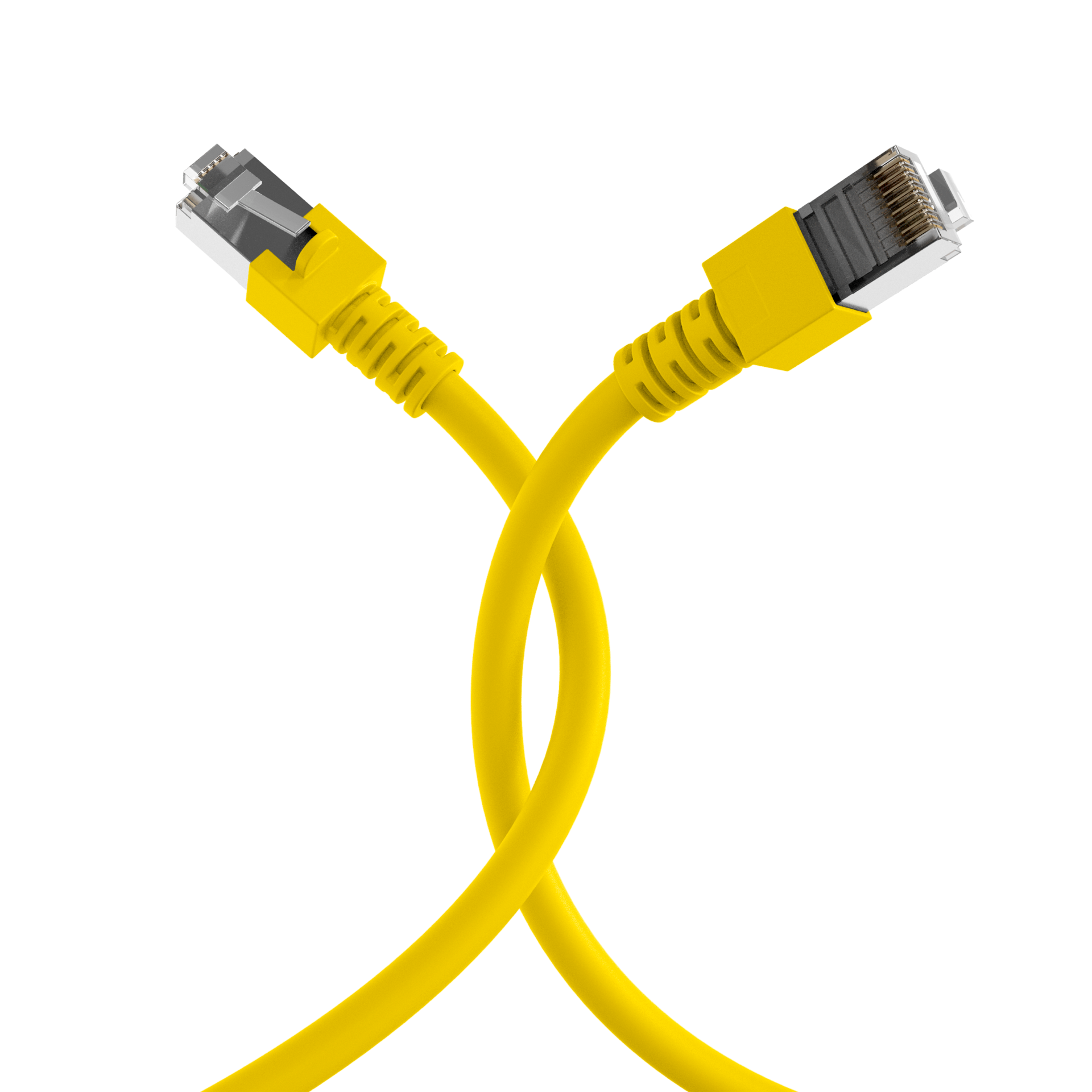

RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow
RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 0,5m
Varenummer:
K5457.0,5
EAN Nr.:
4049759030285
Produktinformationen für RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 0,5m
RJ45 patch cable Cat.5e SF/UTP LSZH Draka UC300 TM11
The Cat.5e patch cable has gold-plated contacts and meets the requirements for 2.5Gbit Ethernet.
Technical product properties
• Cat. 5e
• SF/UTP cable with AWG26/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the TM11 plugs is according to TIA/ EIA 568B and is 1: 1.
The Ethernet cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and data centers. A frequency range of up to 100 MHz is achieved.
The Cat.5e patch cable has gold-plated contacts and meets the requirements for 2.5Gbit Ethernet.
Technical product properties
• Cat. 5e
• SF/UTP cable with AWG26/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the TM11 plugs is according to TIA/ EIA 568B and is 1: 1.
The Ethernet cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and data centers. A frequency range of up to 100 MHz is achieved.
Technische Eigenschaften
| (Halogenfree): | False |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 100MHz |
| Bending radius: | >25 mm |
| Cable construction: | 4x2 |
| Cable type: | SF/UTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 5e |
| Colour anti-kink sleeve: | yellow |
| Colour outer sheath: | yellow |
| Conductive shield: | Selected shield contact |
| Conductor Material: | CCA |
| Conductor resistance DC: | 146 Ω/km |
| Connector: | IEC 60603-7-3 |
| Connector type: | RJ45 Standard |
| Contact resistance: | 30 mΩ |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | False |
| Insulation resistance: | 10 MΩ |
| Jacket material: | Polyvinylchlorid (PVC) |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 292 Ω/km |
| Mating cycles: | 2000 |
| Model: | Shielded |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.7 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | SFTP 300 CAT.5E 26AWGX4P PATCH ISO/IEC 11801 & EN 50173 VERIFIED www.efb-elektronik.de |
| Resistance unbalance: | 5 % |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -5 – 70 °C |
| Test voltage: | 1000 V DC, 1min |
| Total screening: | 65 % |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K5457.0,5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 0,5m | 0.5 m | ±5 % | |
| K5457.1 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 1m | 1.0 m | ±5 % | |
| K5457.1,5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 1,5m | 1.5 m | ±5 % | |
| K5457.2 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 2m | 2.0 m | ±5 % | |
| K5457.3 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 3m | 3.0 m | ±5 % | |
| K5457.5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 5m | 5.0 m | ±5 % | |
| K5457.7,5 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 7,5m | 7.5 m | ±5 % | |
| K5457.10 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 10m | 10.0 m | ±5 % | |
| K5457.15 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 15m | 15.0 m | ±5 % | |
| K5457.20 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 20m | 20.0 m | ±5 % | |
| K5457.25 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 25m | 25.0 m | ±5 % | |
| K5457.30 | RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 30m | 30.0 m | ±5 % |

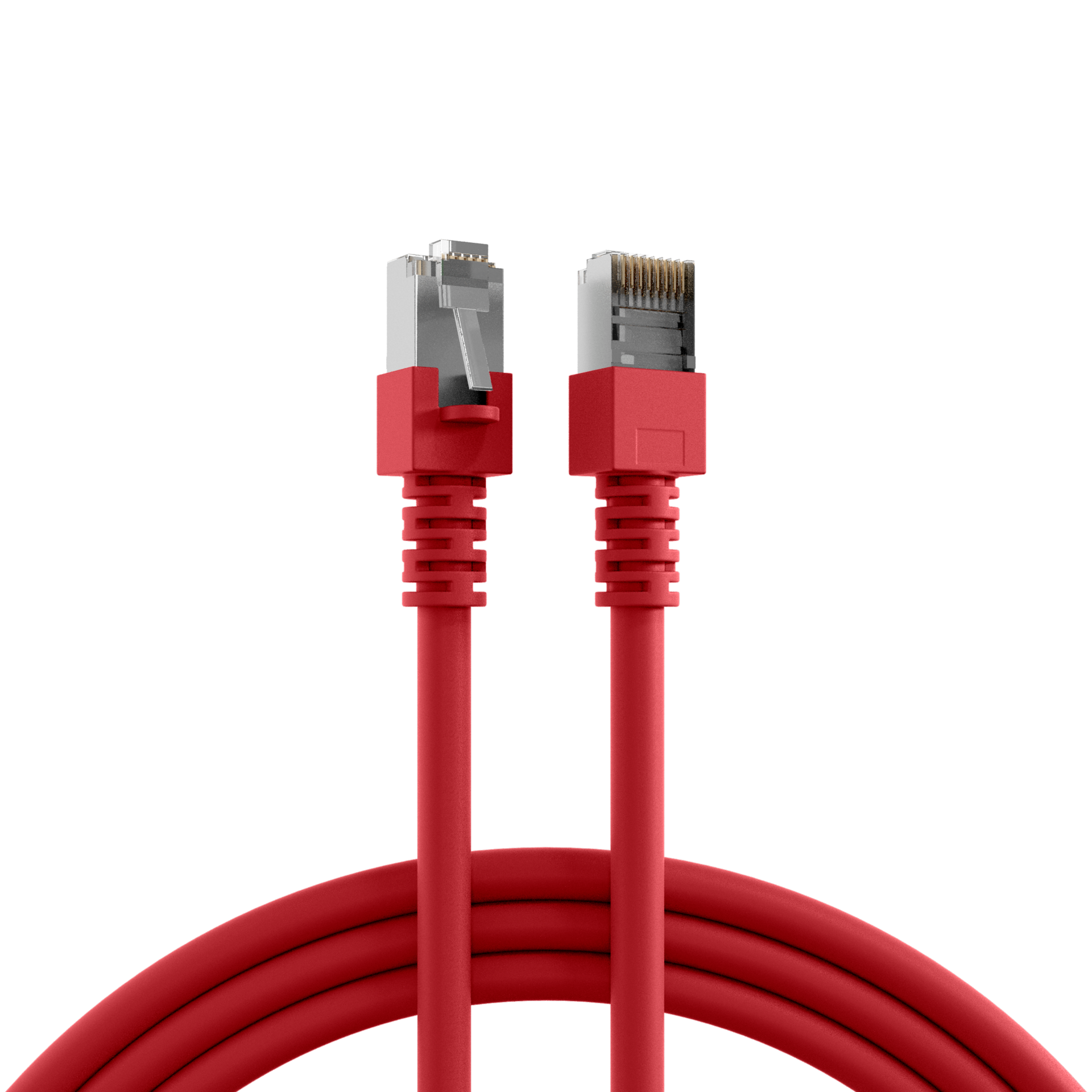

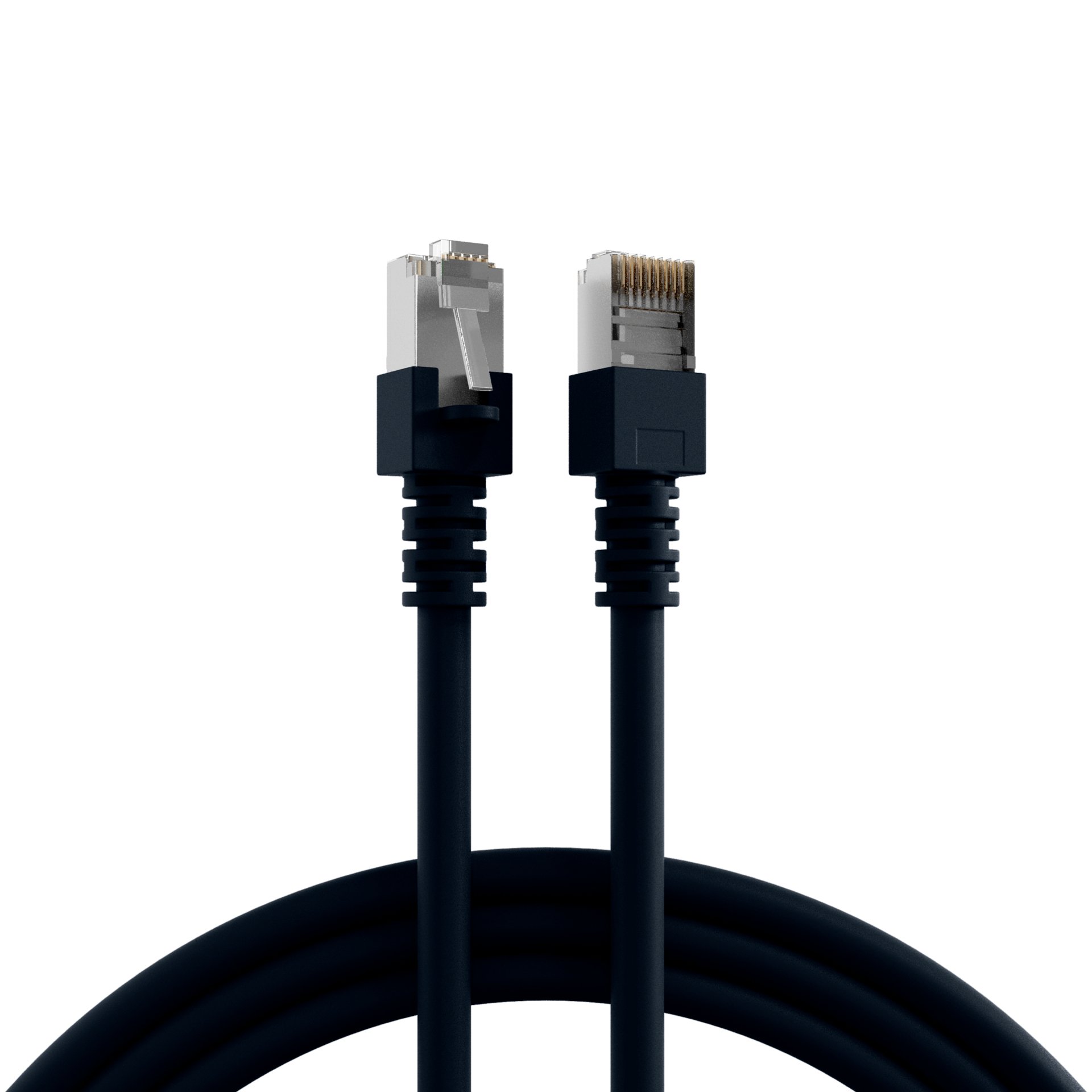

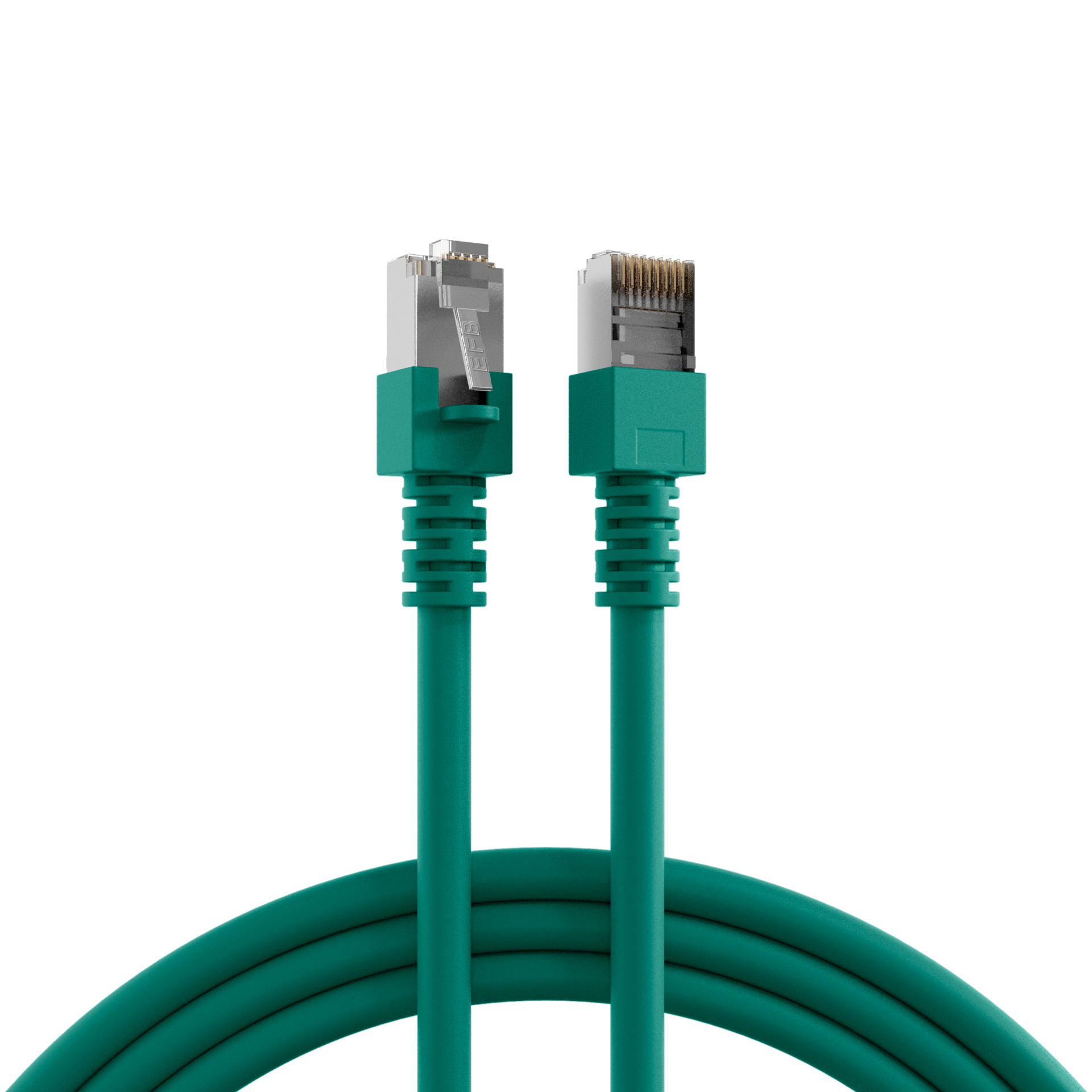

similar product
