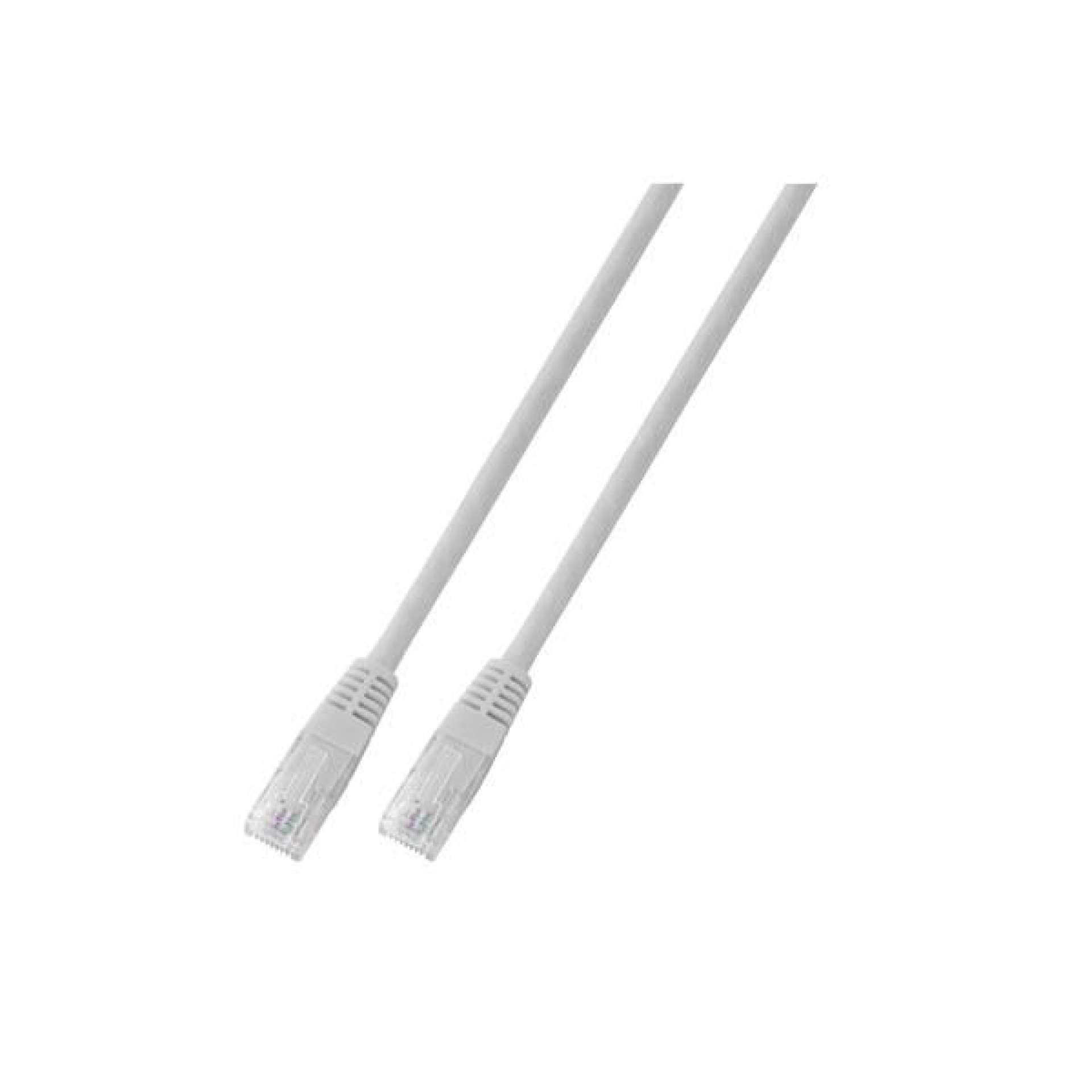

RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, white
Priser kun synlige for indloggede brugere
RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 0.5m, white
Varenummer:
K8092.0,5
EAN nr.:
4049759031978
Produktinformation für RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 0.5m, white
The unshielded Cat.5e RJ45 patch cable with ensures excellent performance for 2.5 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
Length imprint on the boot
Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
Length imprint on the boot
Tekniske egenskaber
| (Halogenfree): | False |
|---|---|
| AWG-size: | 24/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 100MHz |
| Bending radius: | 27 mm |
| Cable construction: | 4x2 |
| Cable type: | U/UTP |
| Cabling Standard: |
EN50173 ISO/IEC 11801 |
| Category: | 5e |
| Colour anti-kink sleeve: | white |
| Colour outer sheath: | white |
| Conductor Material: | CCA |
| Connector: | IEC 60603-7-2 |
| Connector type: | RJ45 standard |
| Contact resistance: | < 20 mΩ |
| Contacts: | Gold plated µ" gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | True |
| Jacket material: | Polyvinylchlorid (PVC) |
| Length imprint: | True |
| Locking lever: | False |
| Mating cycles: | ≥750 |
| Model: | Unshielded |
| NVP value: | - % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.4 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | UTP Cat.5E 100MHZ 24AWGX4P Patch ISO/IEC 11801 & EN 50173 verified |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | 0 – 60 °C |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianter
| Art. Nej. | Betegnelse | Length | Length tolerance | |
|---|---|---|---|---|
| K8092.0,5 | RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 0.5m, white | 0.5 m | ±5 % | |
| K8092.1 | RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 1m, white | 1.0 m | ±5 % | |
| K8092.1,5 | RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 1.5m, white | 1.5 m | ±5 % | |
| K8092.2 | RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 2m, white | 2.0 m | ±5 % | |
| K8092.3 | RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 3m, white | 3.0 m | ±5 % | |
| K8092.5 | RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 5m, white | 5.0 m | ±5 % | |
| K8092.7,5 | RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 7.5m, white | 7.5 m | ±5 % | |
| K8092.10 | RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 10m, white | 10.0 m | ±5 % | |
| K8092.15 | RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 15m, white | 15.0 m | ±5 % | |
| K8092.20 | RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 20m, white | 20.0 m | ±5 % | |
| K8092.25 | RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 25m, white | 25.0 m | ±5 % | |
| K8092.30 | RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 30m, white | 30.0 m | ±5 % |
