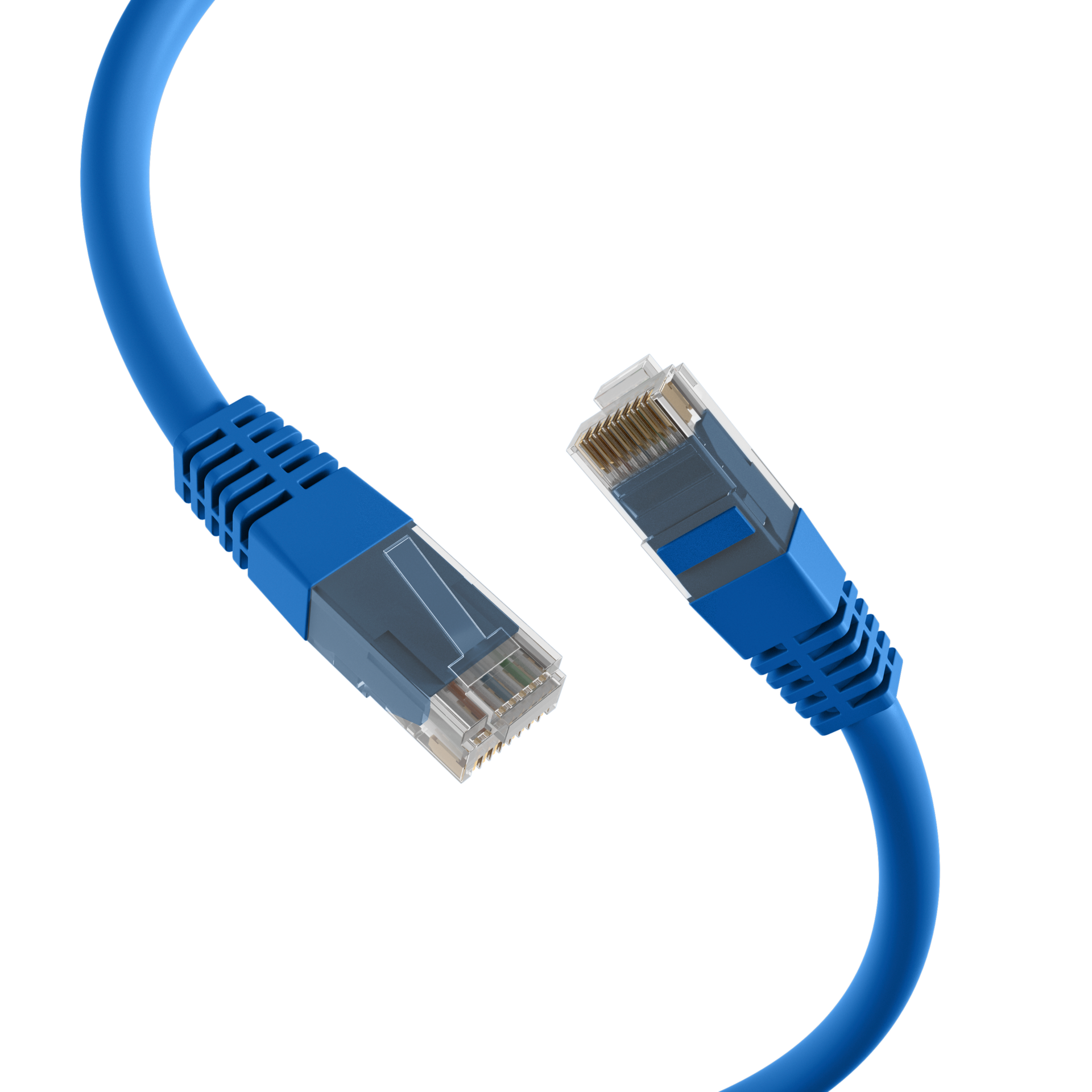

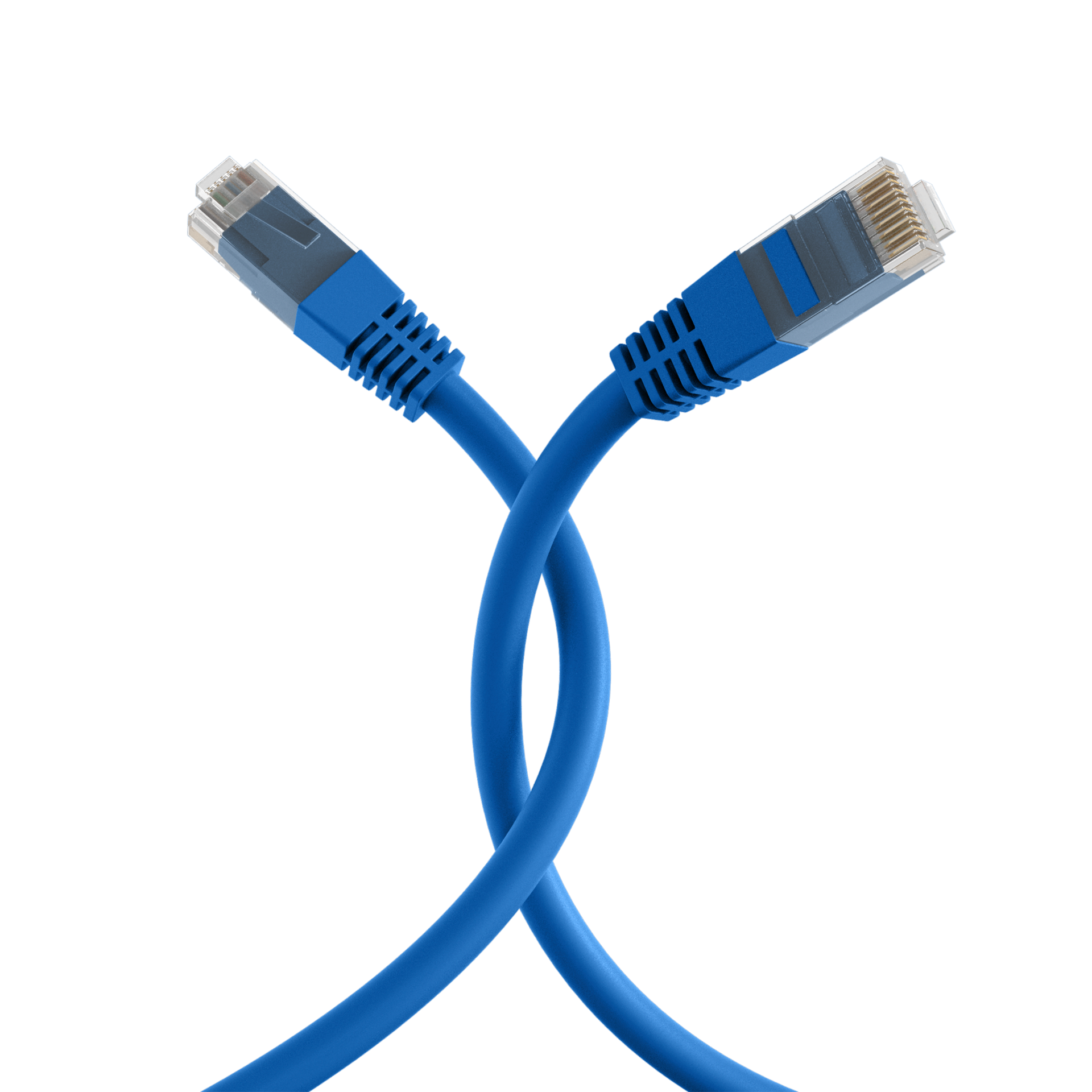

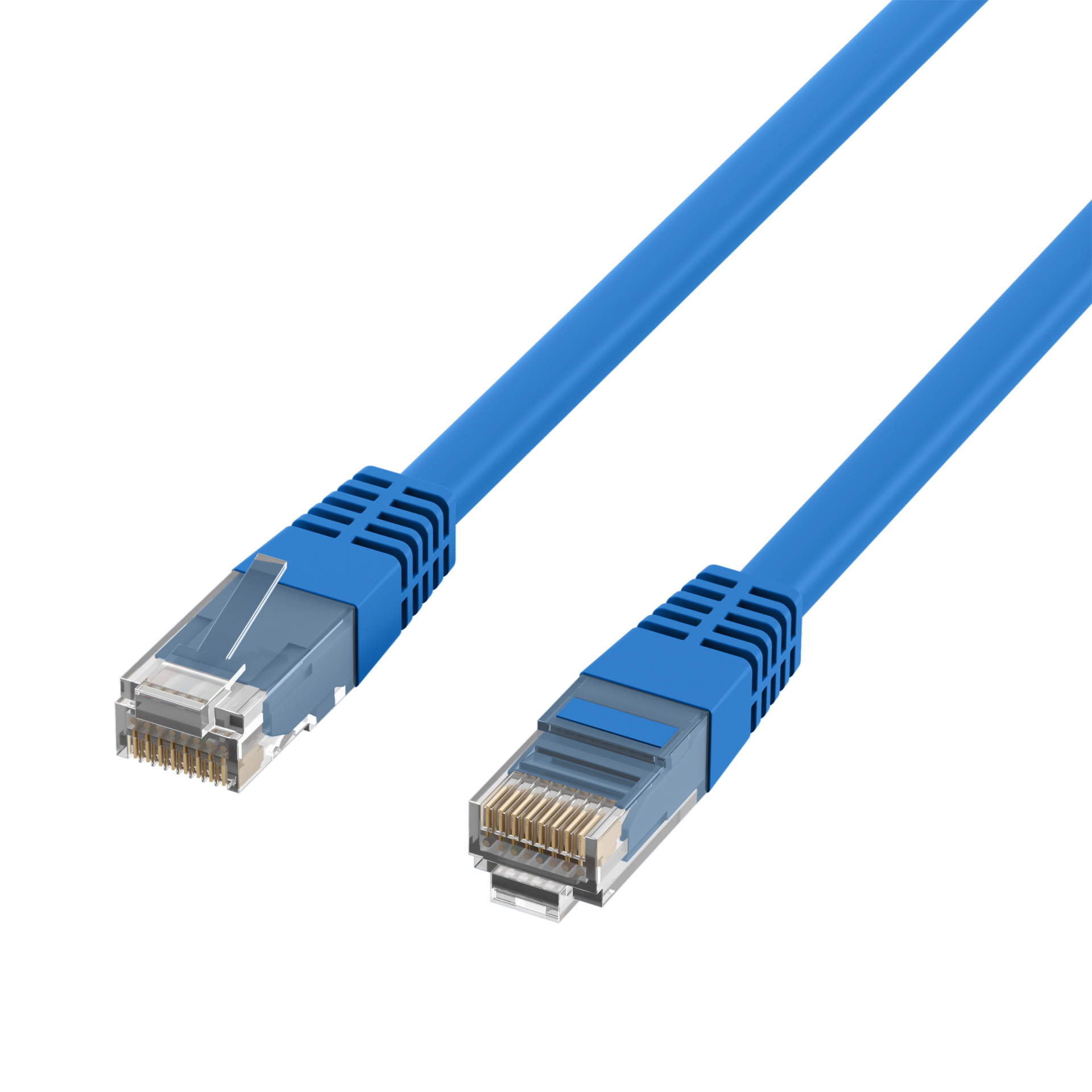

RJ45 Patchkabel Cat.5e U/UTP PVC CCA blau

RJ45 Patchkabel Cat.5e U/UTP PVC CCA blau 1m
Varenummer: K8094.1
EAN Nr.: 4049759032227

Produktinformation til RJ45 Patchkabel Cat.5e U/UTP PVC CCA blau 1m

RJ45 Patchkabel Cat.5e U/UTP PVC CCA

Das Cat.5e Patchkabel besitzt vergoldete Kontakte und erfüllt die Anforderungen für 2,5Gbit Ethernet.

Technische Produkteigenschaften
• Cat.5e
• U/UTP Kabel mit AWG24/7
• Mantelmaterial aus Polyvinylchlorid (PVC)
• Brandschutz: flammwidrig
• Steckverbindung: RJ45 auf RJ45
• Besitzt vergoldete Kontakte

Der Mantel des Patchkabels besteht aus Polyvinylchlorid (PVC) Material und hat einen Längenaufdruck auf der Tülle. Darüber hinaus bietet das Kabel die Option zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.

Die Belegung der RJ45-Stecker erfolgt nach TIA/EIA 568B und ist 1:1. Geeignet für den Temperaturbereich 0 – 60 °C.

Das Netzwerkkabel verfügt über ein Leitermaterial aus CCA und eignet sich ideal für Anwendungen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Die Bandbreite beträgt dabei bis zu 100 MHz.

Tekniske egenskaber

(Halogenfree): False
AWG-size: 24/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: moulded-on
Area of Application: Data center
Industrial Ethernet

Structured cabling
Bandwidth: 100MHz
Bending radius: 27 mm
Cable construction: 4x2
Cable type: U/UTP
Cabling Standard: ANSI/TIA-568-C.2
EN50173

ISO/IEC 11801
Category: 5e
Colour anti-kink sleeve: blue
Colour outer sheath: blue
Conductor Material: CCA
Connector: IEC 60603-7-2
Connector type: RJ45 standard
Contact Resistance: < 20 mΩ
Contacts: Gold plated µ" Gold plated
Current Rating: max. 1 A
Fire retardant version: True
Jacket Material: Polyvinylchlorid (PVC)
Length imprint: True
Locking lever: False
Mating cycles: ≥750
Model: Unshielded
NVP value: - %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 5.4 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at

PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: UTP Cat.5E 100MHZ 24AWGX4P Patch ISO/IEC 11801 & EN 50173 verified www.efb-elektronik.de
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: 0 – 60 °C
Test voltage: 1000 (V DC, 1min) core/core und core/screen
Transmission: 2.5Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianten

Art. Nr. Bezeichnung Length Length tolerance
K8094.1 RJ45 Patchkabel Cat.5e U/UTP PVC CCA blau 1m 1.0 m ±5 %
K8094.1,5 RJ45 Patchkabel Cat.5e U/UTP PVC CCA blau 1,5m 1.5 m ±5 %
K8094.10 RJ45 Patchkabel Cat.5e U/UTP PVC CCA blau 10m 10.0 m ±5 %
K8094.15 RJ45 Patchkabel Cat.5e U/UTP PVC CCA blau 15m 15.0 m ±5 %
K8094.2 RJ45 Patchkabel Cat.5e U/UTP PVC CCA blau 2m 2.0 m ±5 %
K8094.20 RJ45 Patchkabel Cat.5e U/UTP PVC CCA blau 20m 20.0 m ±5 %
K8094.25 RJ45 Patchkabel Cat.5e U/UTP PVC CCA blau 25m 25.0 m ±5 %
K8094.3 RJ45 Patchkabel Cat.5e U/UTP PVC CCA blau 3m 3.0 m ±5 %
K8094.5 RJ45 Patchkabel Cat.5e U/UTP PVC CCA blau 5m 5.0 m ±5 %
K8094.7,5 RJ45 Patchkabel Cat.5e U/UTP PVC CCA blau 7,5m 7.5 m ±5 %
