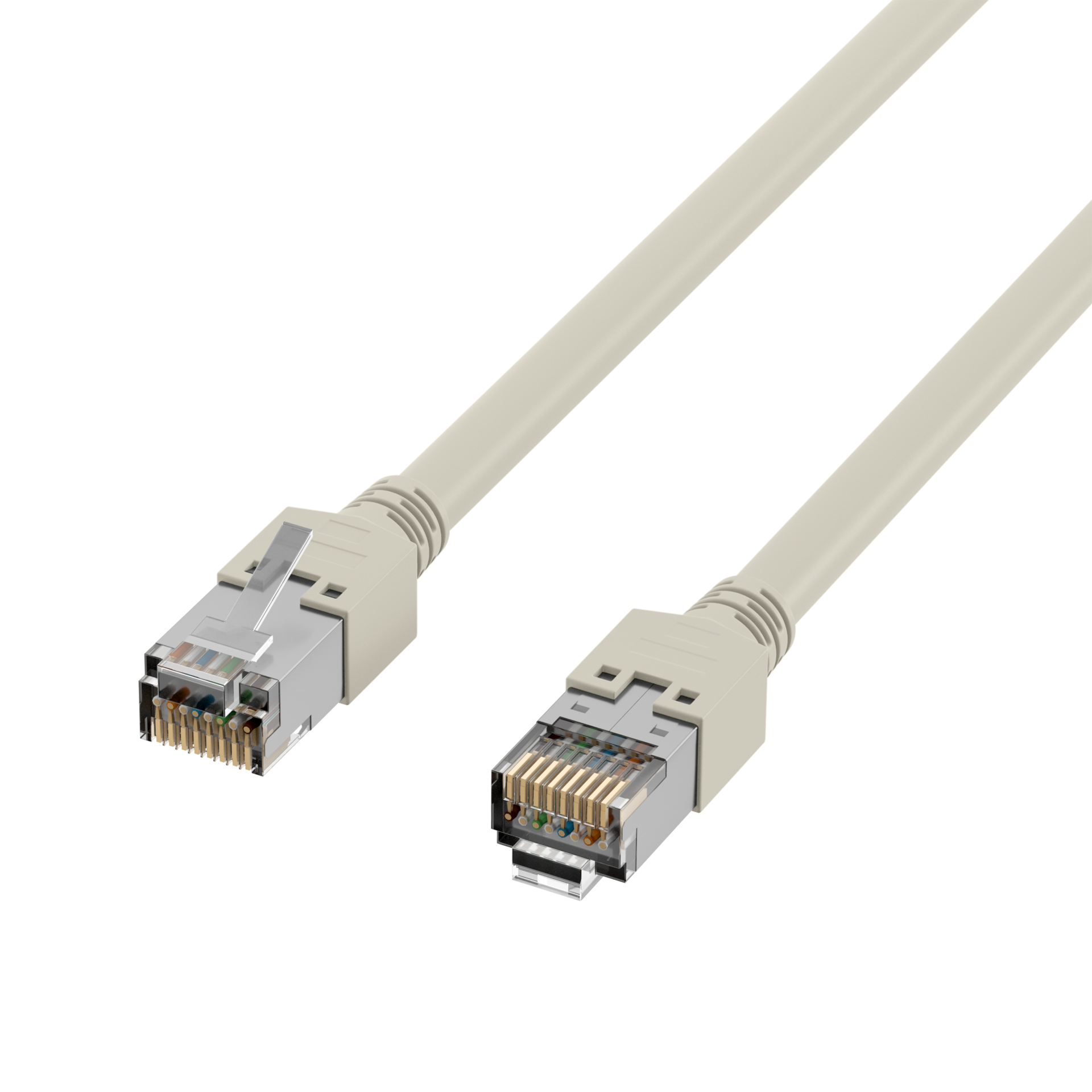

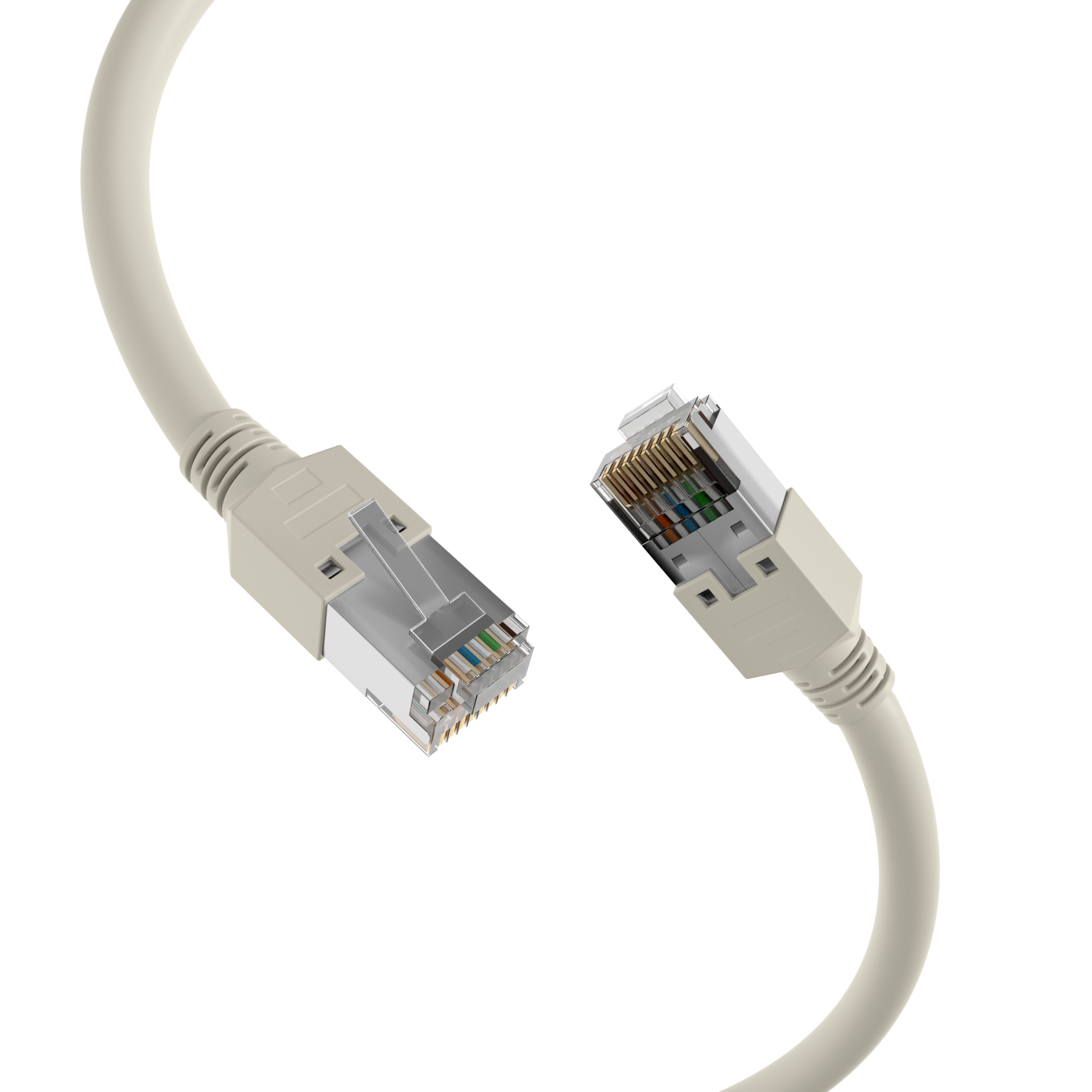

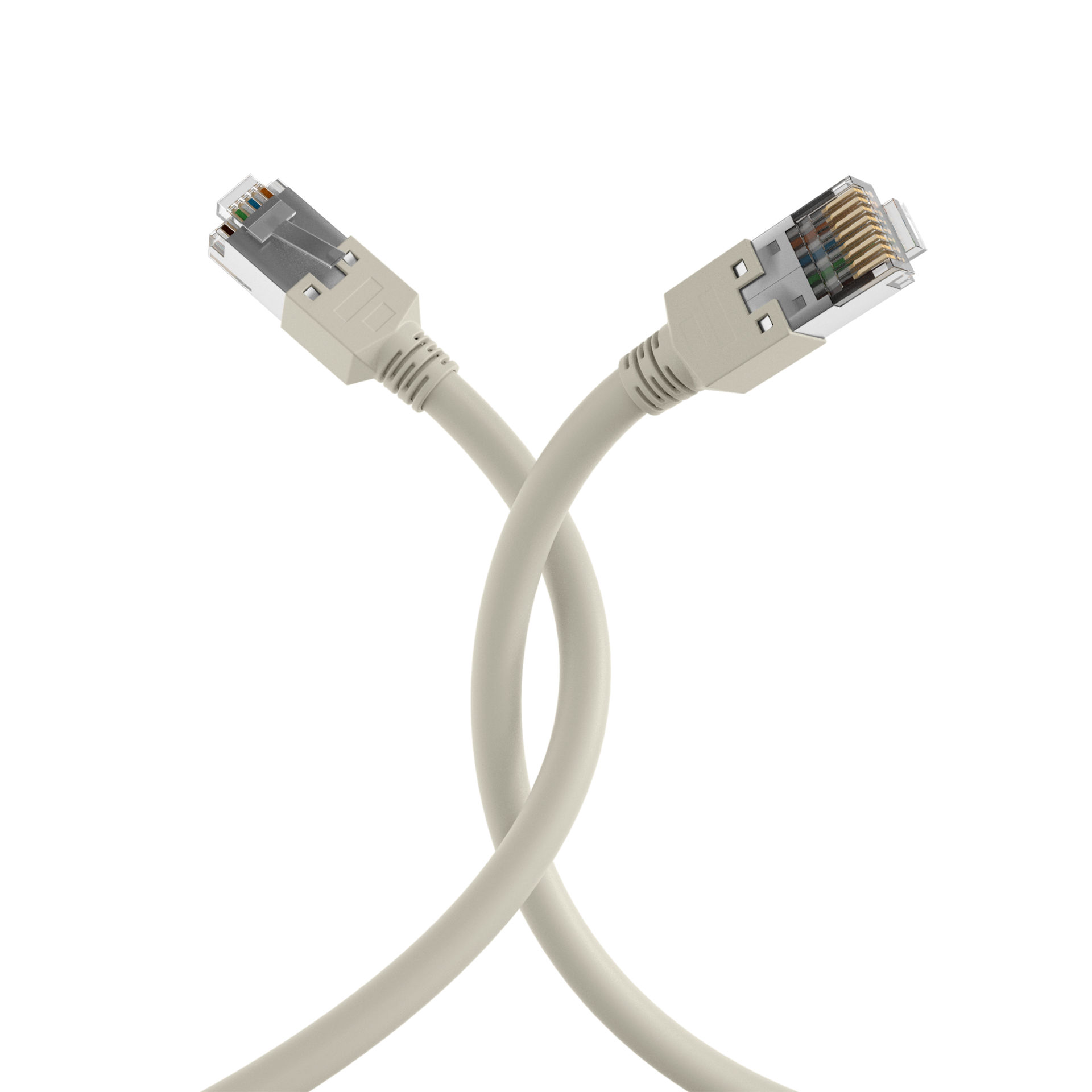

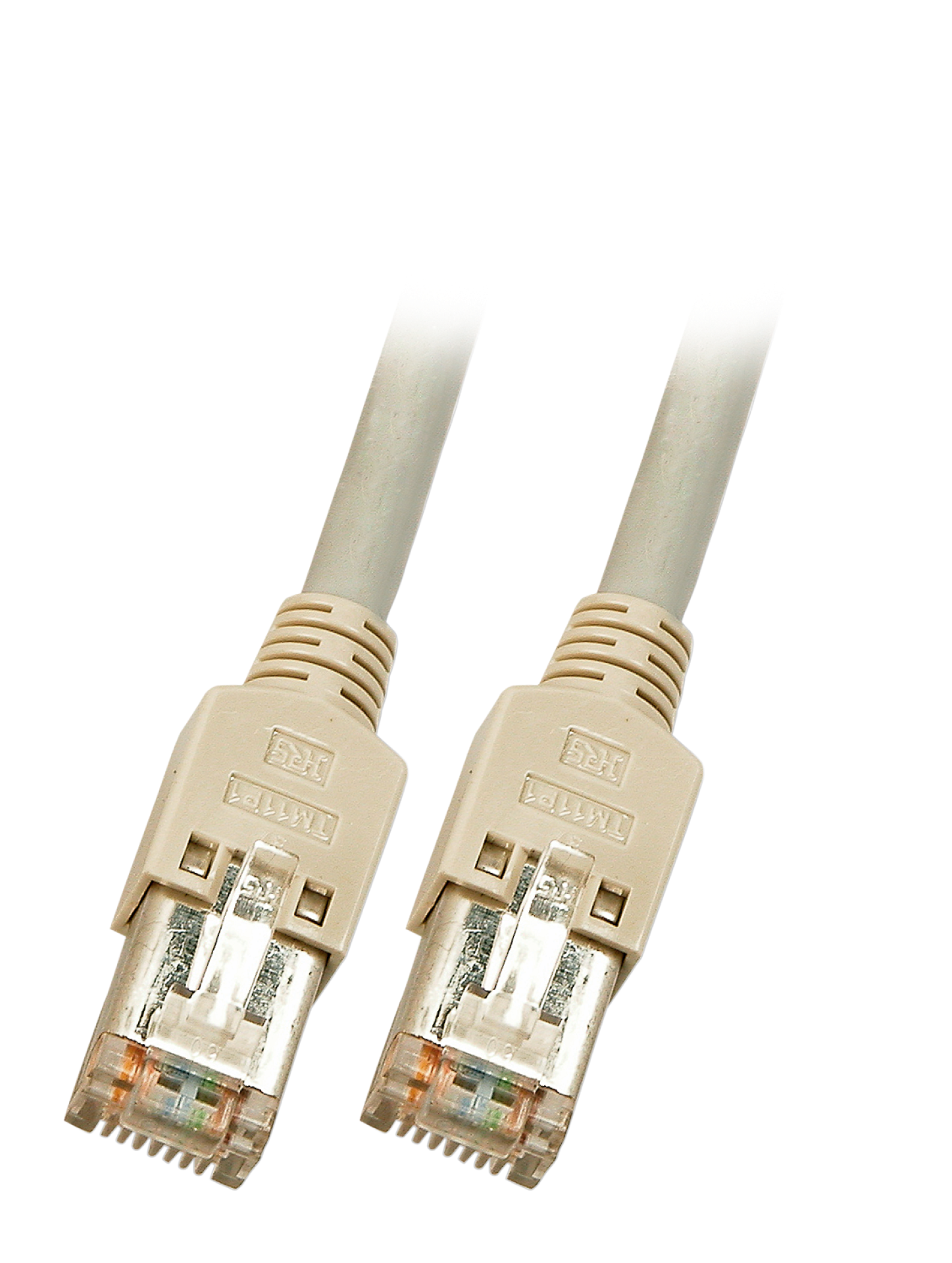

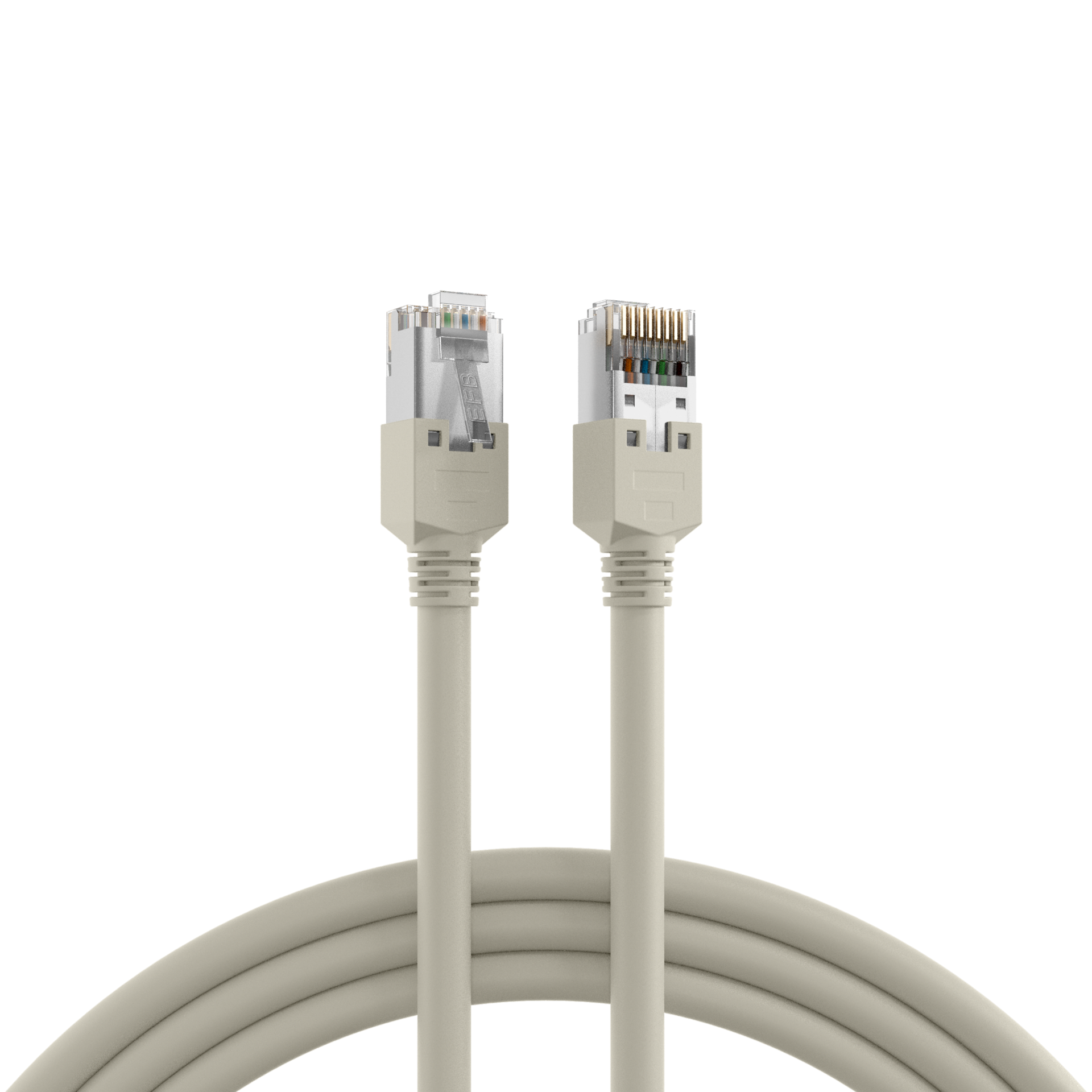

RJ45 Patch Cord Cat.5e F/UTP LSZH Draka UC300 TM11 grey
RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 0,5m
Varenummer:
K8452.0,50
EAN Nr.:
4049759015749
Produktinformation til RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 0,5m
RJ45 patch cable Cat.5e F/UTP LSZH Draka UC300 TM11
The Cat.5e patch cable has gold-plated contacts and enables 2.5Gbit Ethernet as a transmission standard.
Technical product properties
• Cat.5e
• F/UTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the TM11 plugs is according to TIA/EIA 568B and is 1:1 .
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
The Cat.5e patch cable has gold-plated contacts and enables 2.5Gbit Ethernet as a transmission standard.
Technical product properties
• Cat.5e
• F/UTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the TM11 plugs is according to TIA/EIA 568B and is 1:1 .
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 100MHz |
| Bending radius: | >20 mm |
| Cable construction: | 4x2 |
| Cable type: | F/UTP |
| Cable type acc. to Manufacturer: | Draka UC300 S26 |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 5e |
| Colour anti-kink sleeve: | grey |
| Colour outer sheath: | grey |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 130 Ω/km |
| Connector: | IEC 60603-7-3 |
| Connector type: | TM11 |
| Contacts: | Gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-1 |
| Halogen-free: | yes |
| Impedance: | 100 ±15 Ω |
| Insulation Resistance: | > 2000 MΩ |
| Jacket Material: | LSZH |
| Length imprint: | False |
| Locking lever: | False |
| Loop resistance: | < 260 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 67 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.4 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Resistance unbalance: | < 3 % |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K8452.0,50 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 0,5m | 0.5 m | ±5 % | |
| K8452.1 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 1m | 1.0 m | ±5 % | |
| K8452.1,5 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 1,5m | 1.5 m | ±5 % | |
| K8452.2 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 2m | 2.0 m | ±5 % | |
| K8452.3 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 3m | 3.0 m | ±5 % | |
| K8452.5 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 5m | 5.0 m | ±5 % | |
| K8452.7,5 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 7,5m | 7.5 m | ±5 % | |
| K8452.10 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 10m | 10.0 m | ±5 % | |
| K8452.15 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 15m | 15.0 m | ±5 % | |
| K8452.20 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 20m | 20.0 m | ±5 % | |
| K8452.25 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 25m | 25.0 m | ±5 % | |
| K8452.30 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 30m | 30.0 m | ±5 % | |
| K8452.50 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 grey 50m | 50.0 m | ±5 % |
