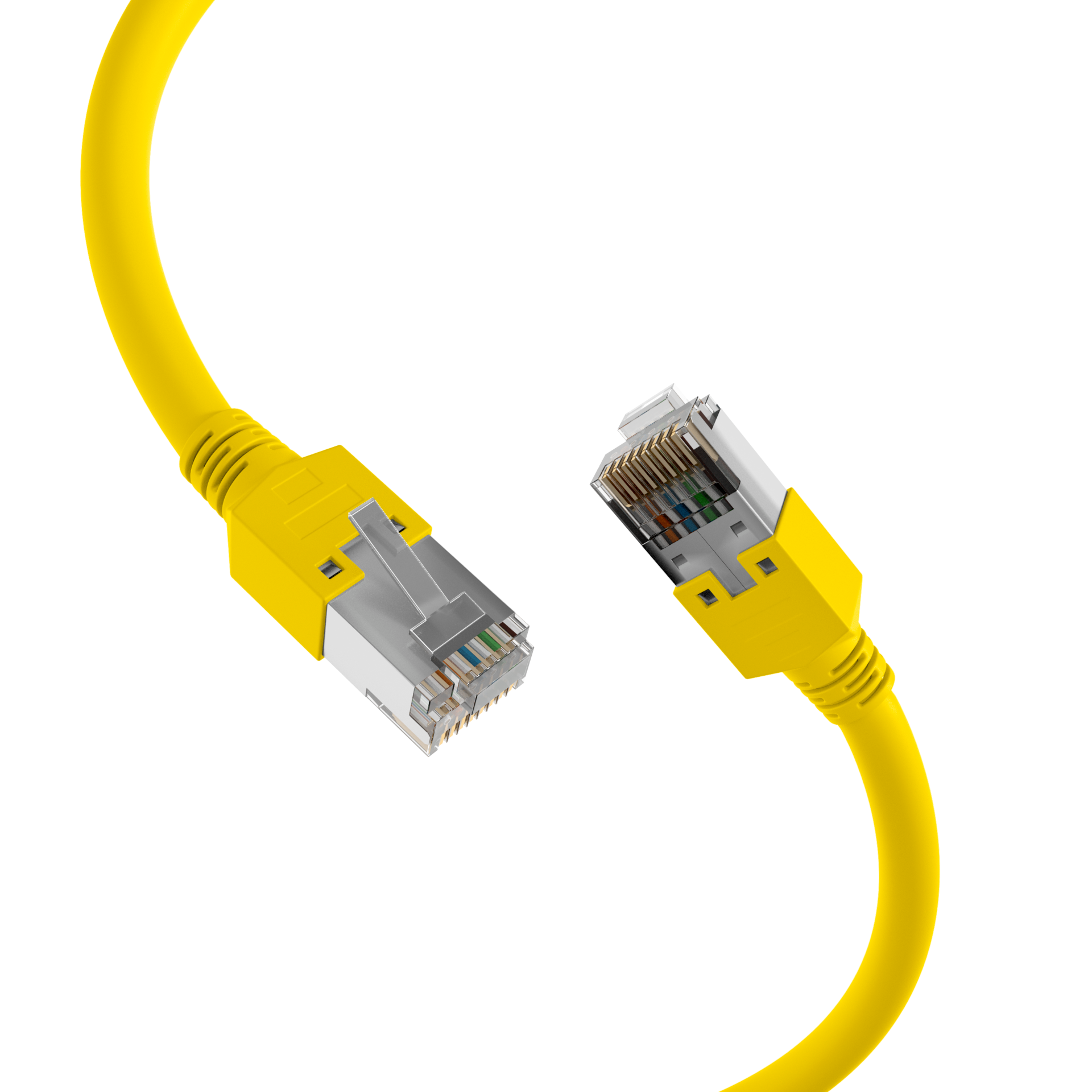

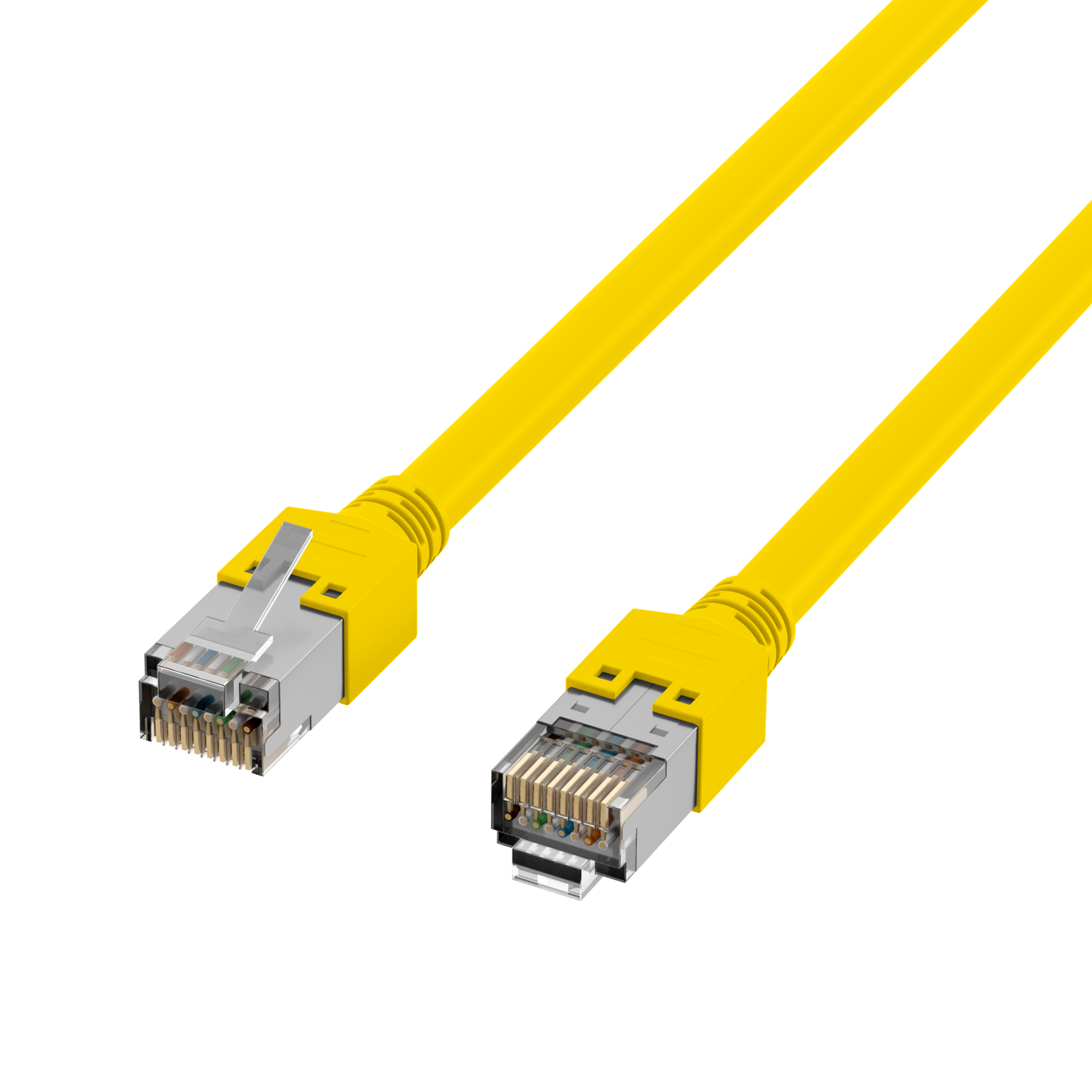

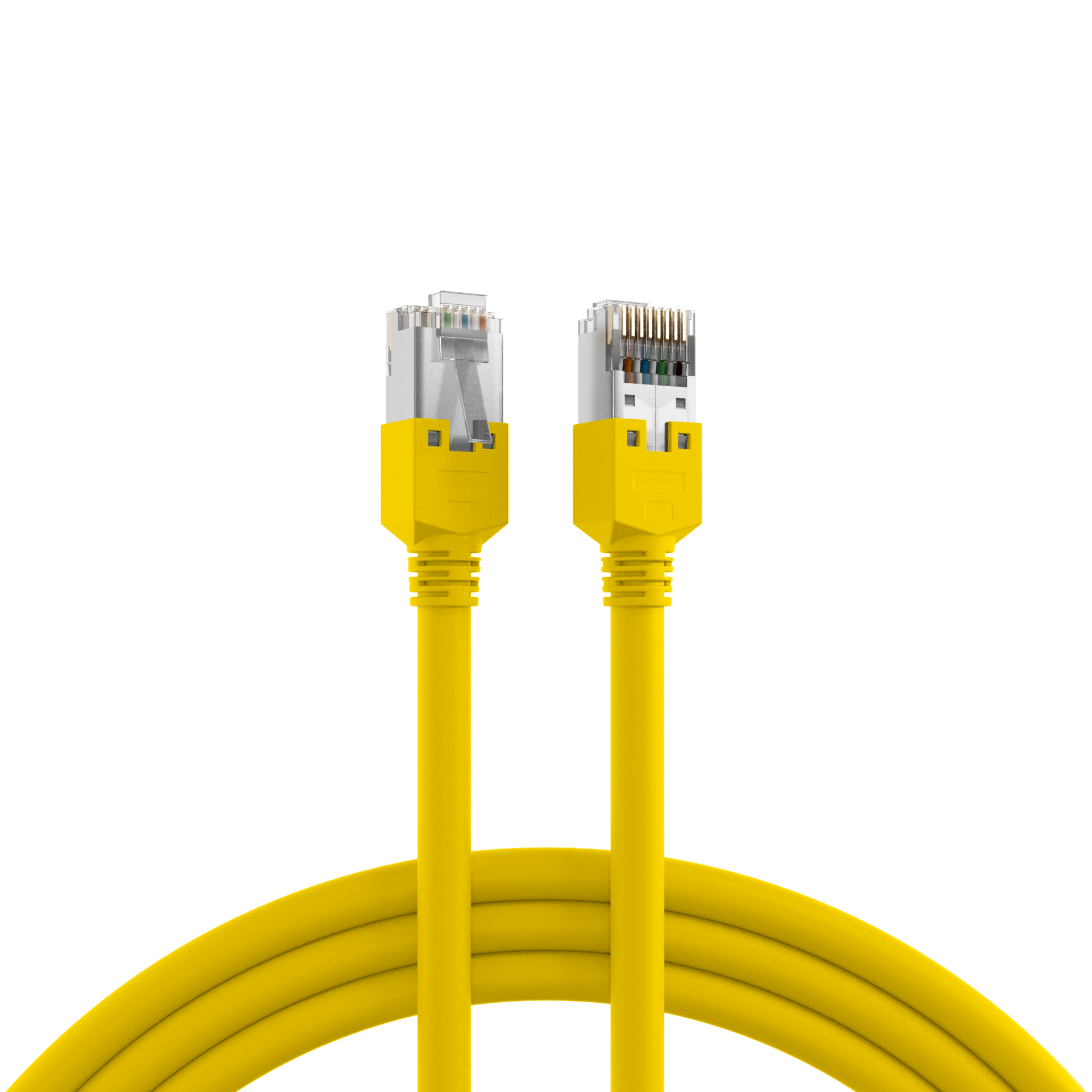

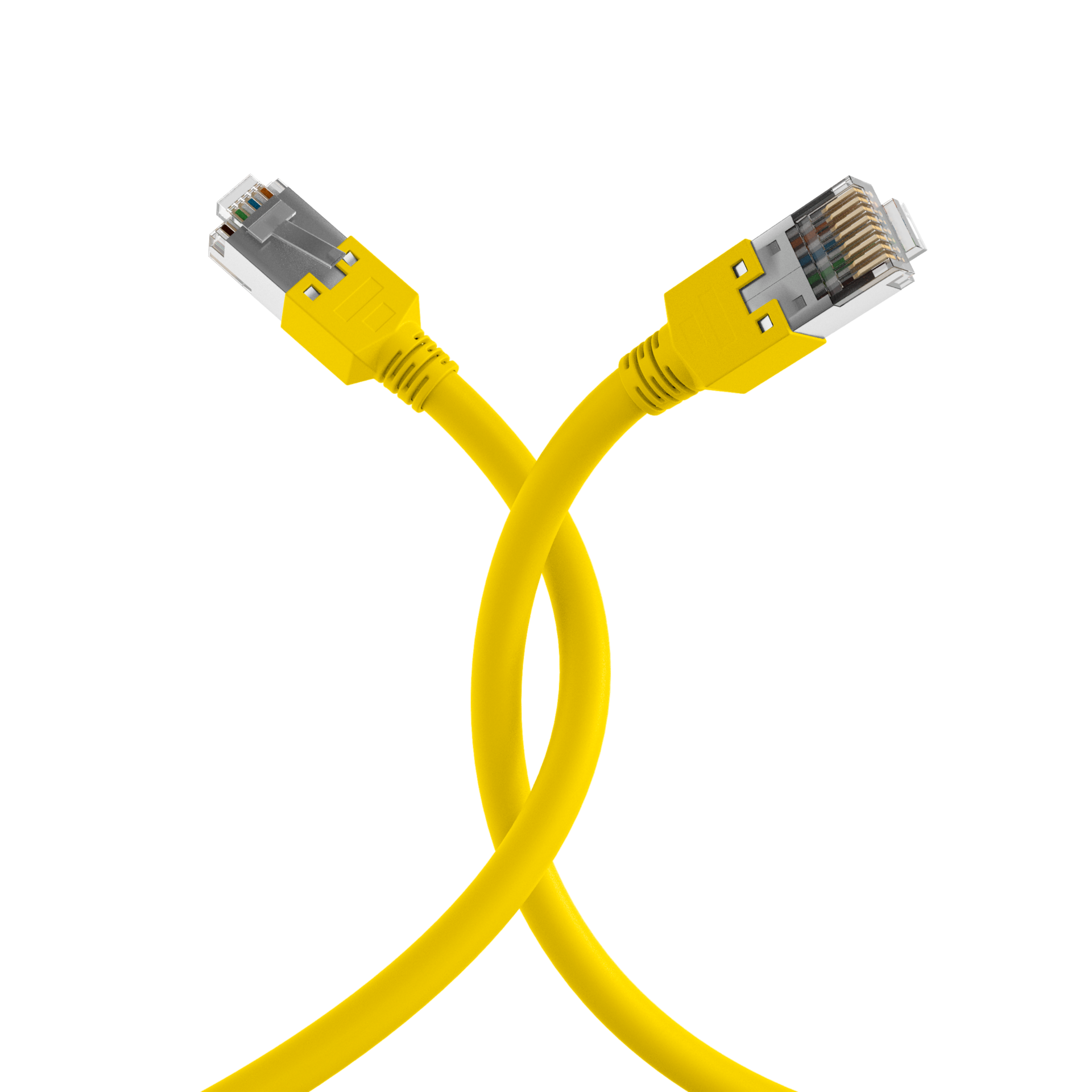

RJ45 Patch Cord Cat.5e S/UTP PVC Dätwyler 5502 TM11 yellow
RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 0,5m
Varenummer:
K8702.0,50
EAN Nr.:
4049759009595
Produktinformation til RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 0,5m
RJ45 patch cable Cat.5e SF/UTP LSZH Draka UC300 TM11 crossed
The Cat.5e patch cable has gold-plated contacts and meets the requirements for 2.5Gbit Ethernet.
Technical product properties< br>• Cat .5e
• SF/UTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the TM11 plugs is the classic crossover for Gigabit Ethernet: 1-3 , 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
The Cat.5e patch cable has gold-plated contacts and meets the requirements for 2.5Gbit Ethernet.
Technical product properties< br>• Cat .5e
• SF/UTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the TM11 plugs is the classic crossover for Gigabit Ethernet: 1-3 , 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
Tekniske egenskaber
| (Halogenfree): | False |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 100MHz |
| Bending radius: | >20 mm |
| Cable construction: | 4x2 |
| Cable type: | S/UTP |
| Cable type acc. to Manufacturer: | Dätwyler CU 5502 flex |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 5e |
| Colour anti-kink sleeve: | yellow |
| Colour outer sheath: | yellow |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 113 Ω/km |
| Connector: | IEC 60603-7-3 |
| Connector type: | TM11 |
| Contacts: | Gold plated µ" Gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | False |
| Impedance: | 100 ±15 Ω |
| Jacket Material: | Polyvinylchlorid (PVC) |
| Length imprint: | False |
| Locking lever: | False |
| Loop resistance: | 225 Ω/km |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 76 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.1 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K8702.0,50 | RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 0,5m | 0.5 m | ±5 % | |
| K8702.1 | RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 1m | 1.0 m | ±5 % | |
| K8702.1,5 | RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 1,5m | 1.5 m | ±5 % | |
| K8702.2 | RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 2m | 2.0 m | ±5 % | |
| K8702.3 | RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 3m | 3.0 m | ±5 % | |
| K8702.5 | RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 5m | 5.0 m | ±5 % | |
| K8702.7,5 | RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 7,5m | 7.5 m | ±5 % | |
| K8702.10 | RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 10m | 10.0 m | ±5 % | |
| K8702.15 | RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 15m | 15.0 m | ±5 % | |
| K8702.20 | RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 20m | 20.0 m | ±5 % | |
| K8702.25 | RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 25m | 25.0 m | ±5 % | |
| K8702.30 | RJ45 Patch Cord Cat.5e S/UTP PVCDätwyler 5502 TM11 yellow 30m | 30.0 m | ±5 % |
